1" 600LB Forged Steel Gate Valve Body ASTM A105N RF H.W.

1" 600LB Forged Steel Gate Valve Body ASTM A105N RF H.W.

Key Specifications / Features

Model No.: Hits: 0

1" 600LB Forged Steel Gate Valve is made according to API602 standard. The valve body is made of ASTM A105N. It has the structural characteristics of bolt bonnet, solid wedge. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote

Detail Information

Product Description

Type Forged Steel Gate Valve
Size 1”
Pressure 600LB
Connection RF
Operation H.W.
Body Material ASTM A105N
Design Norm API 602
Face to Face ASME B16.10
End connection ASME B16.5
Pressure-temperature ASME B16.34
Test & Inspection Code API 598
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Gas

Features

1. Made by forging high-quality steel, which enhances mechanical strength, durability, and resistance to high pressure and temperature;
2. Suitable for high-pressure and high-temperature applications such as steam, oil, and gas pipelines.

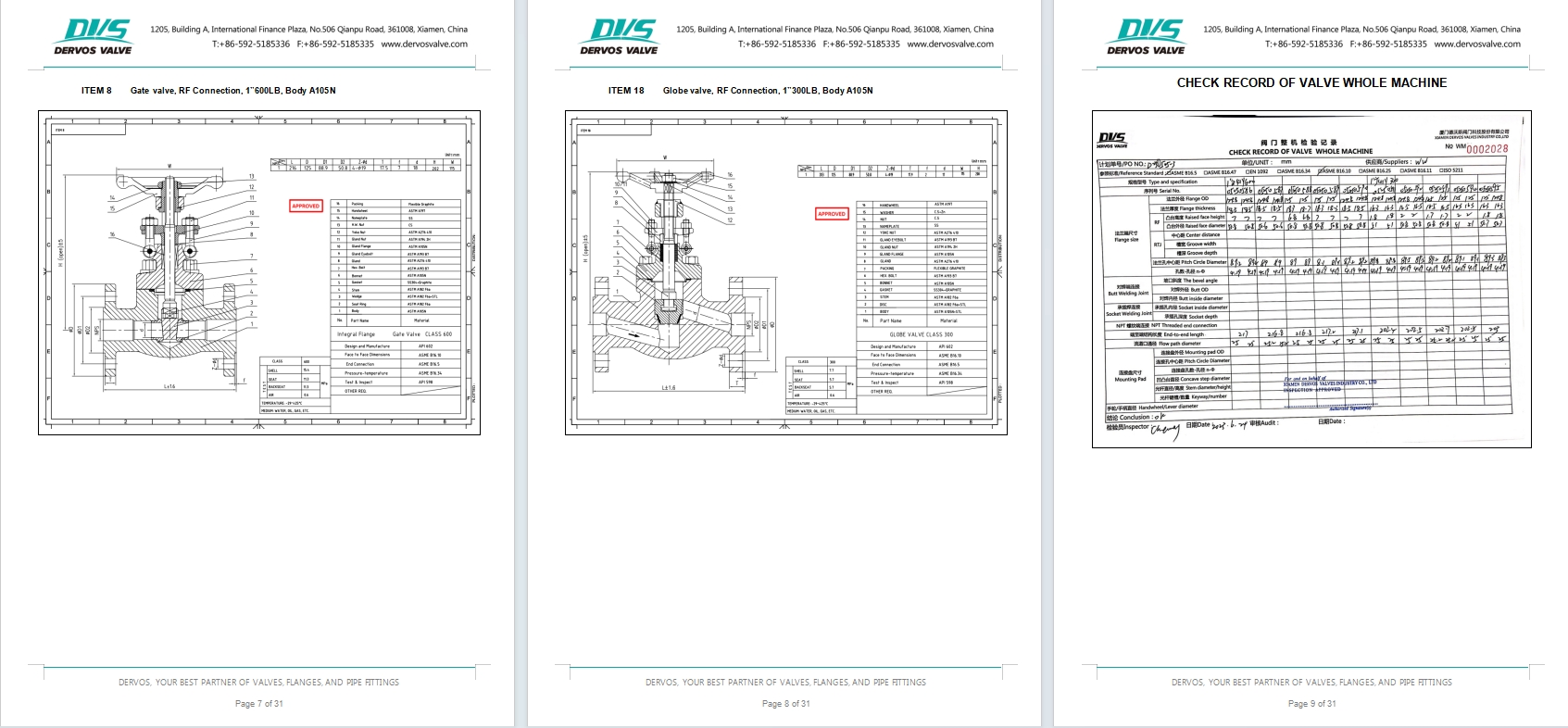

Gate Valve Technical Drawing

Forged Steel Gate Valve

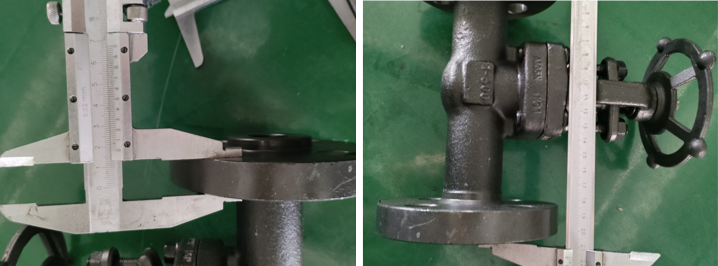

Dimension Checking

Forged Steel Gate Valve

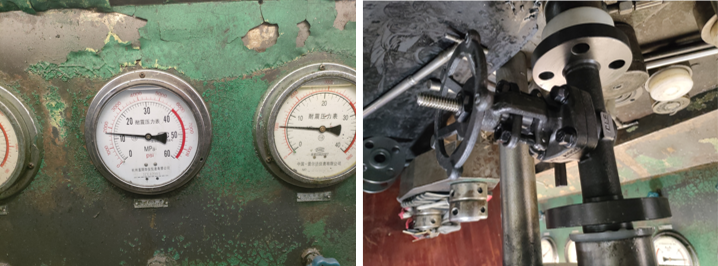

Pressure Testing

Forged Steel Gate Valve

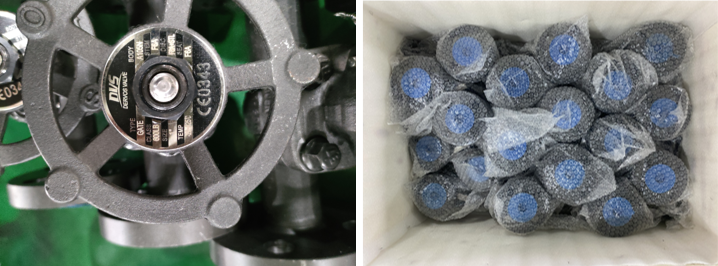

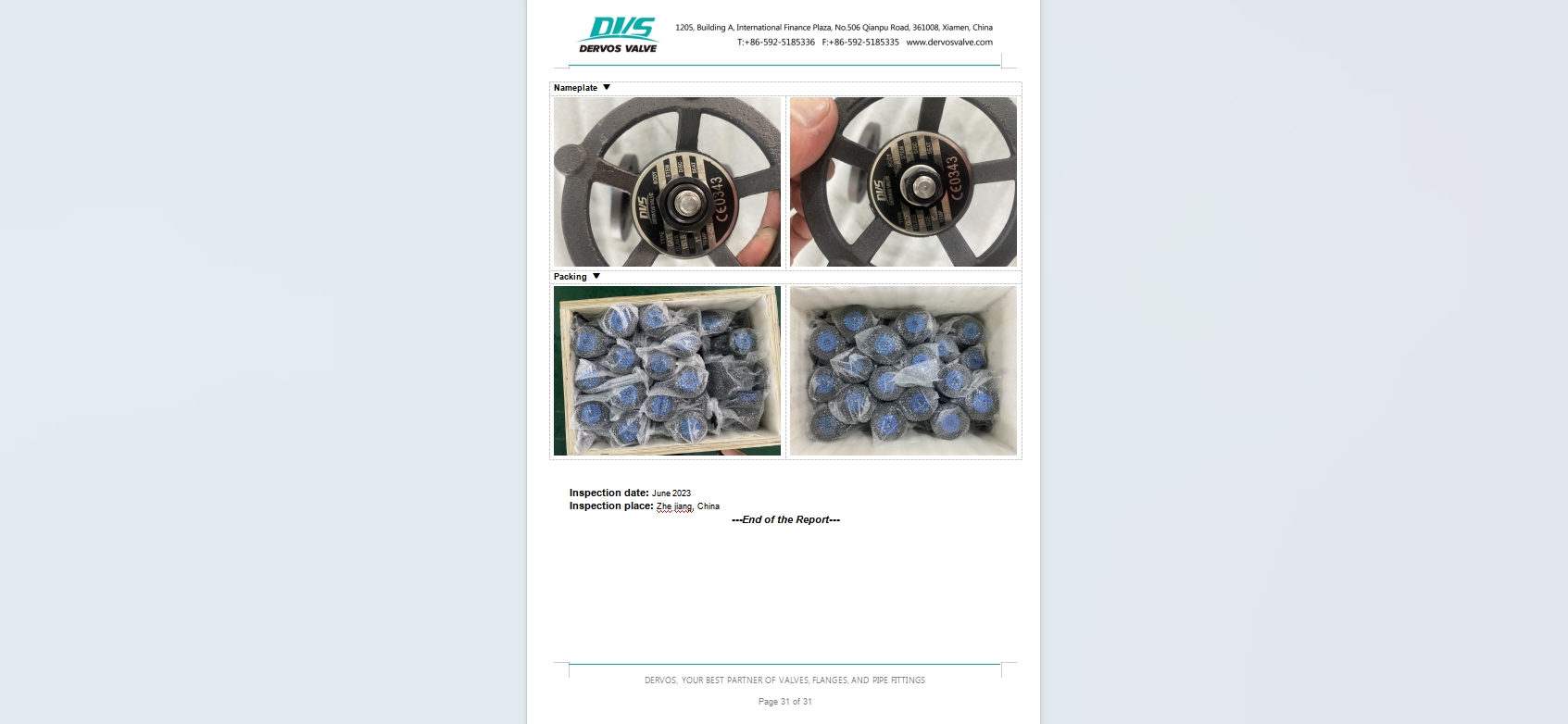

Nameplate & Packing

Forged Steel Gate Valve

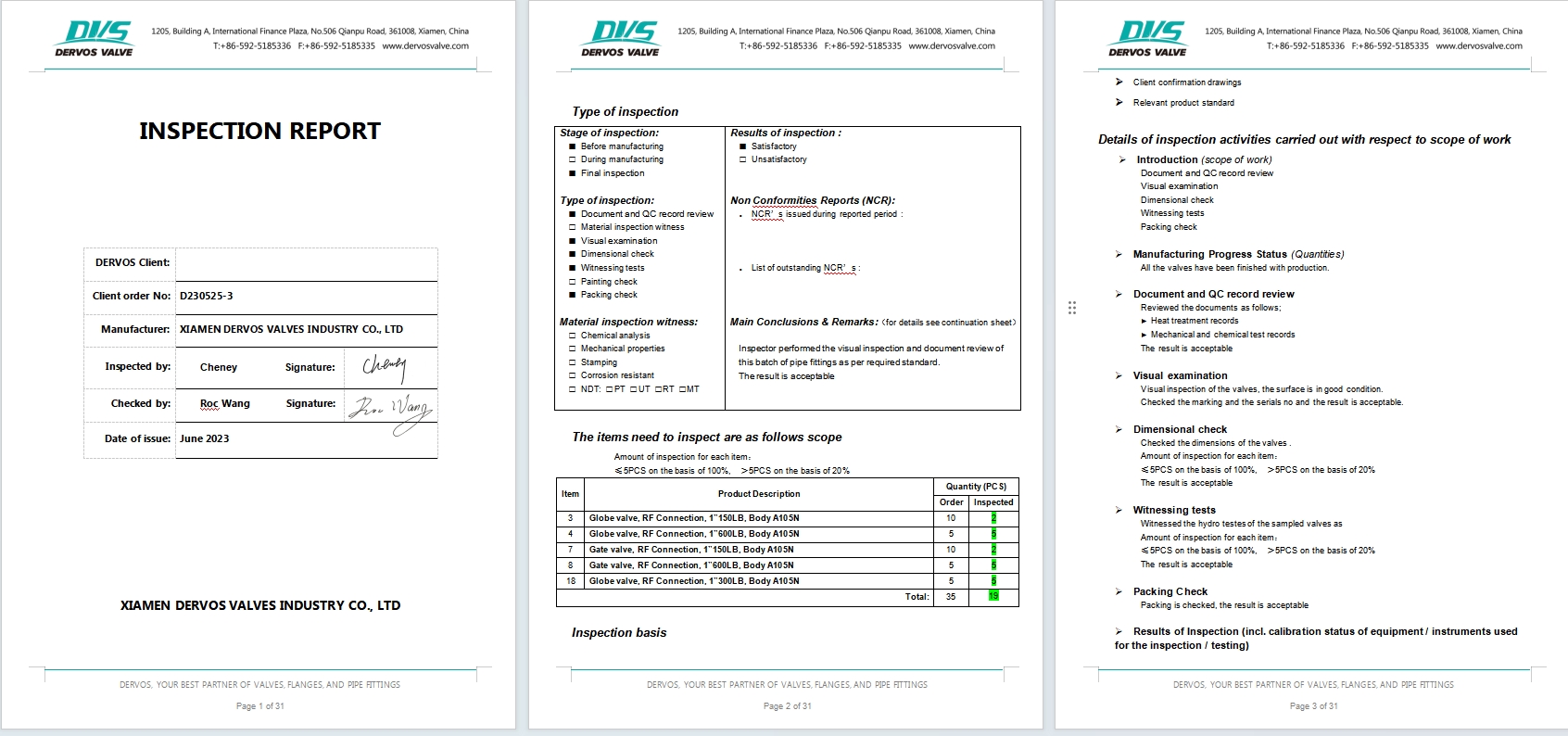

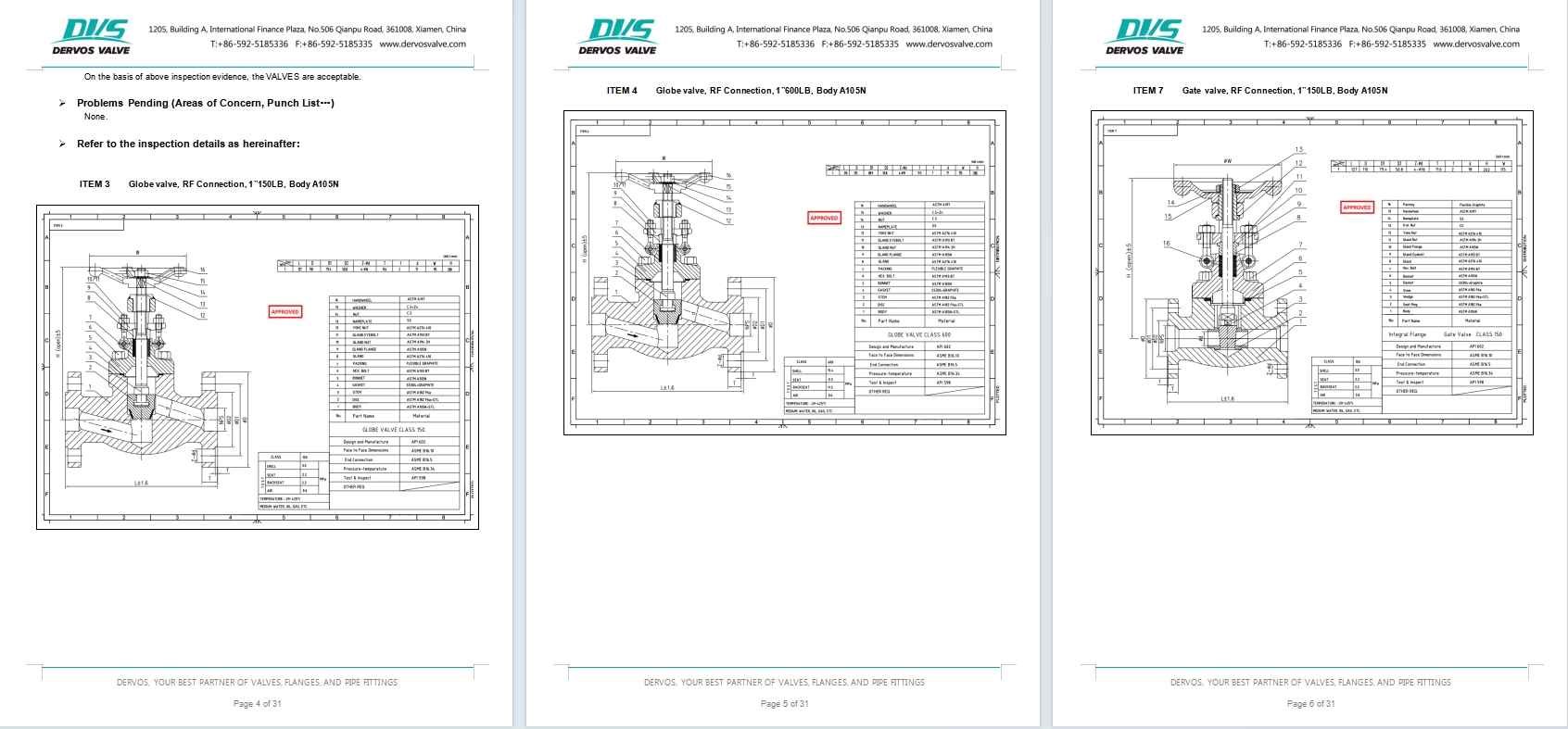

Inspection report

Forged Steel Gate Valve
Forged Steel Gate Valve
Forged Steel Gate Valve
Forged Steel Gate Valve
