2" 1500LB Dual Plate Wafer-Lug Type Check Valve WCB API 594

2" 1500LB Dual Plate Wafer-Lug Type Check Valve WCB API 594
2" 1500LB Dual Plate Wafer-Lug Type Check Valve WCB API 594

Key Specifications / Features

Model No.: Hits: 0

2" 1500LB Wafer Check Valve is made according to API 594 standard. The valve body is made of WCB. It has the structural characteristics of Dual Plate. Its connection mode is Lug.
Request a quote

Next: Return to List

Previous: PN40 DN150 Check Valve EN1092-1 B1 1.4571 API 594

Detail Information

Product Parameters

Type Dual Plate Wafer Lug Type Check Valve
Size 2”
Pressure 15000LB
Connection Lug
Body Material A216 WCB
Design Norm API 594
Face to face API 6D
Flange ends ANSI B16.34
Test & Inspection Code API 598
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Gas

Features

1.Dual plate design provides fast closing action to effectively prevent backflow and water hammer.
2.WCB cast steel body with wafer-lug connection ensures compact installation and reliable high-pressure performance.

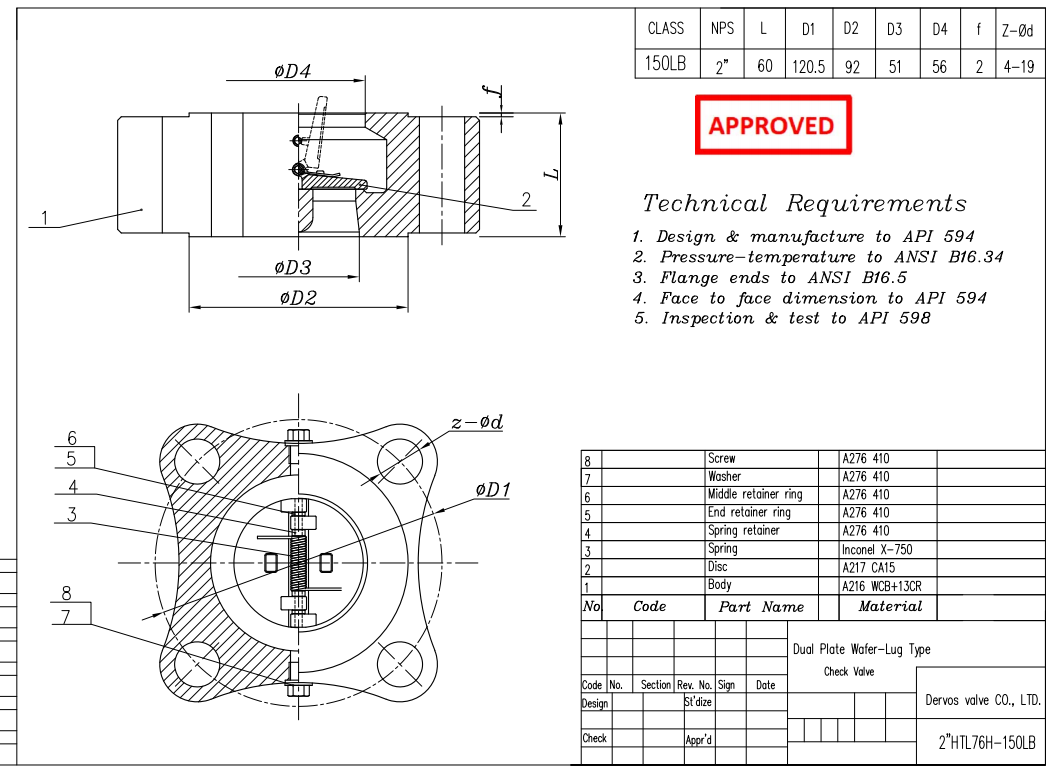

Technical Drawing

Wafer Check Valve

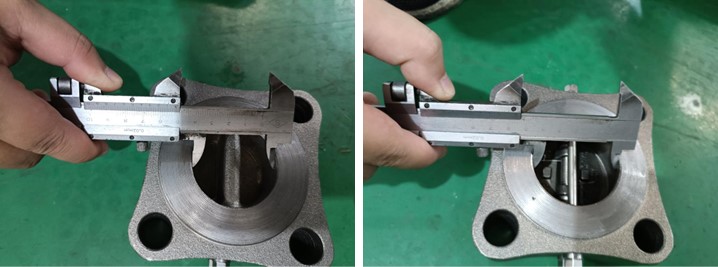

Dimension Checking

Wafer Check Valve

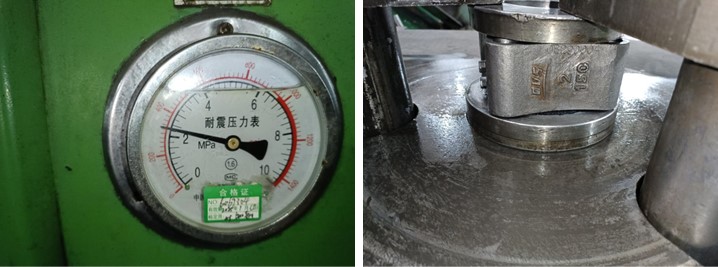

Pressure Testing

Wafer Check Valve

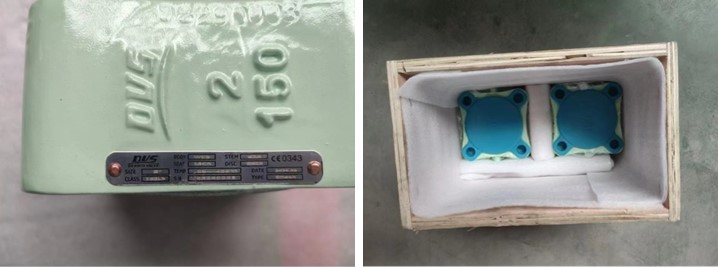

Nameplate & Packing

Wafer Check Valve

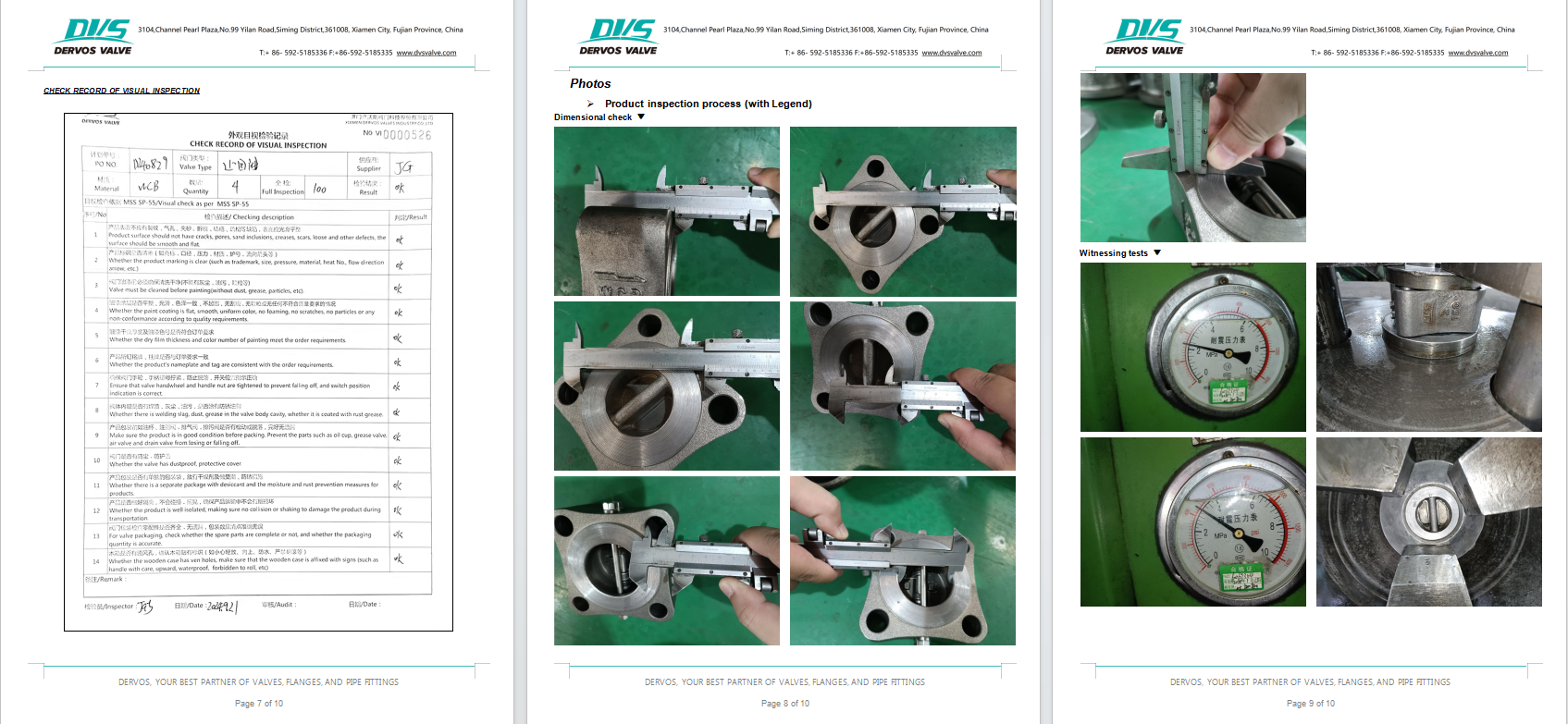

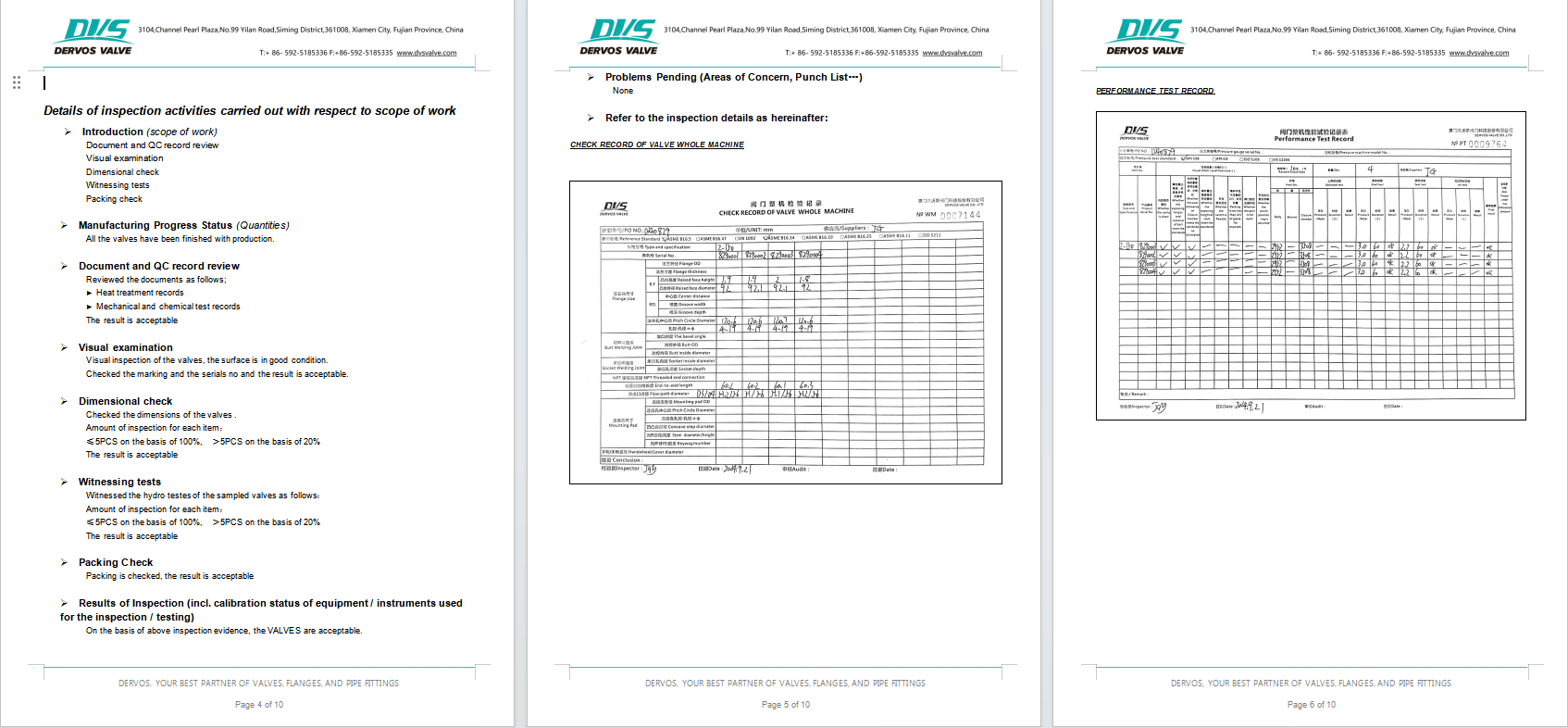

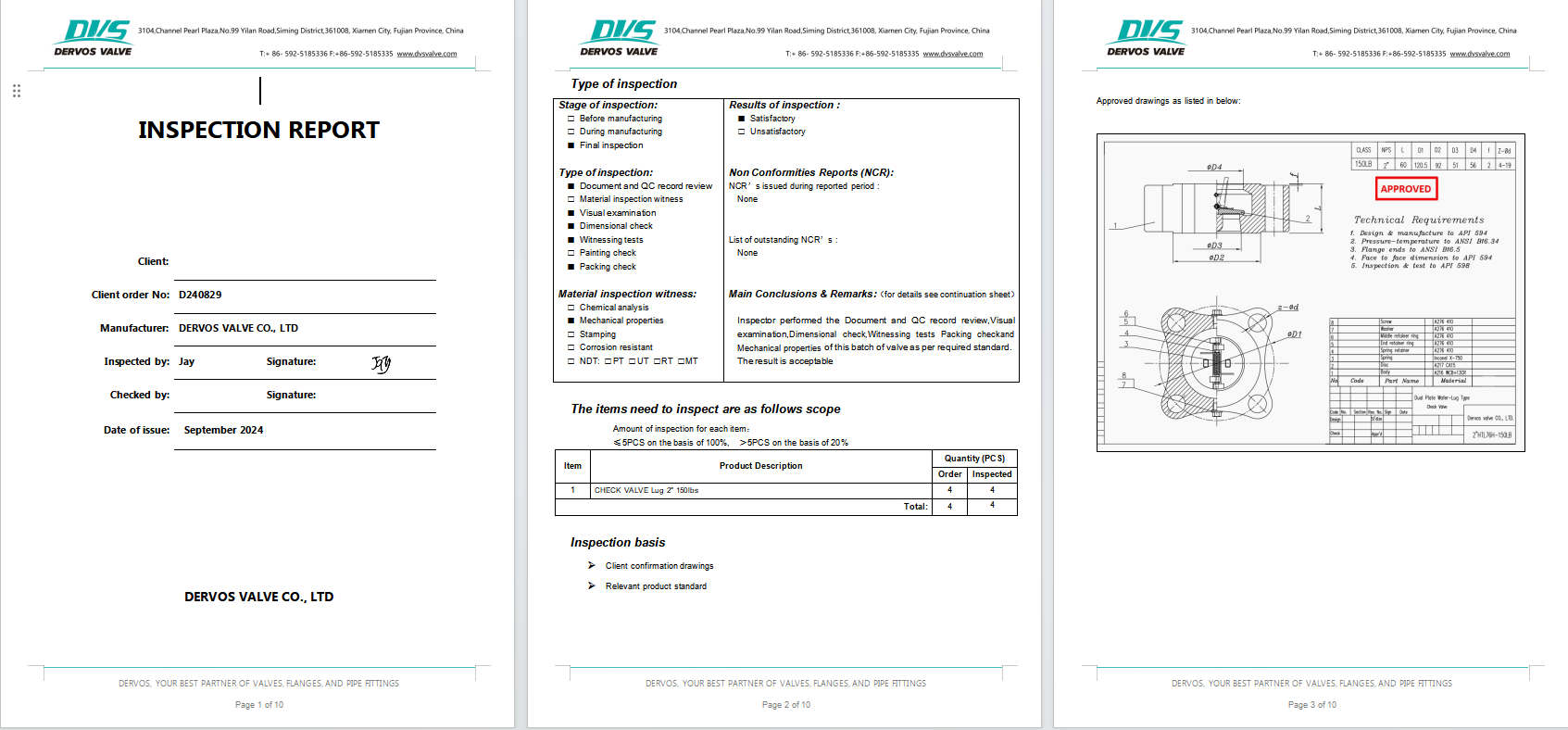

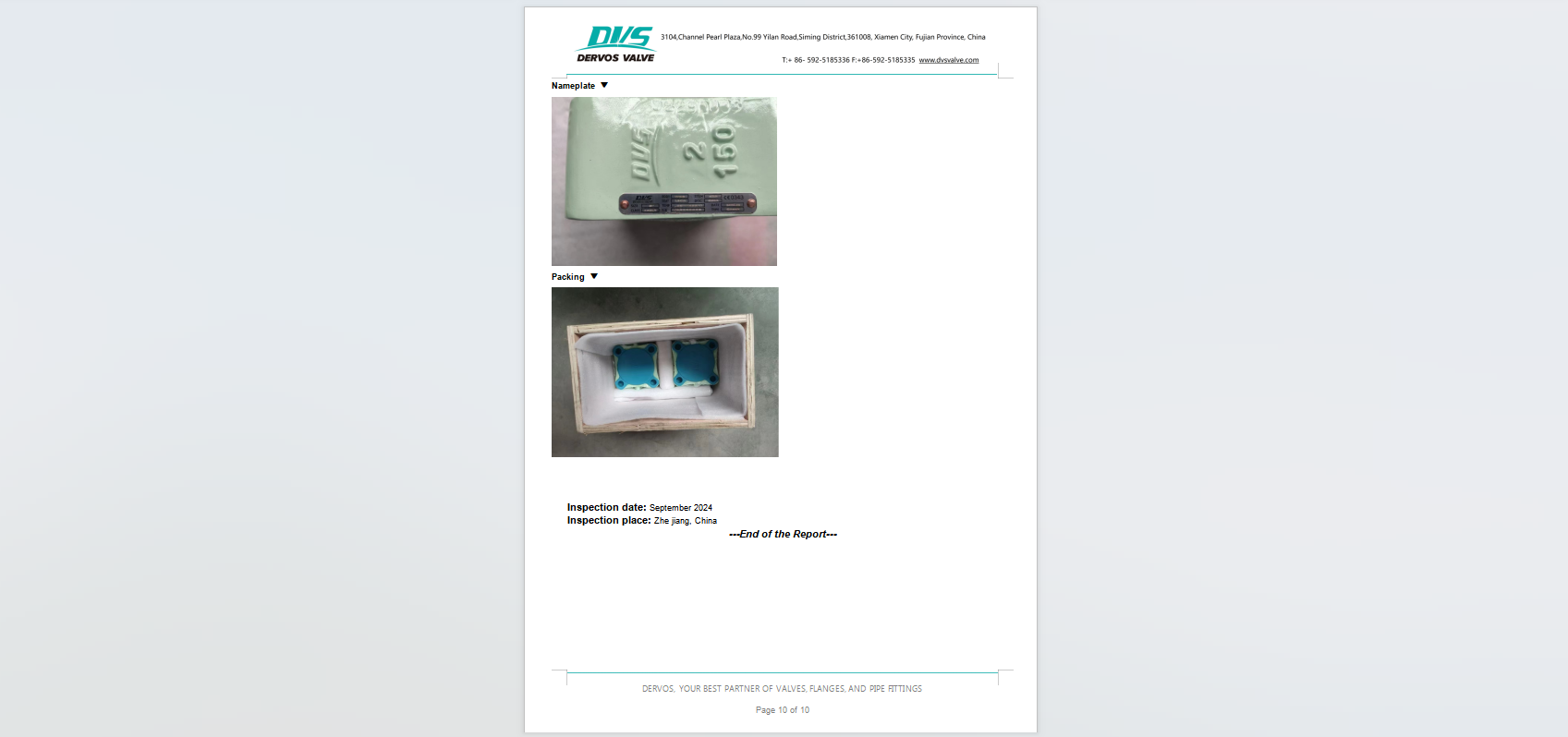

Inspection Report

Wafer Check ValveWafer Check ValveWafer Check ValveWafer Check Valve
