4” 150LB Gate Valve ASTM A536 Flange H.W.
Key Specifications / Features
Model No.: Hits: 0
4” 150LB Gate Valve is made according to AWWA C515 standard. The valve body is made of ASTM A536 65-45-12. It has the structural characteristics of Bolted Bonnet with Soft Sealing. Its connection mode is Flange. And it has hand wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Description
| Type | Gate Valve |
| Size | 4" |
| Pressure | 150LB |
| Connection | flange |
| Operation | H.W. |
| Body Material | ASTM A536 65-45-12 |
| Design Norm | AWWA C515 |
| Temperature | -10 ~ 120°C |
| Applicable Medium | Water, Oil and Steam |
Features
1. Designed to AWWA C515 standard, with ASTM A536 65-45-12 body for excellent strength and ductility.2. Bolted bonnet and soft sealing design with flanged ends and handwheel operation ensures reliable and user-friendly service.

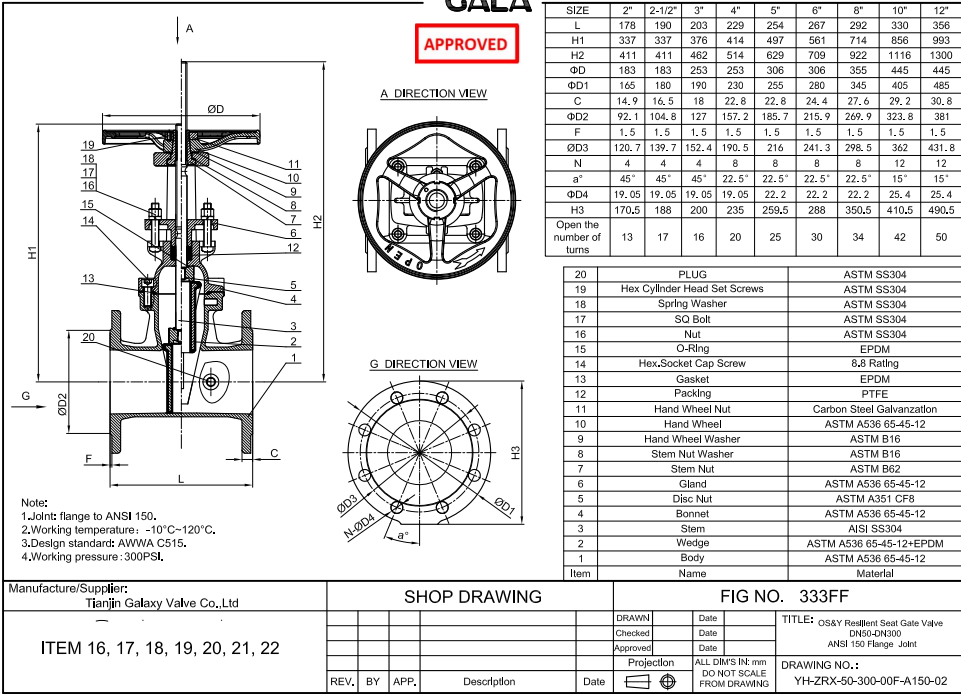

Technical Drawing

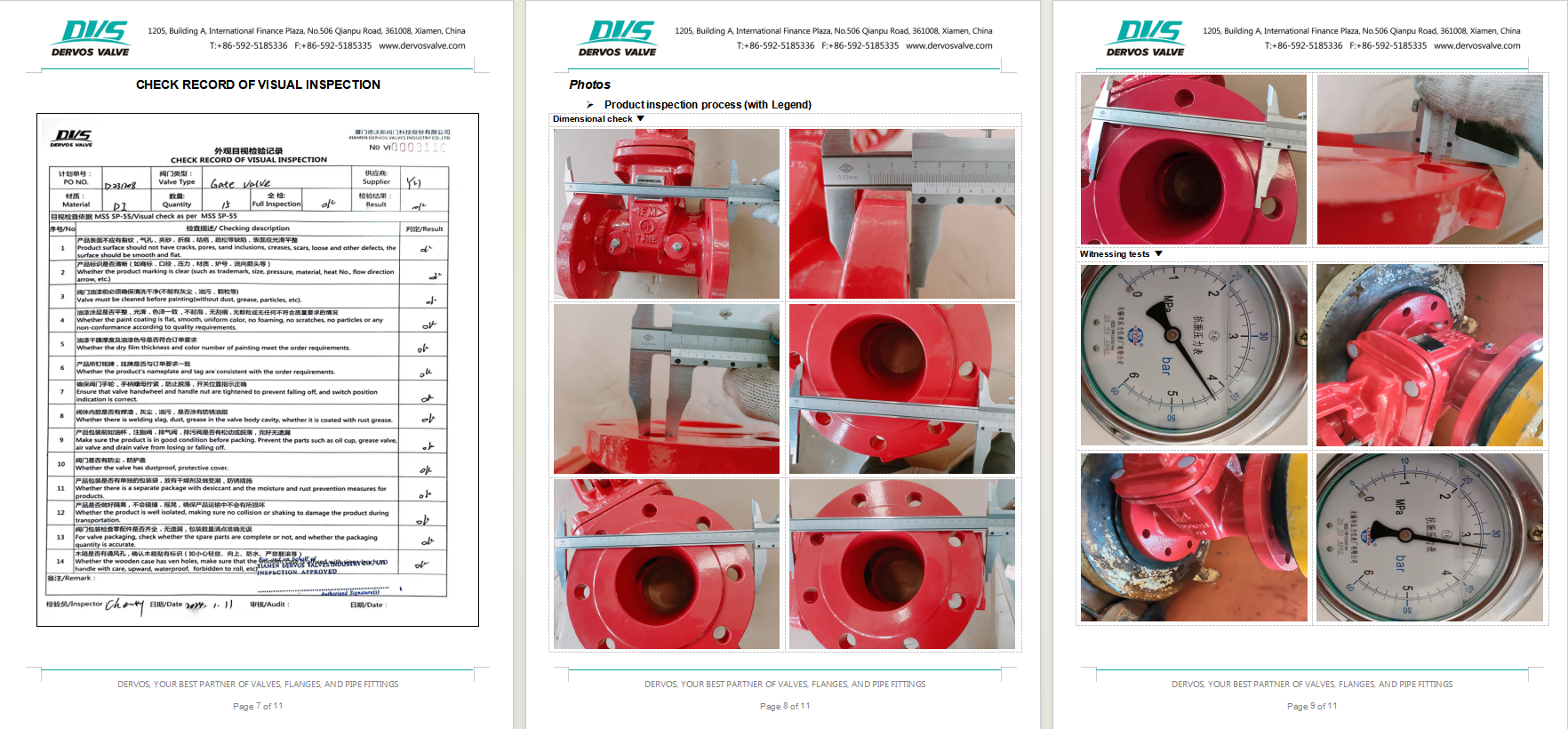

Dimension Checking

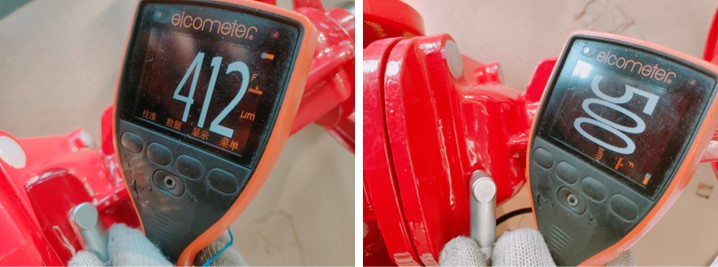

Spectrum

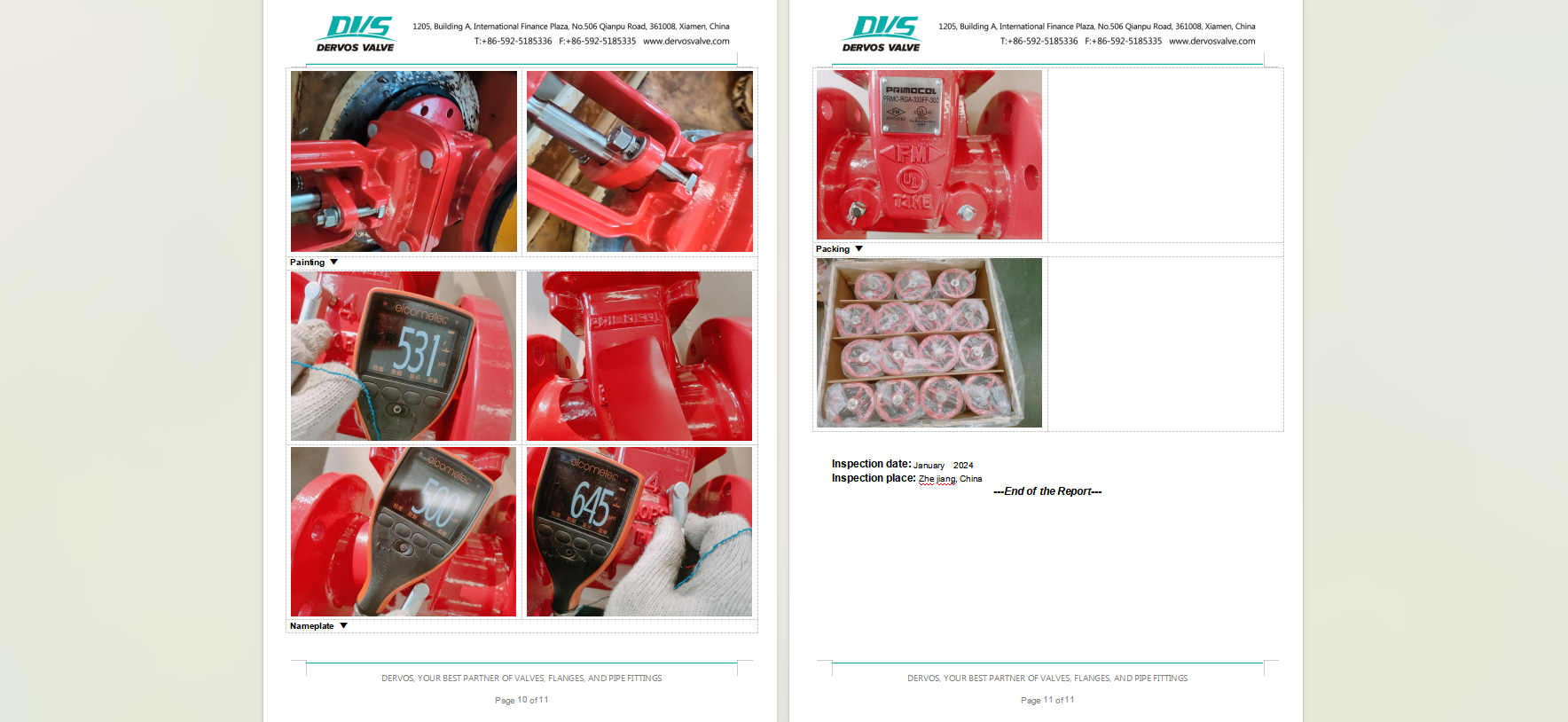

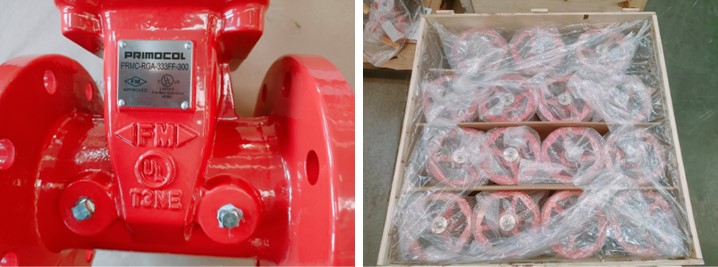

Nameplate & Packing

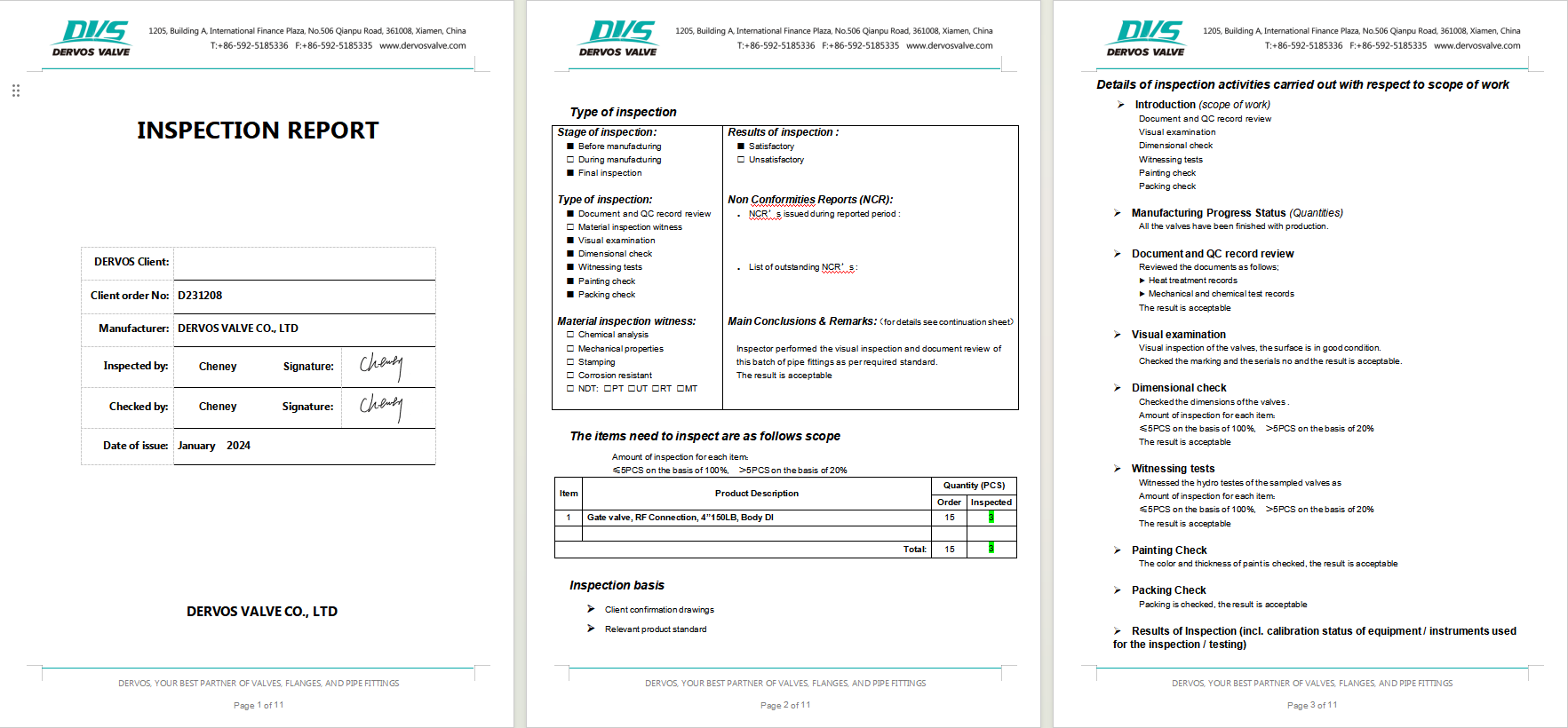

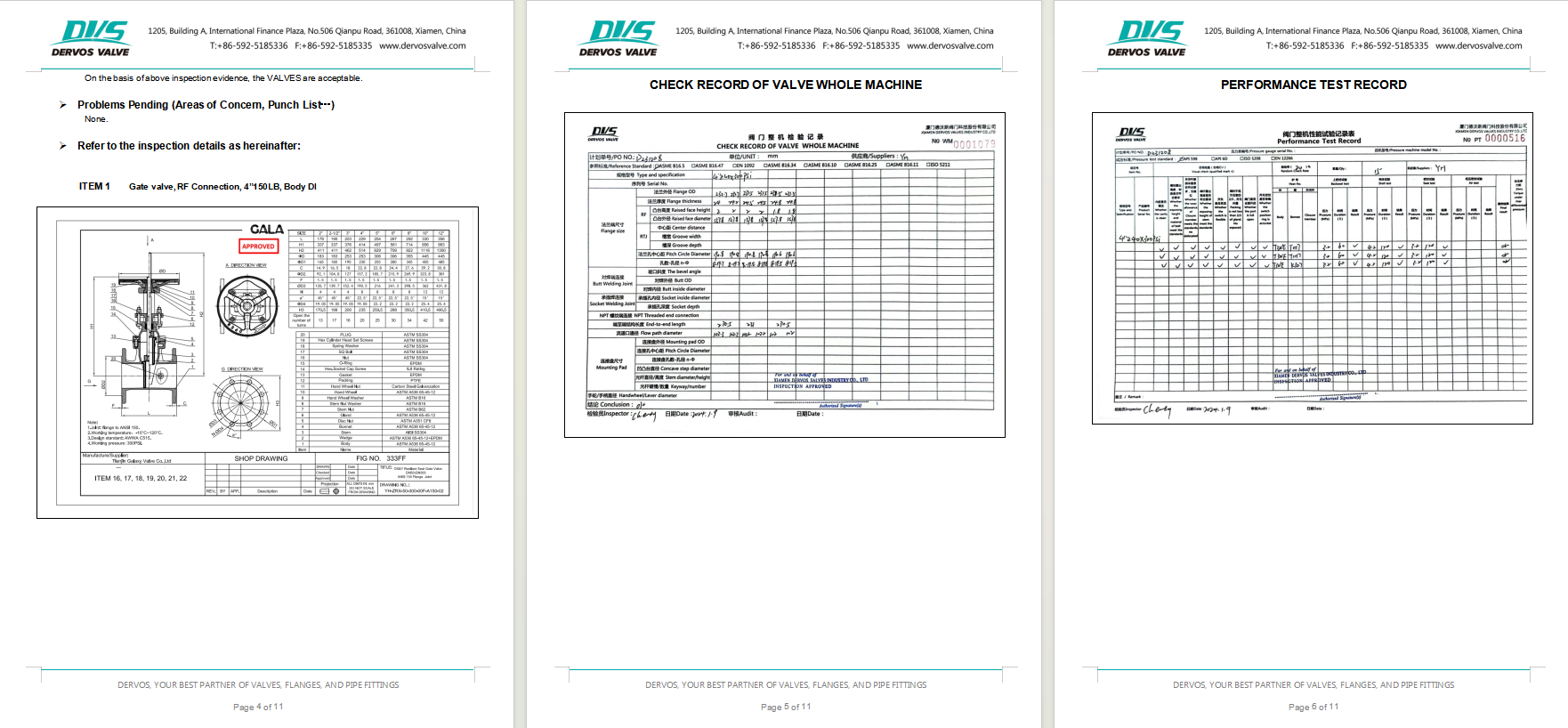

Inspection report
