4" 300LB Forged Trunnion Ball Valve RF A105N API 6D
Key Specifications / Features
Model No.: Hits: 0
4" 300LB Forged Trunnion Ball Valve is made according to API 6D standard. The valve body is made of ASTM A105N. It has the structural characteristics of Three-Piece, Trunnion Mounted Ball, Full Bore, Fire-Safe, Anti-Static, Blow-Out Proof Stem. Its connection mode is RF. And it has handle operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Forged Trunnion Ball Valve |
| Size | 4” |
| Pressure | 300LB |
| Connection | RF |
| Operation | Handle |
| Body Material | ASTM A105N |
| Design Norm | API 6D |
| Face to face | ASTM B 16.10 |
| End connection | RF |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Trunnion-mounted ball design reduces operating torque and ensures smooth performance in high-pressure applications.2.Forged A105N steel body rated 300LB with RF flange, manufactured to API 6D for reliable sealing and durability.

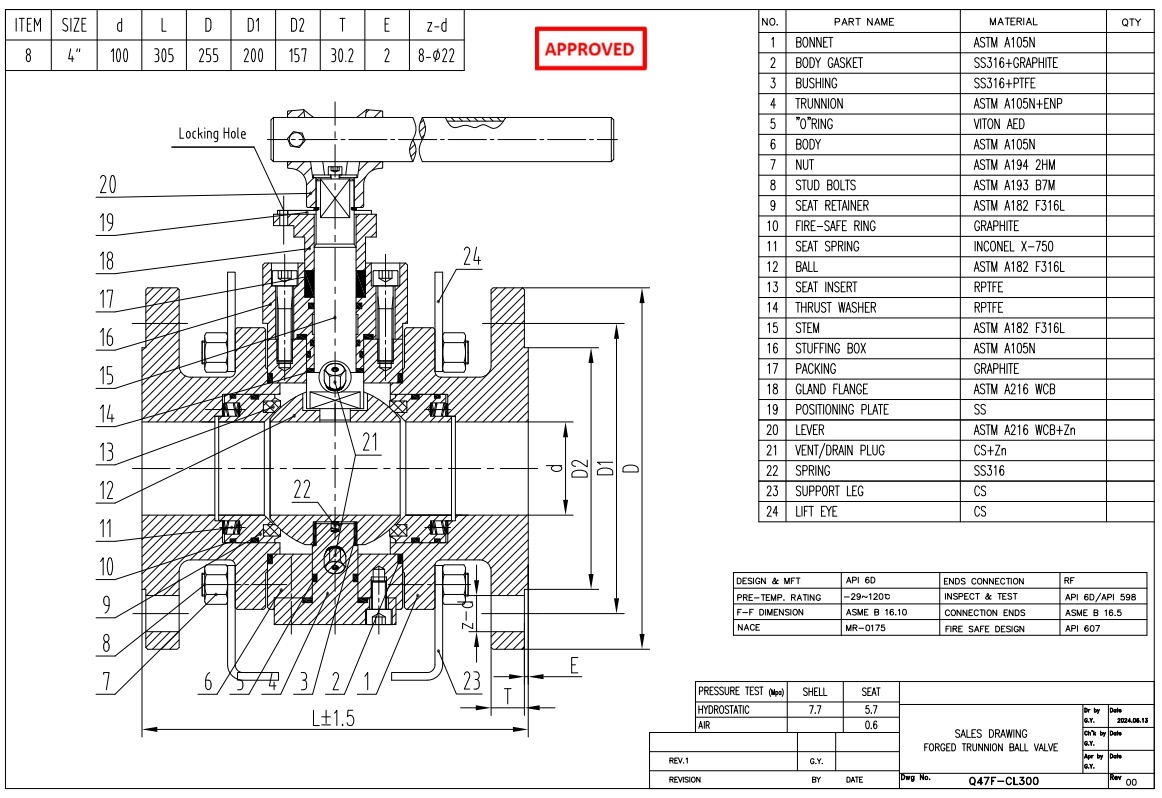

Technical Drawing

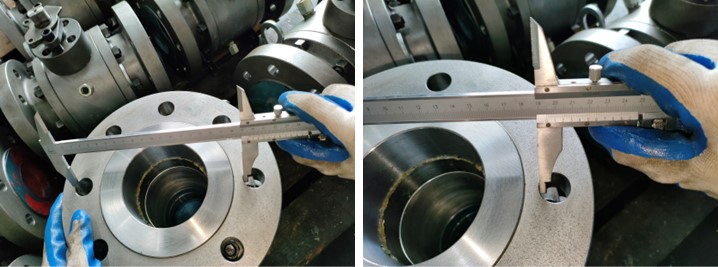

Dimension Checking

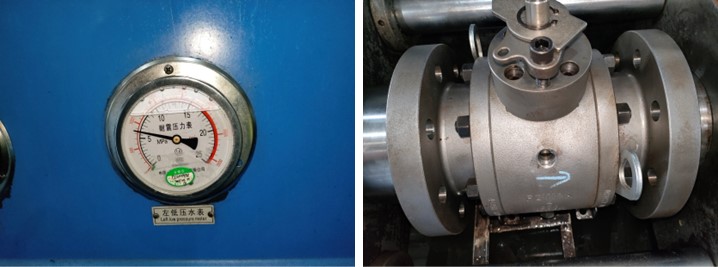

Pressure Testing
Spectrum

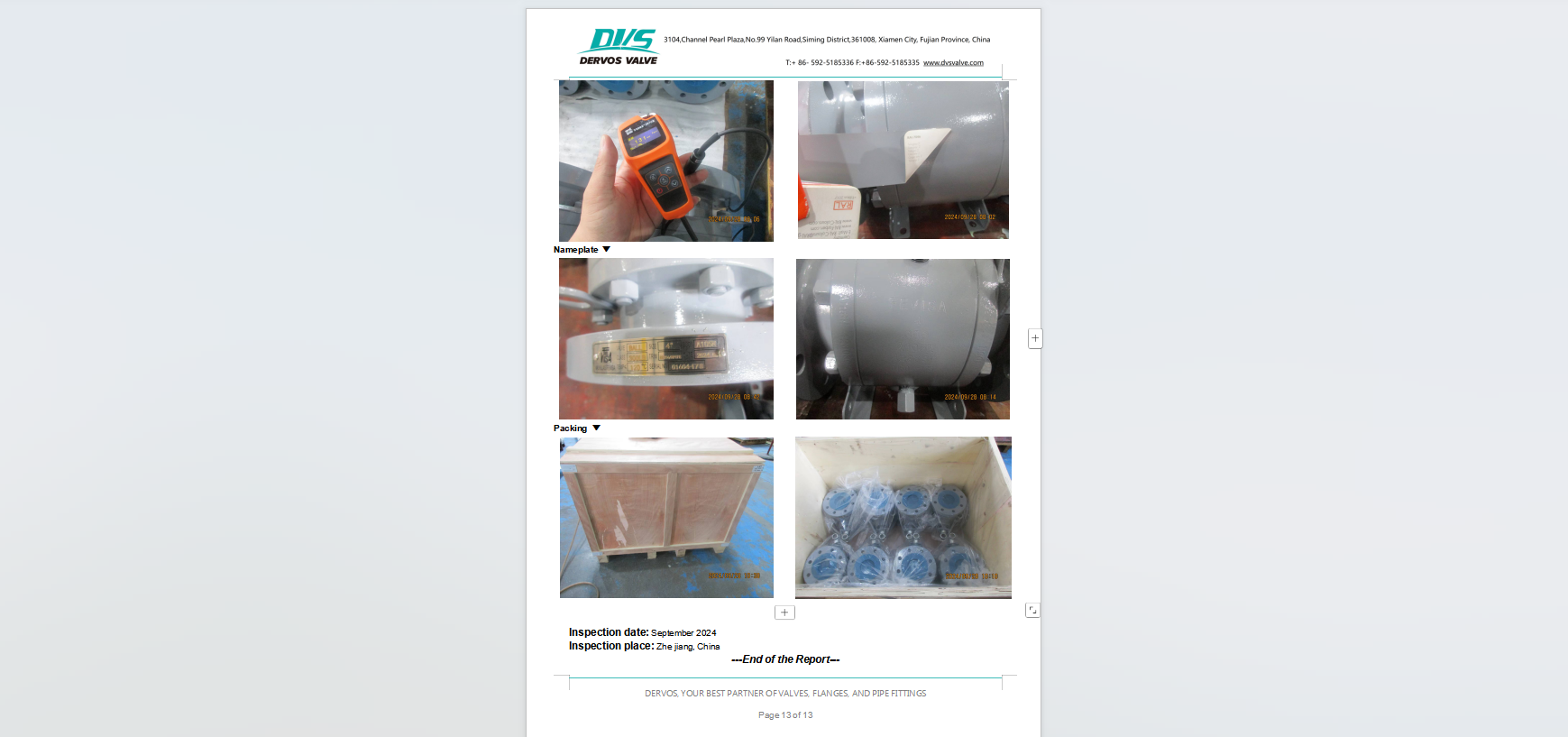

Nameplate & Packing

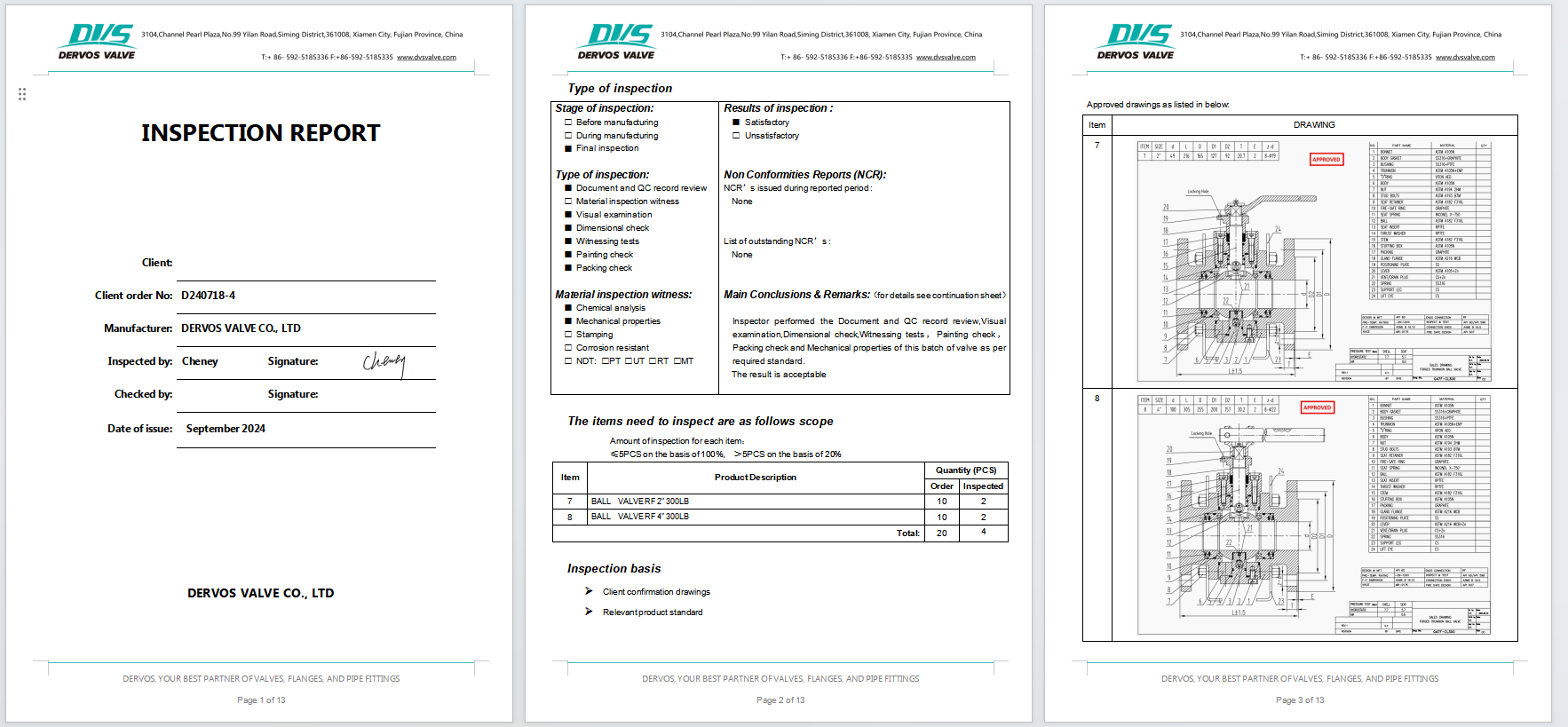

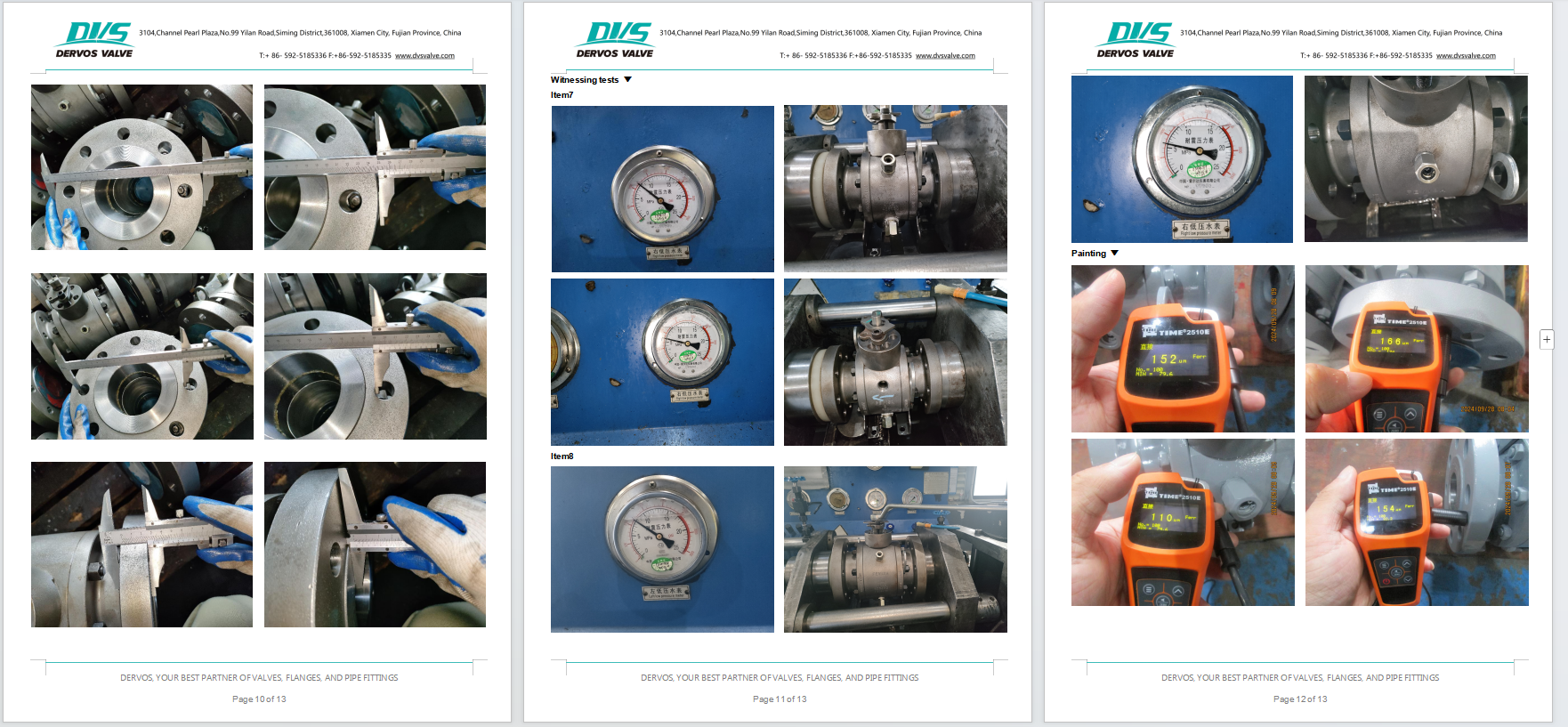

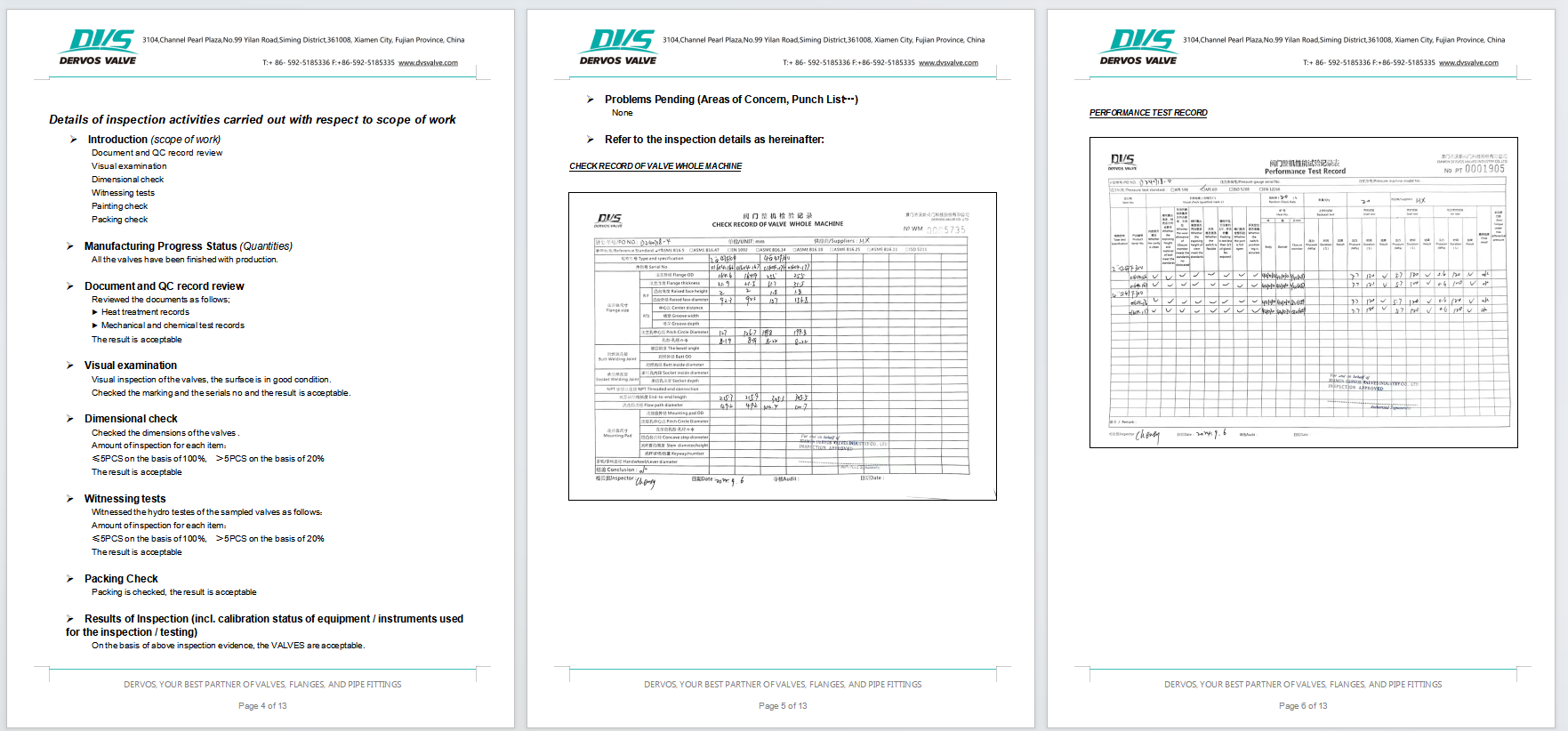

Inspection Report
