Key Specifications / Features

Model No.: Hits: 0

6" 300LB Axial Flow Check valve is made according to API594 standard. The valve body is made of A351 CF8M. It has the structural characteristics of Silent type. Its connection mode is Wafer Type.
Request a quote

Next: Return to List

Previous: Dual Plate Wafer Check Valve, A352 LCC, API 594, 12 IN, 300 LB

Detail Information

Product Description

Type Axial Flow Check Valve
Size 6"
Pressure 300LB
Connection Wafer
Body Material A351 CF8M
Design Norm API 594
Pressure-Temperature ANSI B16.34
Flange Ends ANSI B16.5
Face to Face Dimension API 594
Test & Inspection Code API 598
Temperature -29 ~ 120°C
Applicable Medium Water, Oil and Gas

Features

1. Quick shutdown, suppression of water hammer, silent operation, extremely low noise;
2. Compact structure, flexible installation, low flow resistance, and good energy-saving effect.

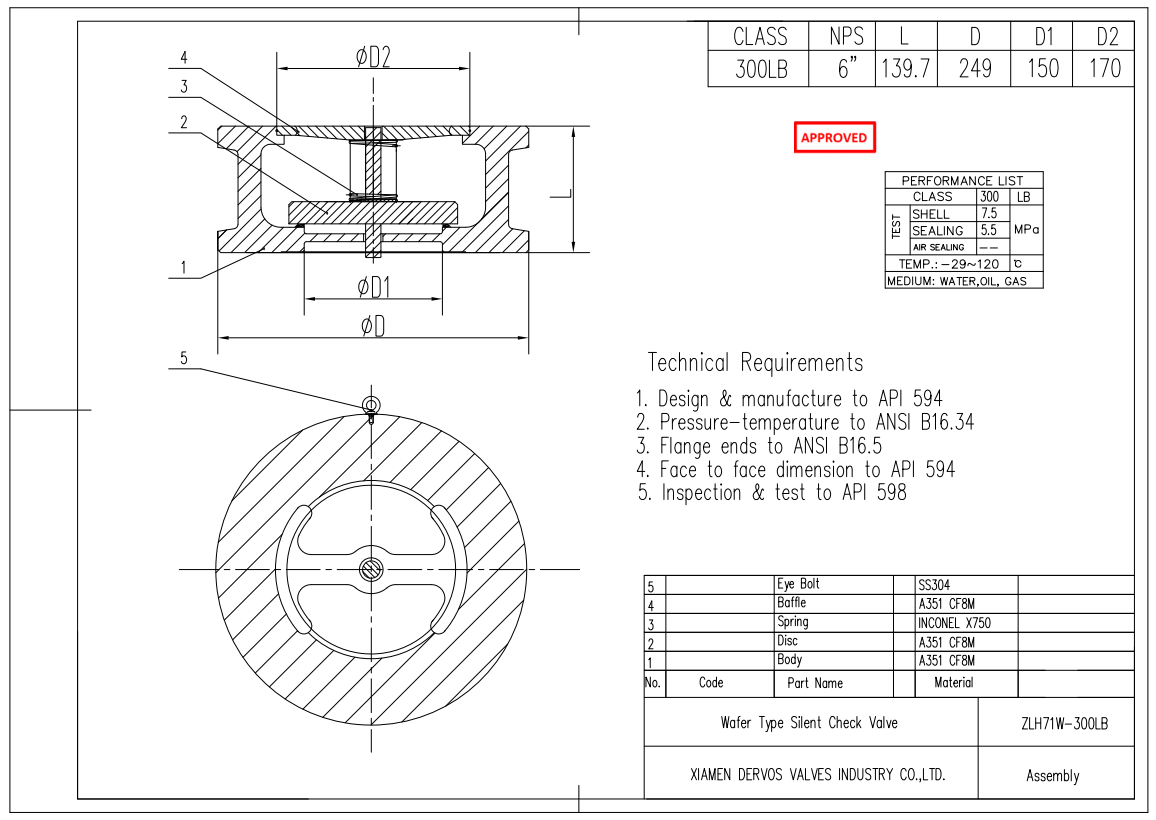

Technical Drawing

6" 300LB Axial Flow Check Valve, Body CF8M, API594, Wafer Type

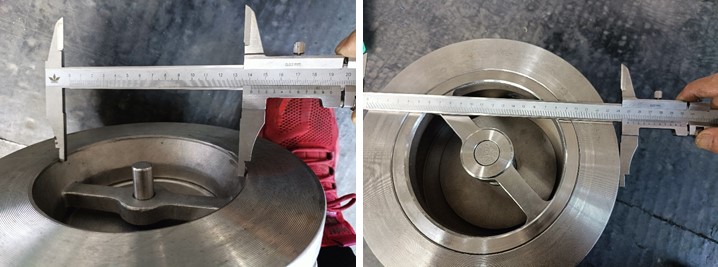

Dimension Checking

6" 300LB Axial Flow Check Valve, Body CF8M, API594, Wafer Type

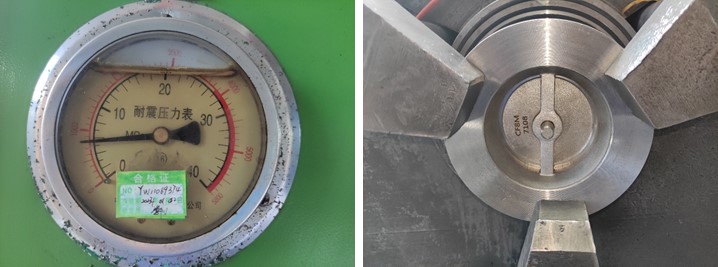

Pressure Testing

6" 300LB Axial Flow Check Valve, Body CF8M, API594, Wafer Type

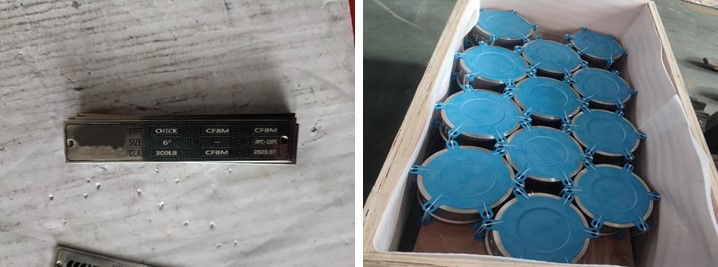

Nameplate & Packing

6" 300LB Axial Flow Check Valve, Body CF8M, API594, Wafer Type

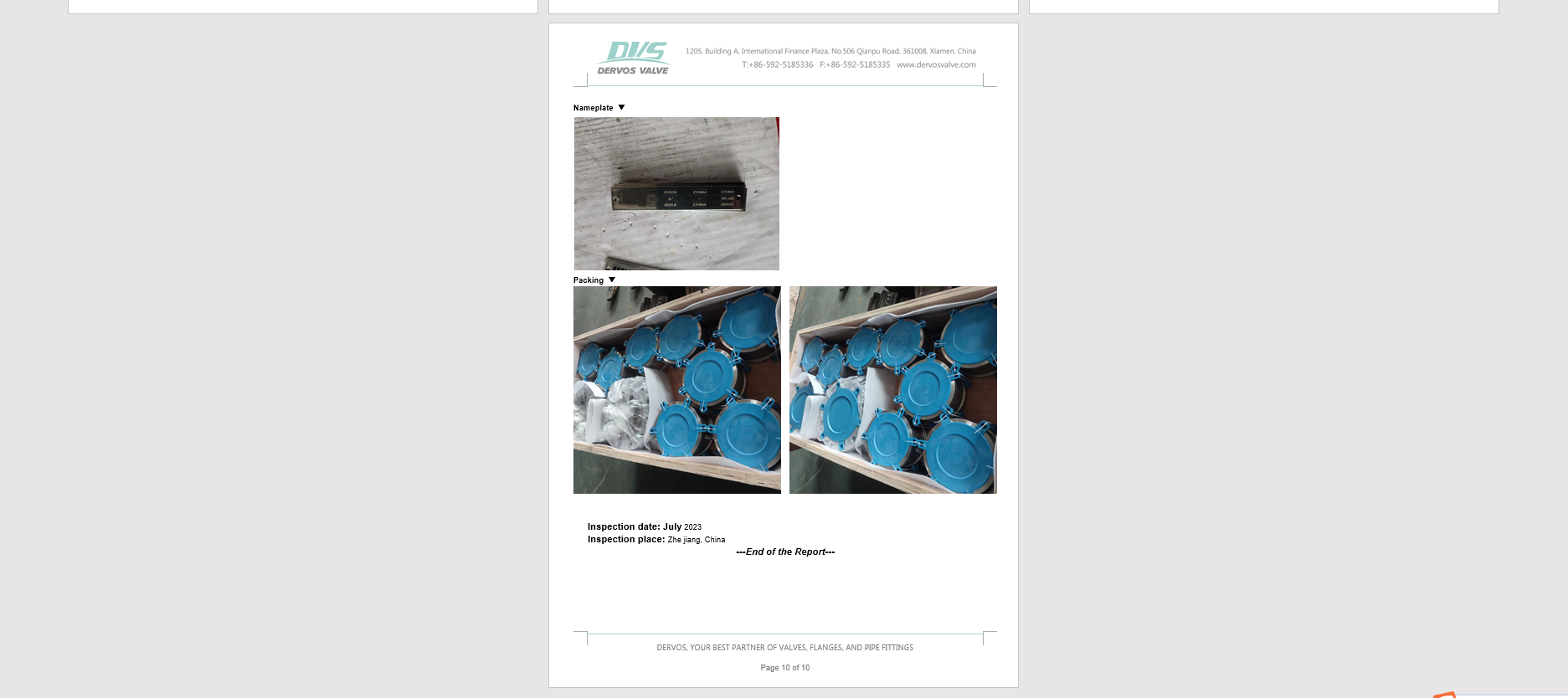

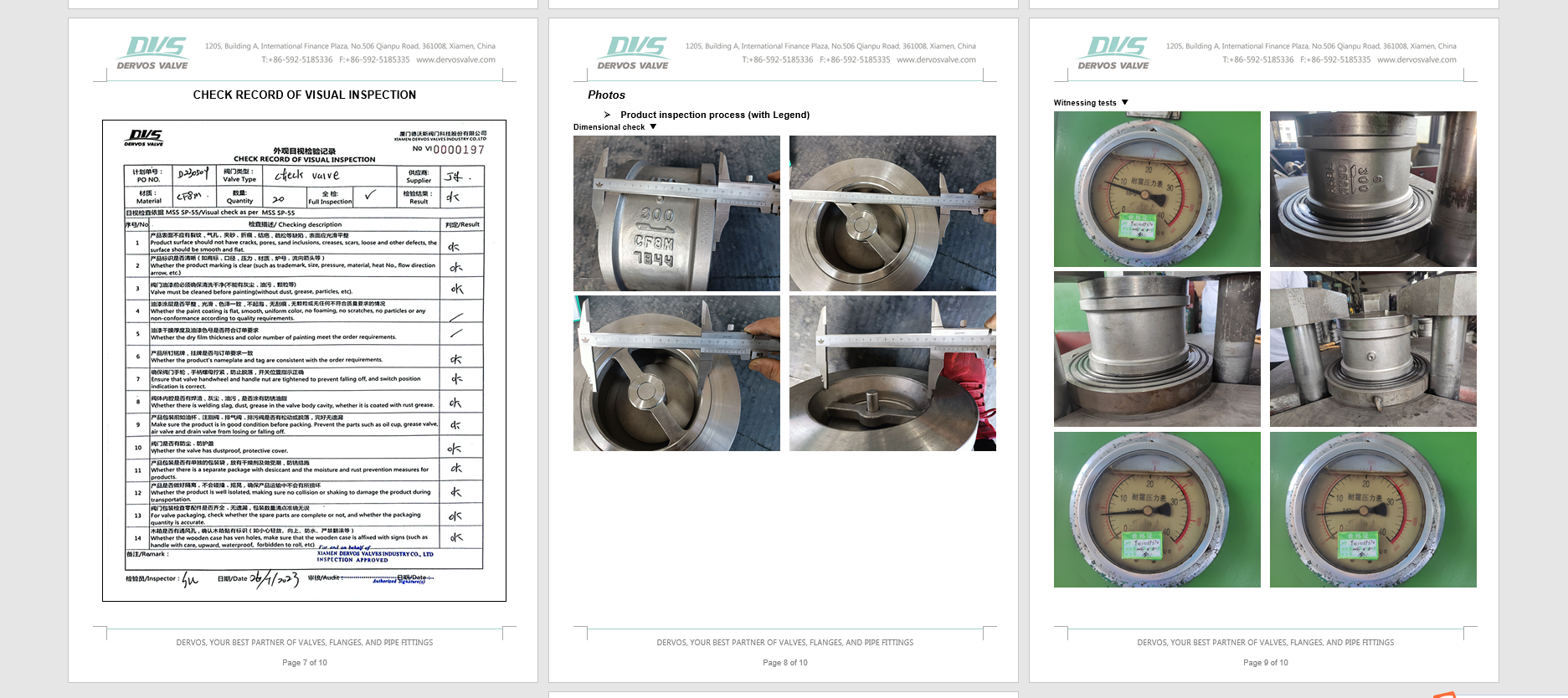

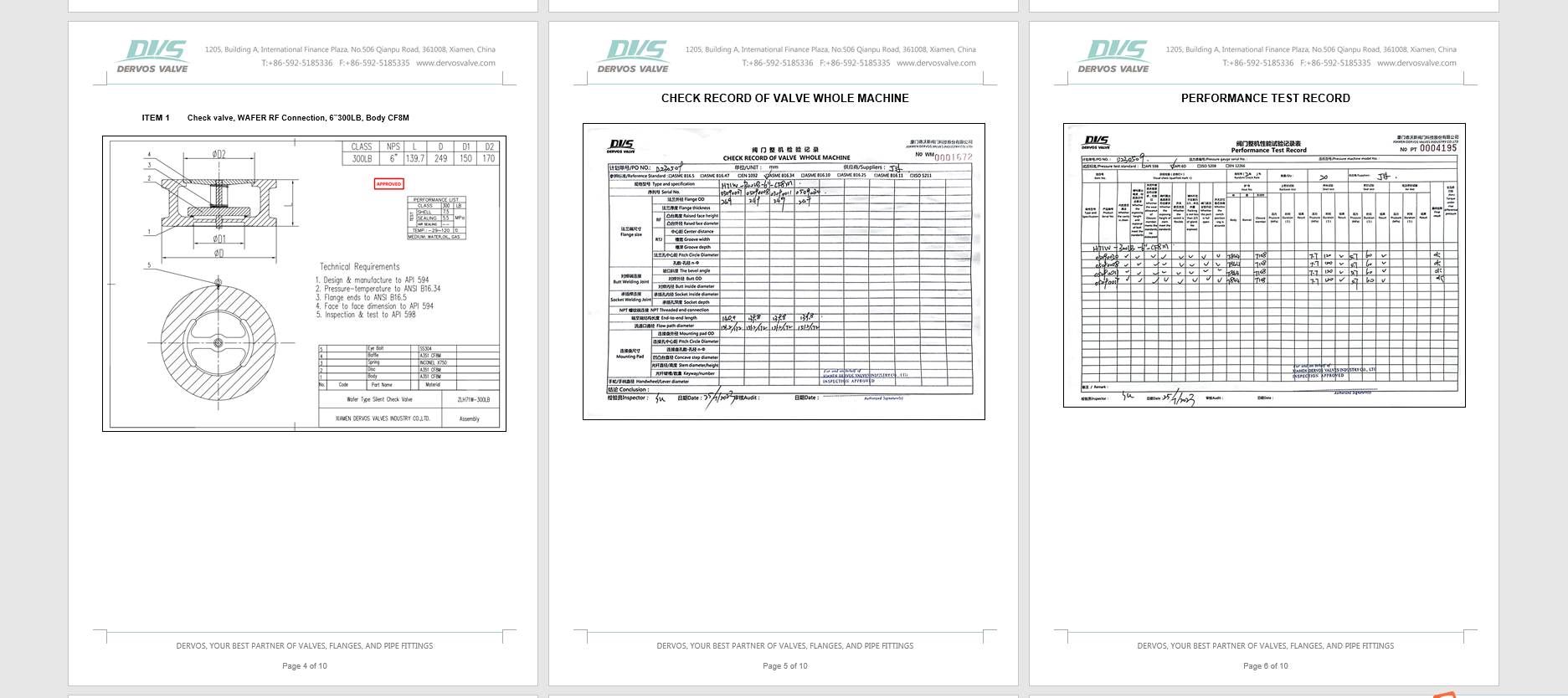

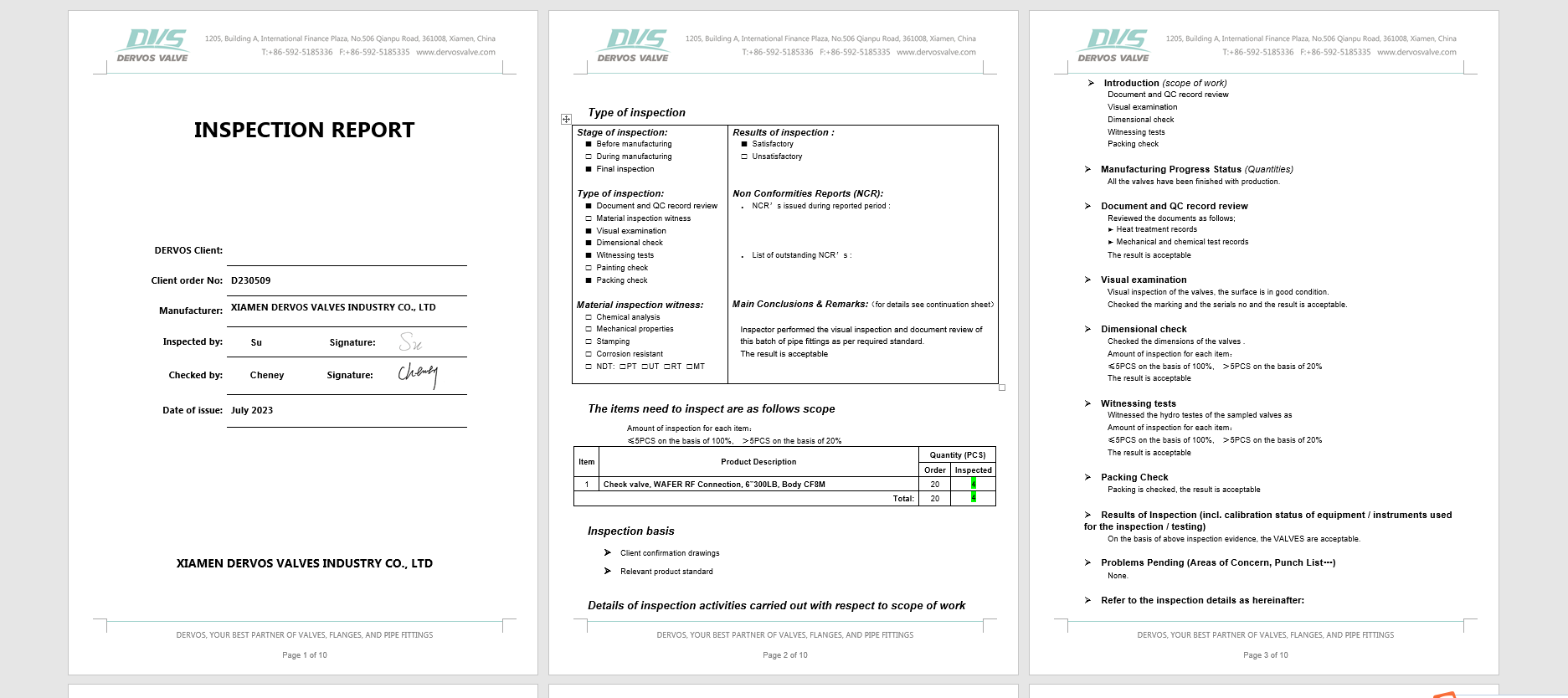

Inspection report

6" 300LB Axial Flow Check Valve, Body CF8M, API594, Wafer Type6" 300LB Axial Flow Check Valve, Body CF8M, API594, Wafer Type
