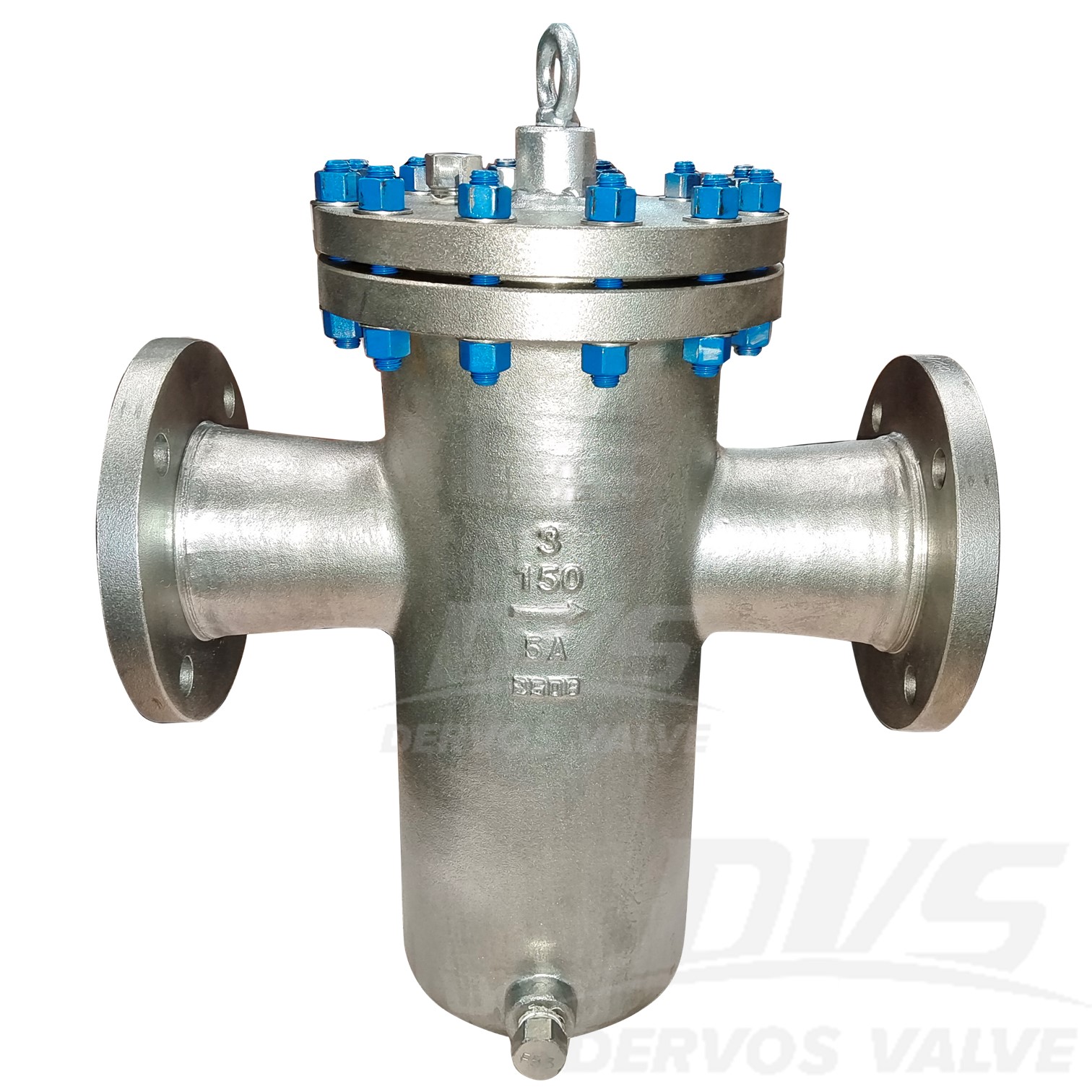

Basket Strainer 3" 150LB ASME B16.34 RF A995 5A
Key Specifications / Features
Model No.: Hits: 0
3" 150LB Basket Strainer is made according to ASME B16.34 standard. The Basket Strainer body is made of A995 5A. It has the structural characteristics of Basket Type, Face-to-Face Length: 384 mm, NACE MR0175 Compliant, Screen Open Area Ratio ≥ 2:1 (Screen Area to Pipe Cross-Sectional Area. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Basket Strainer |
| Size | 3” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | A995 5A |
| Design Norm | ASME B16.34 |
| Face to face | Customer requirements |
| Flange diemension | ASME B16.5 |
| Test & Inspection Code | API 698 |
| Temperature | -29 ~ 315°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Basket Strainer 3" 150LB ASME B16.34 RF A995 5A provides high-efficiency filtration and excellent corrosion resistance, ideal for seawater and harsh media applications (A995 5A basket strainer 150LB).2. RF Flanged Duplex Steel Strainer ensures easy maintenance with a removable basket design and reliable sealing performance in pipeline protection systems (3 inch basket strainer ASME B16.34).

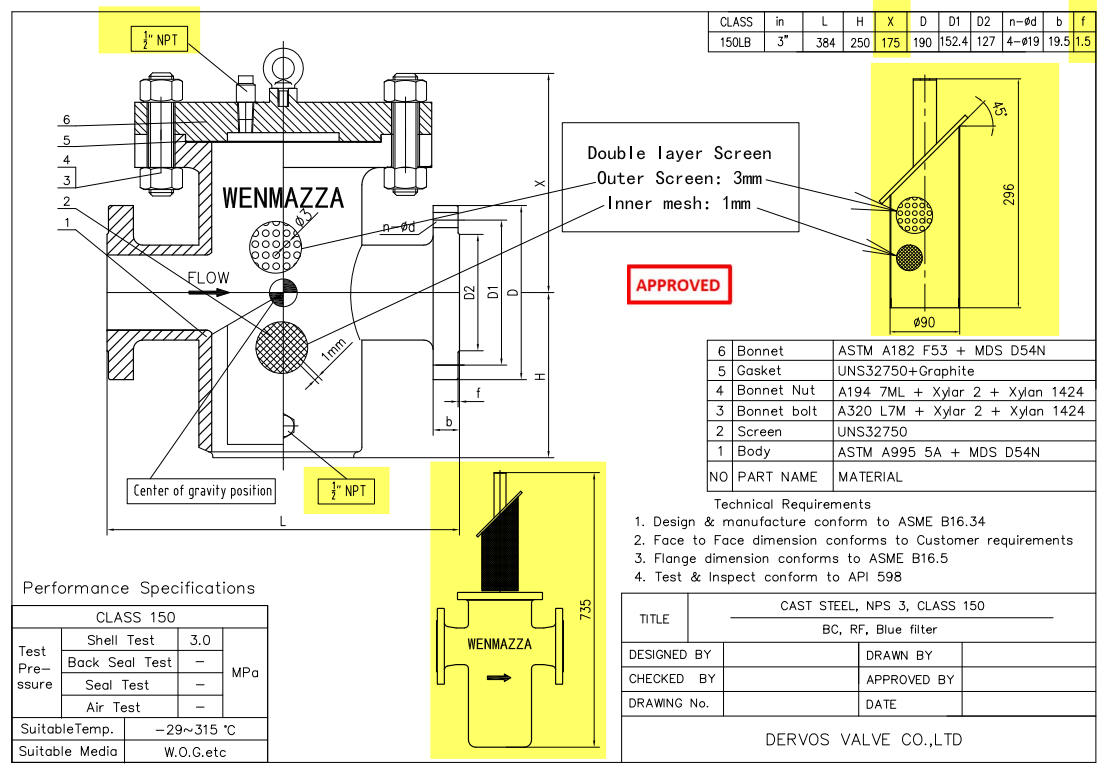

Technical Drawing

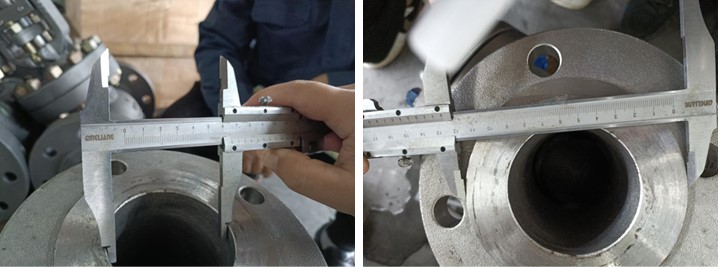

Dimension Checking

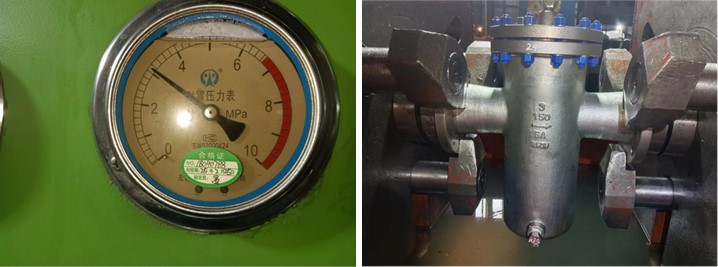

Pressure Testing

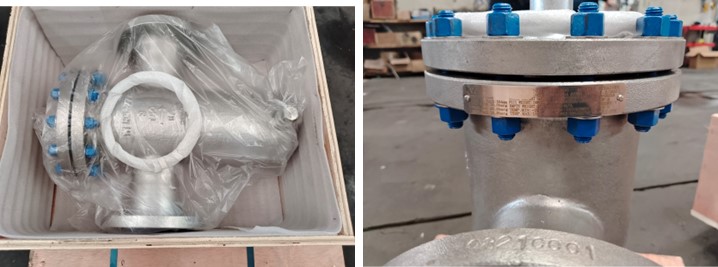

Nameplate & Packing

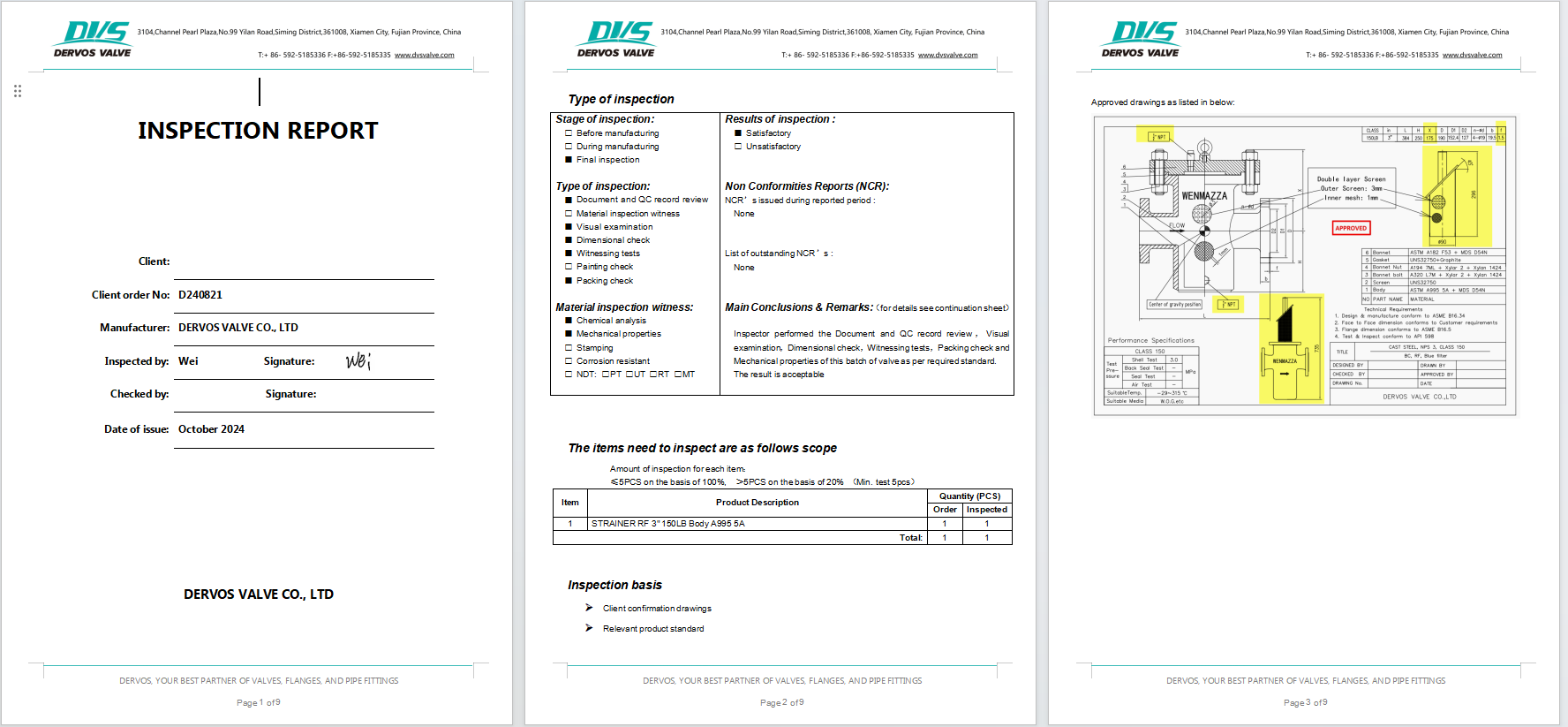

Inspection Report
