Bellows Sealed Globe Valve DN50 PN40 DIN EN 1092-1 1.0619
Key Specifications / Features
Model No.: Hits: 0
DN50 PN40 Bellows Sealed Globe Valve is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of Bolted Bonnet, Flat Disc. Its connection mode is EN 1092-1 type B1. And it has hand wheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Stainless Steel Globe Valve DN40 PN40 LCC BS EN 13709
Detail Information
Product Parameters
| Type | Bellows Sealed Globe Valve |
| Size | DN 50 |
| Pressure | PN40 |
| Connection | EN 1092-1 type B1 |
| Operation | Hand wheel |
| Body Material | EN 10213 1.0619 |
| Design Norm | BS EN 13709 |
| Face to face | BS EN 558-1 S.1 |
| Flange ends | BS EN 1092-B1 |
| Test & Inspection Code | BS EN 12266 |
| Temperature | -10 ~400°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Bellows Sealed Globe Valve DN50 PN40 DIN EN 1092-1 1.0619 ensures zero stem leakage and precise flow control, ideal for hazardous and high-temperature applications (bellows sealed globe valve DN50 PN40).2.DIN EN 1092-1 Bellows Globe Valve provides reliable sealing and long service life with maintenance-free bellows design (PN40 DN50 globe valve 1.0619).

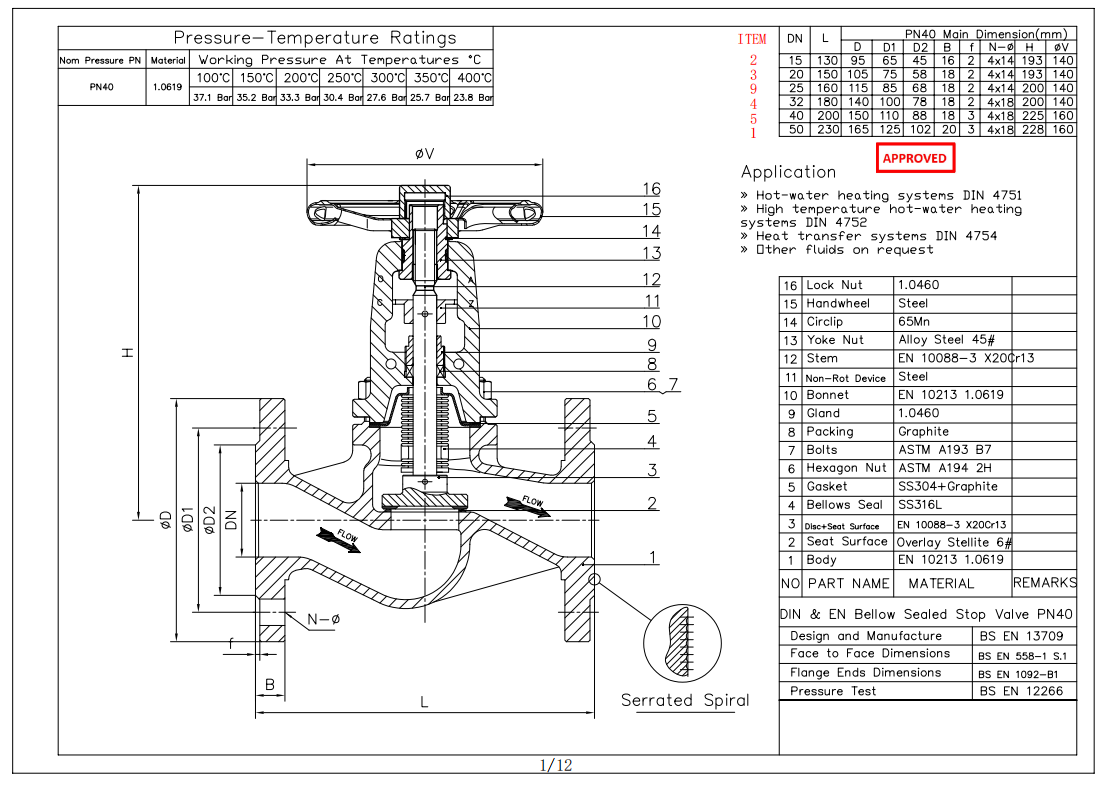

Technical Drawing

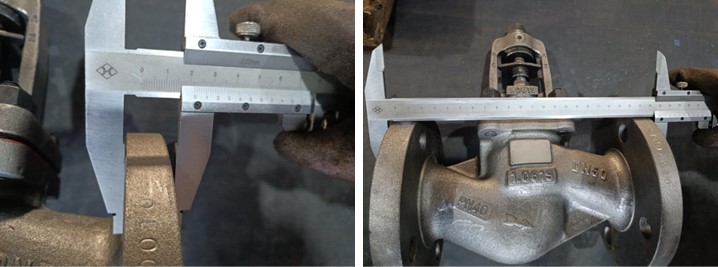

Dimension Checking

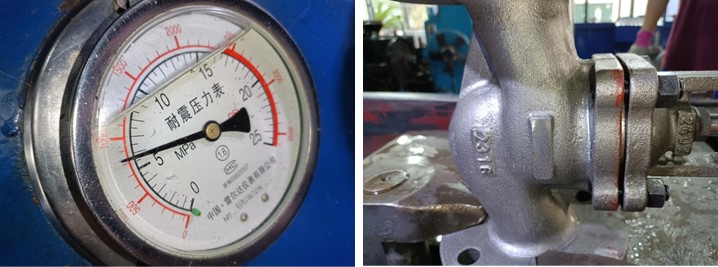

Pressure Testing
Painting

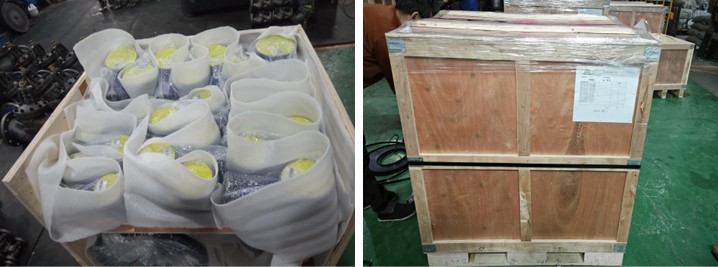

Nameplate & Packing

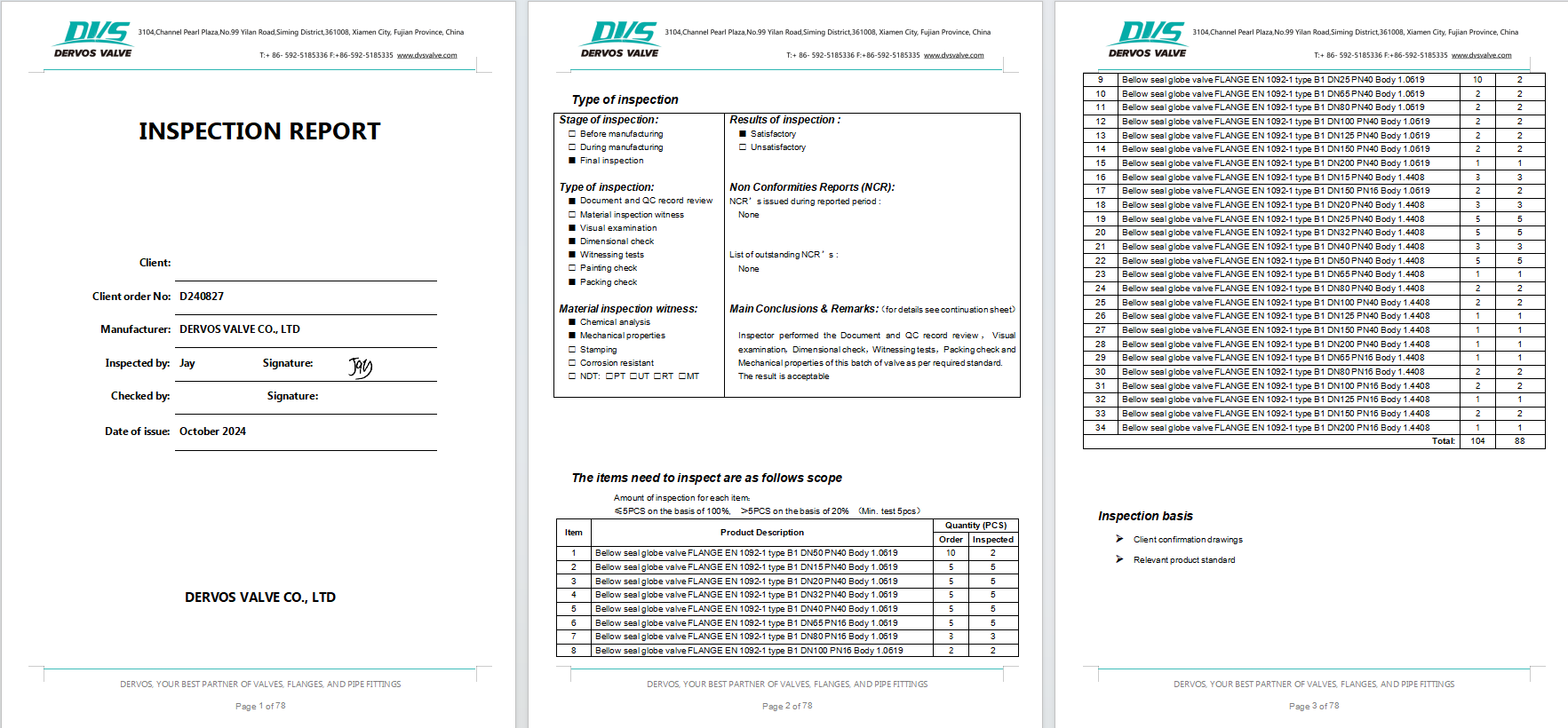

Inspection Report
