Body 1.0619, DN100 PN40 Cast Steel Gate Valve, Handwheel, EN1984

Key Specifications / Features

Model No.: Hits: 0

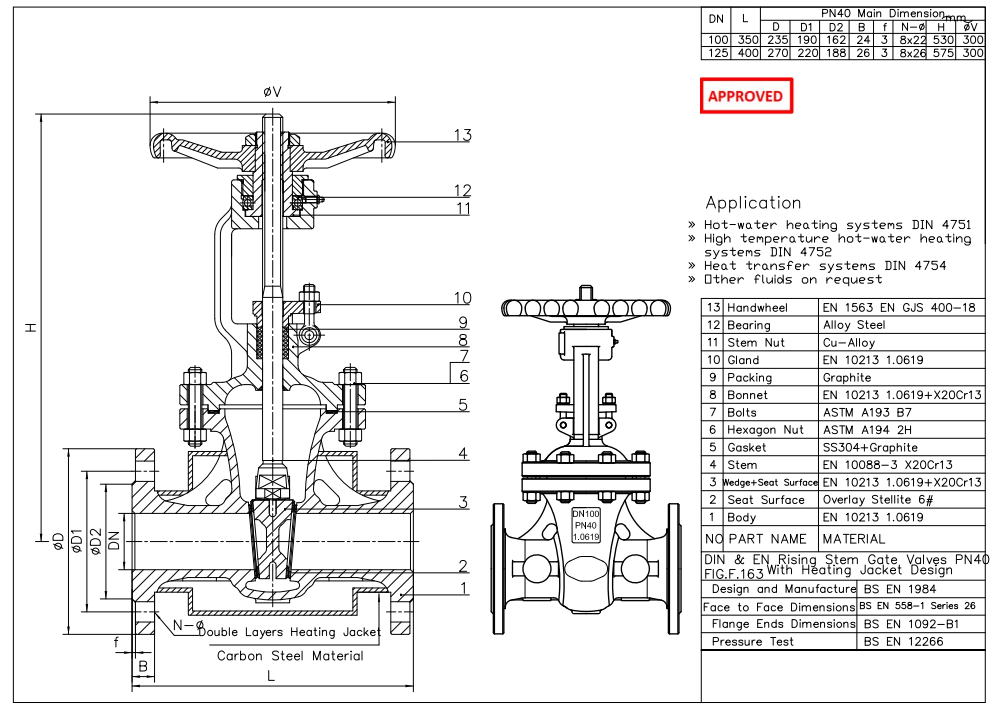

DN100 PN40 Cast Steel gate valve is made according to BS EN 1984 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of double layer insulation jacket with DN15 small flange and structural length of 350mm. Its connection mode is EN1092-1 B1. And it has Hand wheel operation mode.

Request a quote

Tags:

Next: Return to List

Previous: DN250 PN40 Cast Steel Gate Valve, RF, Body WCB, EN1984

Detail Information

Product Description

Type	Cast Steel Gate Valve
Size	DN100
Pressure	PN40
Connection	EN1092-1 B1
Operation	Hand Wheel
Body Material	EN 10213 1.0619
Design Norm	BS EN 1984

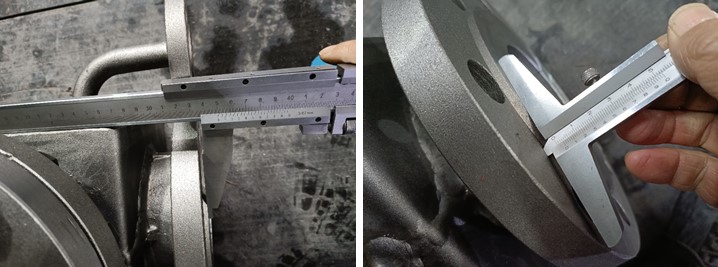

Face to Face Dimensions	BS EN 558-1 Series 26
Flange Ends Dimensions	BS EN 1092-B1

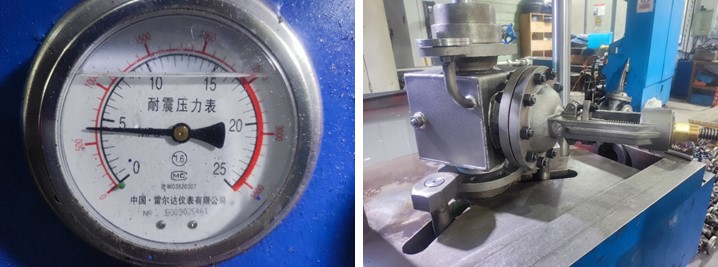

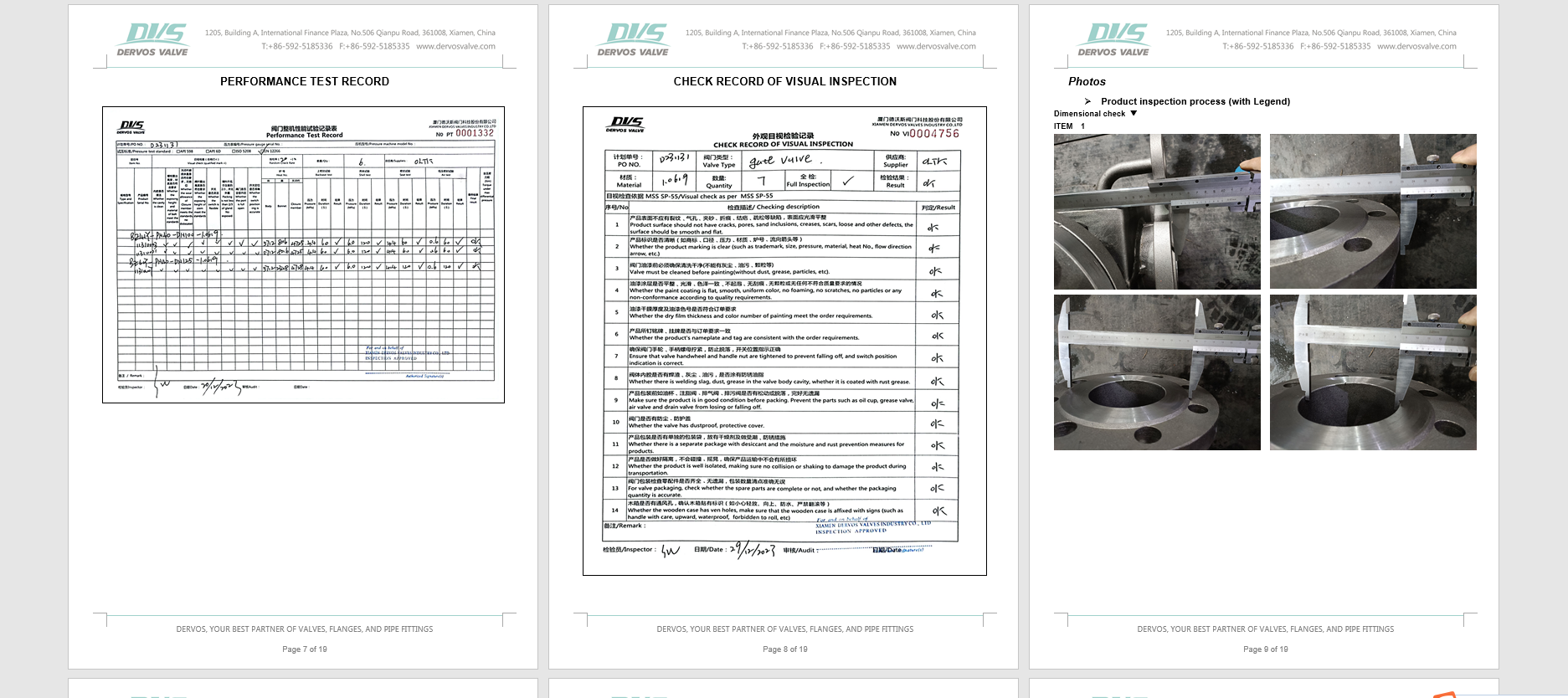

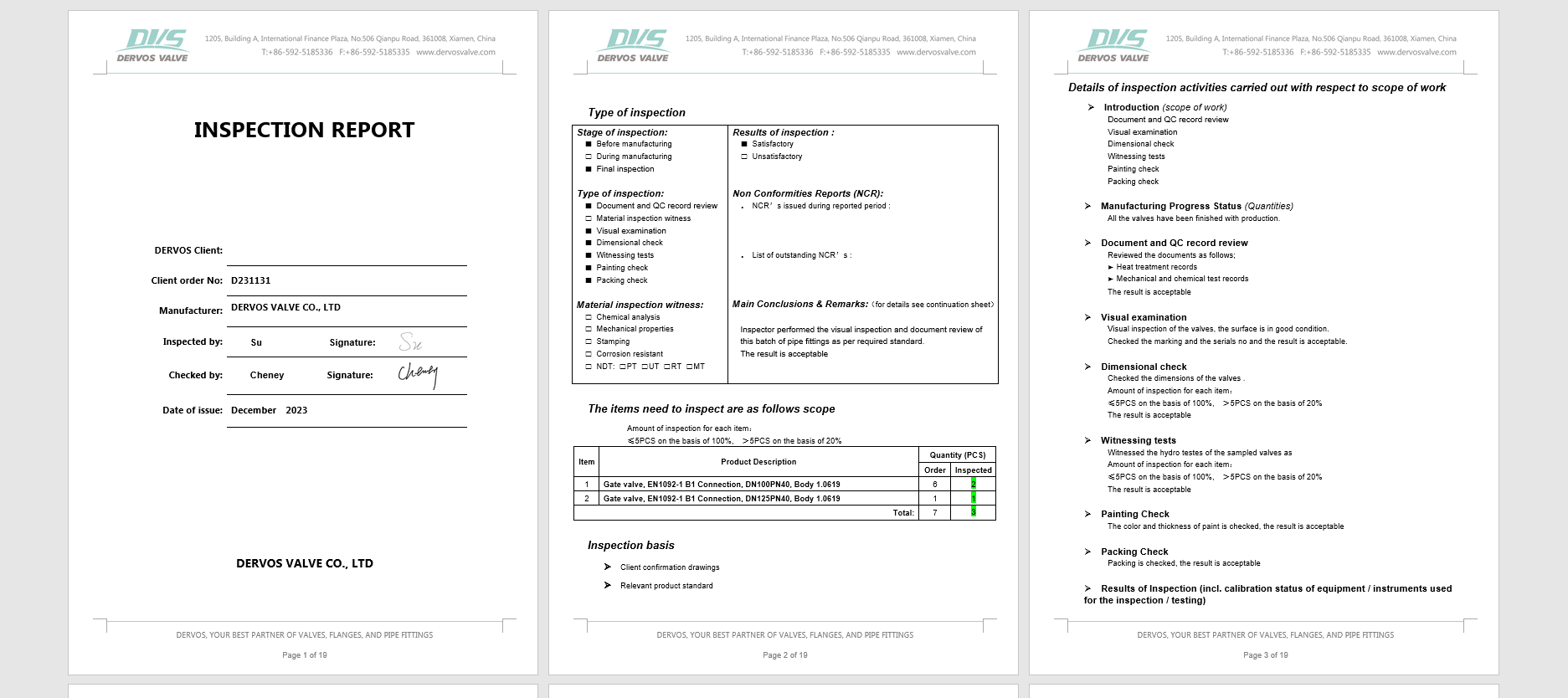

Test & Inspection Code	BS EN 12266
Applicable Medium	Water, Oil and Gas

Features

1. Mature technology, high cost-effectiveness, easy maintenance, and strong universality of components;
2. Suitable for pipeline systems with medium to high temperature, medium to high pressure, and large diameter, it is very common and mature in industrial valve applications.
