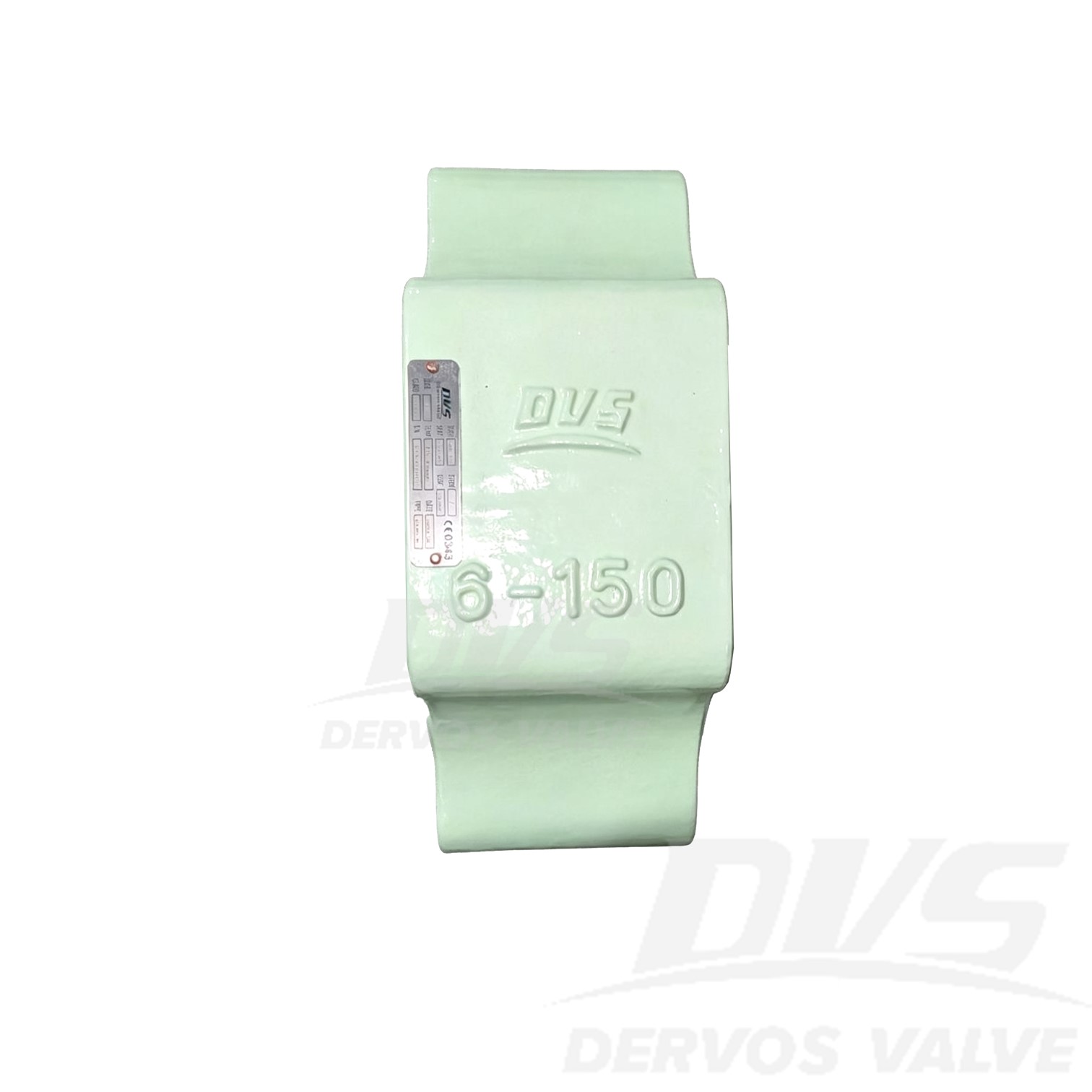

Cast Steel Dual Plate Wafer Check Valve 8" 150LB WCB
Key Specifications / Features
Model No.: Hits: 0
8" 150LB Cast Steel Dual Plate Wafer Check Valve is made according to API 594 standard. The valve body is made of A216 WCB. It has the structural characteristics of Dual Plate, Wafer Type, Internal Type. Its connection mode is Wafer-Lug Type.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Cast Steel Dual Plate Wafer Check Valve |
| Size | 8” |
| Pressure | 150LB |
| Connection | Wafer-Lug Type |
| Body Material | A216 WCB |
| Design Norm | API 594 |
| Face to face | API 594 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Dual plate wafer design provides fast closing action and reliable backflow prevention with minimal pressure loss.2.WCB cast steel body ensures high strength and dependable performance in Class 150 industrial pipeline applications.

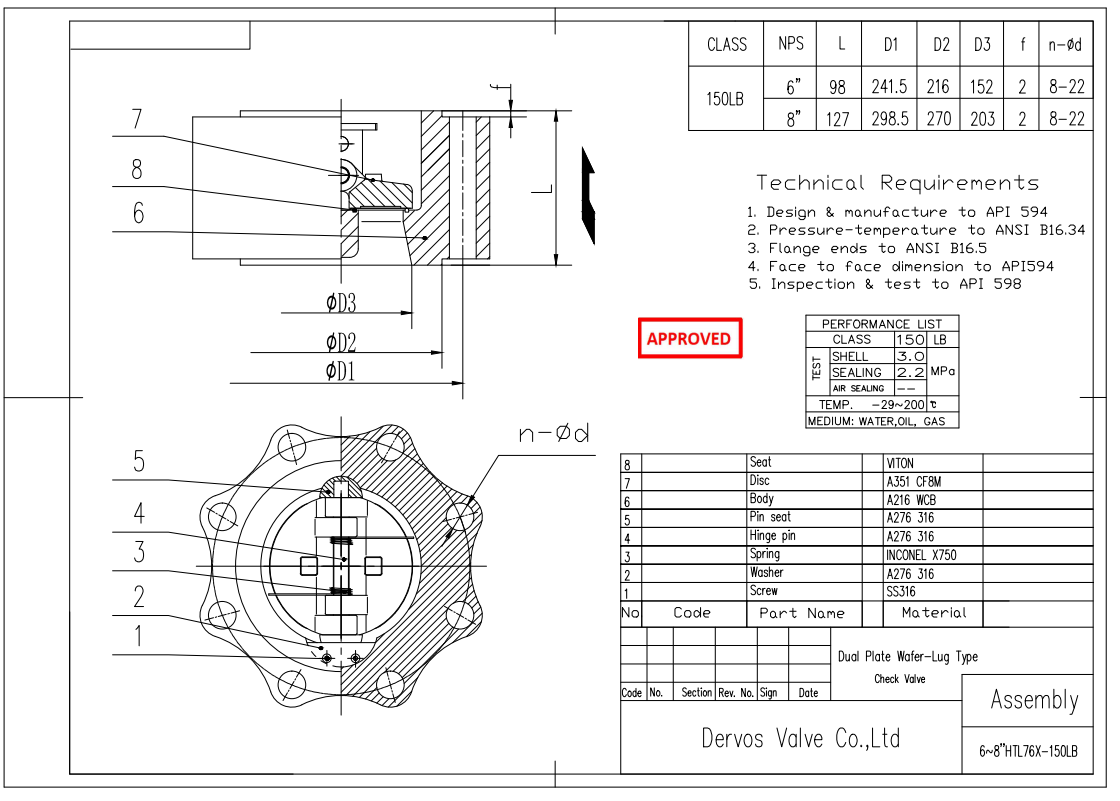

Technical Drawing

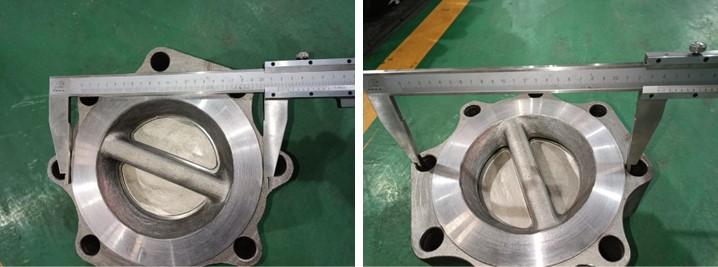

Dimension Checking

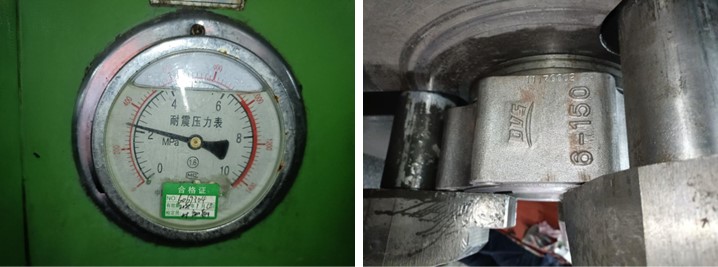

Pressure Testing

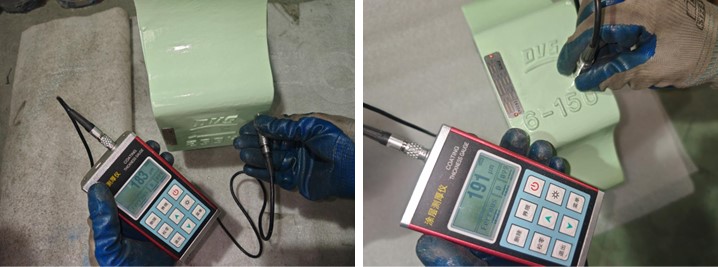

Painting

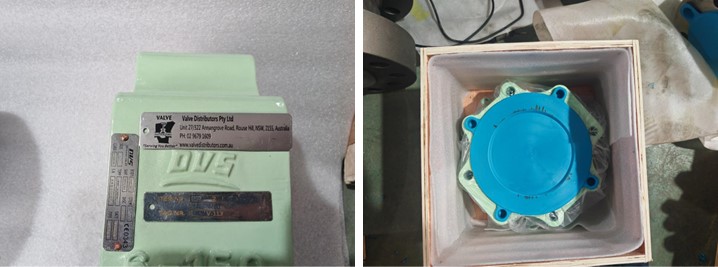

Nameplate & Packing

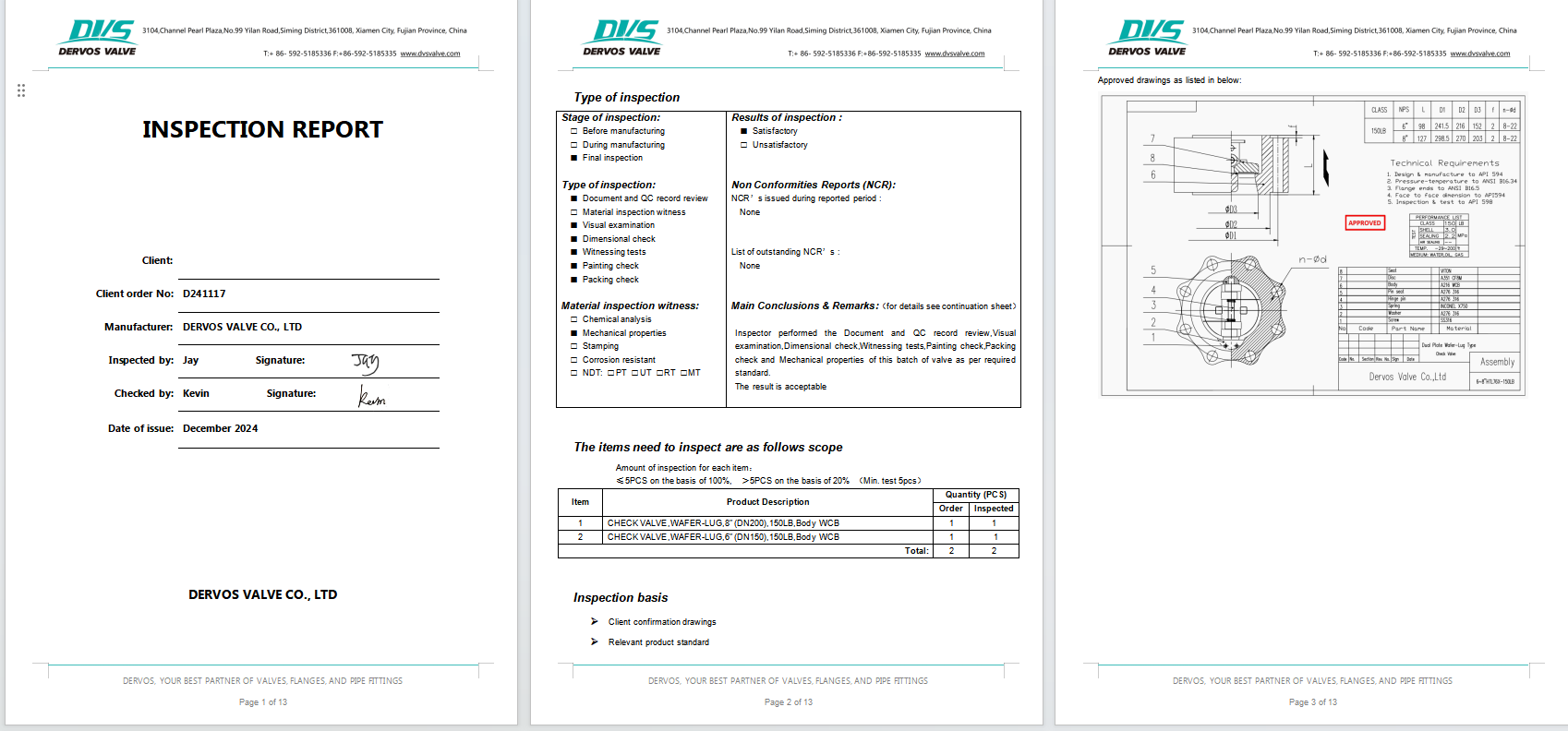

Inspection Report
