Cast Steel Floating Ball Valve 2" 150LB WCB RF
Key Specifications / Features
Model No.: Hits: 0
2" 150LB Cast Steel Floating Ball Valve is made according to API 6D standard. The valve body is made of A216-WCB. It has the structural characteristics of Full bore, floating ball, fire-safe, anti-static, with a blowout-proof stem. Its connection mode is RF. And it has Pneumatic actuator operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Cast Steel Floating Ball Valve |
| Size | 2" |
| Pressure | 150LB |
| Connection | RF |
| Operation | Pneumatic actuator |
| Body Material | A216-WCB |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -20 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The floating ball design provides reliable bidirectional shutoff and smooth quarter-turn operation.2. The WCB cast steel body and RF flanged ends ensure durable performance and secure installation in Class 150 pipelines.

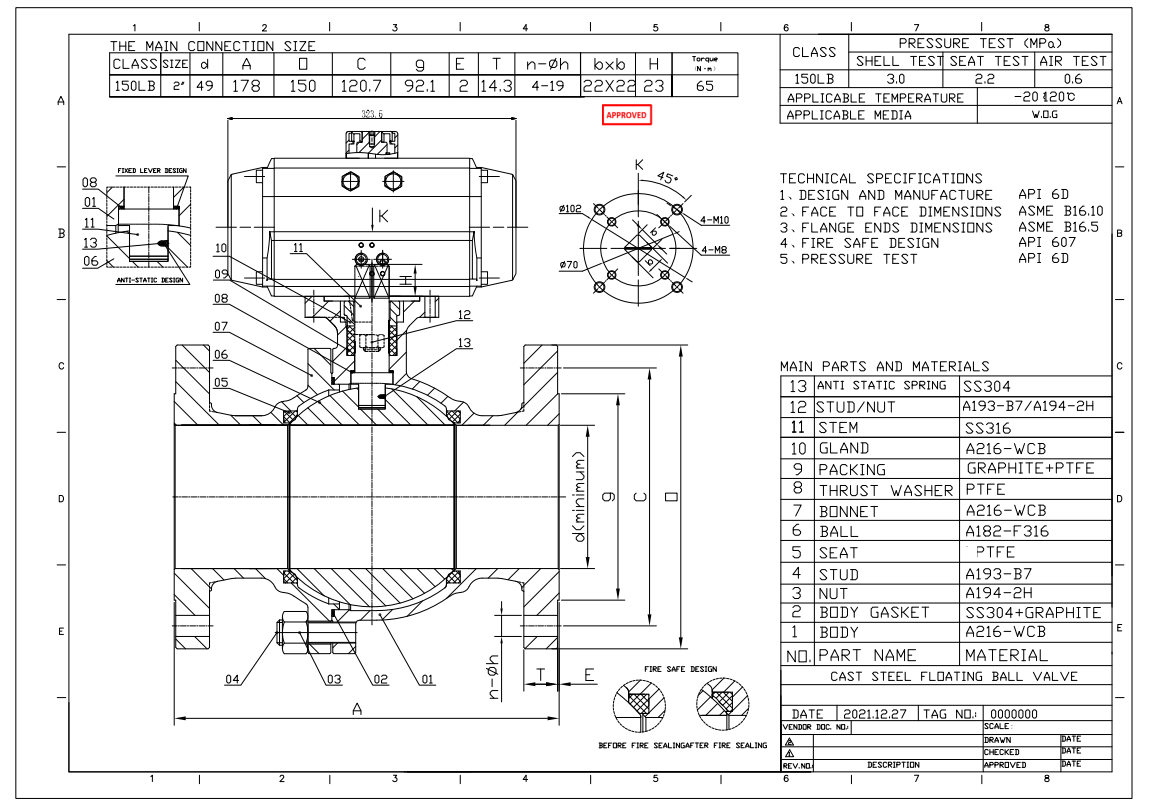

Technical Drawing

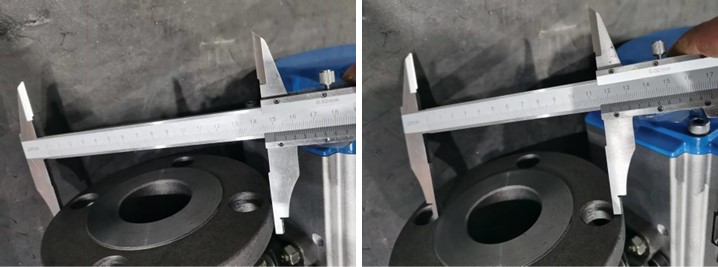

Dimension Checking

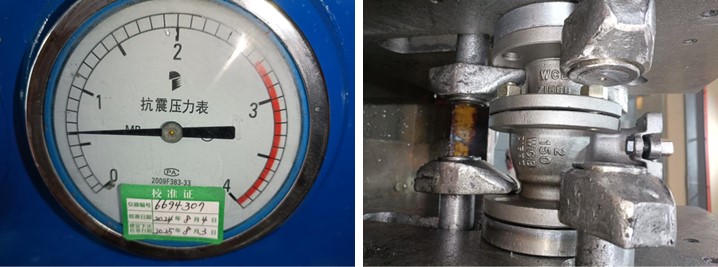

Pressure Testing

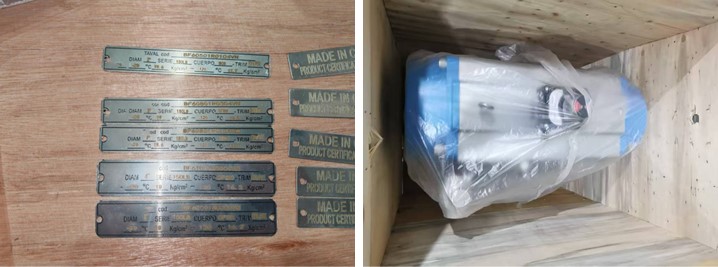

Nameplate & Packing
