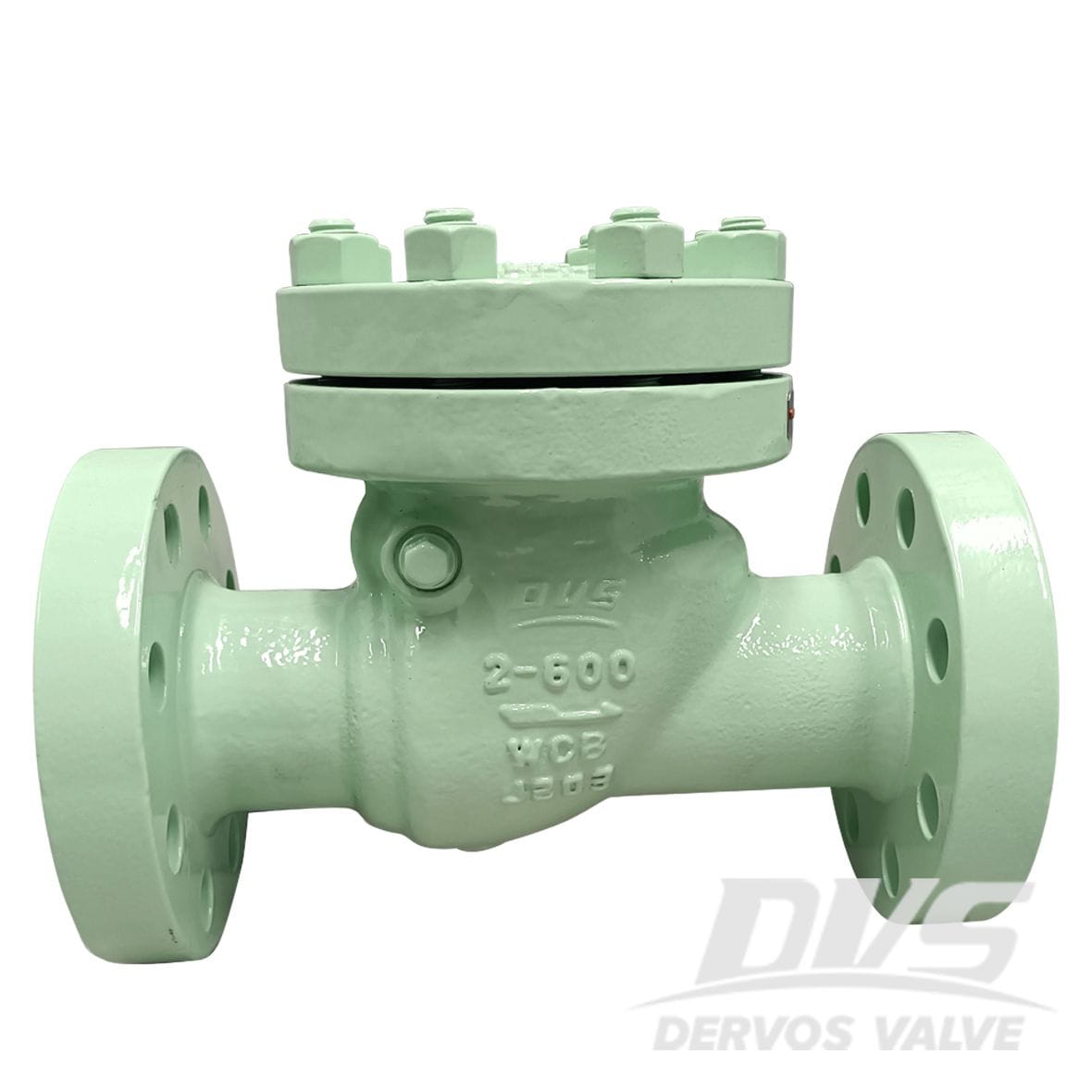

Cast Steel Swing Check Valve, WCB, 2 IN, CL600, API 6D, RF
Key Specifications / Features
Model No.: Hits: 51
Cast Steel Swing Check Valve Manufacturer: Cast Steel ASTM A216 WCB Swing Check Valves, Bolted Cover, 2 Inch, Class 600 LB, DN50, PN100, API 6D, RF End.
Request a quote
Share
Tags:
Quick Detail
| Type | Check Valve |
| Size | 2" |
| Pressure | 600 LB |
| Connection | RF |
| Body Material | ASTM A216 WCB |
| Design Norm | API 6D |
| Face-to-face dimension | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 425°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
API 2" 600 LB Cast Steel Swing Check Valve WCB BC RF
Introduction
2" 600 LB check valve is made according to API 6D standard. The valve body is made of WCB. It has the structural characteristics of bolt cover and swing type. Its connection mode is RF.
Features
1. The medium is only allowed to flow in one direction, and the flow in the opposite direction is prevented;
2. It can play the role of safety isolation.
Technical Drawing
Dimension Checking
Pressure Testing
Packing
Inspection report
Introduction
2" 600 LB check valve is made according to API 6D standard. The valve body is made of WCB. It has the structural characteristics of bolt cover and swing type. Its connection mode is RF.
Features
1. The medium is only allowed to flow in one direction, and the flow in the opposite direction is prevented;
2. It can play the role of safety isolation.
Technical Drawing
Dimension Checking
 |
 |
Pressure Testing
 |
 |
Packing
 |
 |
Inspection report
