DN150 PN25 Cast Steel Ammonia Globe Valve, Body LCB, Hand Wheel,
Key Specifications / Features
Model No.: Hits: 0
DN150 PN25 Cast Steel Ammonia Globe valve is made according to GB/T 26478 standard. The valve body is made of LCB. It has the structural characteristics of concealed rod, ammonia shut-off valve, copper prohibited. Its connection mode is EN1092-1 D. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Ammonia Globe Valve |
| Size | DN150 |
| Pressure | PN25 |
| Connection | EN1092-1 D |
| Operation | Hand Wheel |
| Body Material | LCB |
| Design Norm | GB/T 26478 |
| Structure Length Standard | EN558-1 |
| Connection Flange Size | EN1092-1 D |
| Test & Inspection Code | EN12266 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | NH3 |
Features
1. Specially designed for ammonia media, it can effectively avoid corrosion and leakage problems;
2. The design is simple, easy to install and maintain, reducing space occupation.

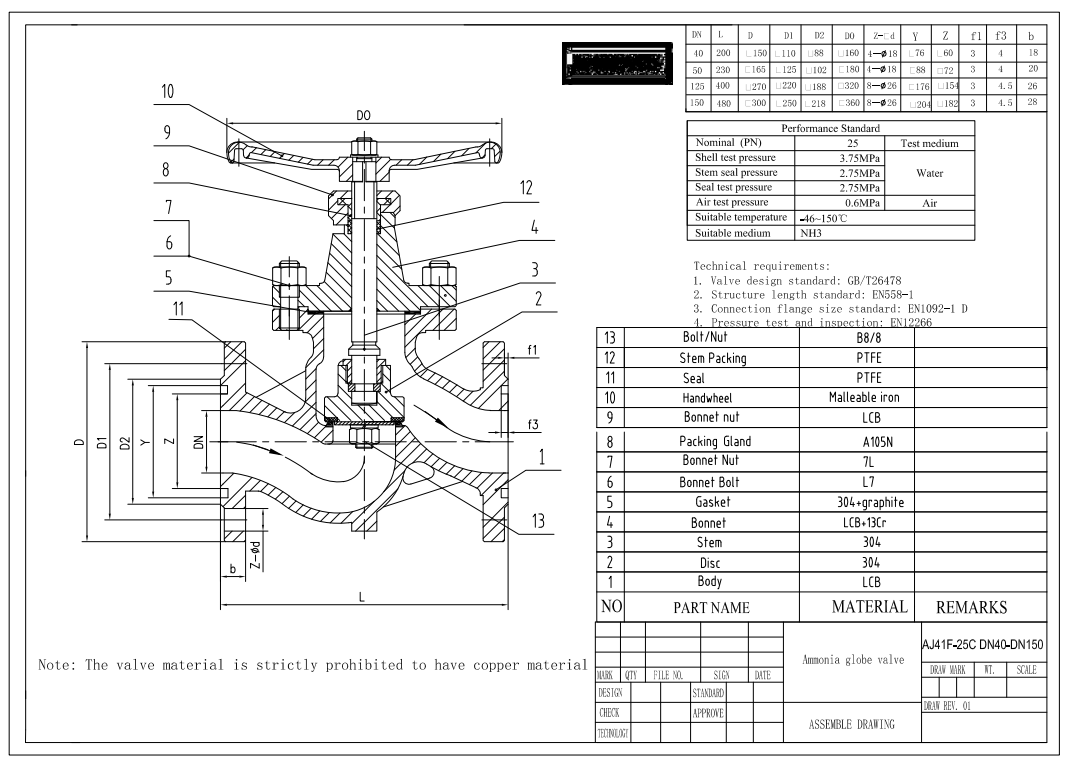

Technical Drawing
Dimension Checking

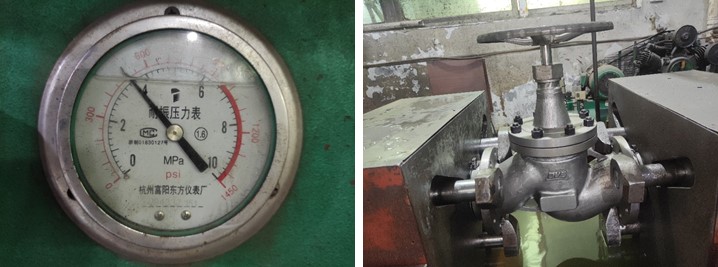

Pressure Testing

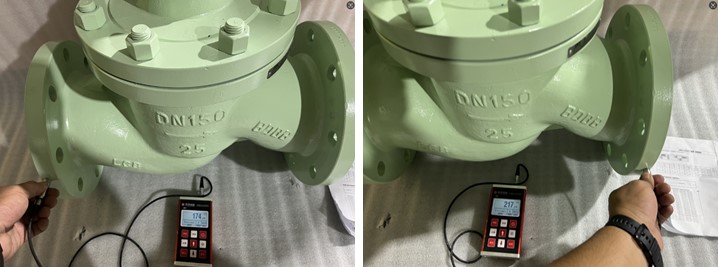

Painting

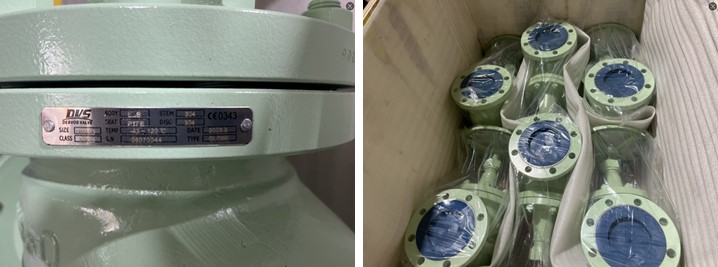

Nameplate & Packing

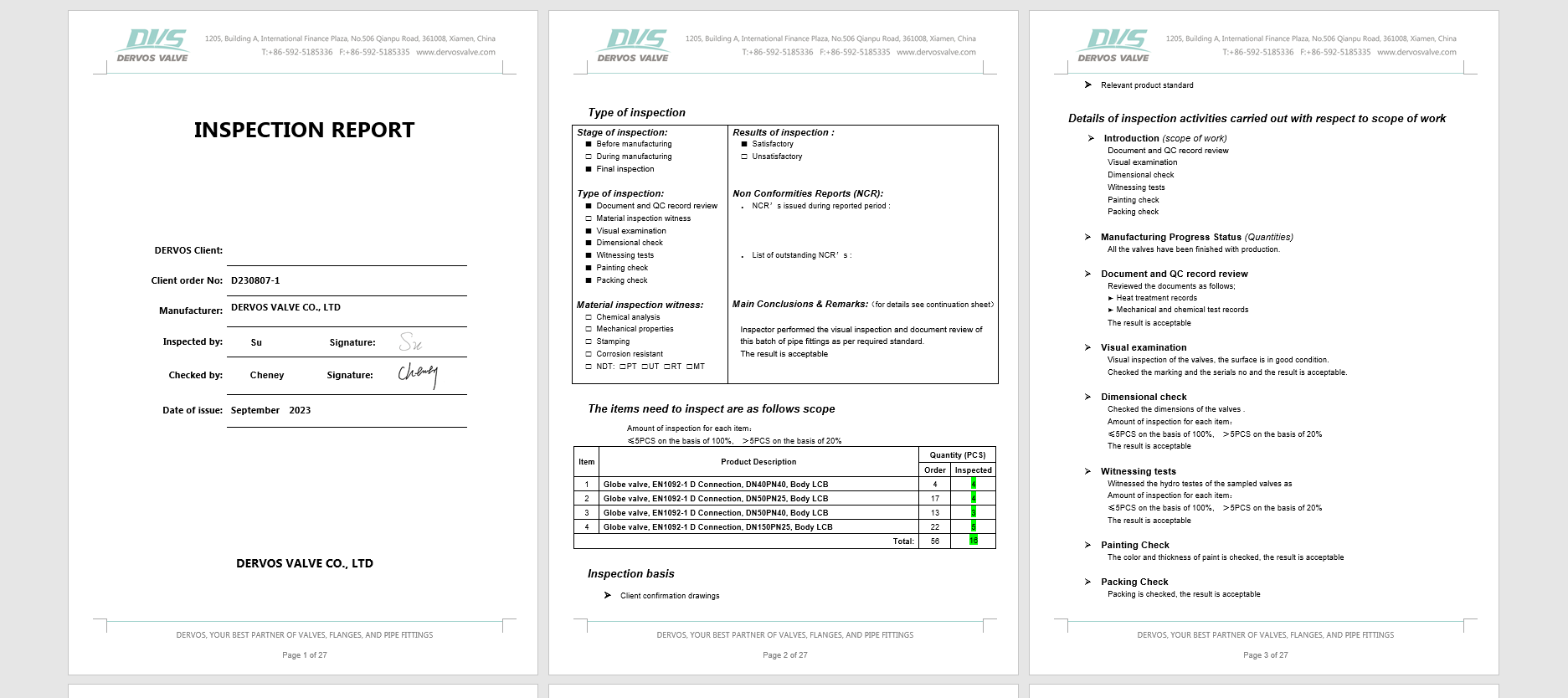

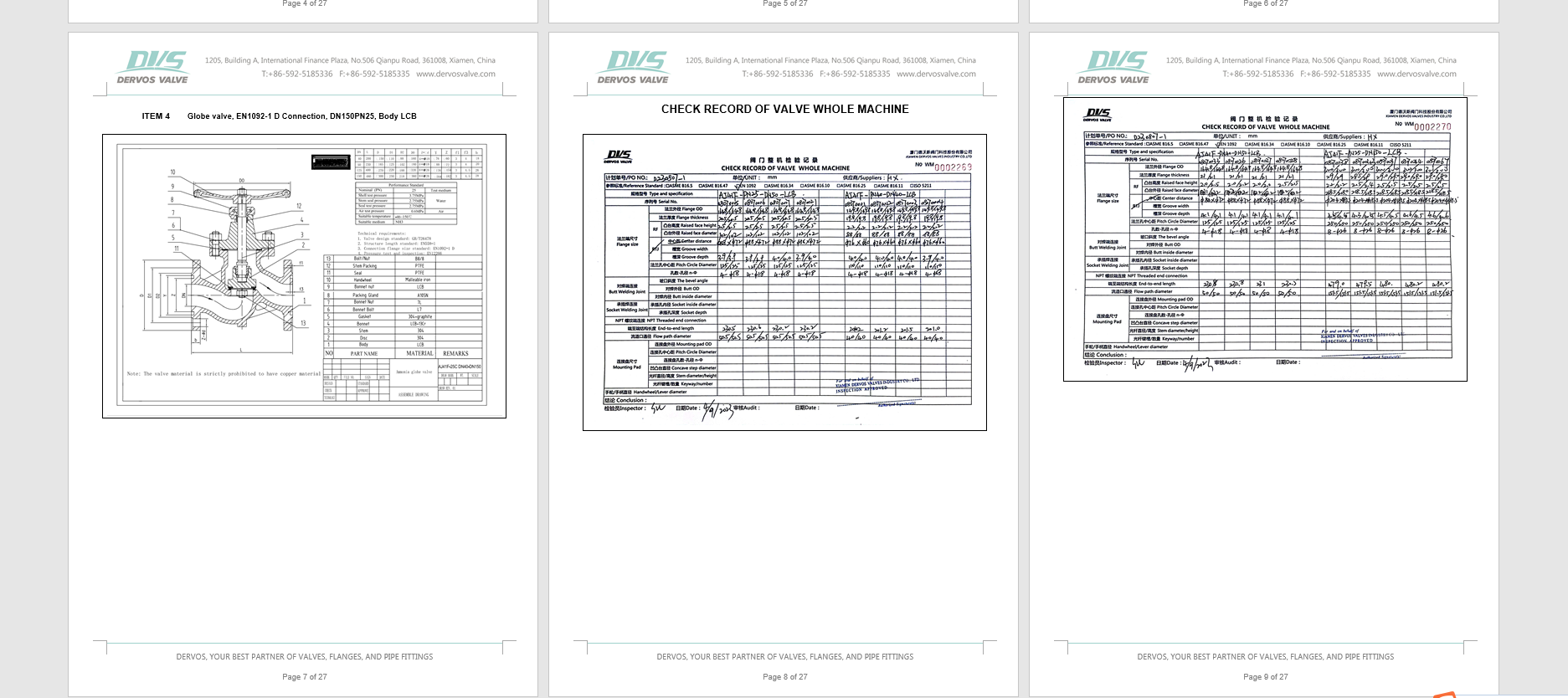

Inspection report
