DN25 PN250 Flange Lift Check Valve, Body A105N, BS5352, EN1092-1 D
Key Specifications / Features
Model No.: Hits: 0
DN25 PN250 Flange Lift Check valve is made according to BS 5352 standard. The valve body is made of A105N+STL. It has the structural characteristics of Plug cover, lift type, with spring. Its connection mode is EN1092-1 D.
Request a quote
Tags:
Next: Return to List
Previous: DIN 3840 Lift Check Valve, DN50, PN160, ASTM A216 WCB
Detail Information
Product Description
| Type | Flange Lift Check Valve |
| Size | DN25 |
| Pressure | PN250 |
| Connection | EN1092-1 D |
| Body Material | A105N+STL |
| Design Norm | BS 5352 |
| Face to Face | EN 558 |
| Flange Dimension | EN 1092 |
| Material | AISI/ASTM |
| Test & Inspection Code | EN 12266 |
| Applicable Medium | Water, Oil and Gas |
Features
1. Generally installed horizontally, the inlet and outlet are in a straight line, and the fluid flows in a straight direction with relatively low flow resistance;2. The structure is relatively simple, and the maintenance and replacement of sealing surfaces are relatively convenient, suitable for pipeline systems that require a longer service life.

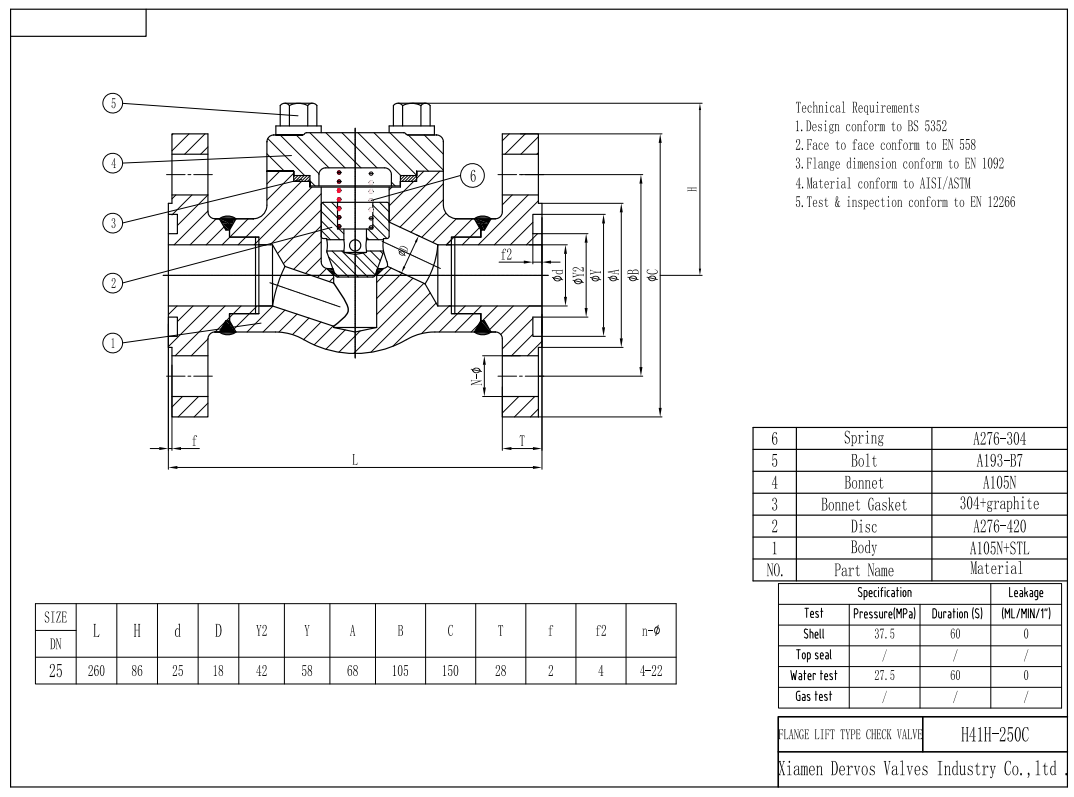

Technical Drawing

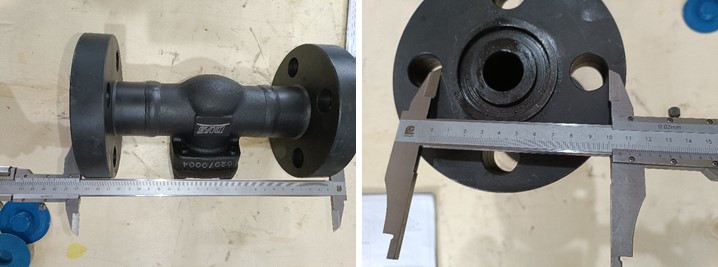

Dimension Checking

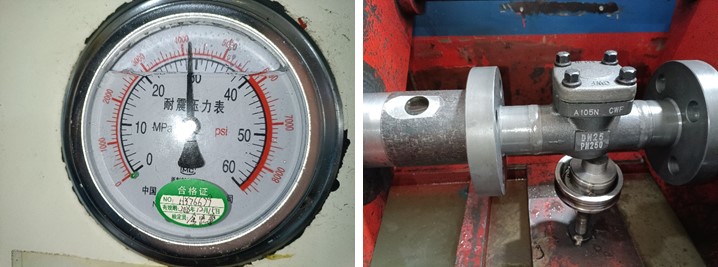

Pressure Testing

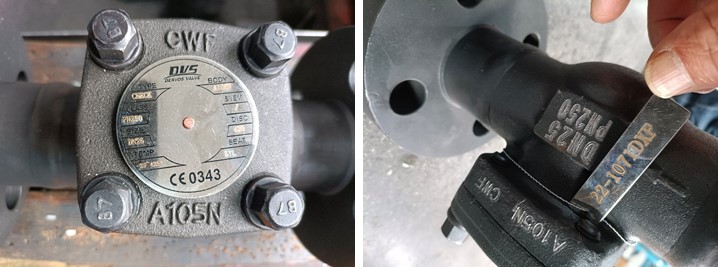

Nameplate

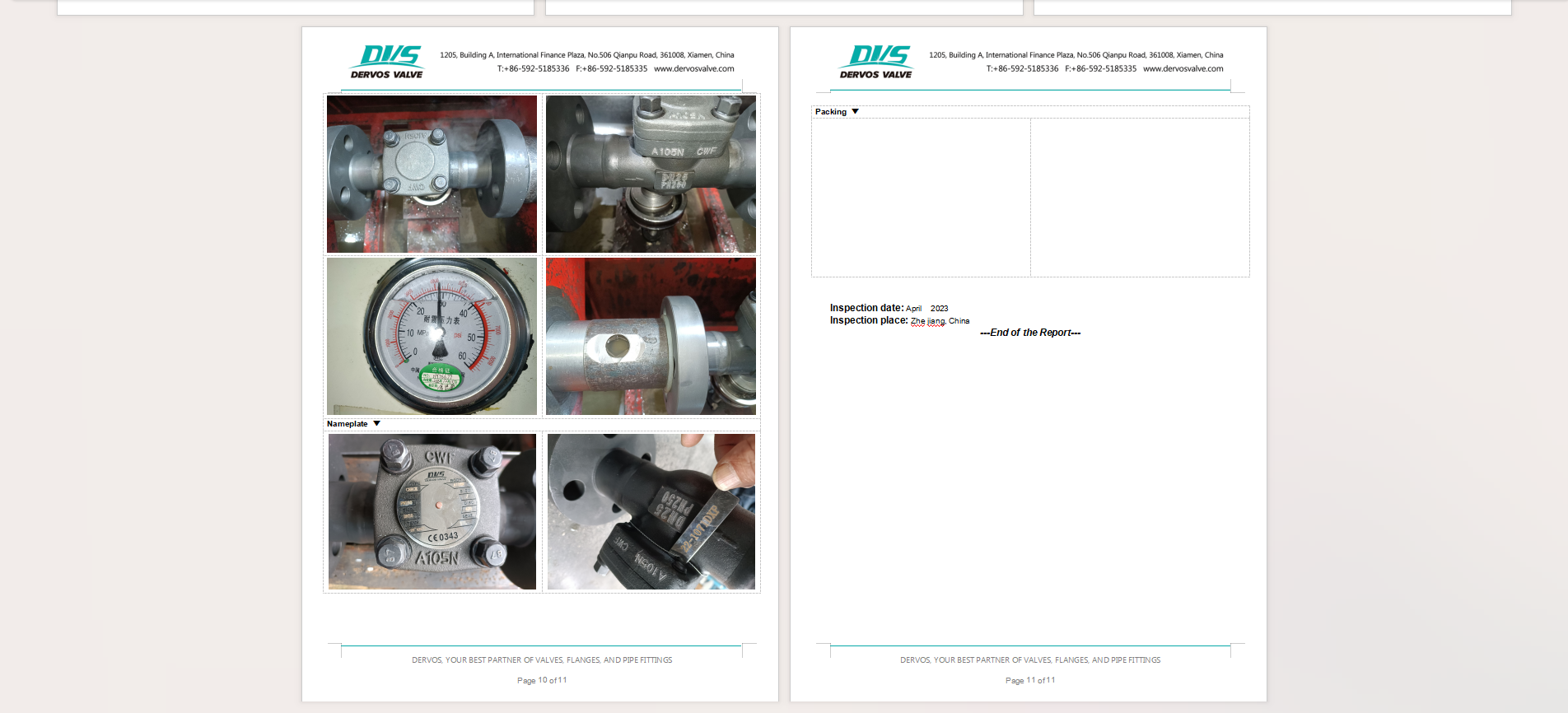

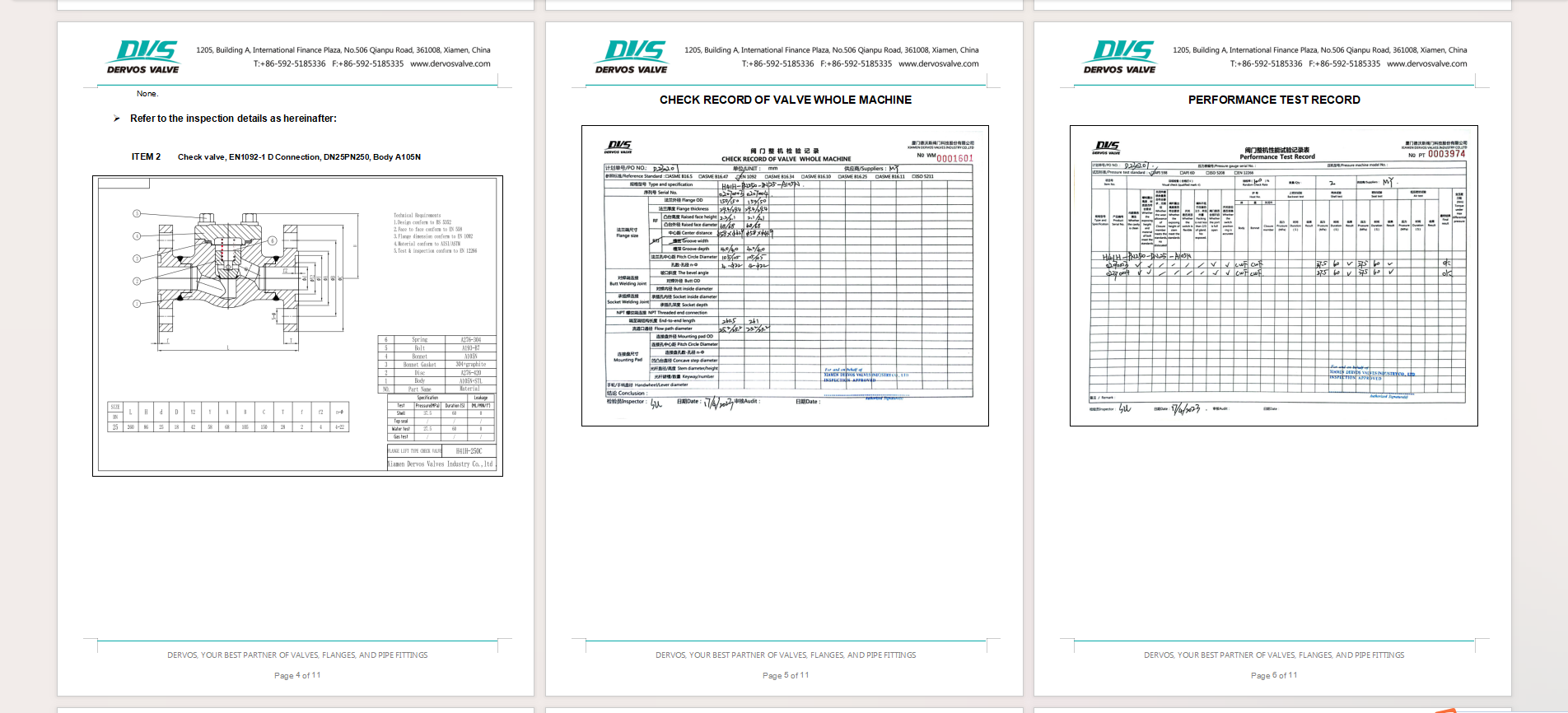

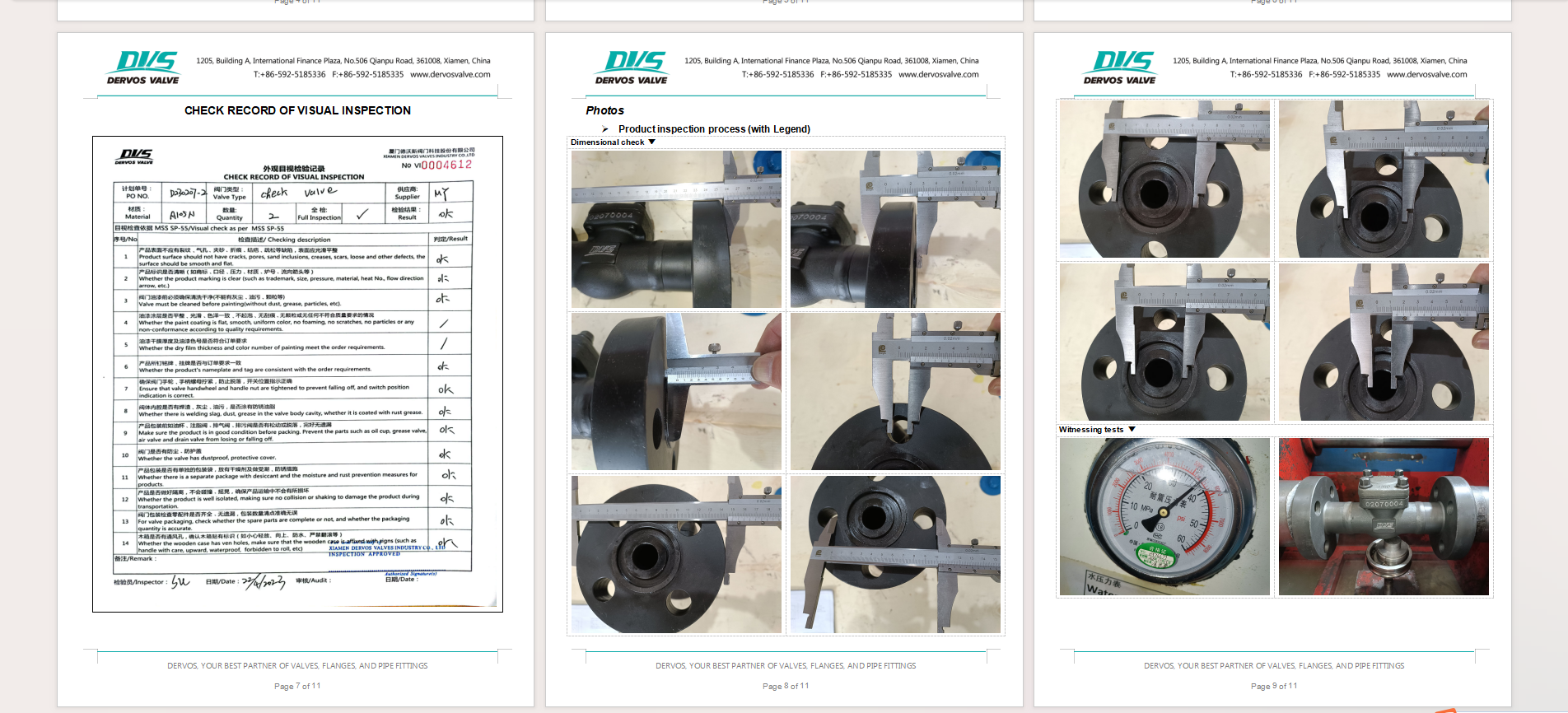

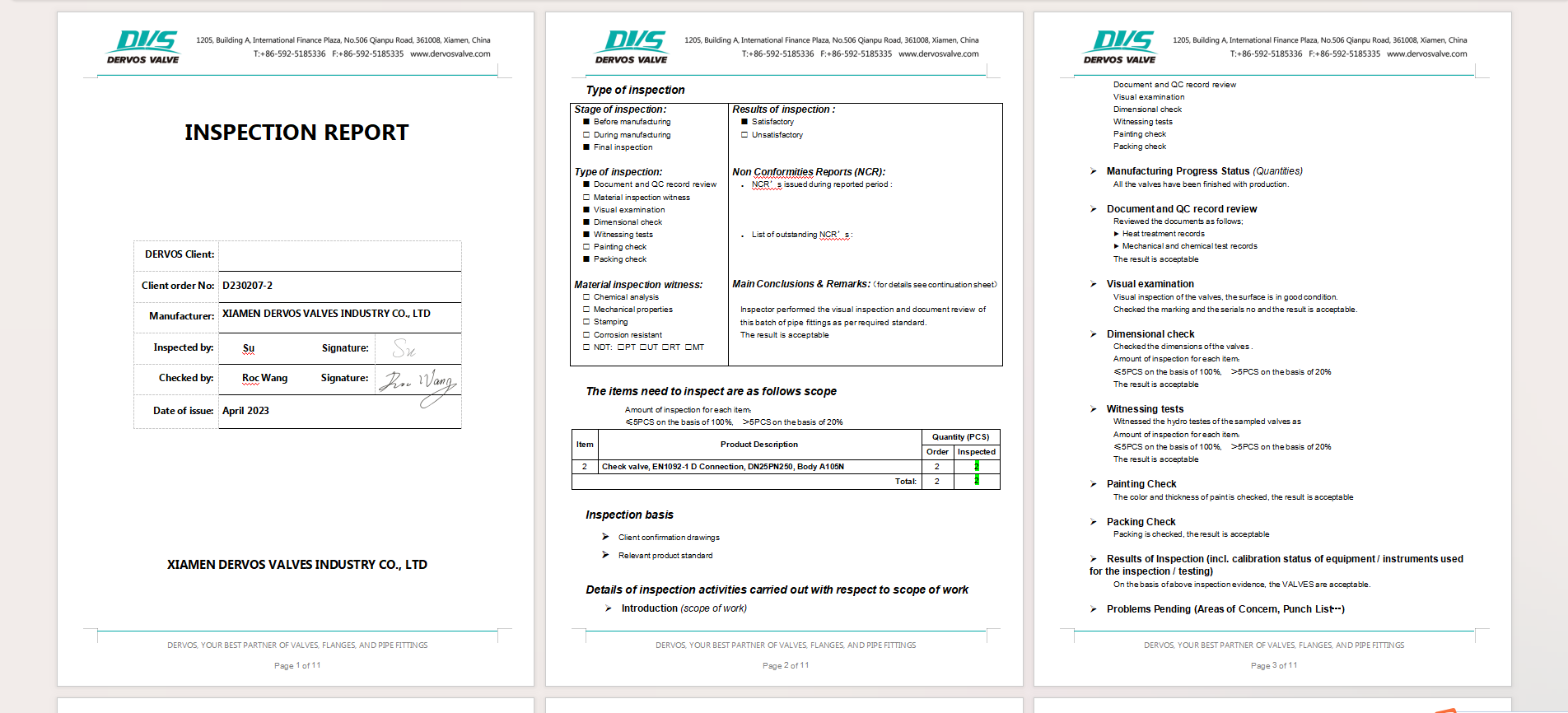

Inspection report
