Dual Plate Wafer Check Valve 8" 300LB CF8M RF
Key Specifications / Features
Model No.: Hits: 0
8" 300LB Dual Plate Wafer Check Valve is made according to API 594 standard. The valve body is made of CF8M. It has the structural characteristics of Dual Plate, Wafer Type. Its connection mode is RF.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Dual Plate Wafer Check Valve |
| Size | 8” |
| Pressure | 300LB |
| Connection | RF |
| Body Material | A351 CF8M |
| Design Norm | API 594 |
| Face to face | API594 |
| Flange end | ASME B16.5 |
| Test & Inspection Code | ANSI B16.5 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Dual Plate Spring-Assisted Closure: Enables fast disc response to reduce reverse-flow impact and help minimize water hammer.2. CF8M Stainless Steel Construction: Offers strong corrosion resistance for chemical, water, and other aggressive fluid services.

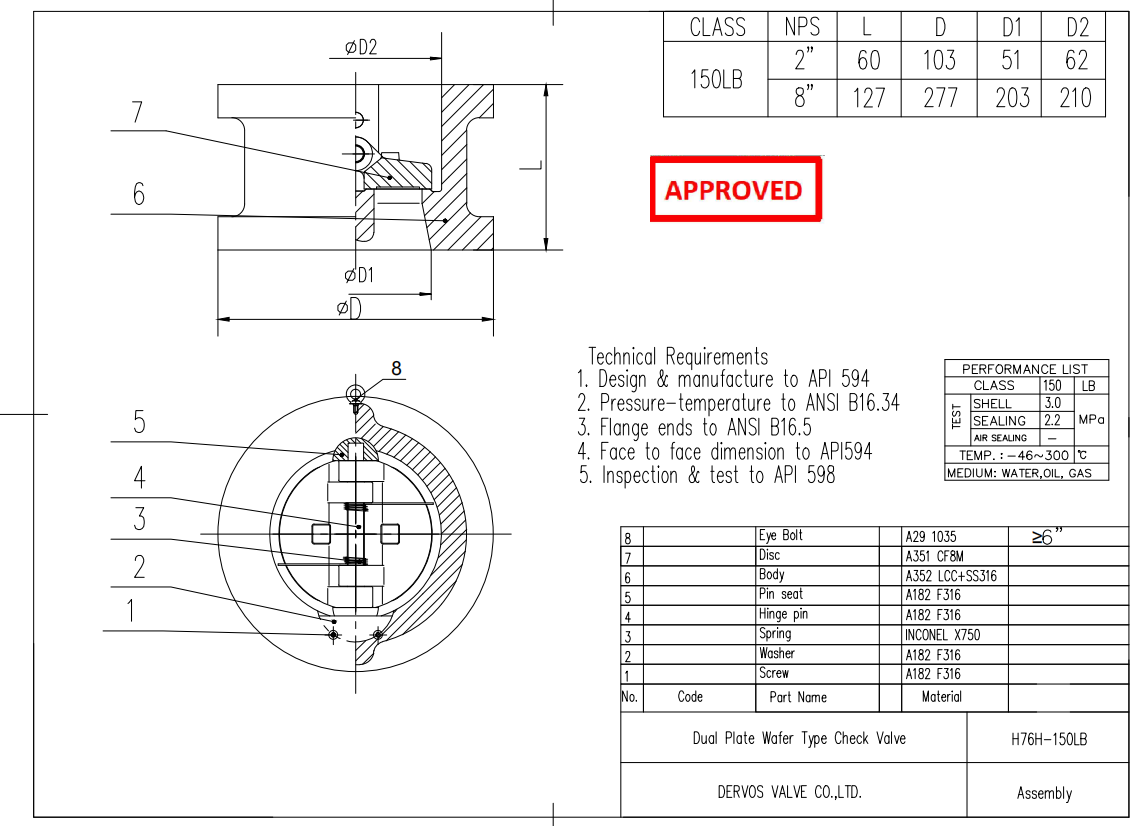

Technical Drawing

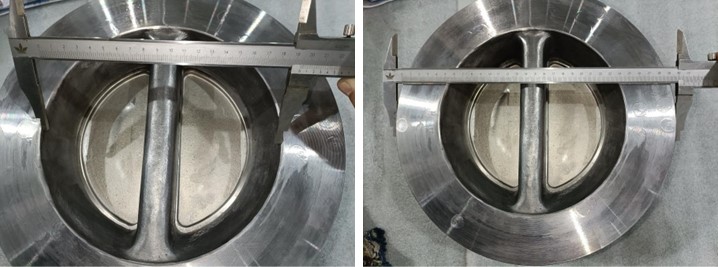

Dimension Checking

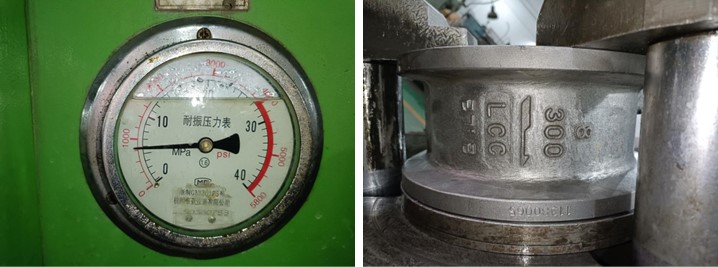

Pressure Testing

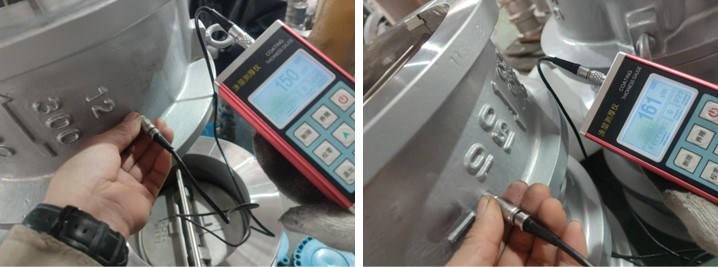

Painting

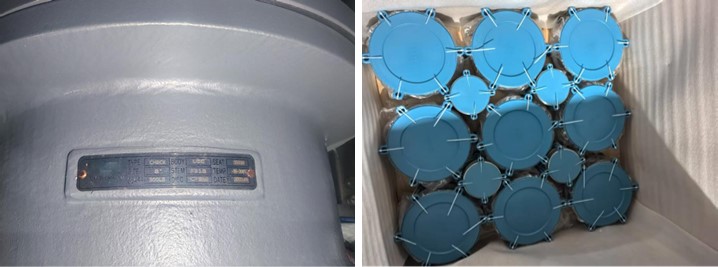

Nameplate & Packing

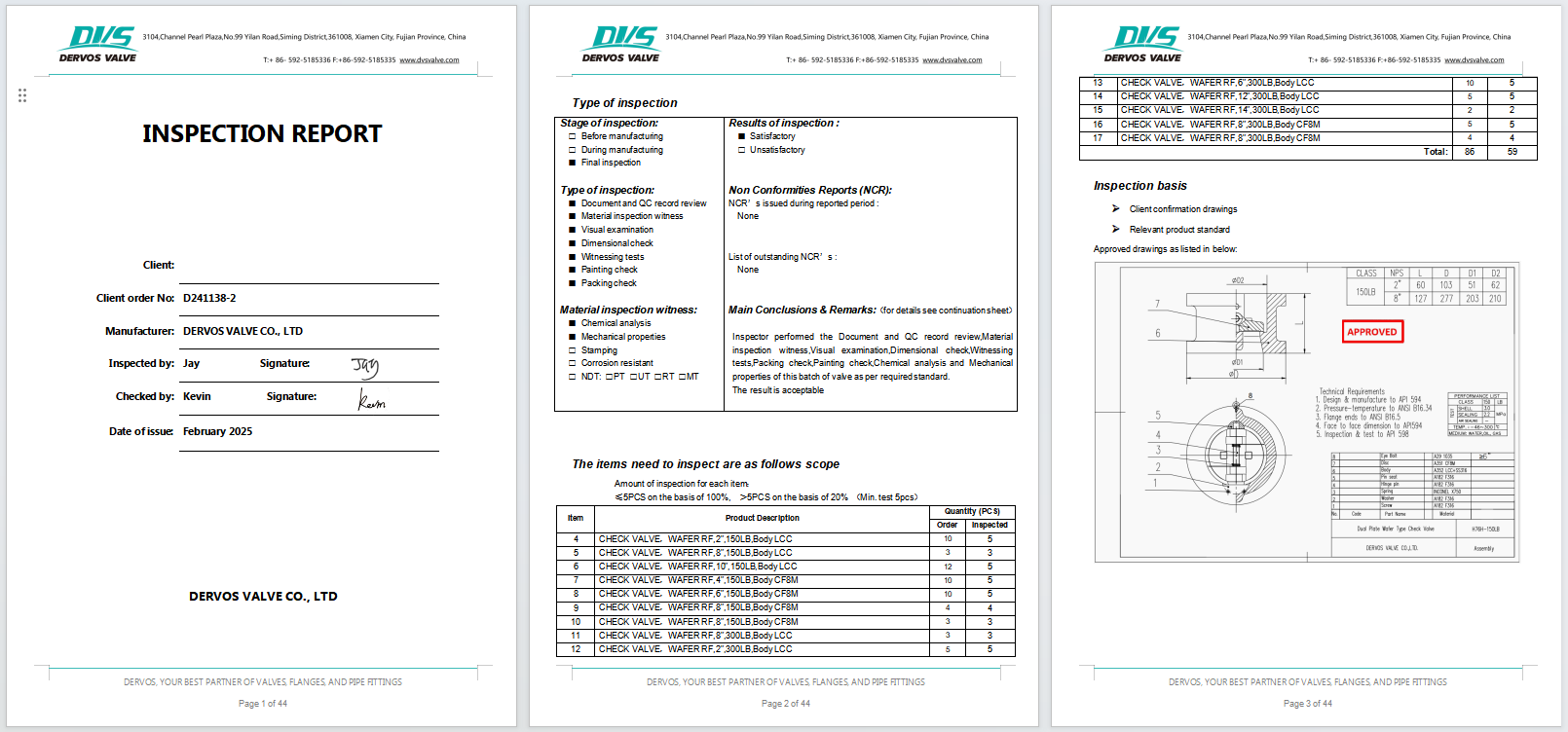

Inspection Report
