EN 1984 Heating Jacket Gate Valve, DN50, PN25, WCB, Handwheel
Key Specifications / Features
Model No.: Hits: 73
EN 1984 Heating Jacket Gate Valve Supplier in China: EN 1984 Heating Jacket Gate Valve, DN50, PN25, RF End, DIN 3352, ASTM A216 WCB, STL, B.B, OS & Y.
Request a quote
Share
Tags:
Detail Information

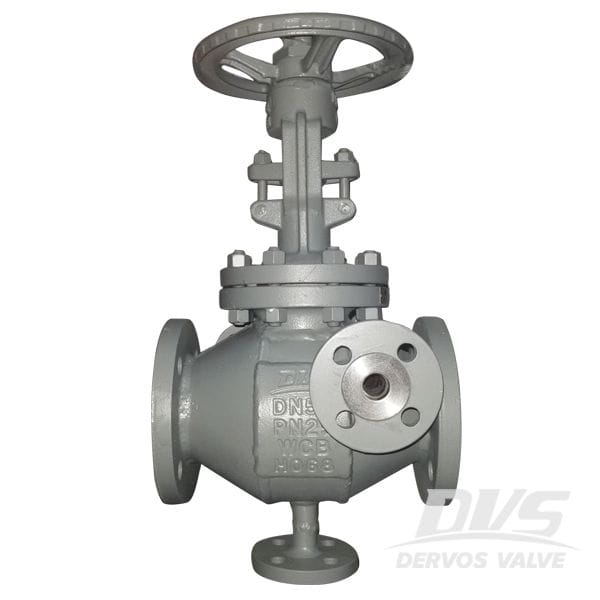

EN1984 Heating Jacket Gate Valve, DN50, PN25, WCB, Handwheel.
The is a gate valve of a series of PN25, DN50-DN200 gate valve with heating jacket, which are designed as per EN 1984 and made from WCB. The heating jacket can prevent the medium from heat loss effectively. And the the handwheel also makes the device easy to drive.
Quick Detail
Payment: 30% when order confirmed, 70% before shipment.
Product Origin: China.
Color: Customization.
Shipping Port: Shanghai, China.
Lead Time: 30-60 days Ex Works after order confirmation.
Reports
For each order, Dervos will provide inspection reports to show you the whole inspection process and results. Plus, we will provide material report to let you know that the material we provide is as per standards.
The is a gate valve of a series of PN25, DN50-DN200 gate valve with heating jacket, which are designed as per EN 1984 and made from WCB. The heating jacket can prevent the medium from heat loss effectively. And the the handwheel also makes the device easy to drive.
Quick Detail
| Type | Gate Valve. |
| Nominal Diameter | DN50. |
| Nominal Pressure | PN25. |
| Construction | B.B, OS & Y. |
| Connection | RF. |
| Operation | Handwheel. |
| Design & Manufacture | DIN 3352. |
| End to End | DIN 3202-F5. |
| Flange End Dimension | EN 1092-1/B1. |
| Test & Inspection | EN 12266-1/2. |
| Temperature Range | -29℃ - +425℃. |
| Body Material | ASTM A216 WCB +STL. |
| Wedge Material | ASTM A105 WCB +13Cr. |
| Media | W.O.G. |
Payment: 30% when order confirmed, 70% before shipment.
Product Origin: China.
Color: Customization.
Shipping Port: Shanghai, China.
Lead Time: 30-60 days Ex Works after order confirmation.
Reports
For each order, Dervos will provide inspection reports to show you the whole inspection process and results. Plus, we will provide material report to let you know that the material we provide is as per standards.
