Floating Ball Valve DN50 PN16 A182 F304
Key Specifications / Features
Model No.: Hits: 0
DN50 PN16 Floating Ball Valve is made according to ISO17292 standard. The valve body is made of A182 F304. It has the structural characteristics of Full Bore, Floating Ball, Fire-Safe and Anti-Static Design, Blowout-Proof Stem. Its connection mode is EN1092-1 B. And it has Lever operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Stainless Steel Floating Ball Valve 2" 150LB CF3M RF
Detail Information
Product Parameters
| Type | Floating Ball Valve |
| Size | DN50 |
| Pressure | PN16 |
| Connection | EN1092-1 B |
| Operation | Lever |
| Body Material | A182 F304 |
| Design Norm | ISO17292 |
| Face to face | EN558 |
| Flange dimension | EN1092 |
| Test & Inspection Code | ISO 5208 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Floating Ball Sealing Mechanism: Uses line pressure to press the ball against the downstream seat, supporting dependable shutoff performance.2. A182 F304 Forged Stainless Steel: Delivers good corrosion resistance and structural integrity for general industrial process applications.

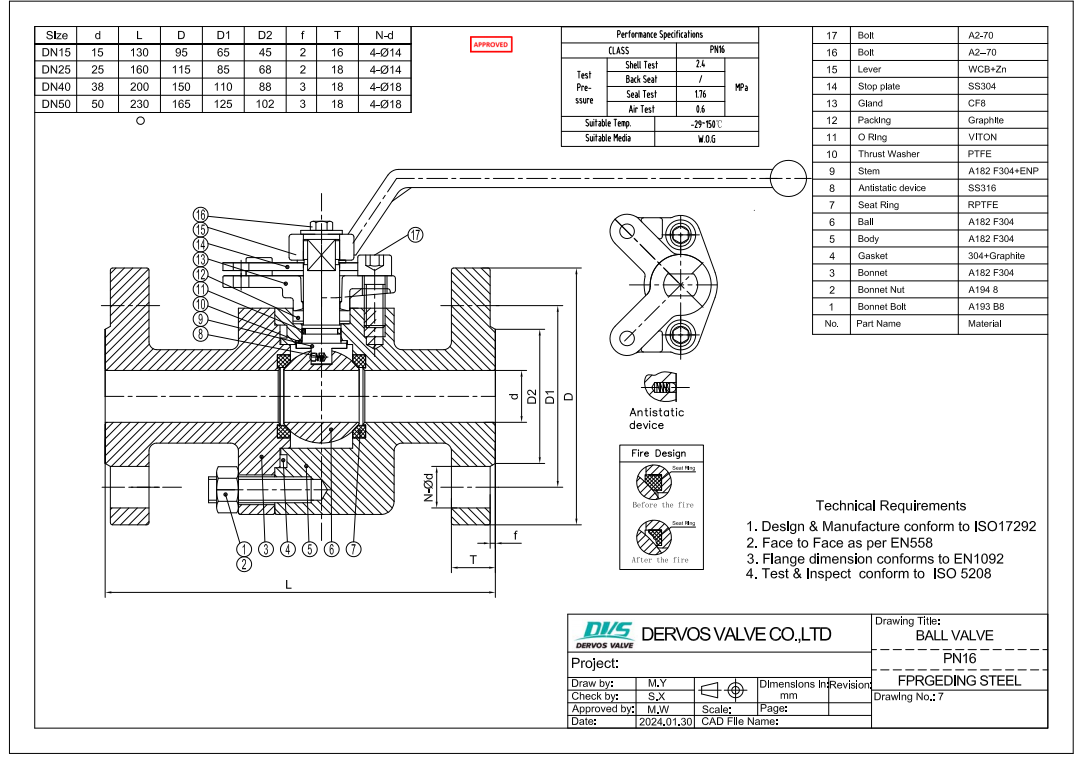

Technical Drawing

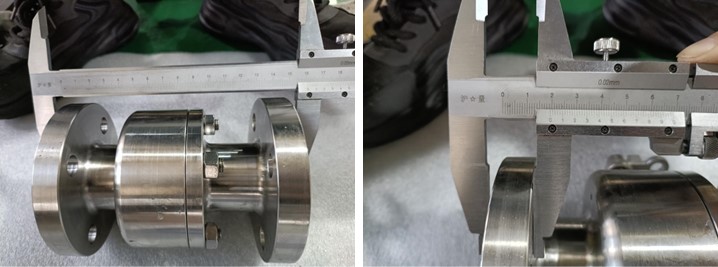

Dimension Checking

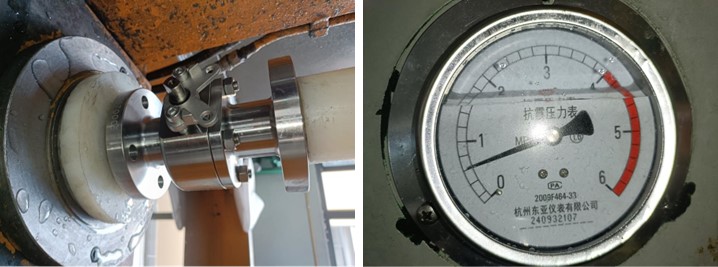

Pressure Testing

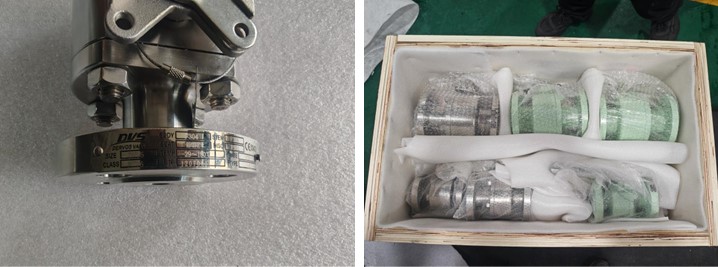

Nameplate & Packing

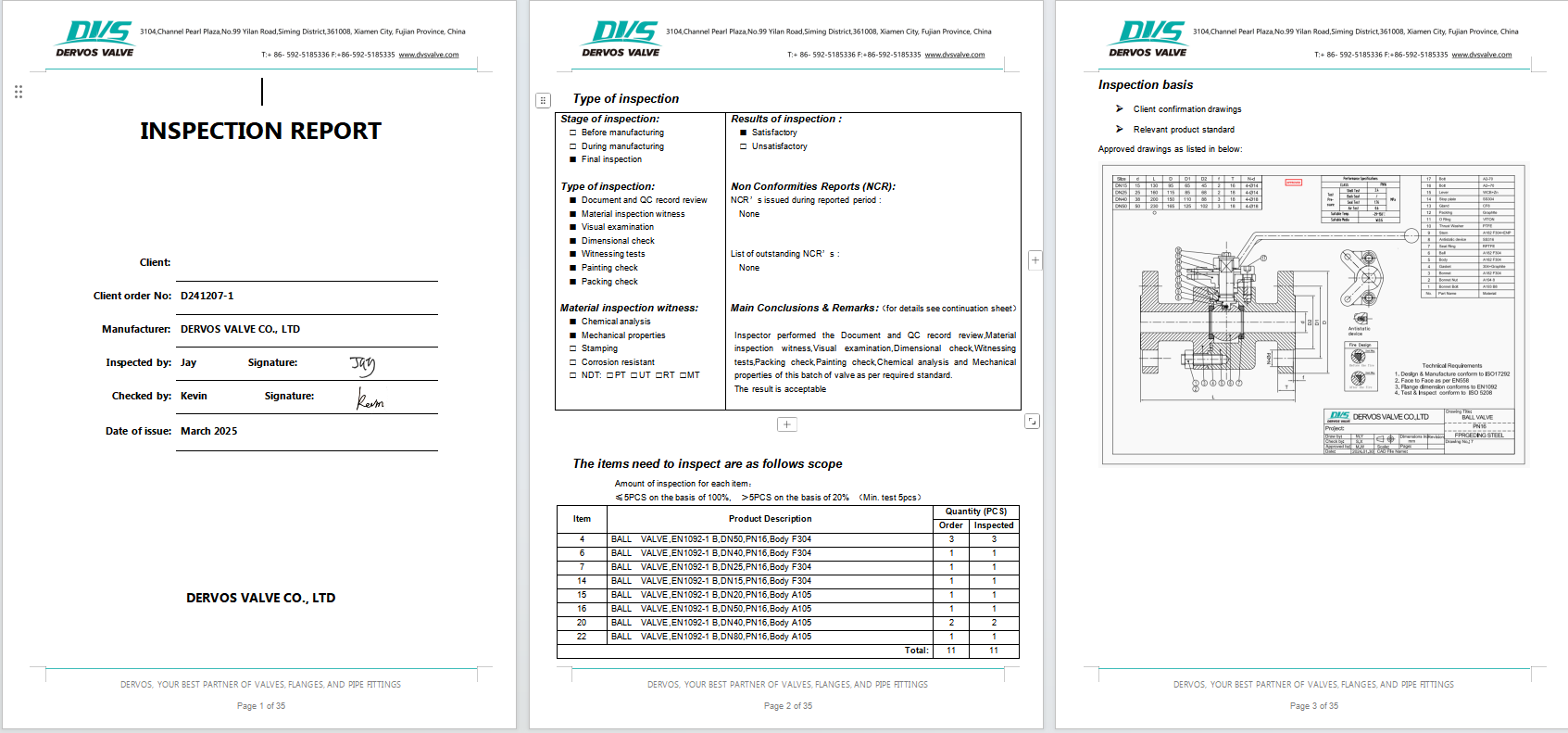

Inspection Report
