Forged Steel Floating Ball Valve 2" x 1.5" 150LB A105 BW
Key Specifications / Features
Model No.: Hits: 0
2" x 1.5" 150LB Forged Steel Floating Ball Valve is made according to API 6D standard. The valve body is made of ASTM-A105. It has the structural characteristics of Two-Piece Body, Floating Ball, Reduced Port, Fire-Safe, Anti-Static, Blowout-Proof Stem. Its connection mode is RF. And it has Lever Handle with Locking Device operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Forged Steel Floating Ball Valve |
| Size | 2" x 1.5" |
| Pressure | 150LB |
| Connection | RF |
| Operation | Lever Handle with Locking Device |
| Body Material | ASTM-A105 |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged A105 steel body with reduced bore design provides high strength and reliable flow control in Class 150 service.2.Floating ball structure with butt weld ends ensures tight shutoff and durable performance for industrial piping systems.

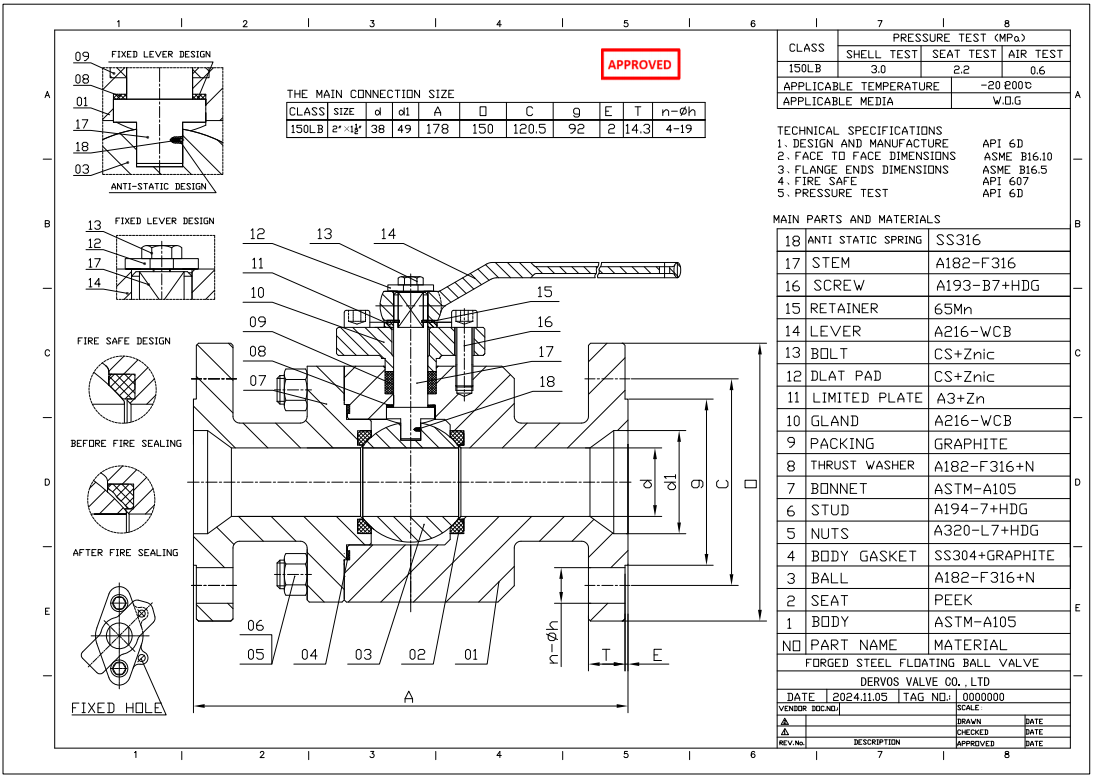

Technical Drawing

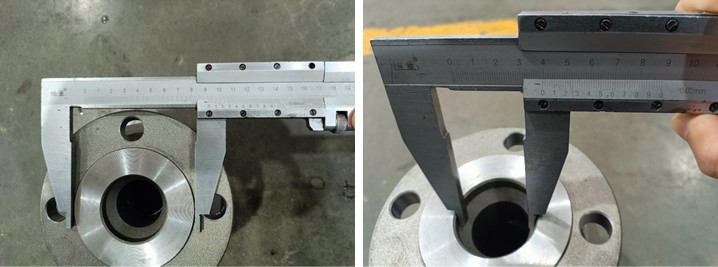

Dimension Checking

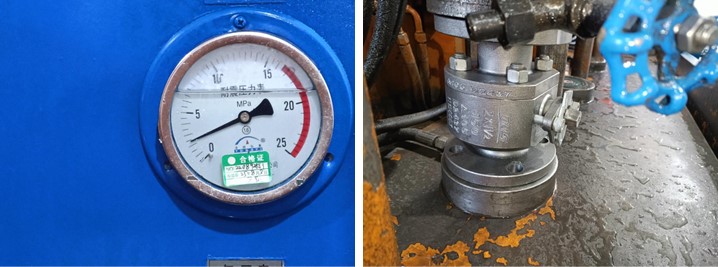

Pressure Testing

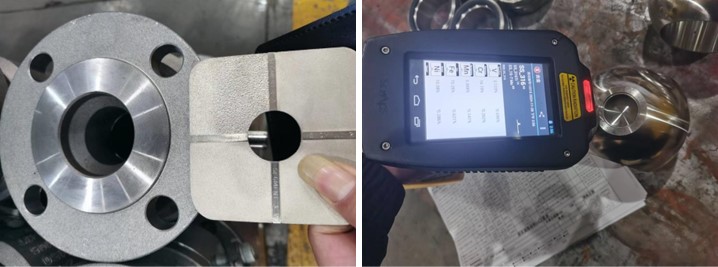

Spectrum

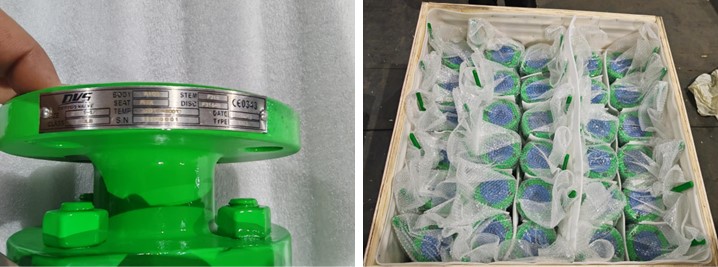

Nameplate & Packing

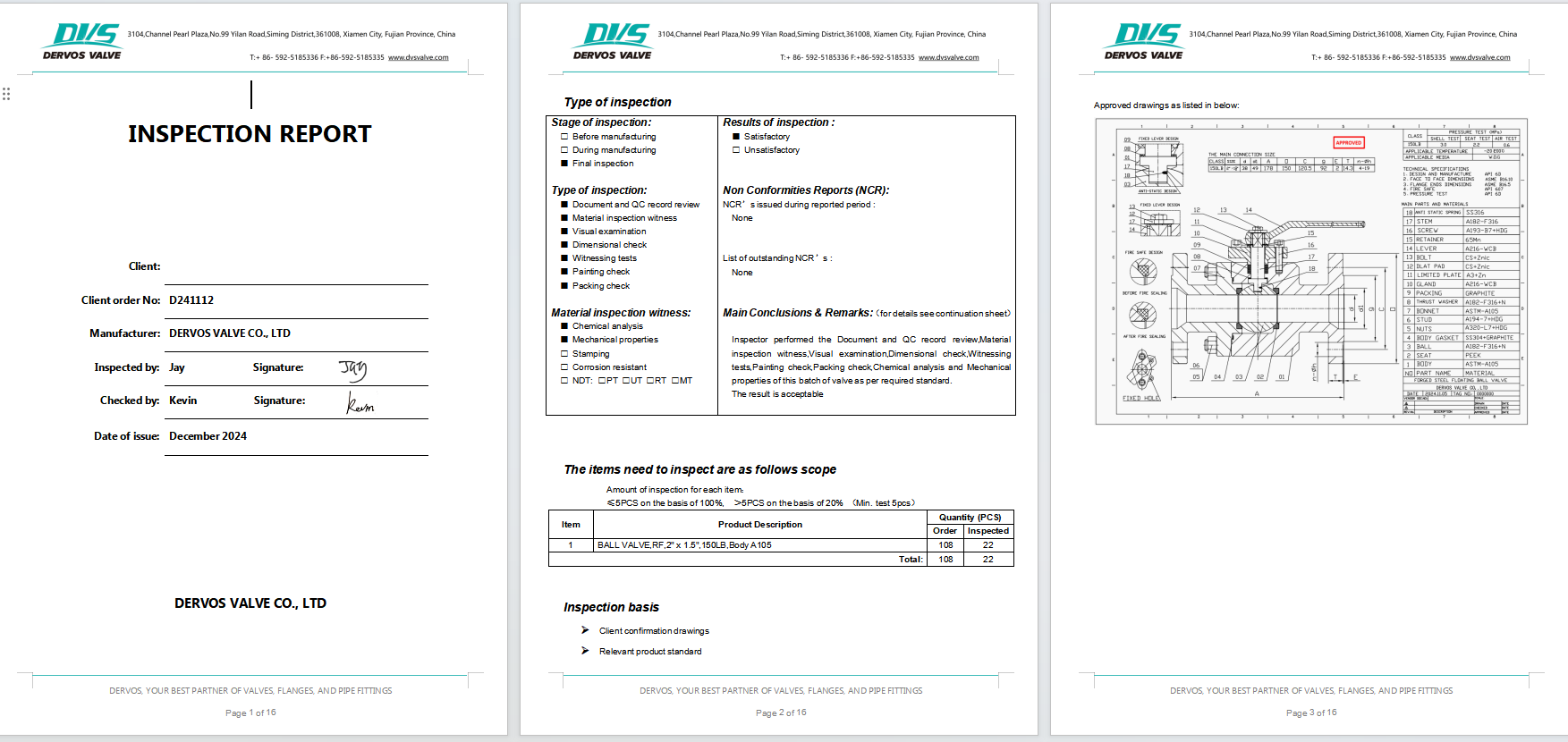

Inspection Report
