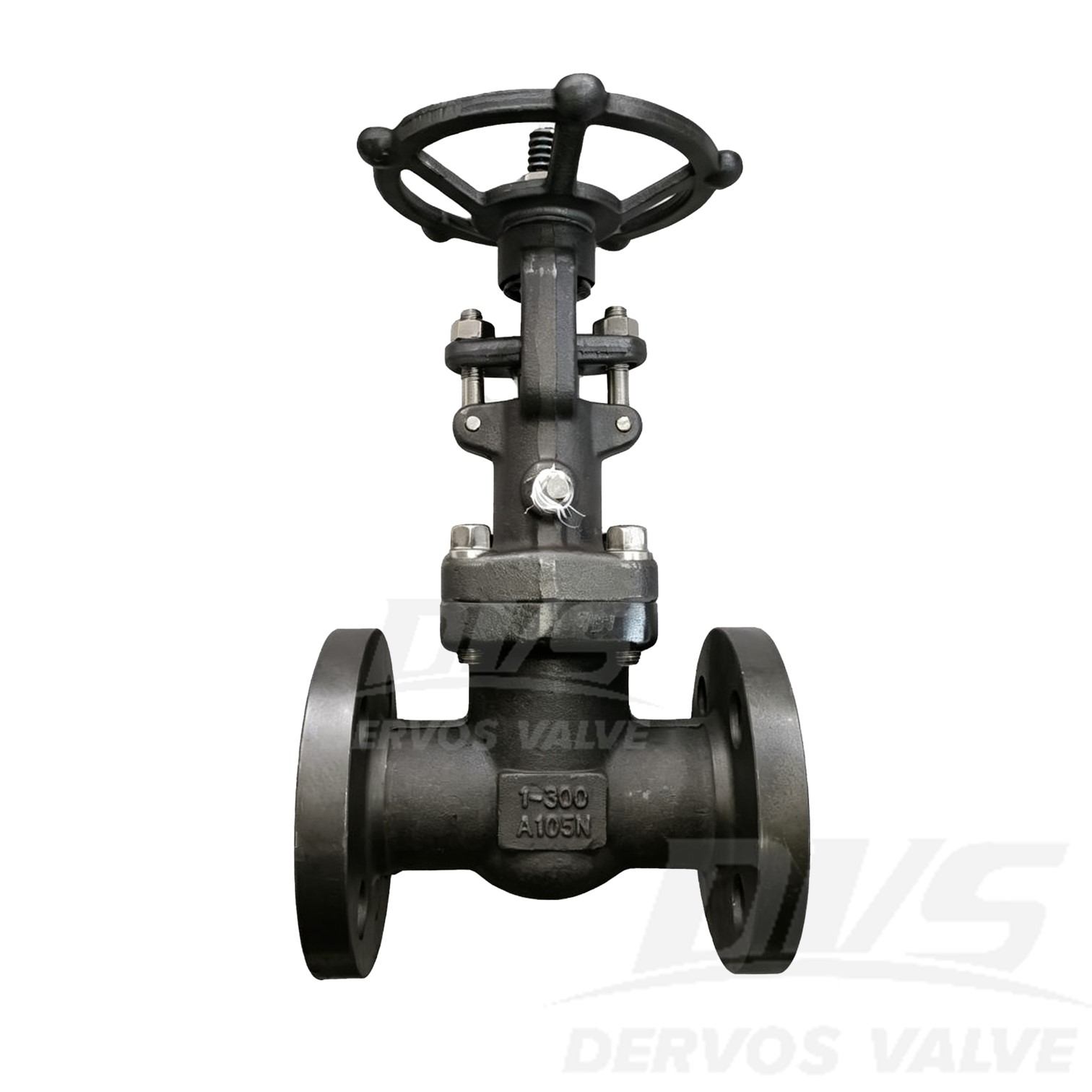

Forged Steel Gate Valve 1" 300LB A105N RF
Key Specifications / Features
Model No.: Hits: 0
1" 300LB Forged Steel Gate Valve is made according to API602 standard. The valve body is made of A105N. It has the structural characteristics of Full Port, Solid Wedge, Bolted Bonnet, Fire-Safe Design. Its connection mode is RF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Forged Steel Gate Valve |
| Size | 1" |
| Pressure | 300LB |
| Connection | RF |
| Operation | Hand Wheel |
| Body Material | A105N |
| Design Norm | API 602 |
| Face to face | ASMEB16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Forged A105N body provides high mechanical strength and reliable performance in Class 300 pressure applications.2. RF flanged gate valve design ensures secure pipeline connections with dependable shutoff and low flow resistance.

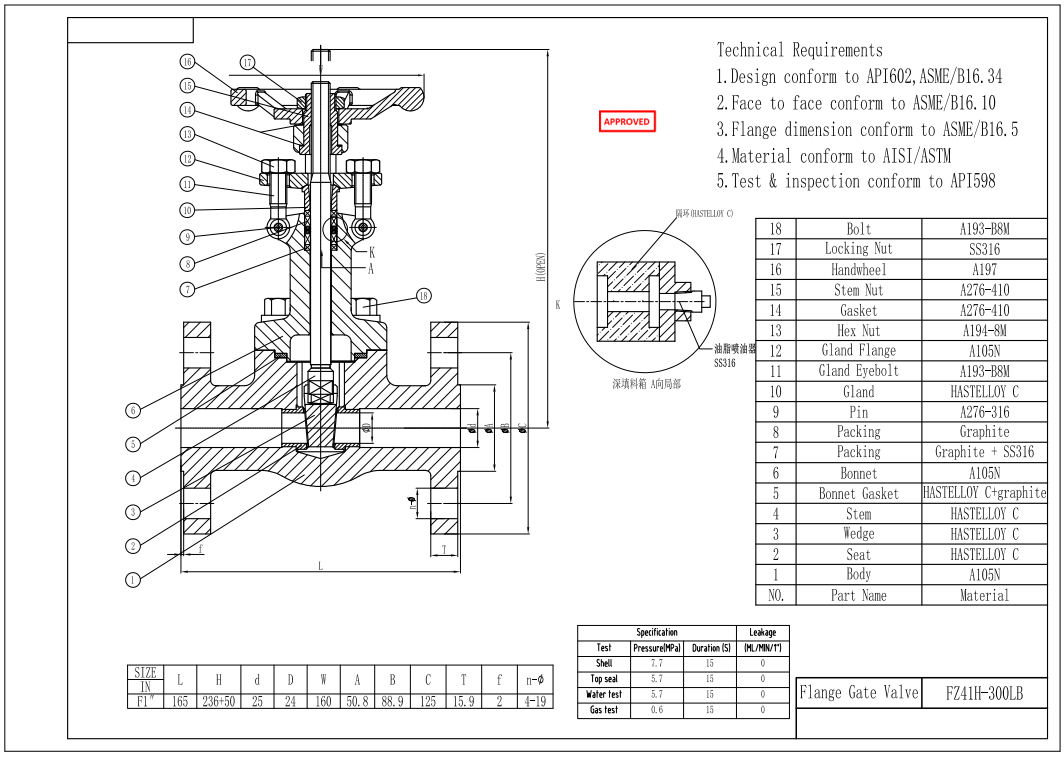

Technical Drawing

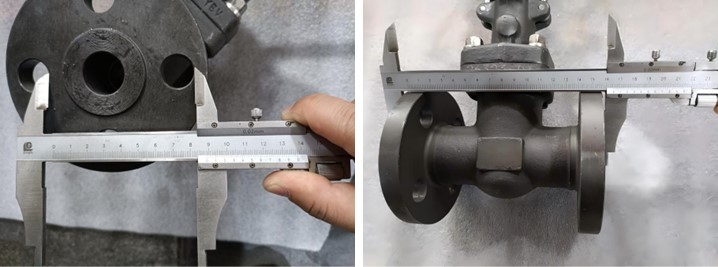

Dimension Checking

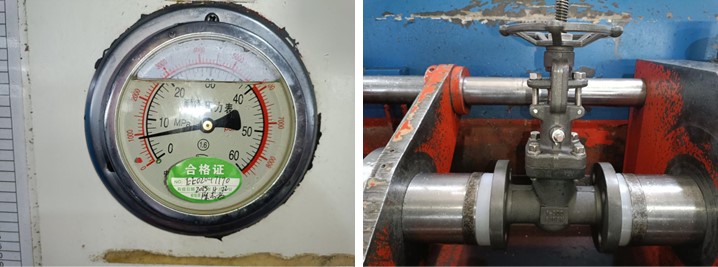

Pressure Testing

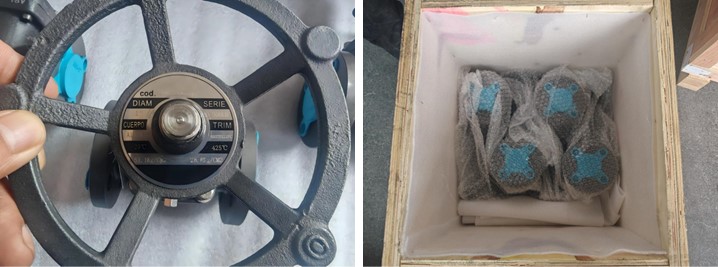

Nameplate & Packing

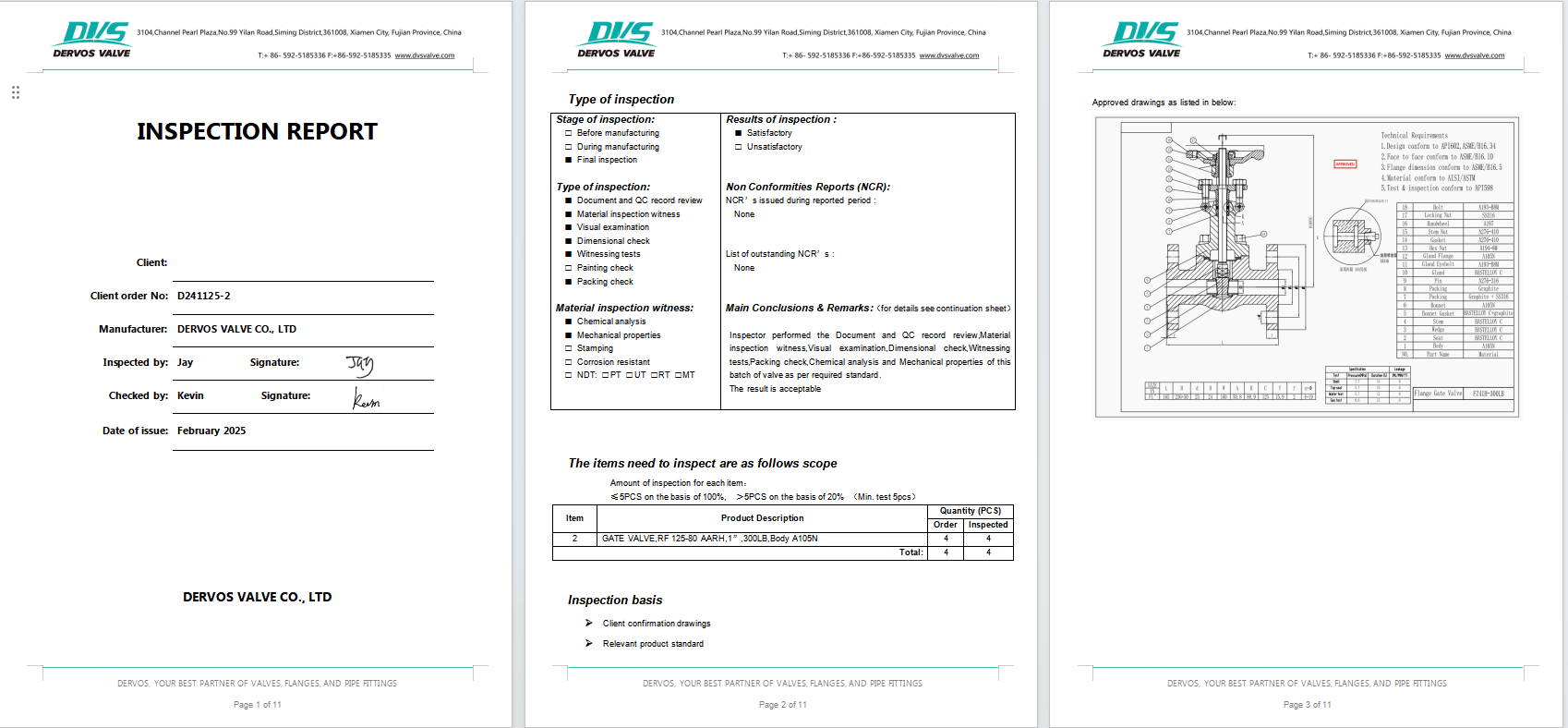

Inspection Report
