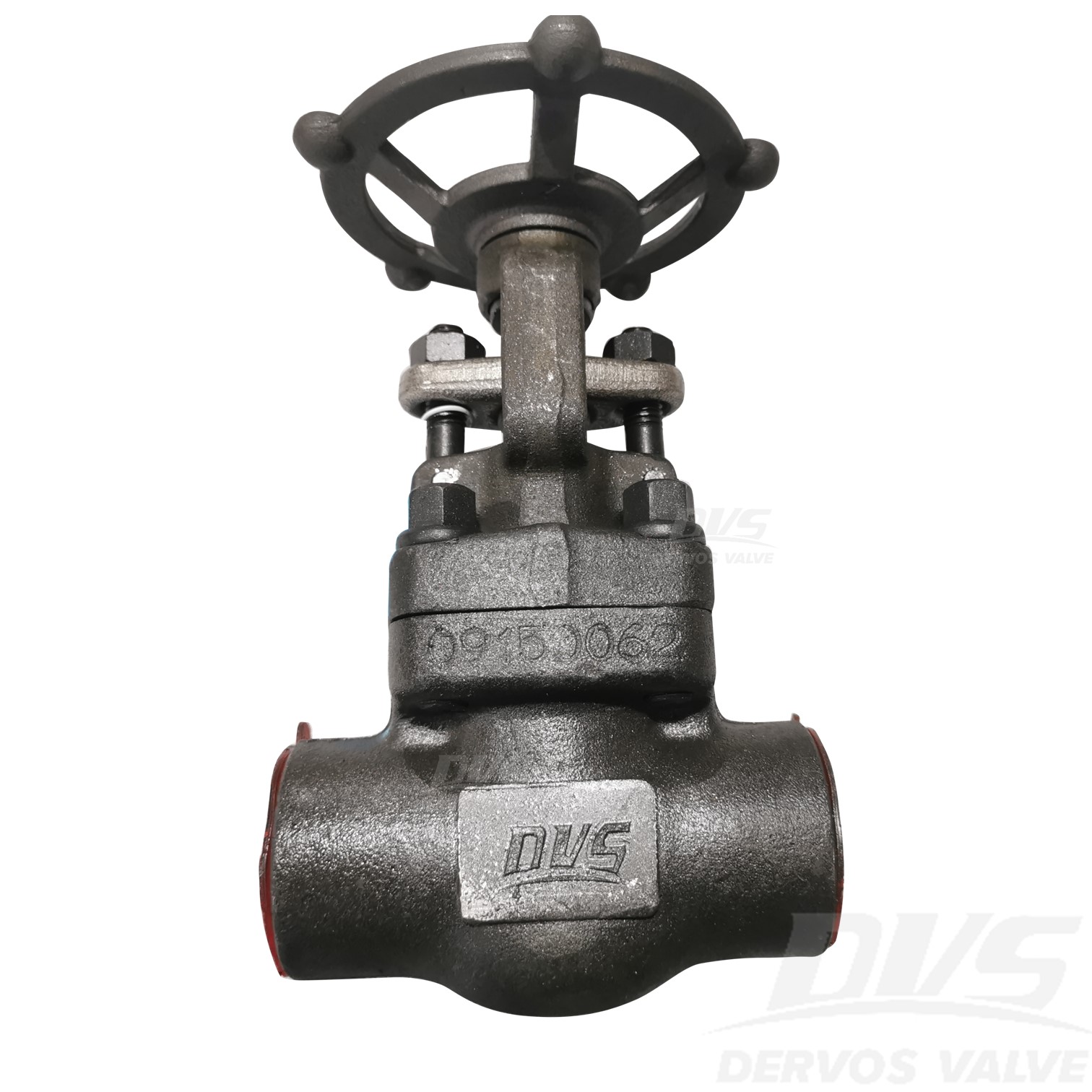

Forged Steel Gate Valve 1" 800LB F11 CL.2 SW
Key Specifications / Features
Model No.: Hits: 0
1" 800LB Forged Steel Gate Valve is made according to API 602 standard. The valve body is made of F11 CL.2. It has the structural characteristics of Body-bonnet bolting. Its connection mode is SW. And it has Non-rising handwheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Forged Steel Gate Valve |
| Size | 1" |
| Pressure | 800LB |
| Connection | SW |
| Operation | Non-rising handwheel |
| Body Material | A182-F11 CL.2 |
| Design Norm | API602 |
| Socket welded dimension | ANSI B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 552°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Forged F11 Class 2 alloy steel construction provides reliable strength and performance for high-temperature service.2. Socket-weld ends provide a compact and secure connection for high-pressure piping systems.

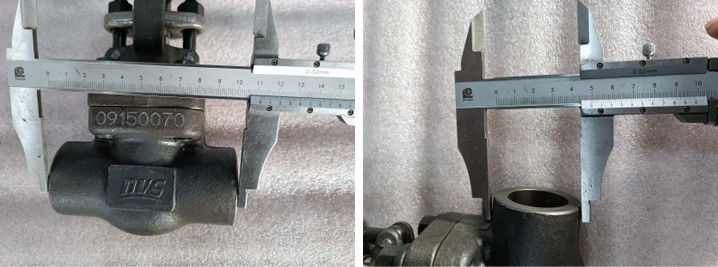

Dimension Checking

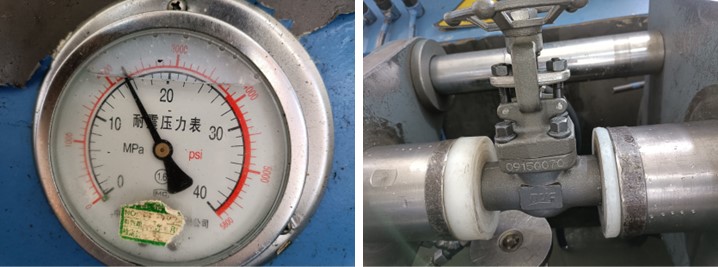

Pressure Testing

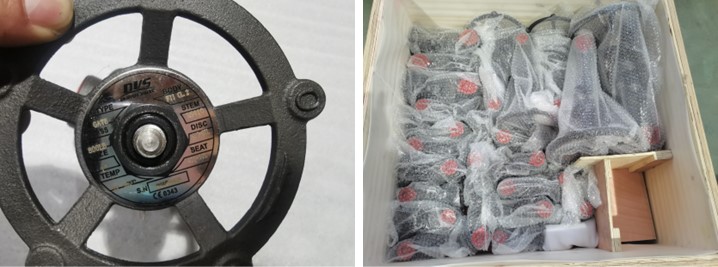

Nameplate & Packing
