Forged Steel Gate Valve 2" 800LB ASTM A105N FNPT
Key Specifications / Features
Model No.: Hits: 0
2" 800LB Forged Steel Gate Valve is made according to API 602 standard. The valve body is made of ASTM A105N. It has the structural characteristics of Bolted bonnet, rising stem, solid wedge, full bore. Its connection mode is FNPT. And it has Handwheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Forged Steel Gate Valve |
| Size | 2" |
| Pressure | 800LB |
| Connection | FNPT |
| Operation | Handwheel |
| Body Material | ASTM A105N |
| Design Norm | API 602 |
| Face to face | Manufacturer’s std. |
| NPT Ends Dimensions | ANSI B1.20.1 |
| Test & Inspection Code | API STD.598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Forged steel construction provides high strength and reliable performance for high-pressure service.2. ASTM A105N body with FNPT ends is suitable for compact threaded piping applications.

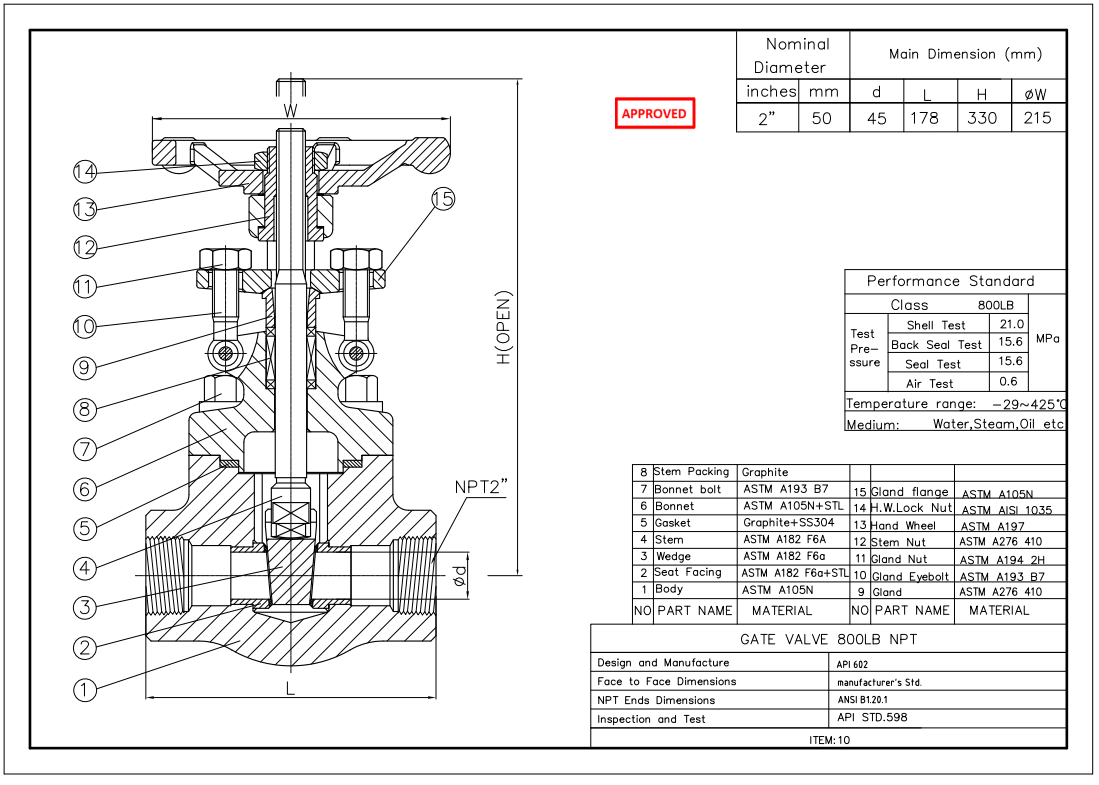

Technical Drawing

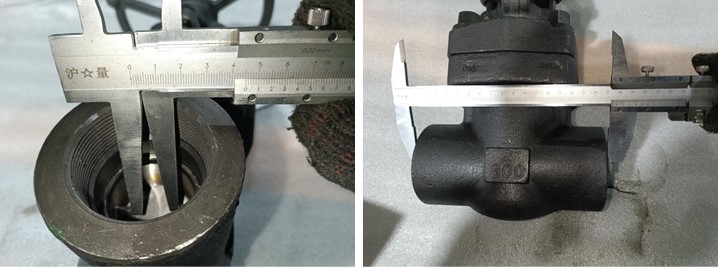

Dimension Checking

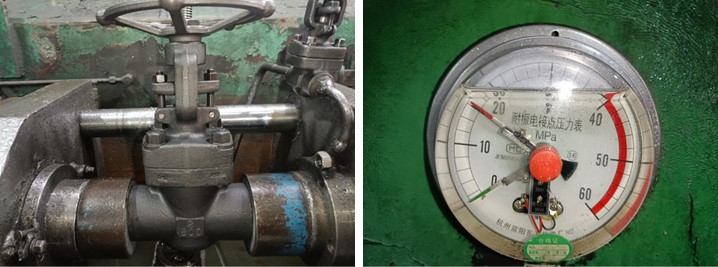

Pressure Testing

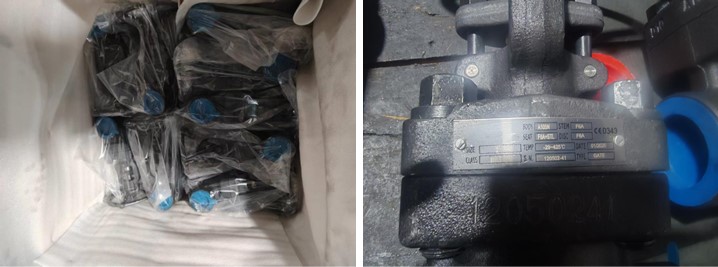

Nameplate & Packing

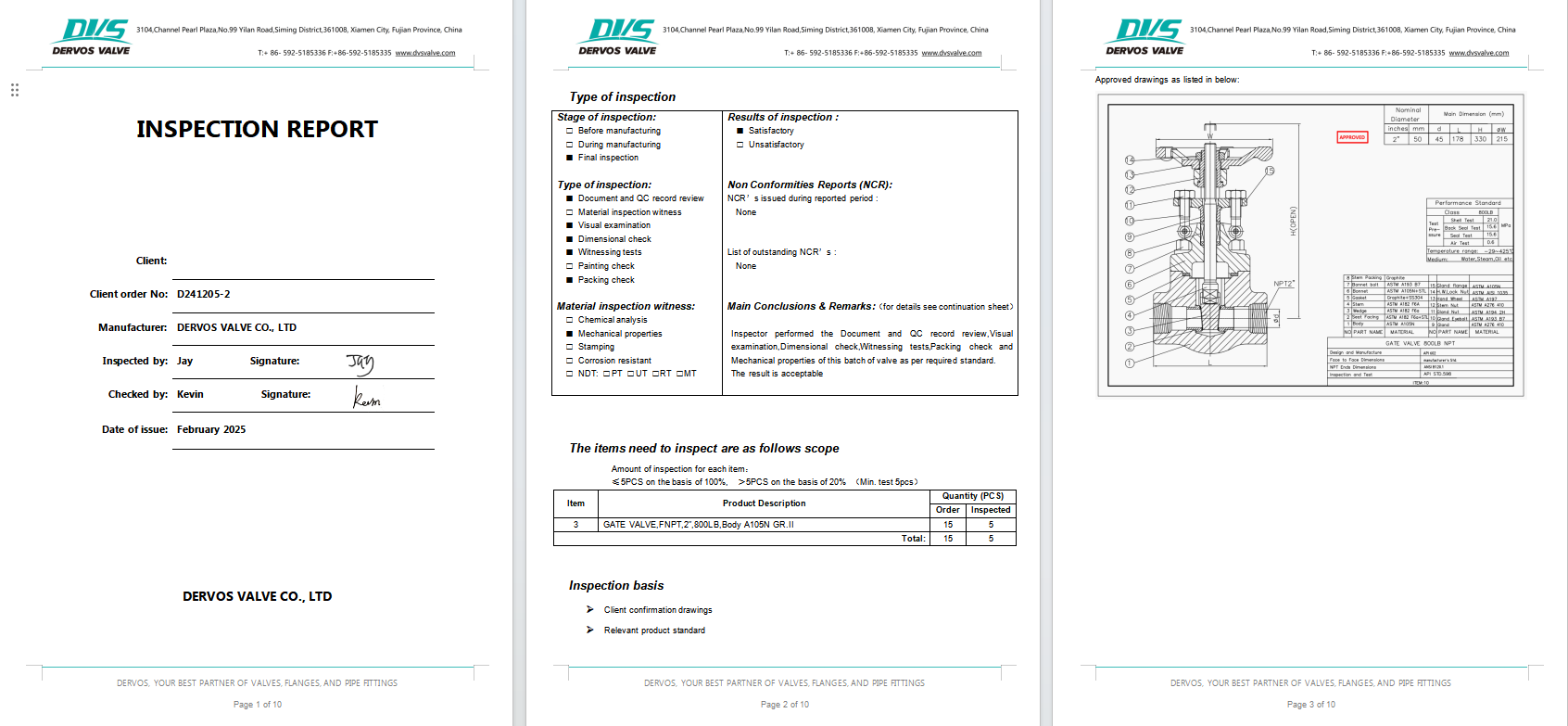

Inspection Report
