Forged Steel Gate Valve DN50 PN16 F304 EN1092-1 B
Key Specifications / Features
Model No.: Hits: 0
DN50 PN16 Forged Steel Gate Valve is made according to BS 5352 standard. The valve body is made of F304. It has the structural characteristics of Bolted Bonnet, Solid Wedge, Rising Stem, Yoke Type. Its connection mode is EN1092-1 B. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Cast Steel Gate Valve DN80 PN40 WCB RF
Detail Information
Product Parameters
| Type | Forged Steel Gate Valve |
| Size | DN50 |
| Pressure | PN16 |
| Connection | EN1092-1 B |
| Operation | Hand Wheel |
| Body Material | F304 |
| Design Norm | BS 5352 |
| Face to face | EN 558 |
| Flange dimension | EN 1092 |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Forged F304 Construction: Offers excellent corrosion resistance and reliable mechanical strength for demanding industrial service.2. EN 1092-1 Flanged Ends: Ensures standardized, secure connection and convenient installation in PN16 piping systems.

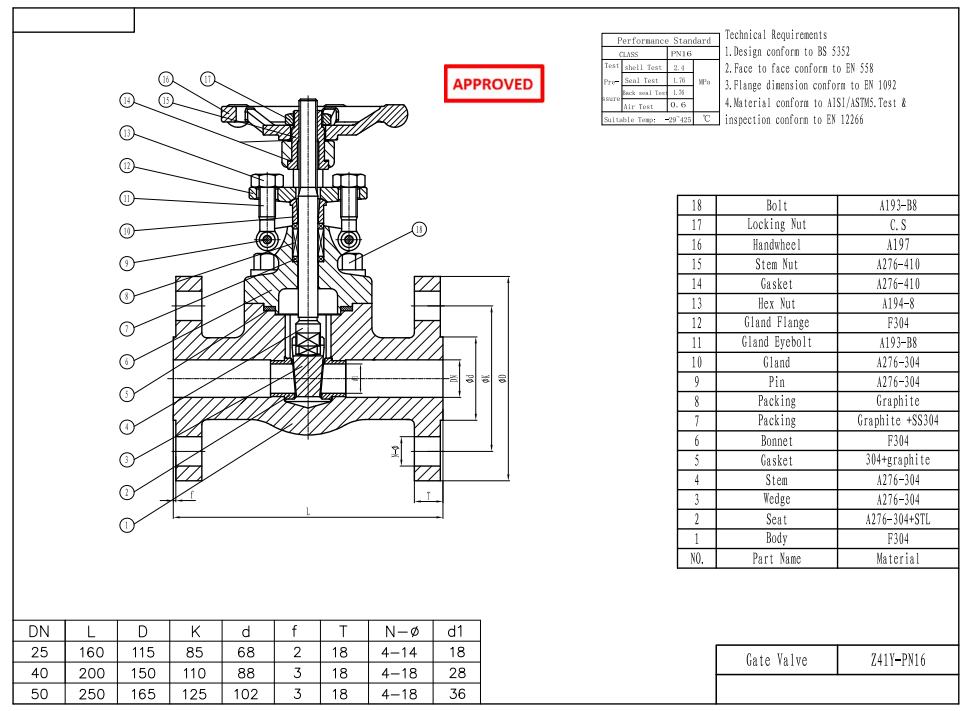

Technical Drawing

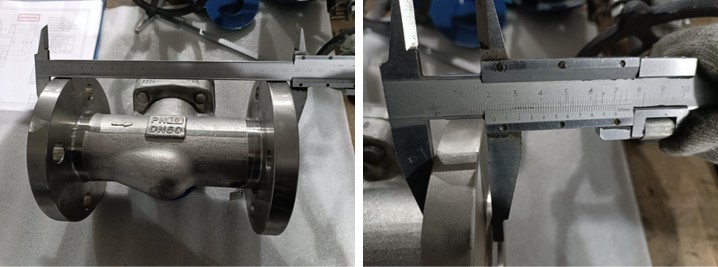

Dimension Checking

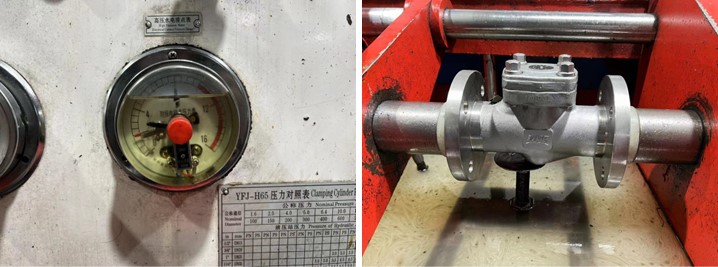

Pressure Testing

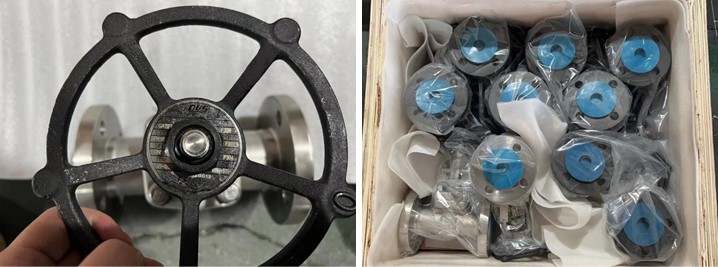

Nameplate & Packing

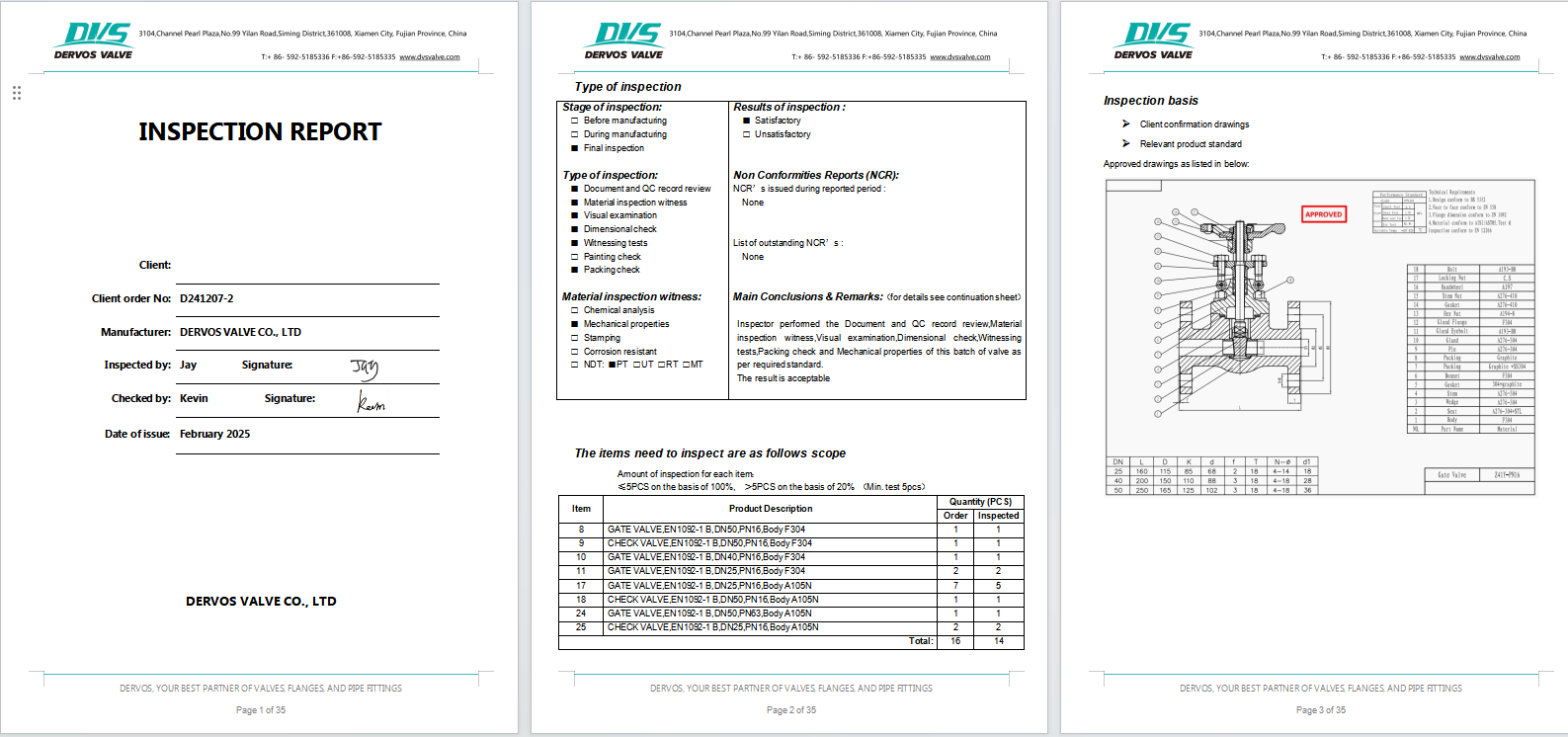

Inspection Report
