Forged Steel Globe Valve 2" 600LB F11 RF API602
Key Specifications / Features
Model No.: Hits: 0
2" 600LB Forged Steel Globe Valve is made according to API602 standard. The valve body is made of A182 F11+STL. It has the structural characteristics of Bolted Bonnet, OS&Y, Plug-Type Disc, Reduced Flow. Its connection mode is RF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Forged Steel Globe Valve |
| Size | 2" |
| Pressure | 600LB |
| Connection | RF |
| Operation | Hand wheel |
| Body Material | A182 F11+STL |
| Design Norm | API 602 |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 480°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged F11 alloy steel construction provides excellent high-temperature strength and reliable performance in Class 600 service.2.API 602 globe valve design with RF flanged ends delivers precise flow regulation and dependable shutoff for demanding industrial applications.

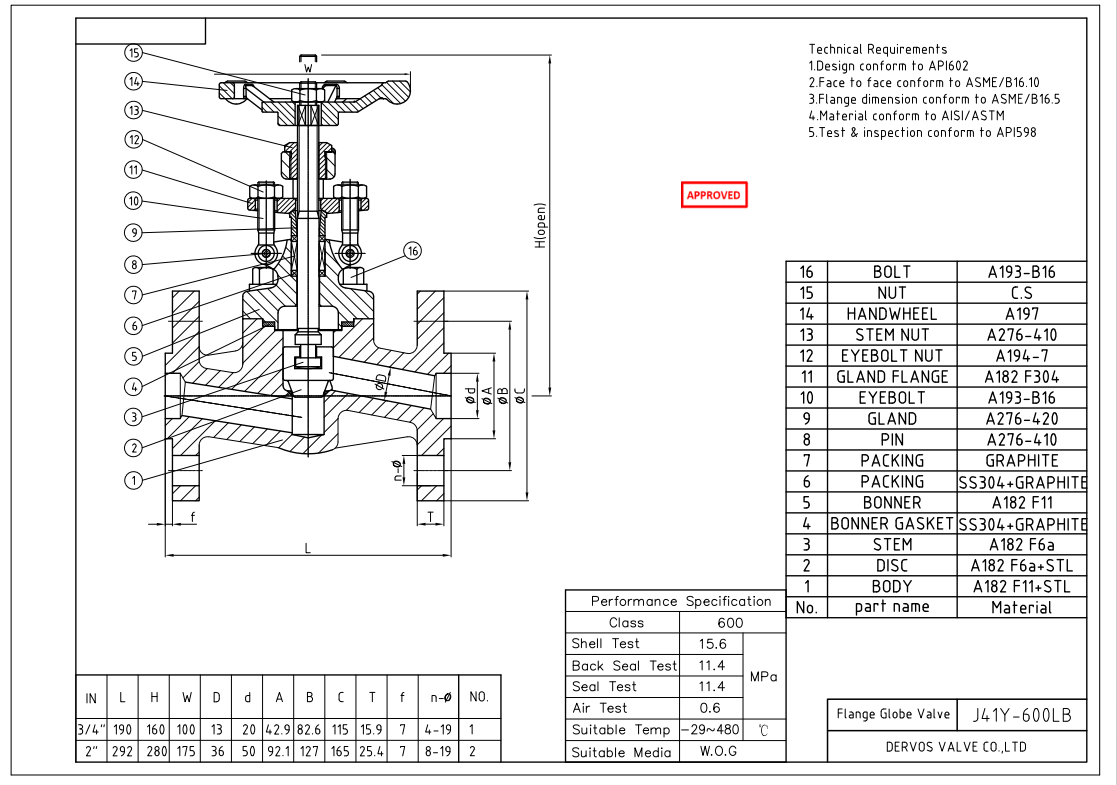

Technical Drawing

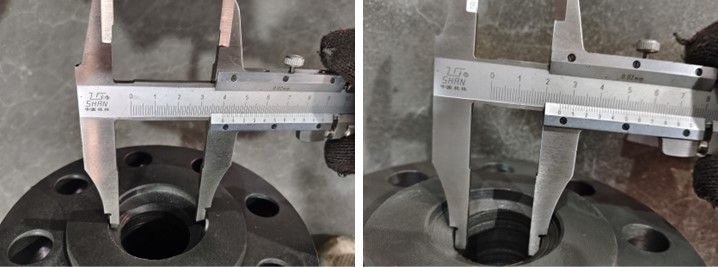

Dimension Checking

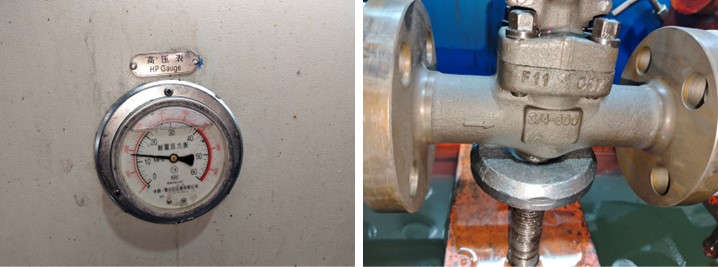

Pressure Testing

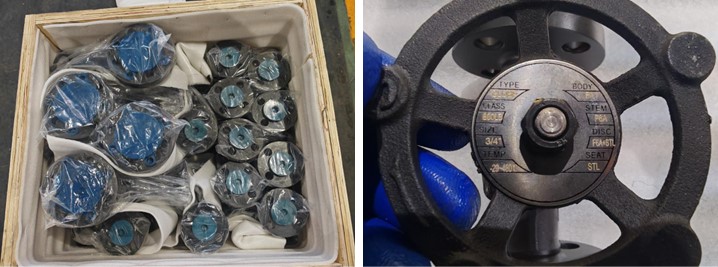

Nameplate & Packing

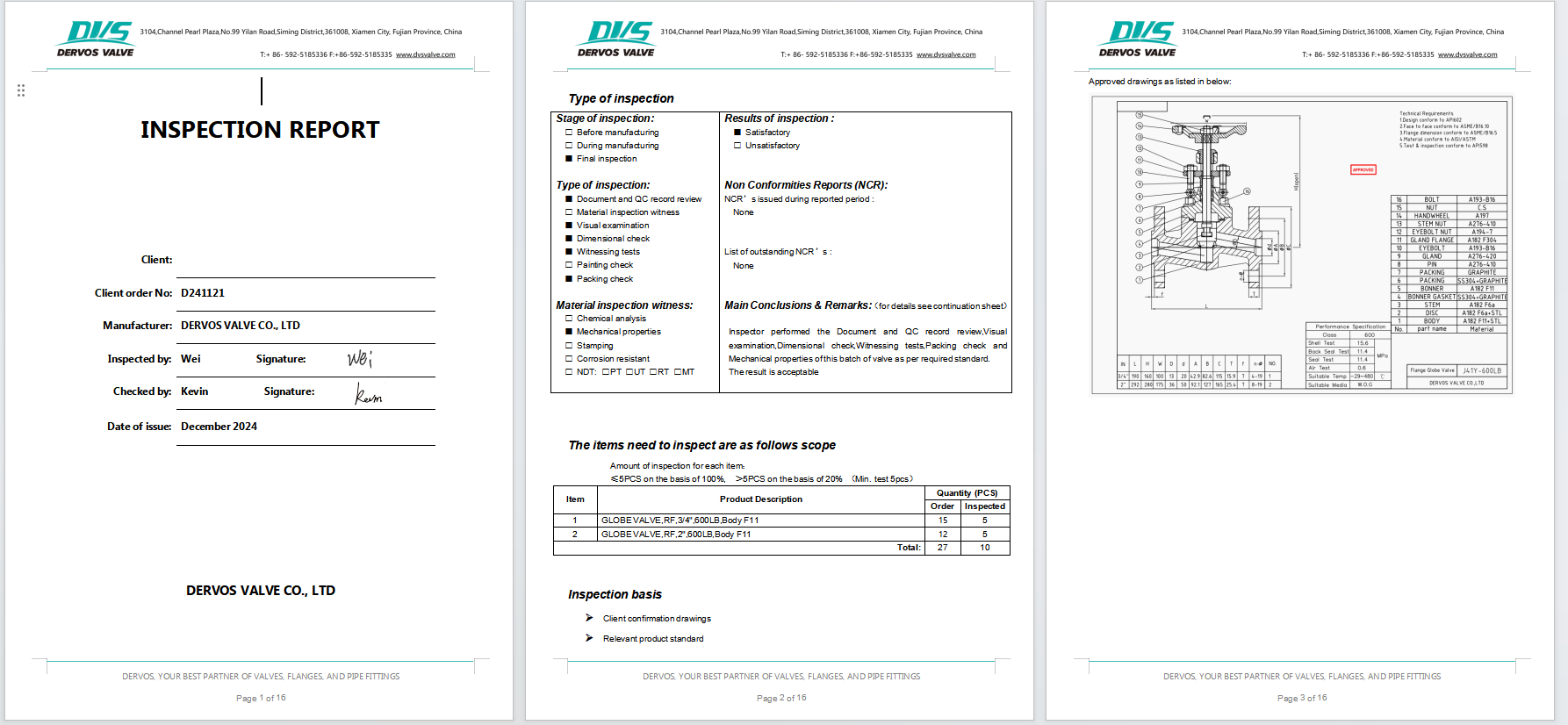

Inspection Report
