Forged Steel Trunnion Ball Valve 10" 600LB A105 RF
Key Specifications / Features
Model No.: Hits: 0
10" 600LB Forged Steel Trunnion Ball Valve is made according to ASME B16.34 standard. The valve body is made of ASTM A105. It has the structural characteristics of Split Body, Side Entry, Trunnion Mounted Ball, Full Port, Fire-Safe, Anti-Static, Drain Connection with 2" Flange and 2" Wafer-Type DBB Valve Manifold, ASTM A105. Its connection mode is RF. And it has Worm Gear operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Forged Steel Trunnion Ball Valve |
| Size | 10" |
| Pressure | 600LB |
| Connection | RF |
| Operation | Worm Gear |
| Body Material | ASTM A105 |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Connection Ends | ASME B16.5 |
| Test & Inspection Code | API 6D/API 598 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged A105 steel body with trunnion-mounted ball design provides high strength, low operating torque, and reliable sealing in Class 600 service.2.RF flanged connections ensure secure pipeline installation and dependable leak-tight performance in demanding industrial applications.

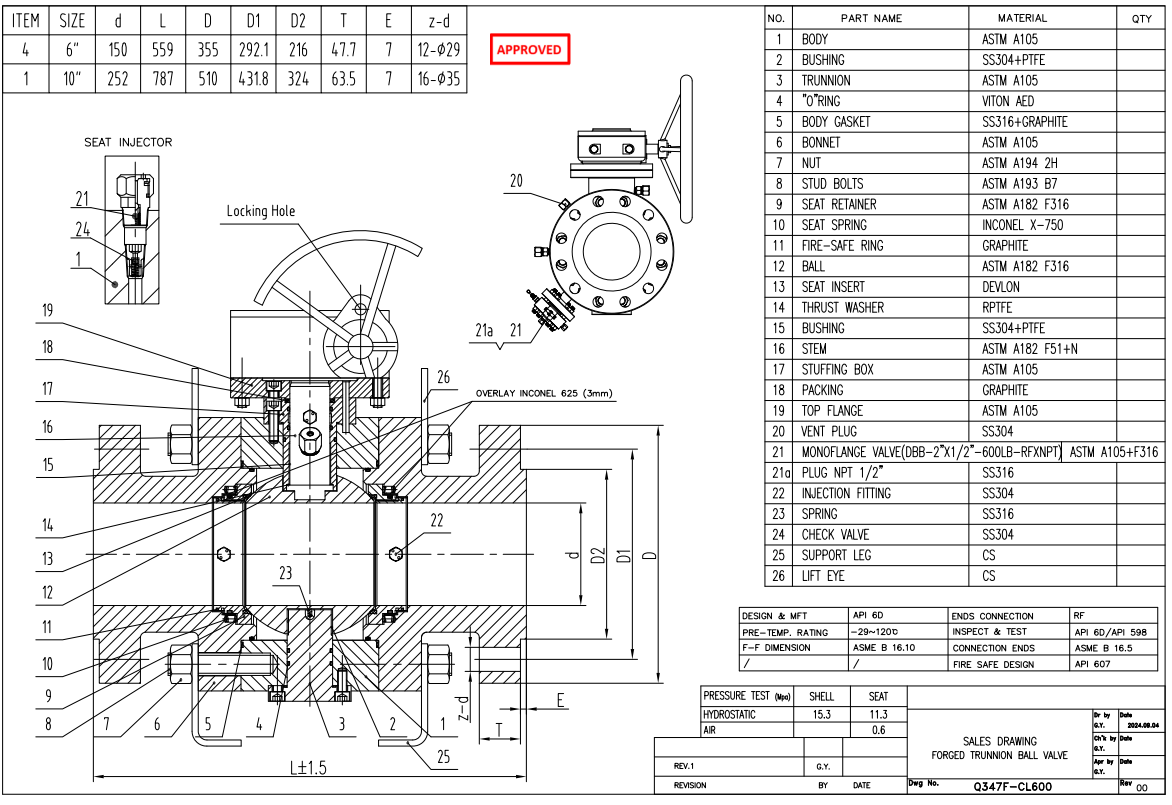

Technical Drawing

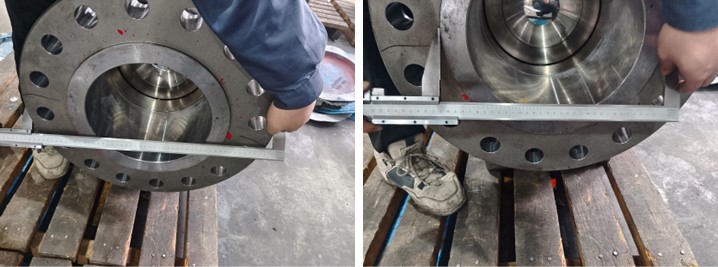

Dimension Checking

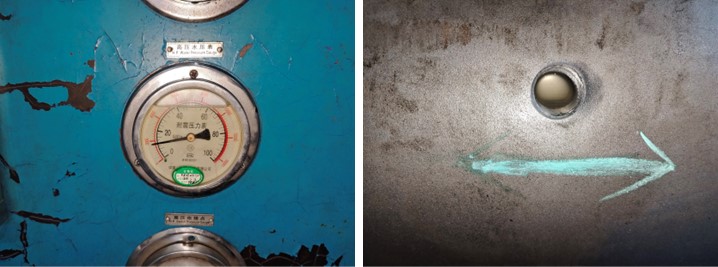

Pressure Testing

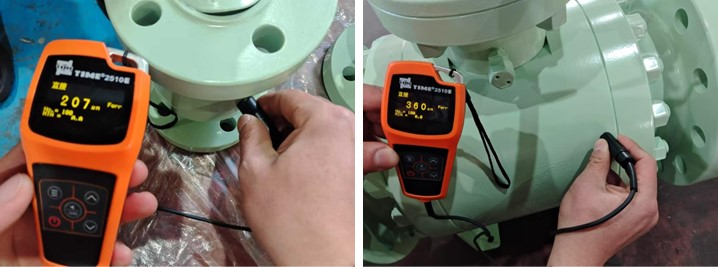

Painting

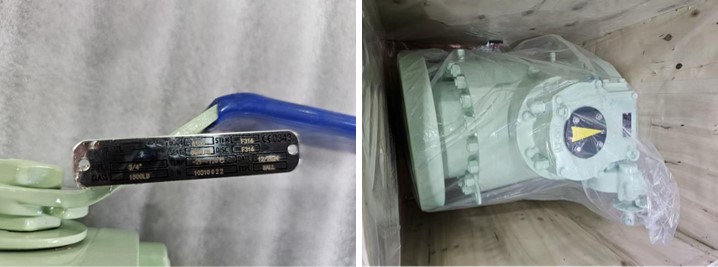

Nameplate & Packing

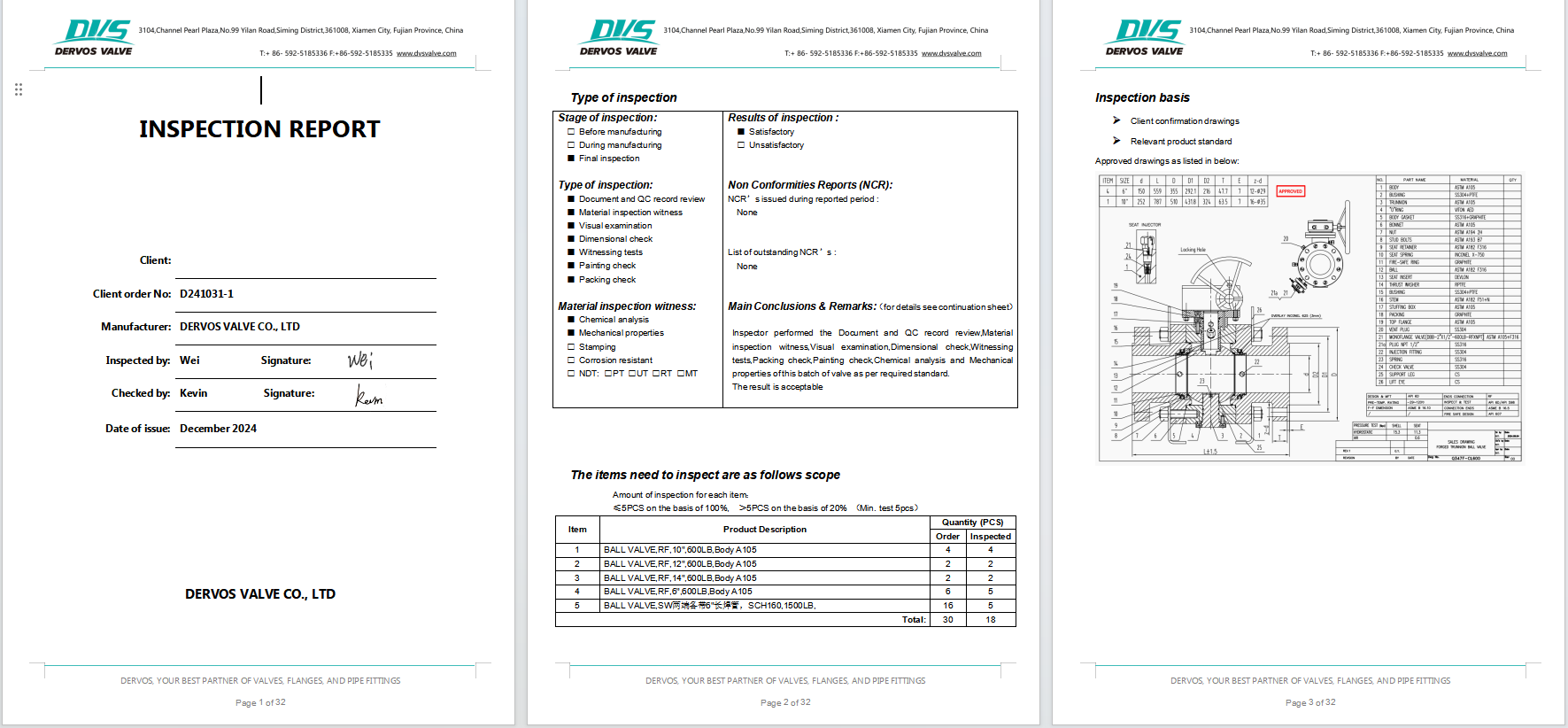

Inspection Report
