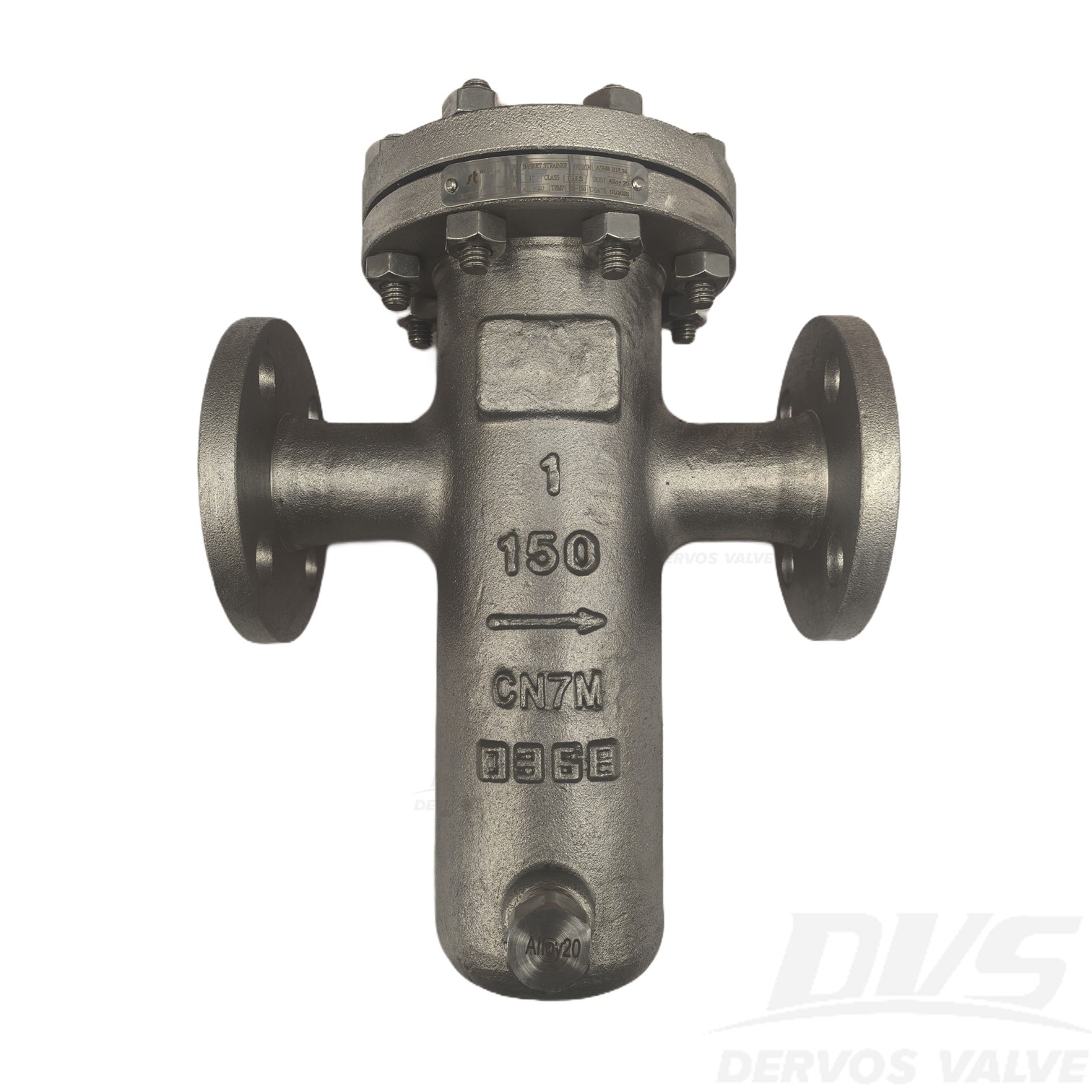

Single Basket Strainer 1" 150LB CN7M RF
Key Specifications / Features
Model No.: Hits: 0
1" 150LB Single Basket Strainer is made according to ASME B16.34 standard. The valve body is made of CN7M. It has the structural characteristics of Basket Type, Single Cylinder. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Single Basket Strainer |
| Size | 1" |
| Pressure | 150LB |
| Connection | RF |
| Body Material | ASTM A351 CN7M |
| Design Norm | ASME B16.34 |
| Face to face | ASME B16.5 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Single Basket Filtration Design: Provides efficient removal of suspended particles and pipeline debris to protect pumps, valves, and other equipment.2. CN7M Corrosion-Resistant Construction: Offers excellent resistance to aggressive chemical media for demanding process applications.

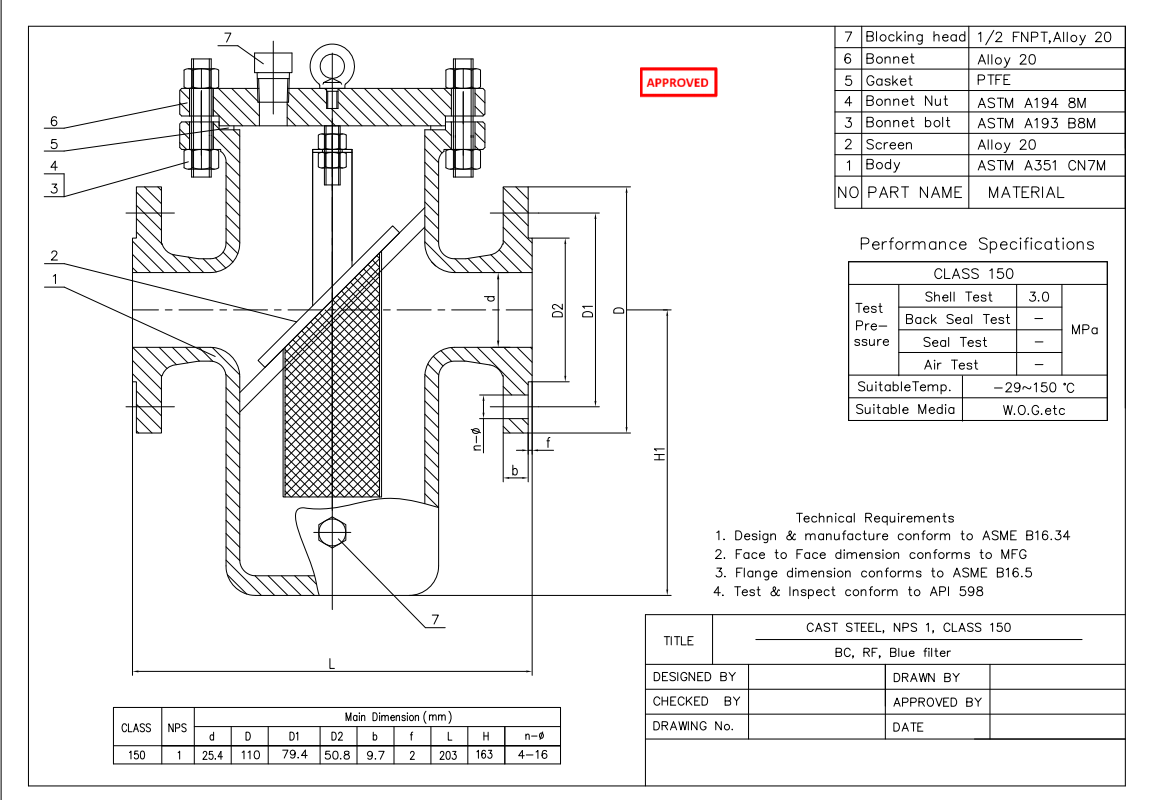

Technical Drawing

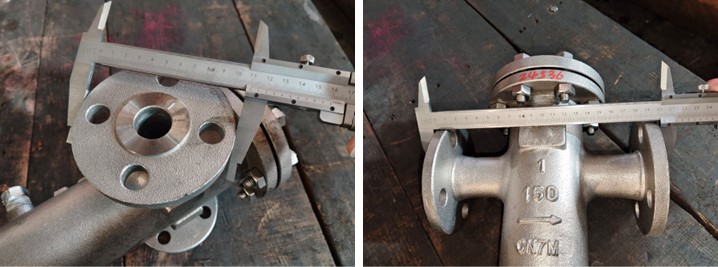

Dimension Checking

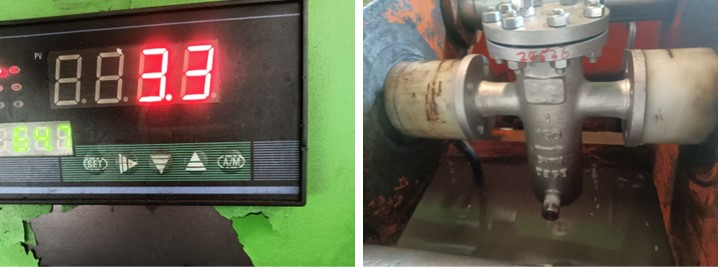

Pressure Testing

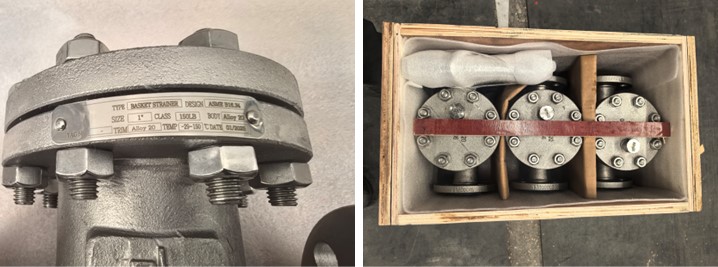

Nameplate & Packing

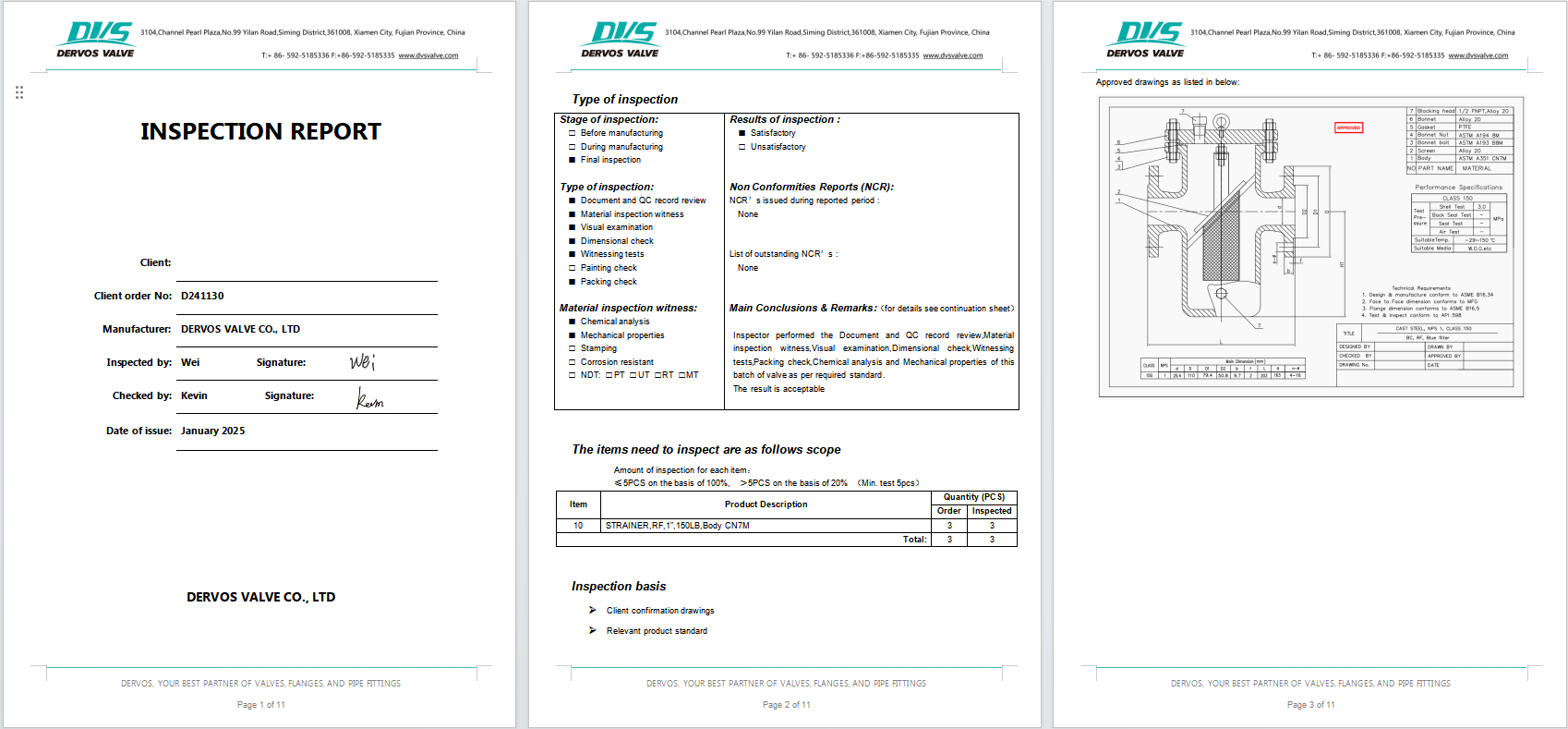

Inspection Report
