Single Disc Swing Check Valve 8" 900LB A105N RTJ
Key Specifications / Features
Model No.: Hits: 0
8" 900LB Single Disc Swing Check Valve is made according to API 594 standard. The valve body is made of ASTM A105N +STL. It has the structural characteristics of Single Disc Swing Check Valve, DAUPHIN Type Disc, Thickness: 65 mm, OD: 470 mm, 12 Smooth Holes (Ø38 mm), E52 H₂S Service. Its connection mode is RTJ.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Single Disc Swing Check Valve |
| Size | 8” |
| Pressure | 900LB |
| Connection | RTJ |
| Body Material | ASTM A105N+STL |
| Design Norm | API 594 |
| Face to face | API 6D |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Single disc swing design provides reliable backflow prevention with low pressure loss in Class 900 high-pressure systems.2.A105N forged steel body with RTJ end connection ensures high strength and leak-tight sealing for demanding pipeline applications.

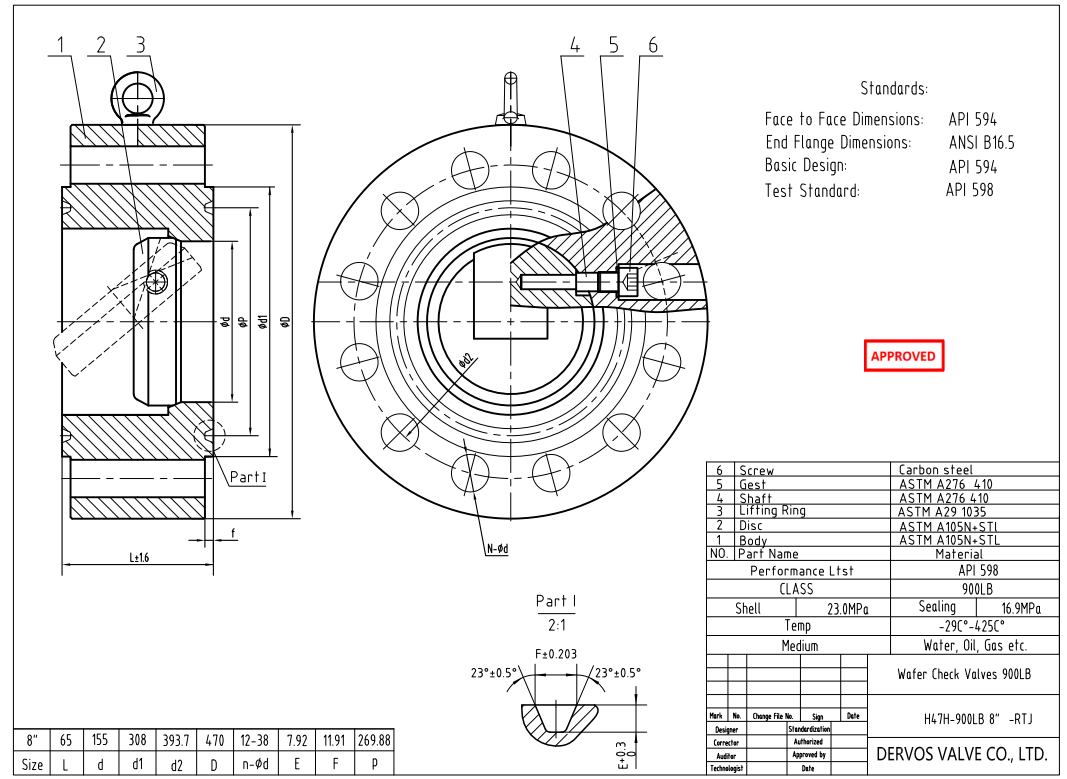

Technical Drawing

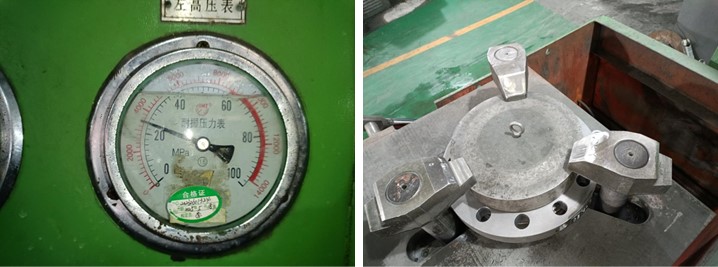

Pressure Testing

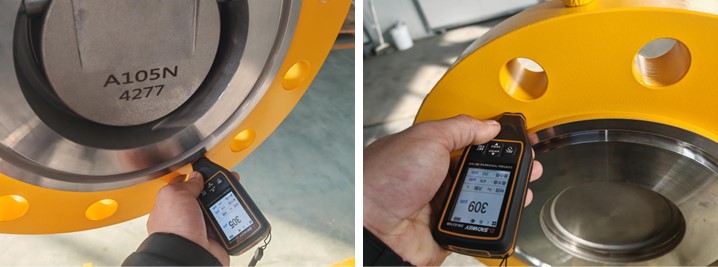

Painting

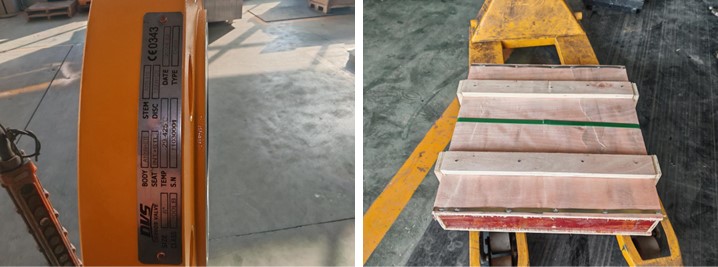

Nameplate & Packing

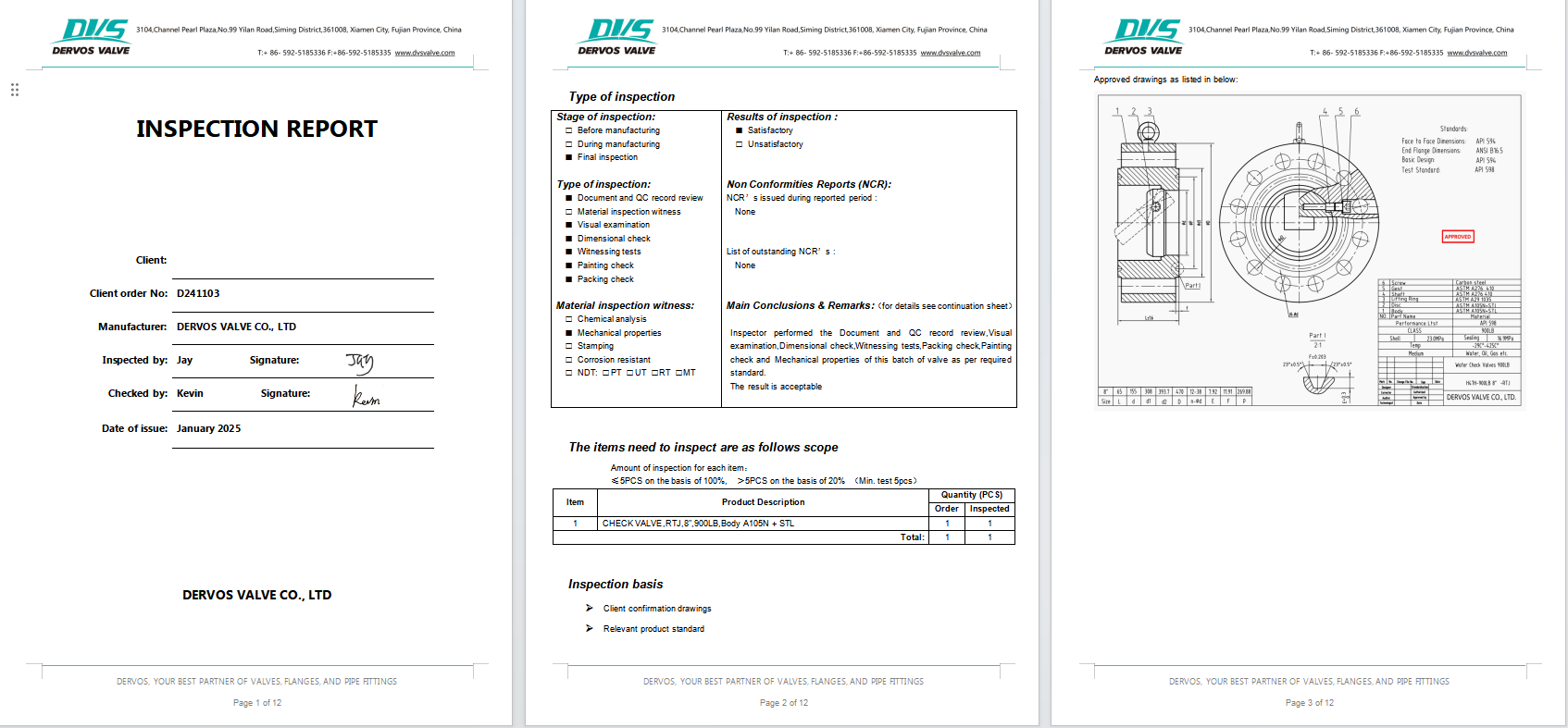

Inspection Report
