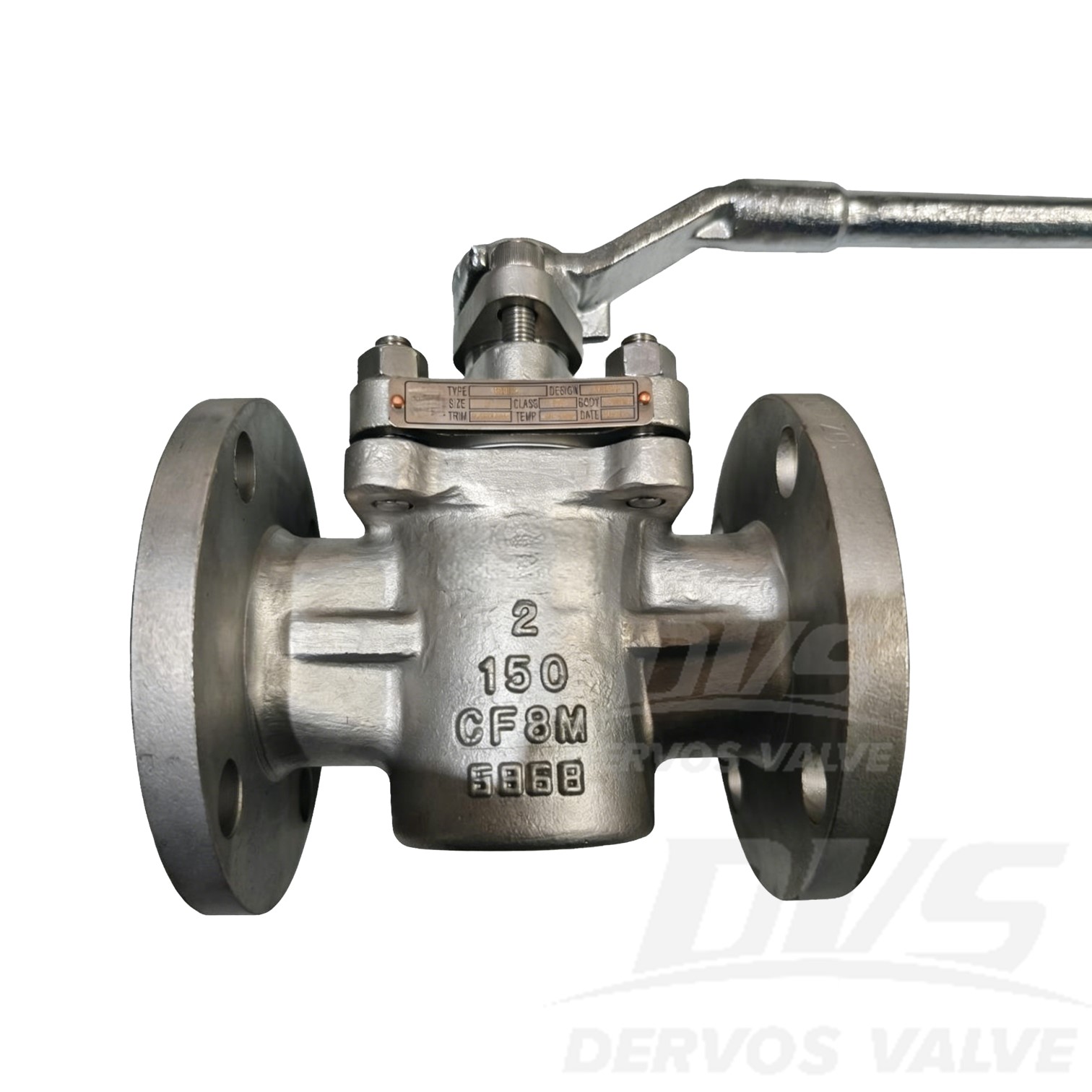

Stainless Steel Plug Valve 2" 150LB CF8M API599 Lever
Key Specifications / Features
Model No.: Hits: 0
2" 150LB Stainless Steel Plug Valve is made according to API 599 standard. The valve body is made of CF8M. It has the structural characteristics of Compression Type. Its connection mode is RF. And it has Lever operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Stainless Steel Plug Valve |
| Size | 2” |
| Pressure | 150LB |
| Connection | RF |
| Operation | Lever |
| Body Material | A315 CF8M |
| Design Norm | API 599 |
| Face to face | ASME B16.10 |
| End Flange Dimensions | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The CF8M stainless steel body provides superior corrosion resistance for chemical, seawater, and aggressive media applications.2. Designed in accordance with API 599, the lever-operated quarter-turn mechanism enables fast shutoff and dependable sealing performance.

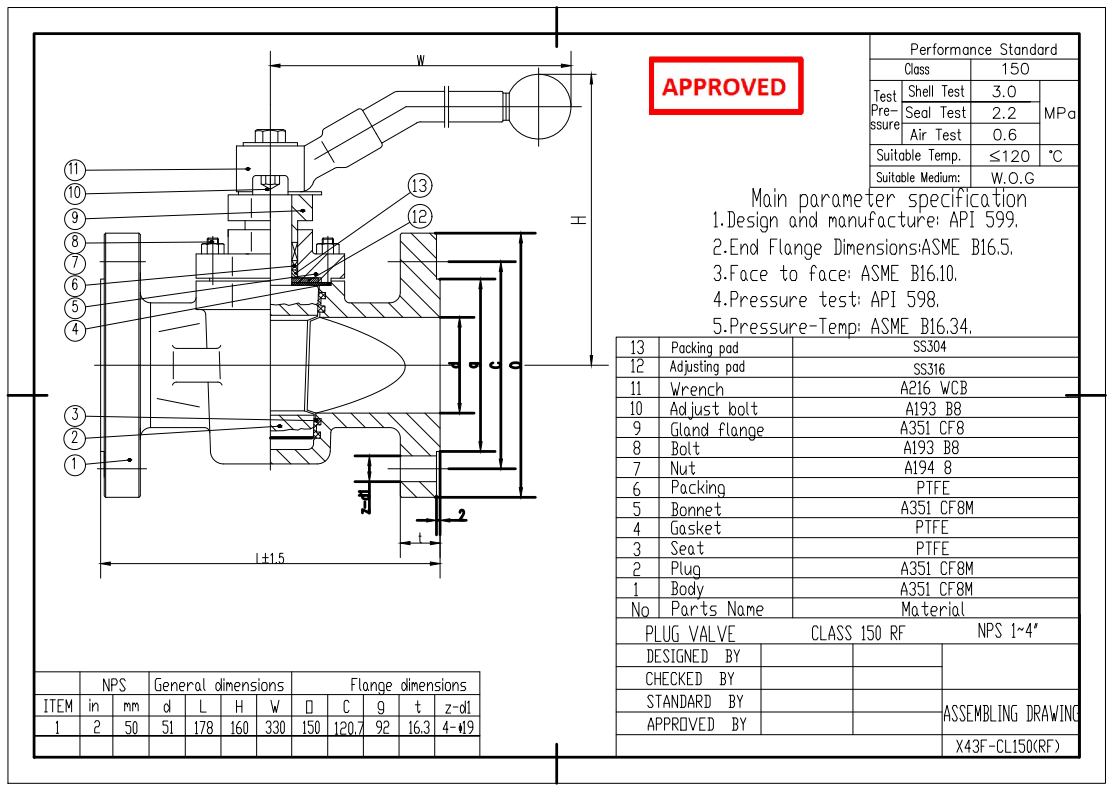

Technical Drawing

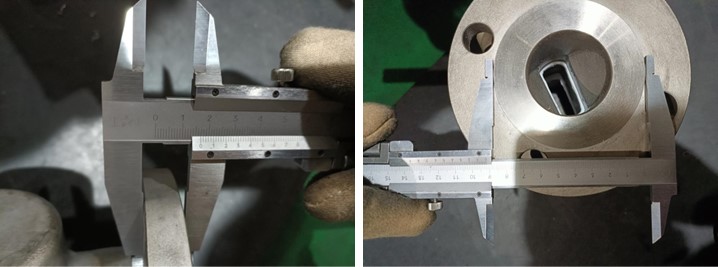

Dimension Checking

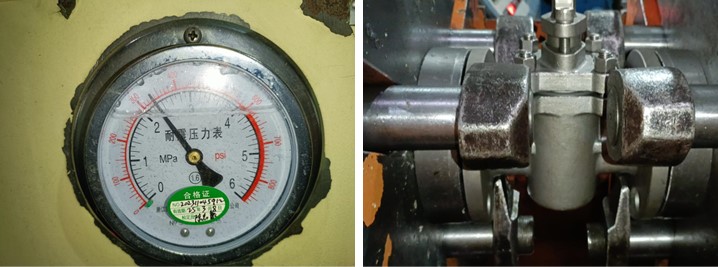

Pressure Testing

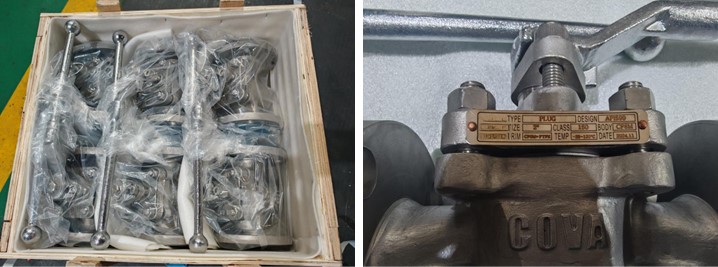

Nameplate & Packing

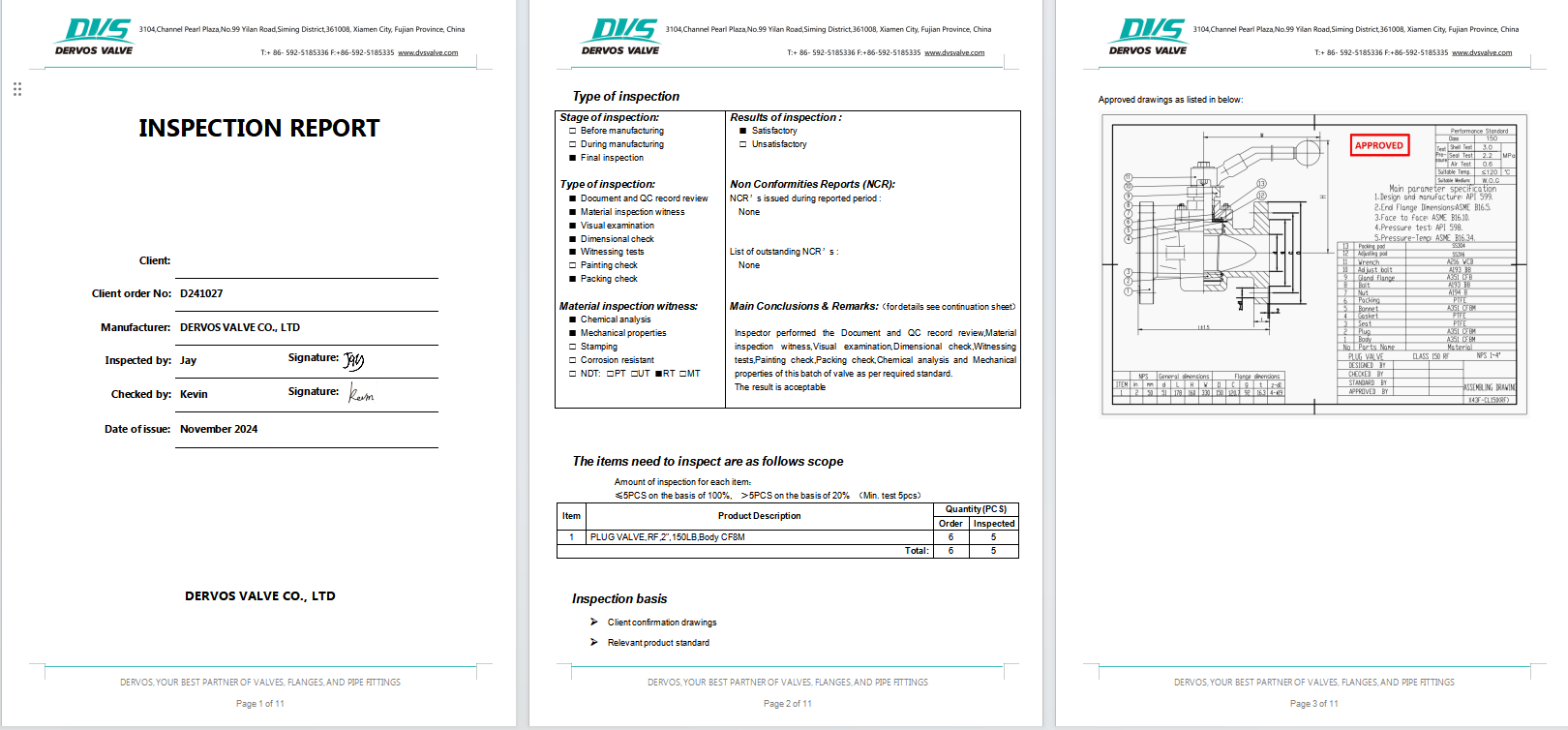

Inspection Report
