Steam Trap DN15 PN40 A105 RF GB/T22654
Key Specifications / Features
Model No.: Hits: 0

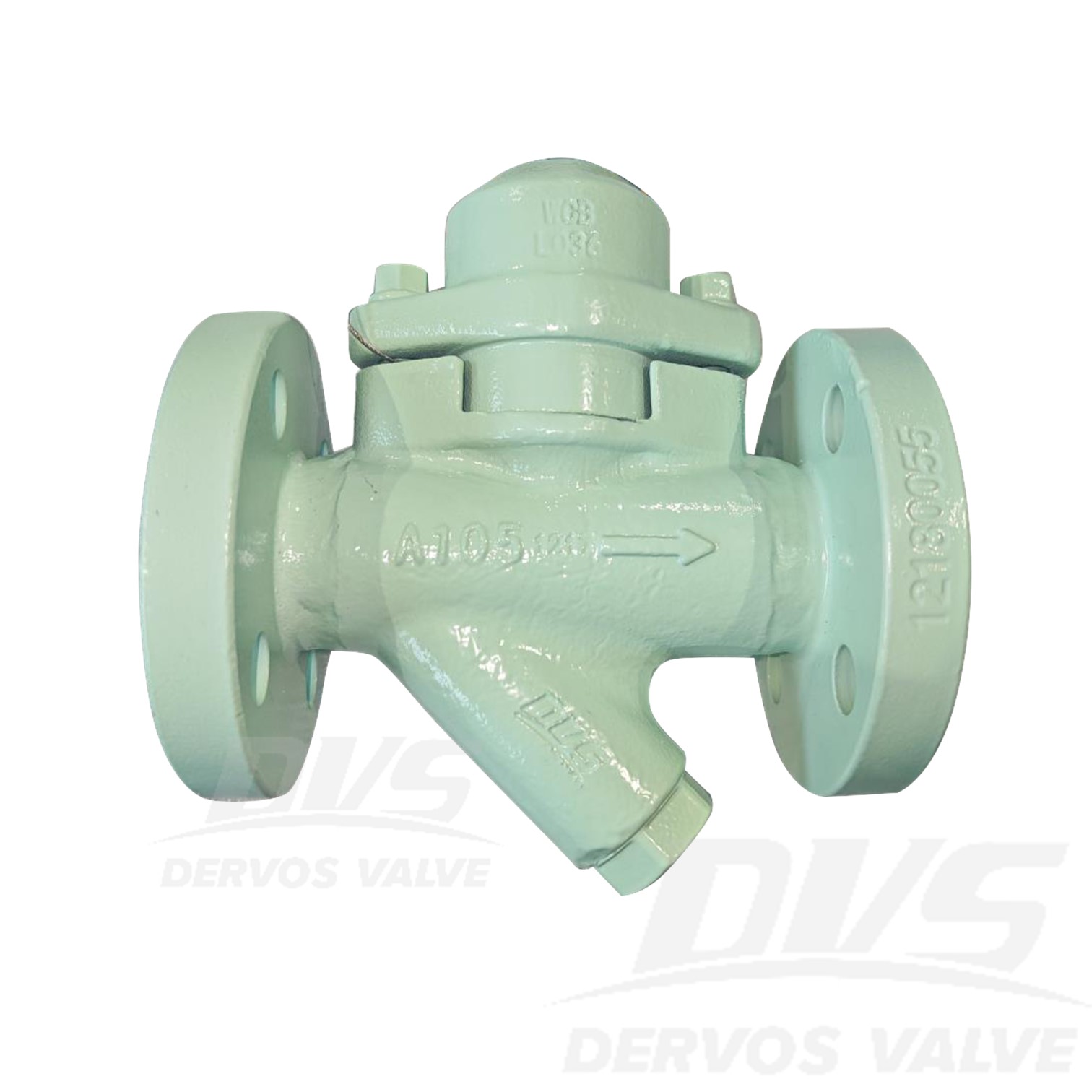

DN15 PN40 Steam Trap is made according to GB/T22654 standard. The valve body is made of A105. It has the structural characteristics of Bimetallic steam trap, Model BK47, Y-type. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Previous: Sight Glass 3/4" 300LB LF2 RF
Detail Information
Product Parameters
| Type | Steam Trap |
| Size | DN15 |
| Pressure | PN40 |
| Connection | RF |
| Body Material | A105 |
| Design Norm | GB/T22654 |
| Face to face | MFG |
| Flange dimension | EN1092-1 |
| Test & Inspection Code | GB/T12251-2005 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water |
Features
1. The A105 forged steel body delivers high strength and durability for demanding Class 40 steam service.2. The RF flanged design complies with GB/T 22654 for reliable condensate discharge and reduced steam loss.

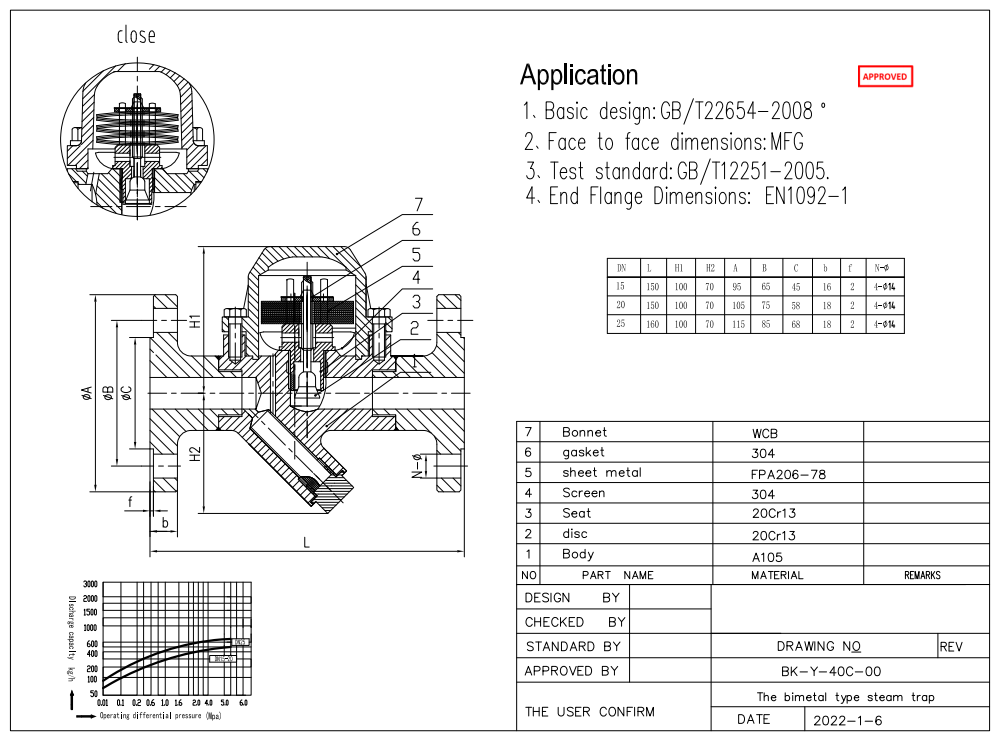

Technical Drawing

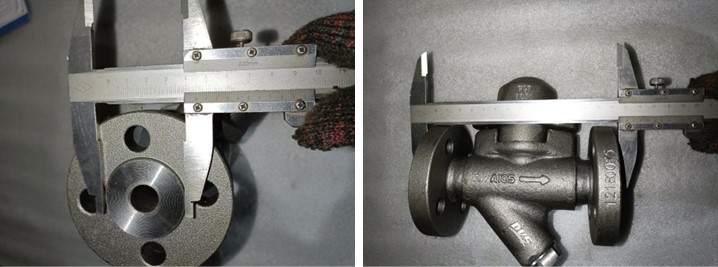

Dimension Checking

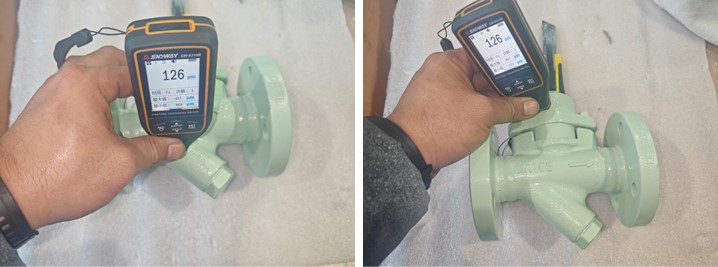

Painting

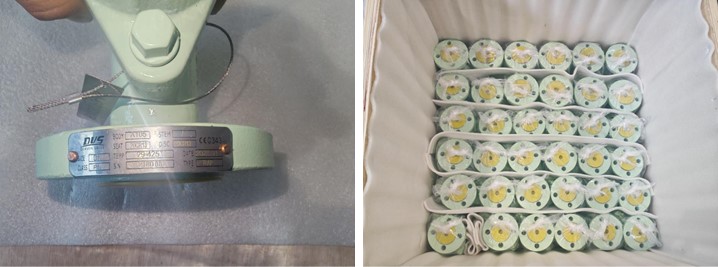

Nameplate & Packing

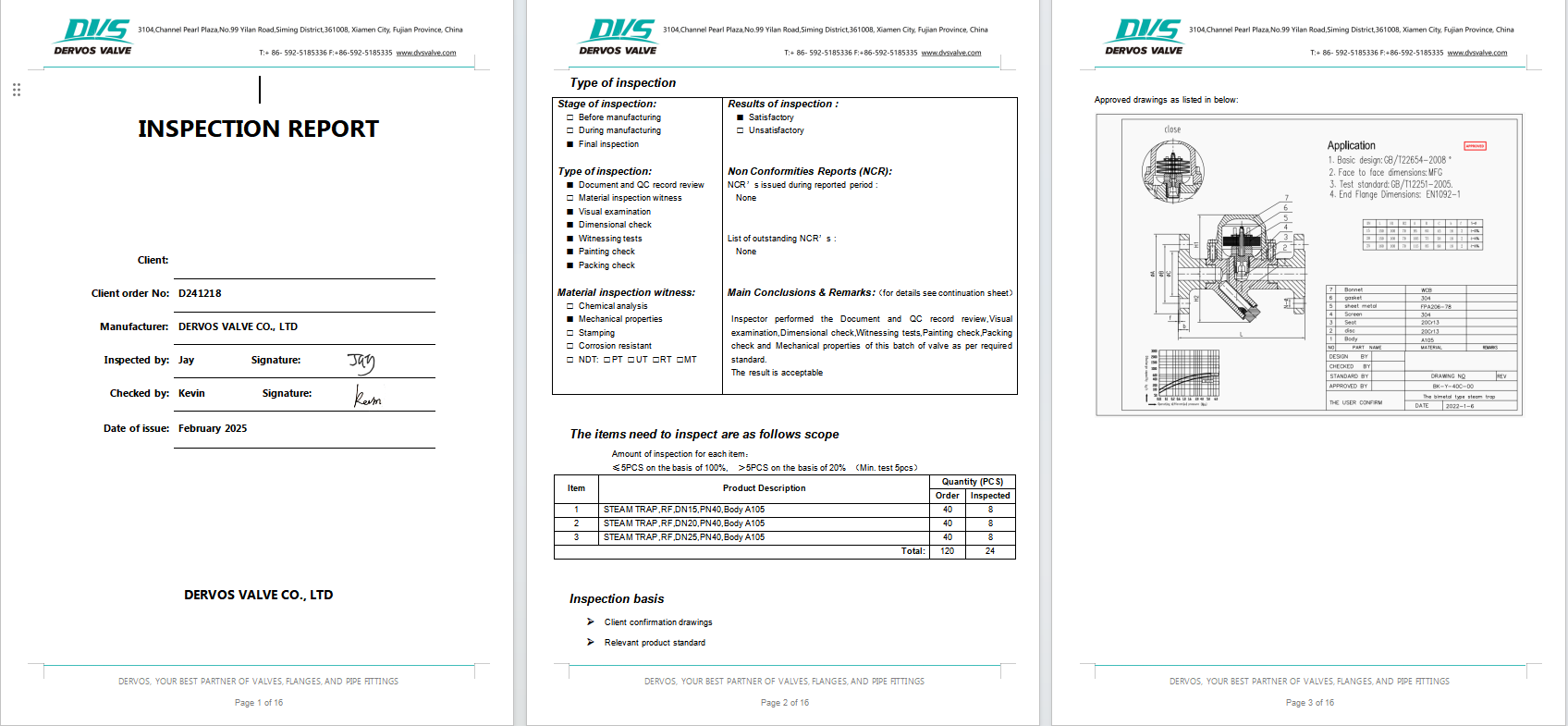

Inspection Report
