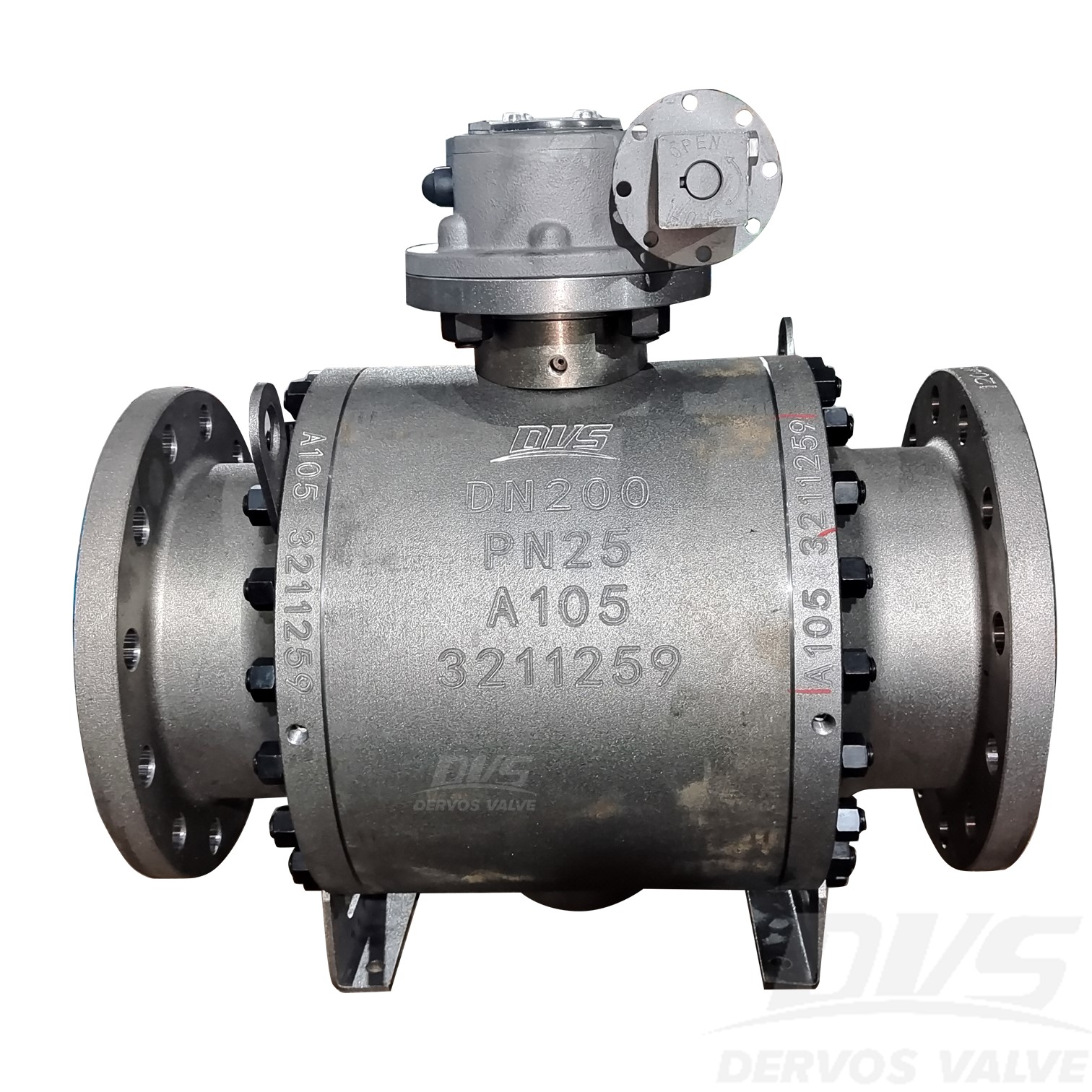

Trunnion Ball Valve DN200 PN25 A105 EN1092-1 B1
Key Specifications / Features
Model No.: Hits: 0
DN200 PN25 Trunnion Ball Valve is made according to API 6D standard. The valve body is made of A105. It has the structural characteristics of Full Bore, Trunnion-Mounted Ball, Fire-Safe and Anti-Static Design, Blowout-Proof Stem, with Welded Drain and Vent Ball Valves. Its connection mode is EN1092-1 B1. And it has Worm Gear operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Trunnion Ball Valve |
| Size | DN200 |
| Pressure | PN25 |
| Connection | EN1092-1 B1 |
| Operation | Worm Gear |
| Body Material | A105 |
| Design Norm | API 6D |
| Face to face | EN558-1 1 |
| Flange dimension | EN1092 |
| Test & Inspection Code | API 6D |
| Temperature | -20 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Trunnion-Mounted Ball Design: Provides stable ball support and reliable sealing performance for large-diameter, higher-pressure pipeline applications.2. A105 Body with EN 1092-1 B1 Flanges: Forged carbon steel construction and standardized flanged ends ensure robust strength and dependable pipeline connection.

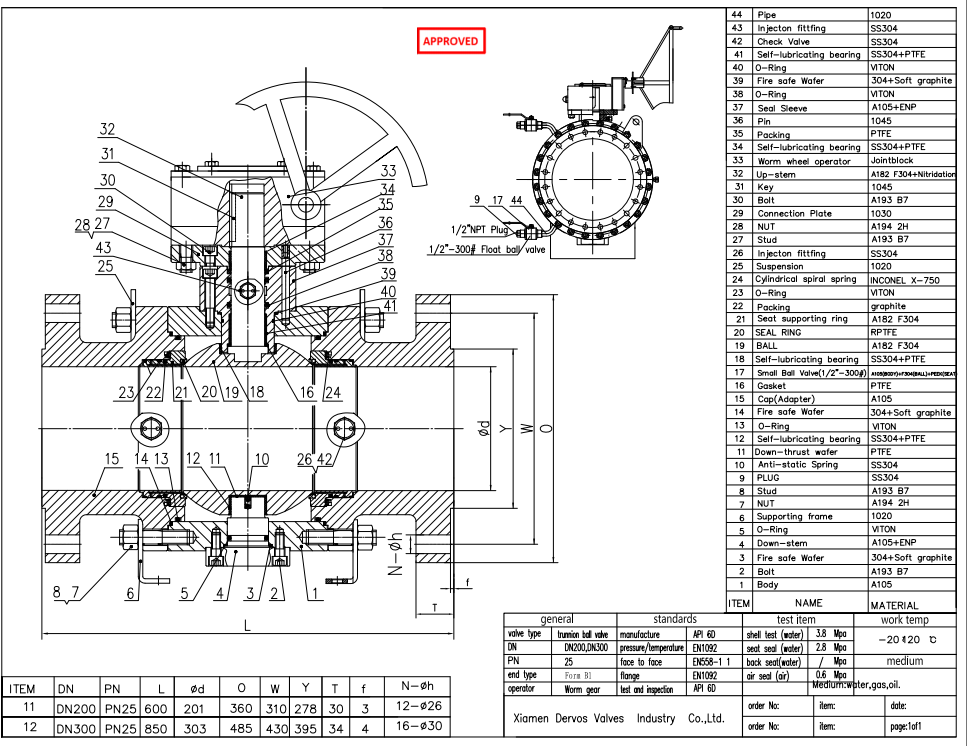

Technical Drawing

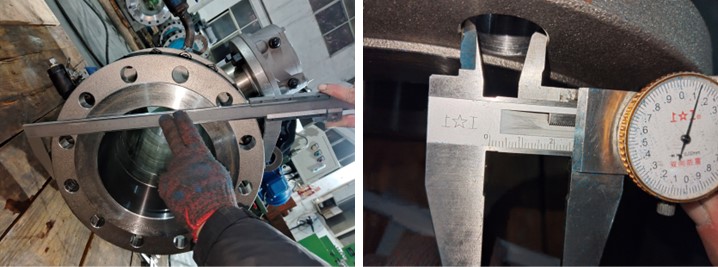

Dimension Checking

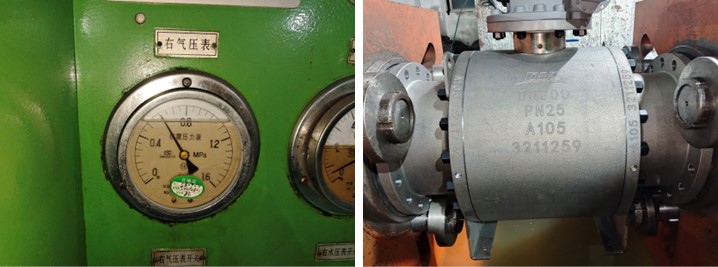

Pressure Testing

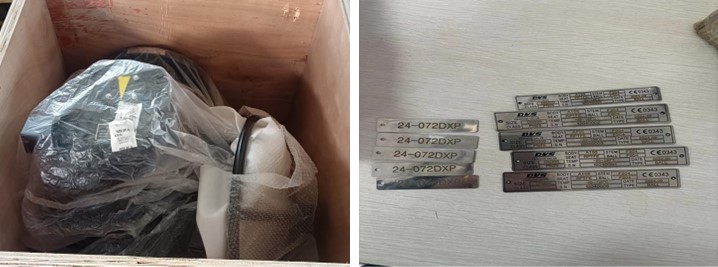

Nameplate & Packing

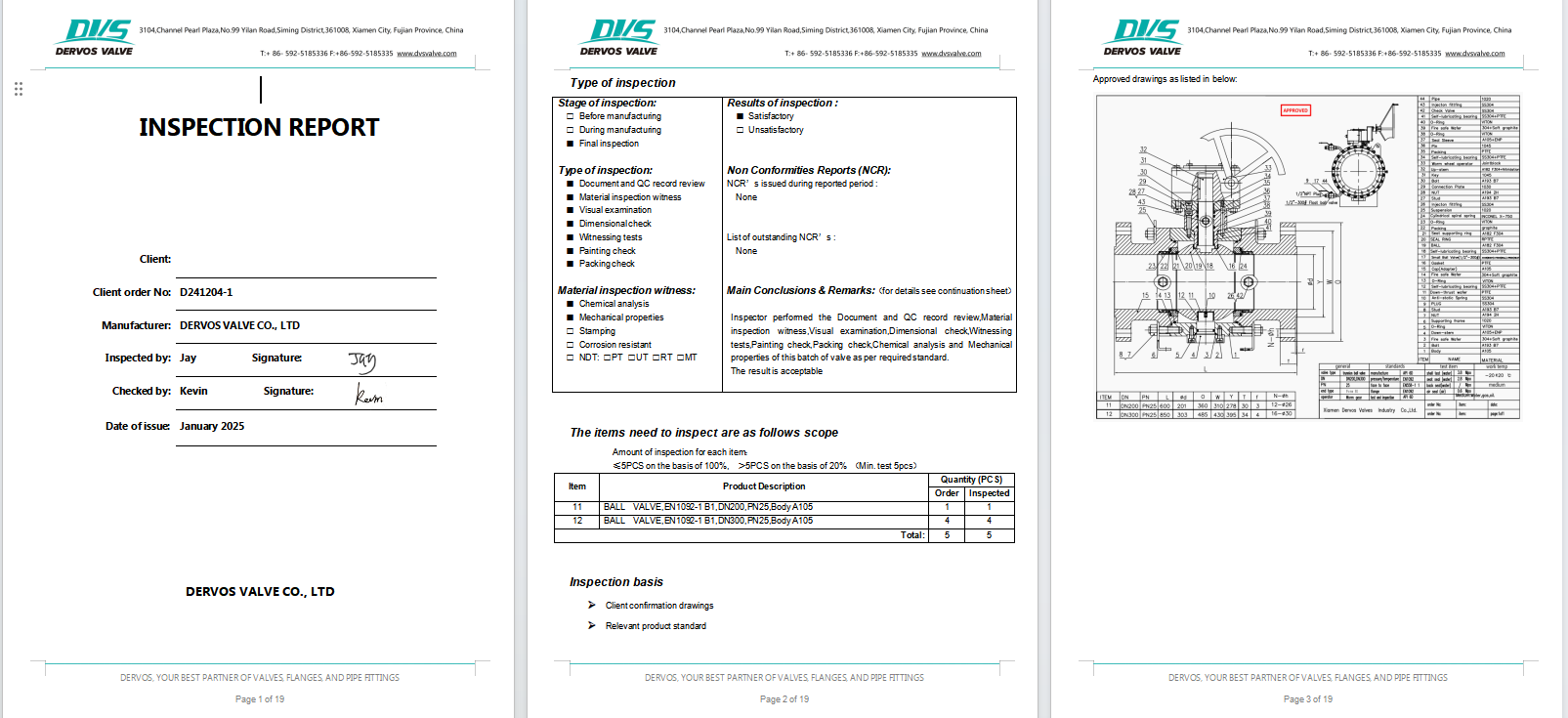

Inspection Report
