Trunnion Mounted Ball Valve 3" 150LB A105 RF
Key Specifications / Features
Model No.: Hits: 0
3" 150LB Trunnion Mounted Ball Valve is made according to API 6D standard. The valve body is made of A105. It has the structural characteristics of Split Body, Side Entry, Trunnion Mounted Ball, Full Bore, Stem Grease Injection. Its connection mode is RF. And it has Lever Handle operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Trunnion Mounted Ball Valve |
| Size | 3” |
| Pressure | 150LB |
| Connection | RF |
| Operation | Lever Handle |
| Body Material | A105 |
| Design Norm | API 6D |
| Face to face | API 6D |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -20 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Trunnion-mounted ball design ensures low operating torque and reliable sealing performance.2. Forged A105 carbon steel body with RF flanged ends provides strength, durability, and easy installation.

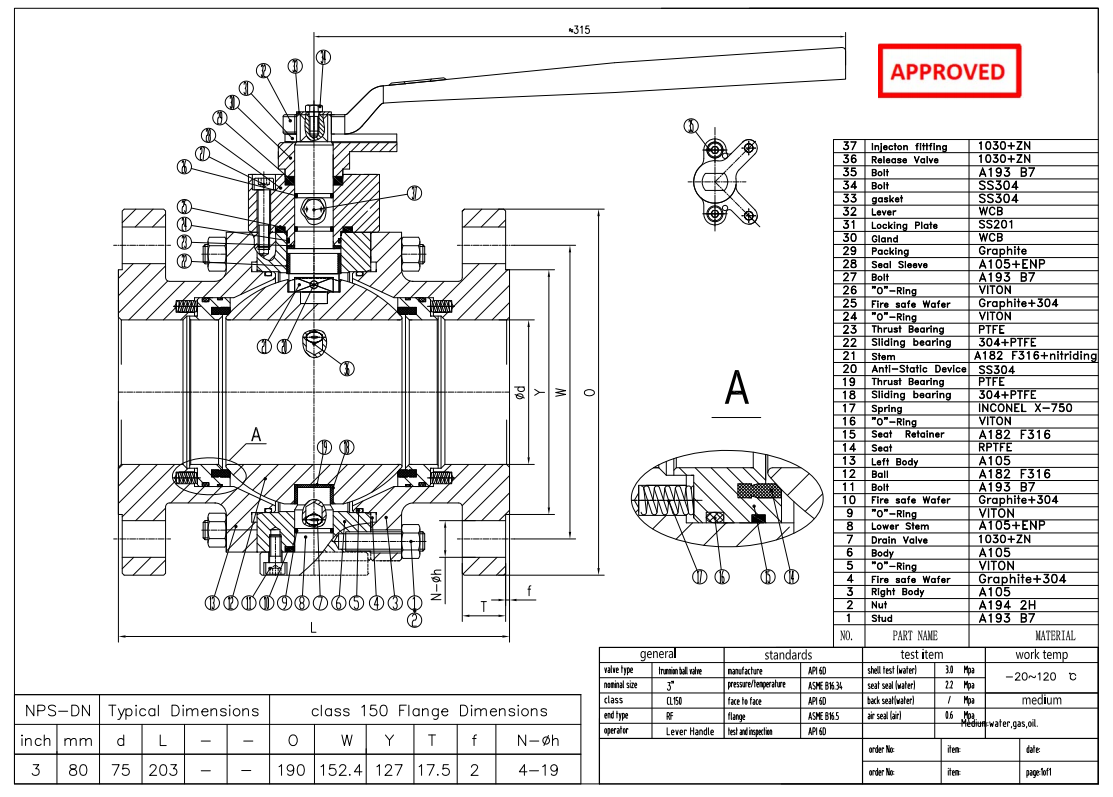

Technical Drawing

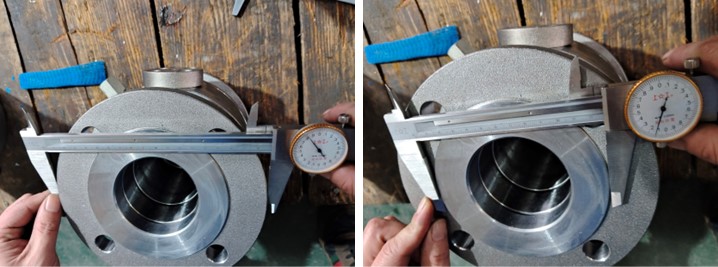

Dimension Checking

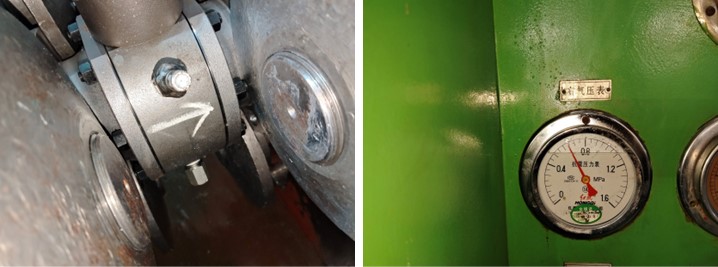

Pressure Testing

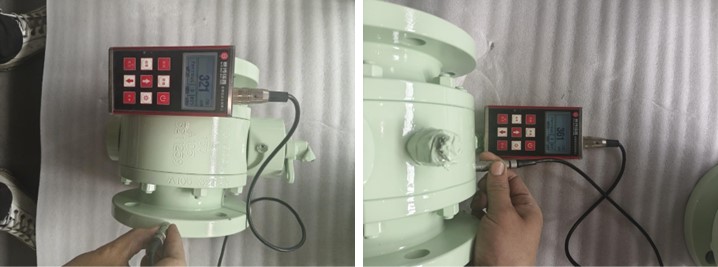

Painting

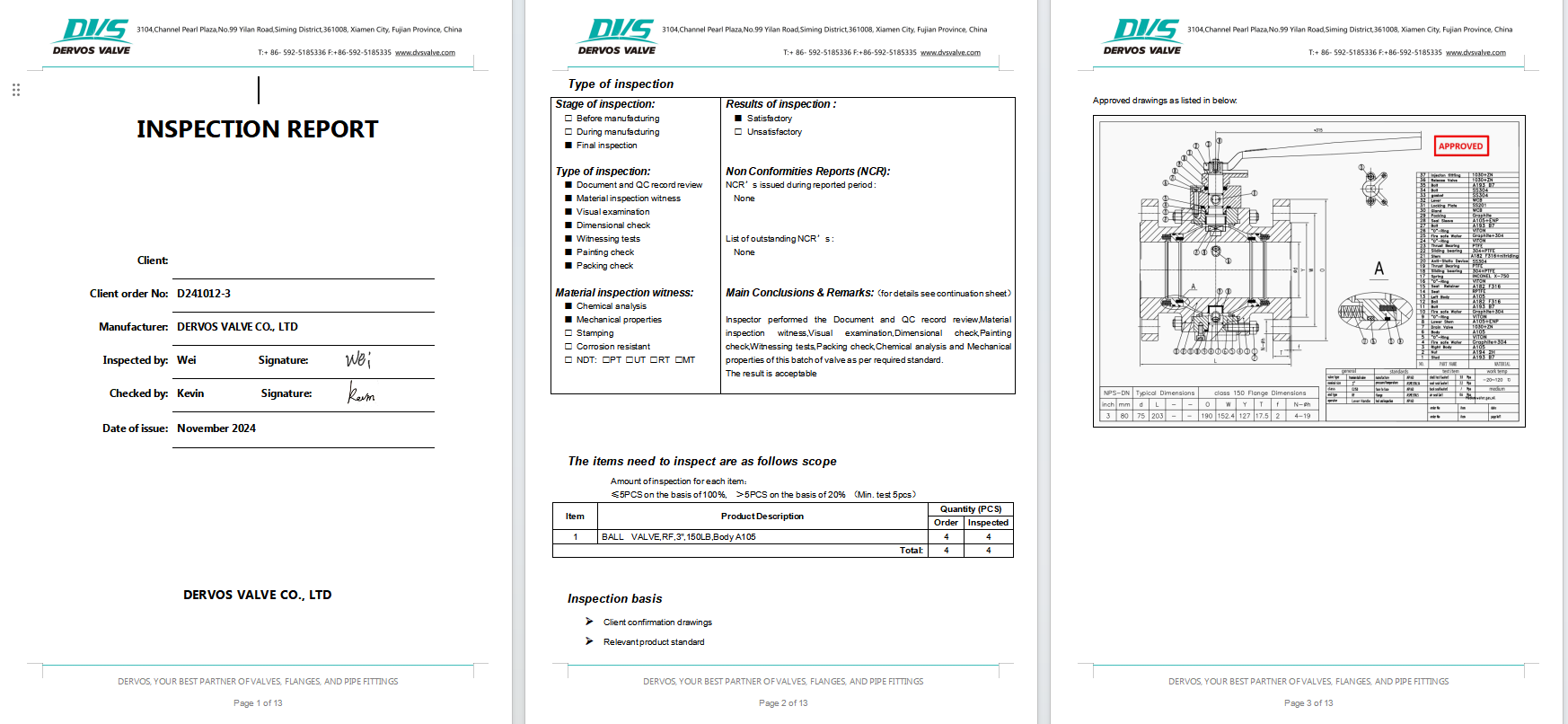

Inspection Report
