2” 600LB Cast Steel Y Strainer WCB ASME B16.34 RF
Key Specifications / Features
Model No.: Hits: 0
2”600LB Cast Steel Y Strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of Y type. Its connection mode is RF.
Request a quote
Tags:
Detail Information
Product Description
| Type | Y Strainer |
| Size | 2” |
| Pressure | 500LB |
| Connection | RF |
| Body Material | A216 WCB |
| Design Norm | ASME B16.34 |
| Face to Face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Constructed from durable WCB cast steel, this 2” Y strainer is rated for 600LB pressure and built to ASME B16.34 standards.
2. Designed with a flanged RF end connection, it ensures reliable filtration and debris removal in high-pressure piping systems.

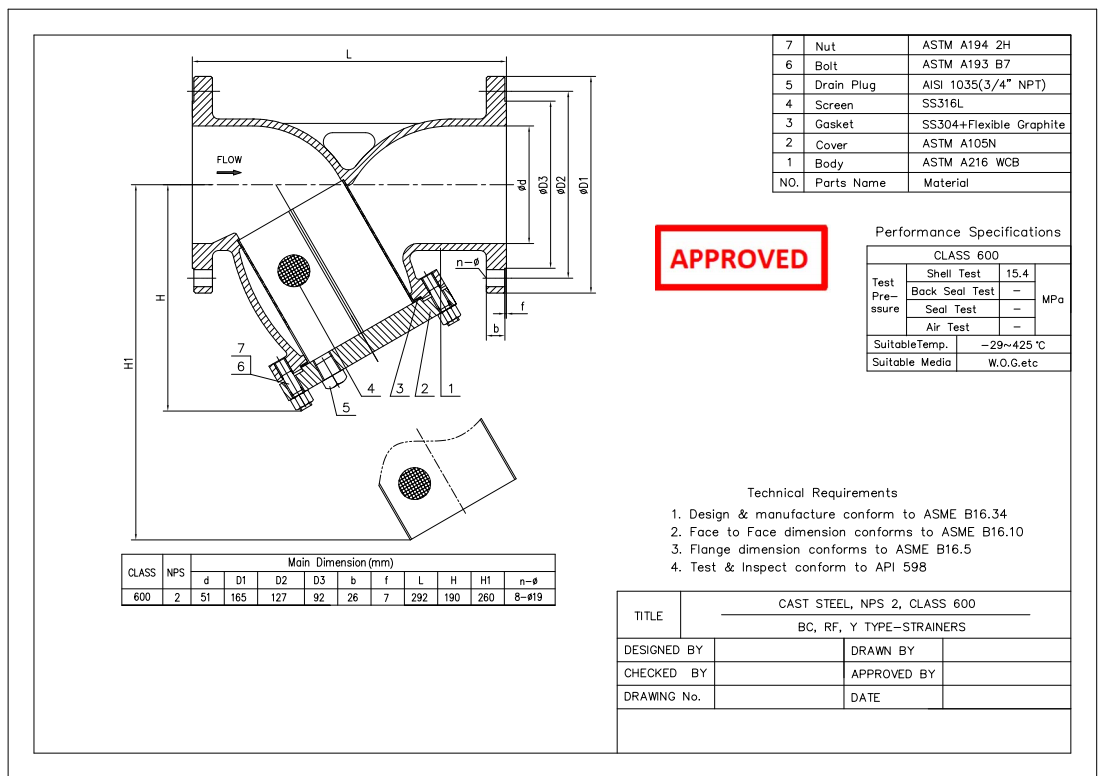

Cast Steel Y Strainer Technical Drawing

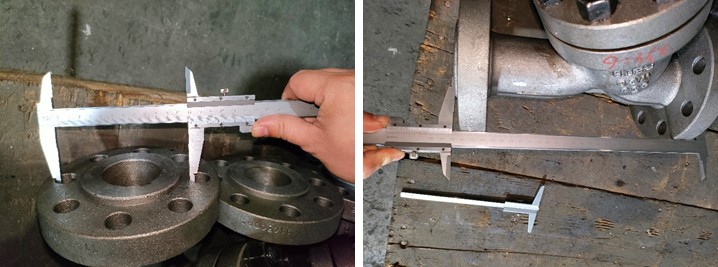

Dimension Checking

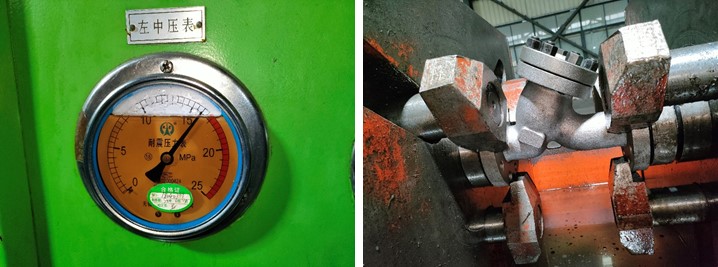

Pressure Testing

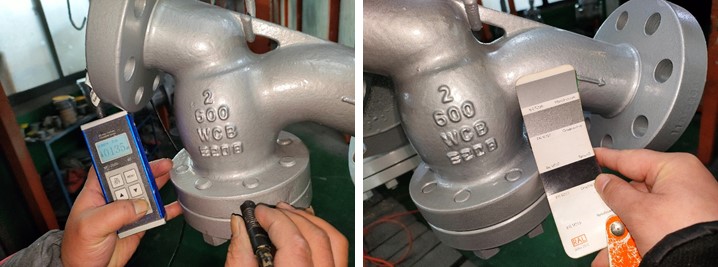

Painting

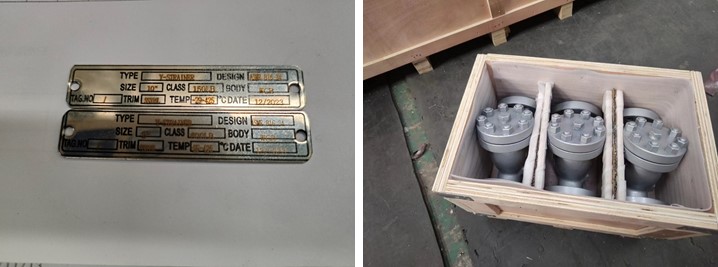

Nameplate & Packing

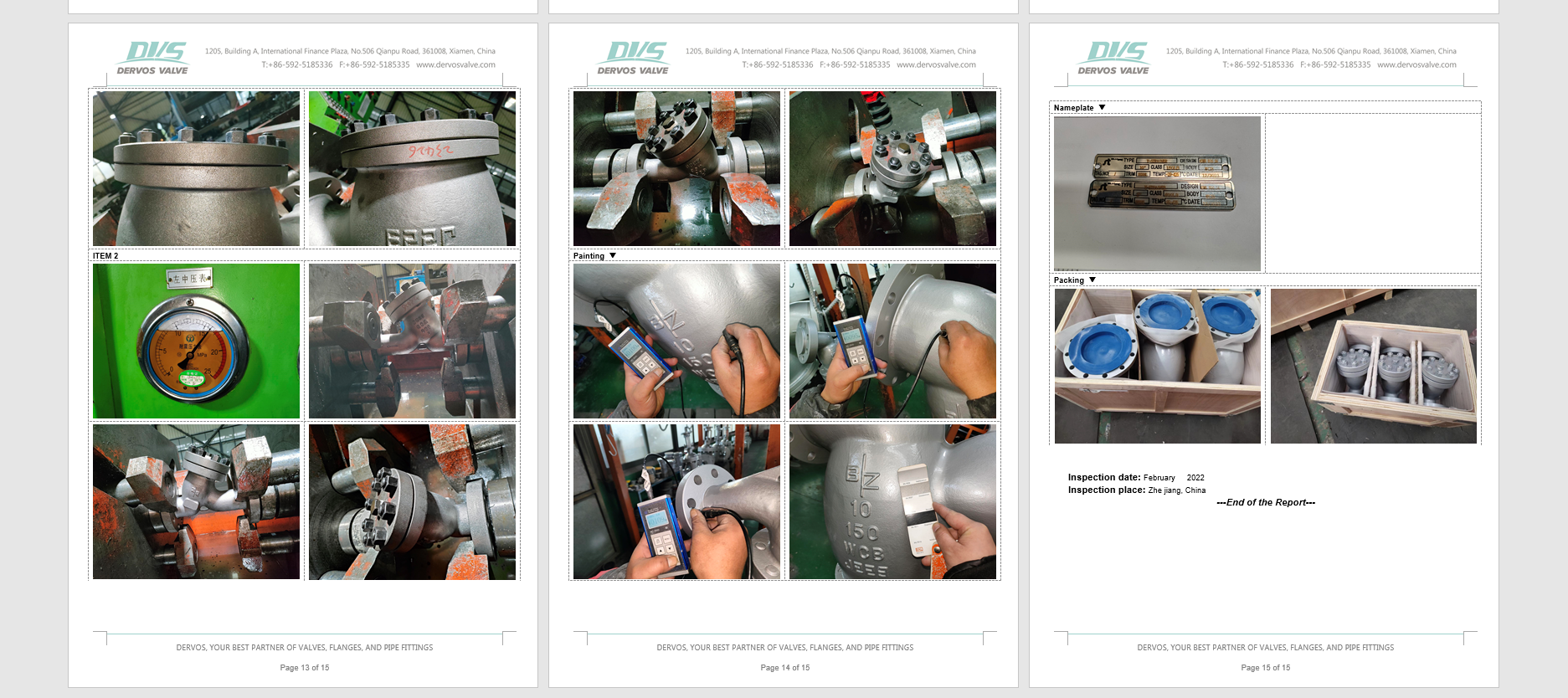

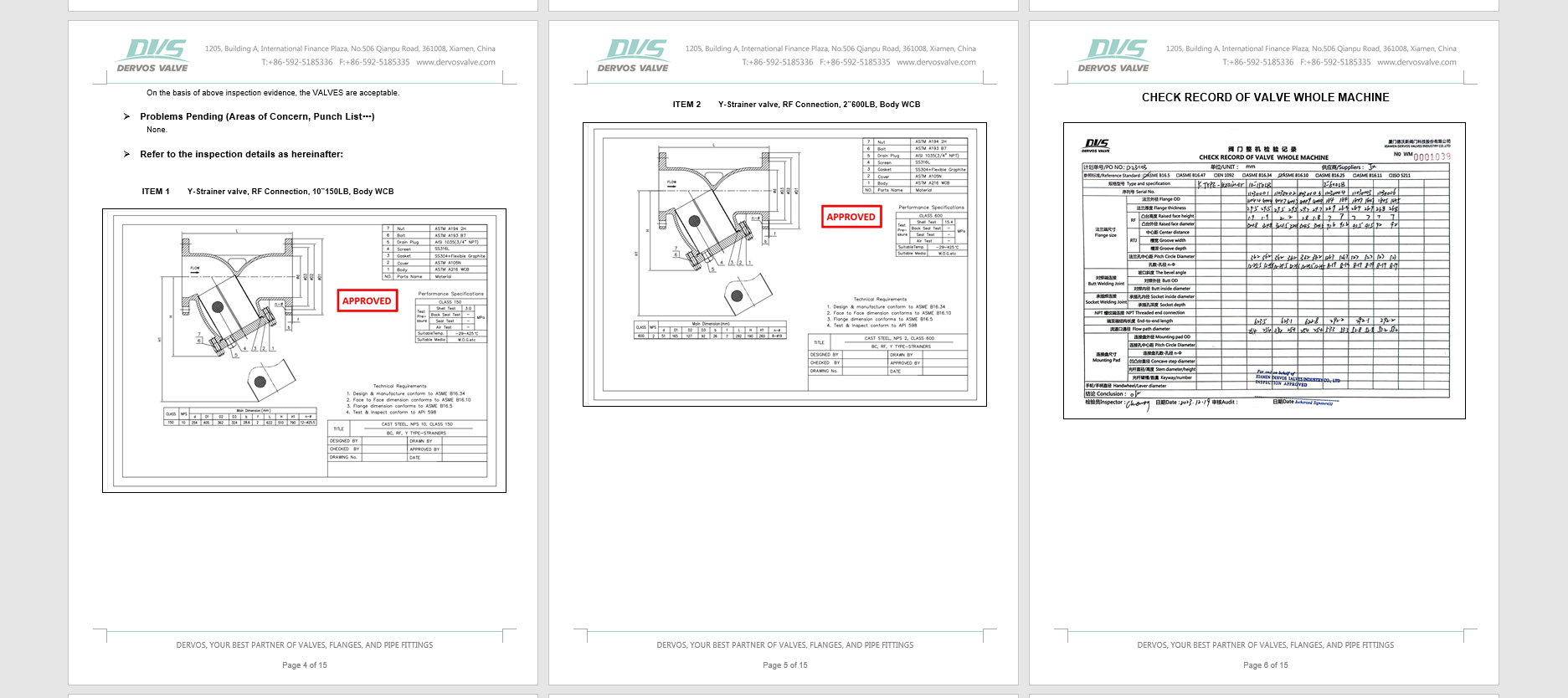

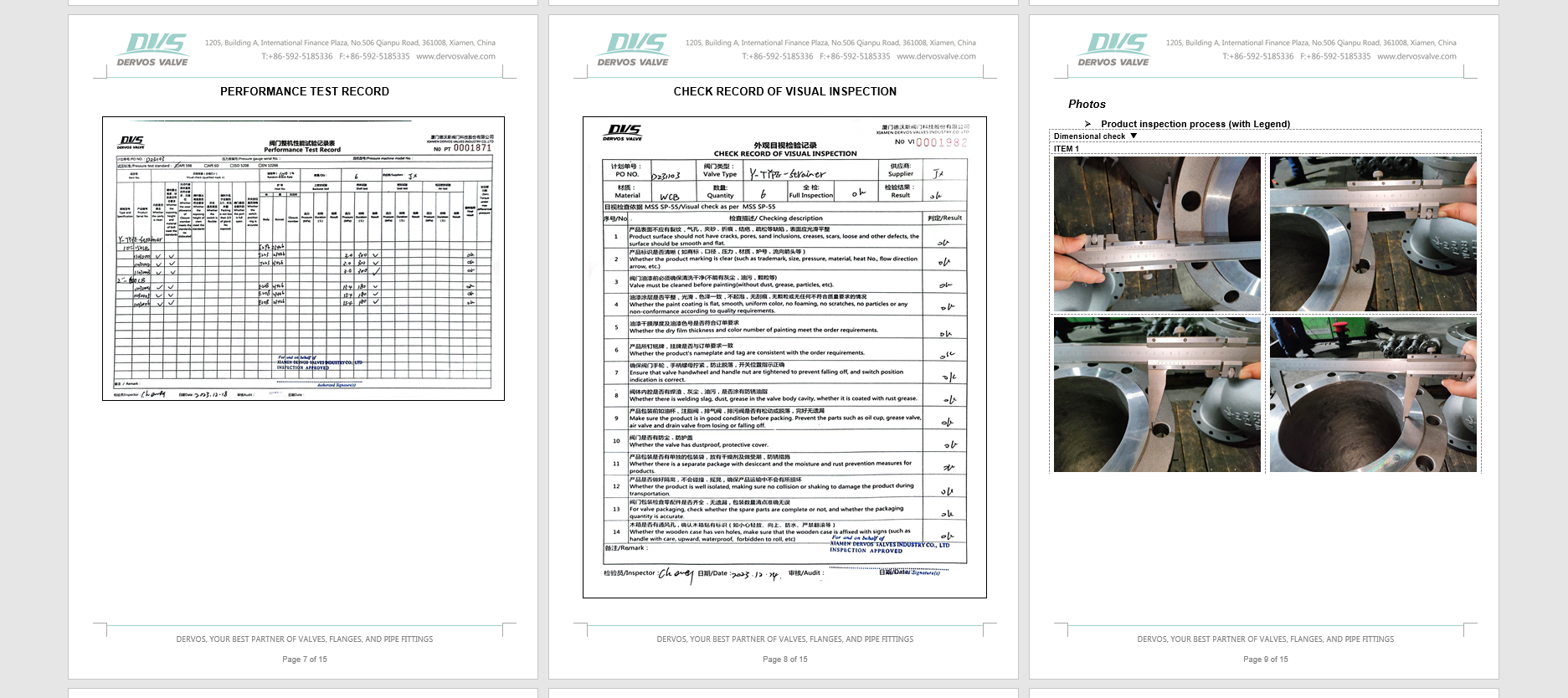

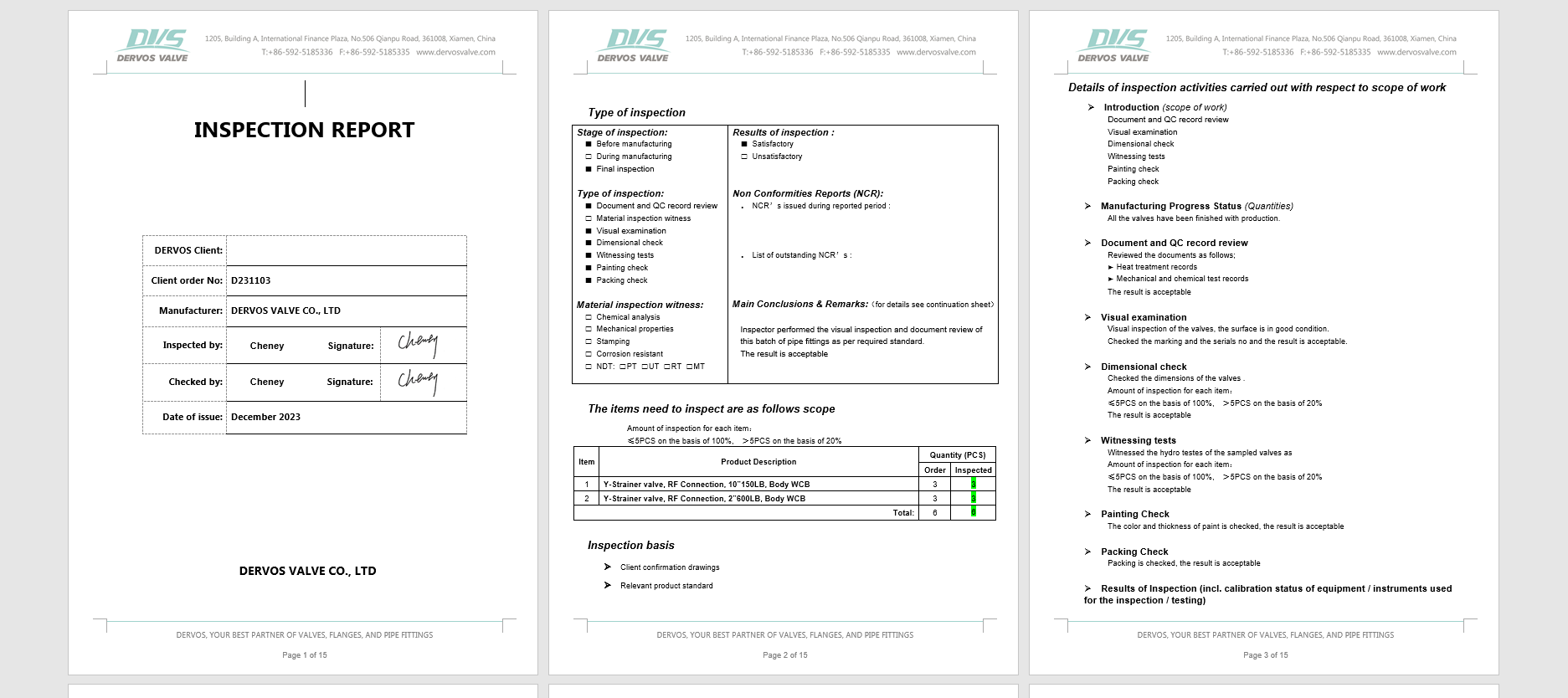

Inspection report
