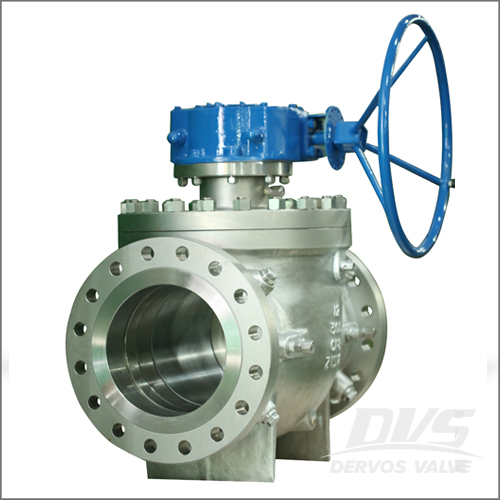

CF8 Ball Valve, API 6D, 12IN, CL300, RF End, Gearbox Operation
Key Specifications / Features
Model No.: TE BV 08 Hits: 297
China CF8 Ball Valve Supplier Dervos Provides CF8 Ball Valve, API 6D Standard, 12IN, CL300, RF End, Gearbox Operation, FF ASME B16.10, -29℃~+200℃.
Request a quote
Share
Tags:
Quick Detail
China CF8 Ball Valve Supplier Dervos Provides CF8 Ball Valve, API 6D Standard, 12IN, CL300, RF End, Gearbox Operation, FF ASME B16.10, -29℃~+200℃.
Detail Information
Valve Description:
Design Standard: API 6D.
Body Material: CF8.
Nominal Diameter: 12".
Pressure: CL300.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+200℃.
Mode of Operation: Gearbox.
Test and Inspection: API 598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
Features: One Piece Type Body, Emergency Sealant Injection, Low Emission Packing, Fire Safe, Anti-static and Anti-blowout Stem, Valve Seat Function DBB, Optional Extended Bonnet, Cavity Pressure Self-relief.
Design Standard: API 6D.
Body Material: CF8.
Nominal Diameter: 12".
Pressure: CL300.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+200℃.
Mode of Operation: Gearbox.
Test and Inspection: API 598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
Features: One Piece Type Body, Emergency Sealant Injection, Low Emission Packing, Fire Safe, Anti-static and Anti-blowout Stem, Valve Seat Function DBB, Optional Extended Bonnet, Cavity Pressure Self-relief.
Keywords of CF8 Ball Valve, API 6D, 12IN, CL300, RF End, Gearbox Operation
CF8 Ball Valve
