DN250 PN40 Cast Steel Gate Valve, RF, Body WCB, EN1984
Key Specifications / Features
Model No.: Hits: 0
DN250 PN40 Cast Steel gate valve is made according to EN1984 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of BB OS&Y and structural length of 450mm. Its connection mode is RF. And it has Hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Gate Valve |
| Size | DN250 |
| Pressure | PN40 |
| Connection | RF |
| Operation | Hand Wheel |
| Body Material | ASTM A216 WCB |
| Design Norm | EN1984 |
| Face to Face Dimension | Customer Requirements |
| Flange Dimension | EN1092-1/B1 |
| Test & Inspection Code | EN12266-1/2 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Optional configurations include rising stem (OS&Y) and non-rising stem designs, with various end connections available such as flanged, welded, and threaded types;2. Low flow resistance, reliable sealing, wide applicable pressure range, diverse structures, high cost-effectiveness.

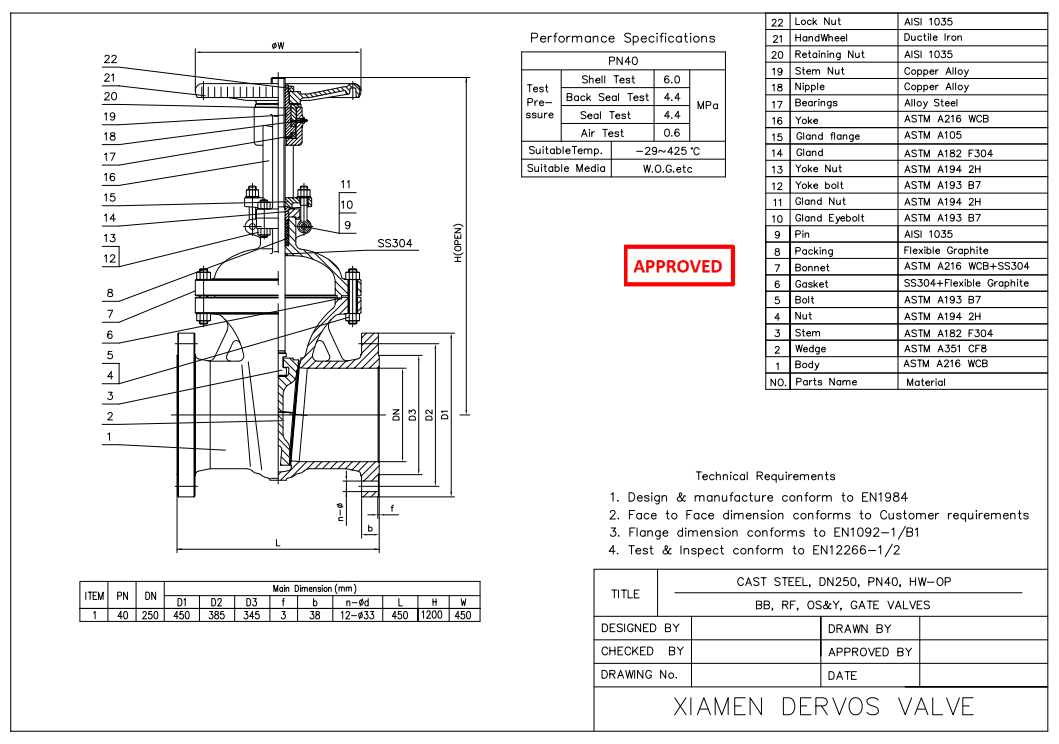

Technical Drawing

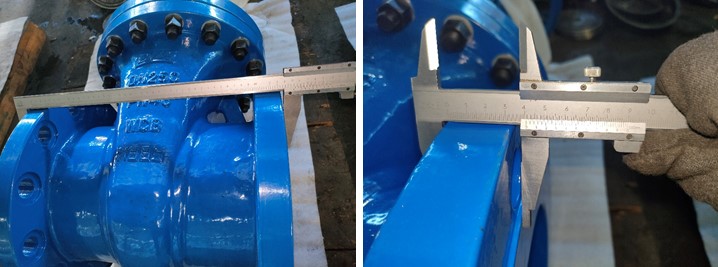

Dimension Checking

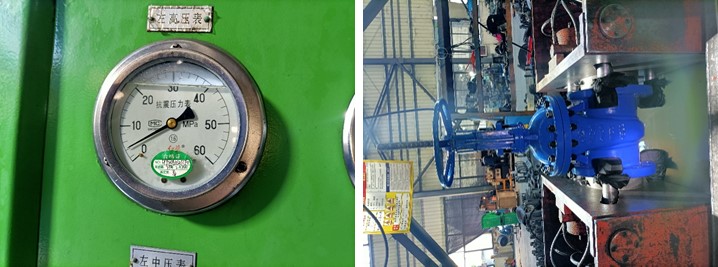

Pressure Testing

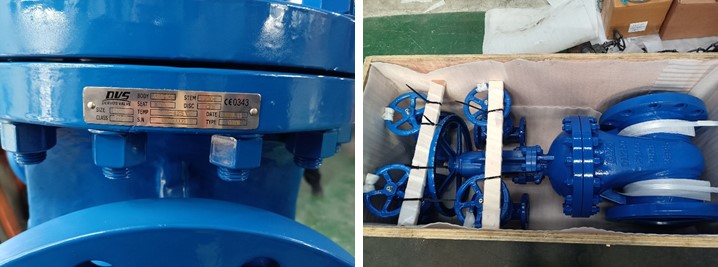

Nameplate & Packing

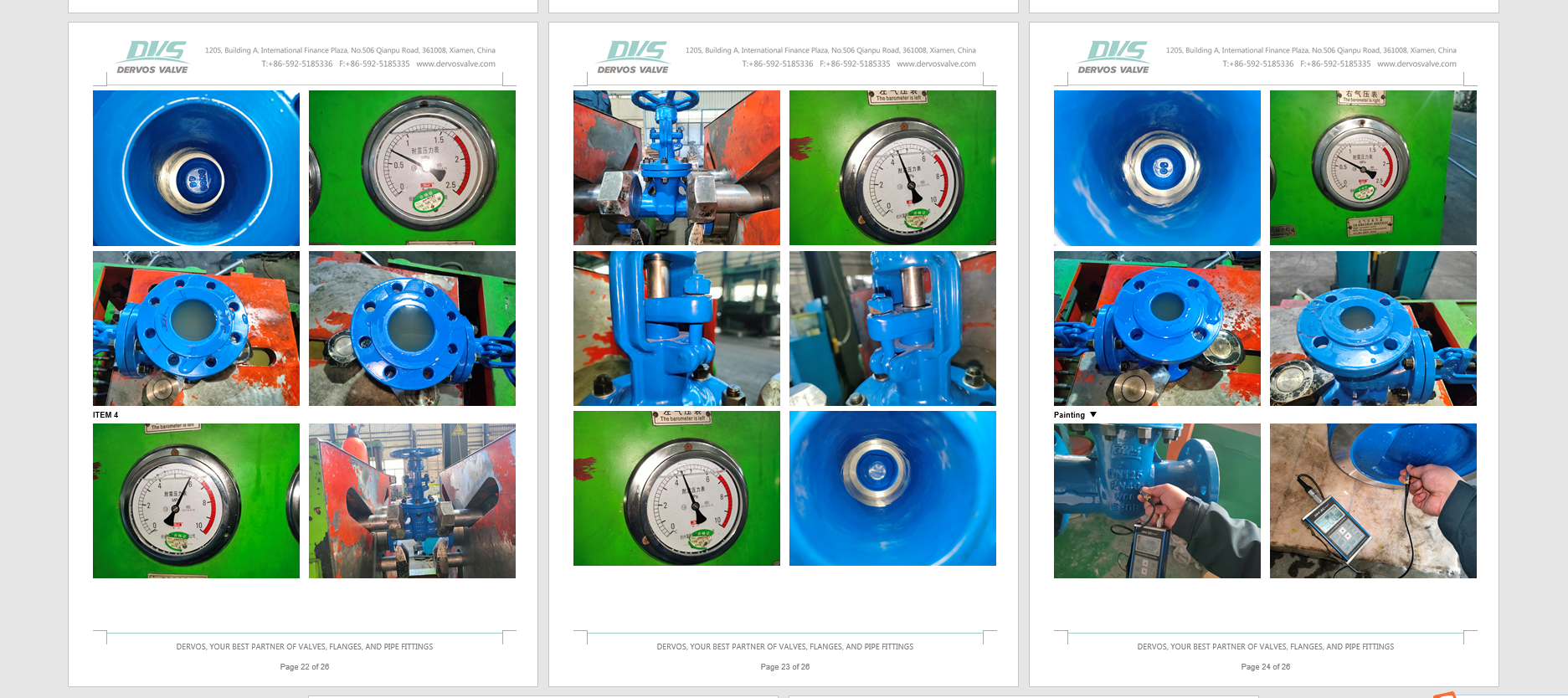

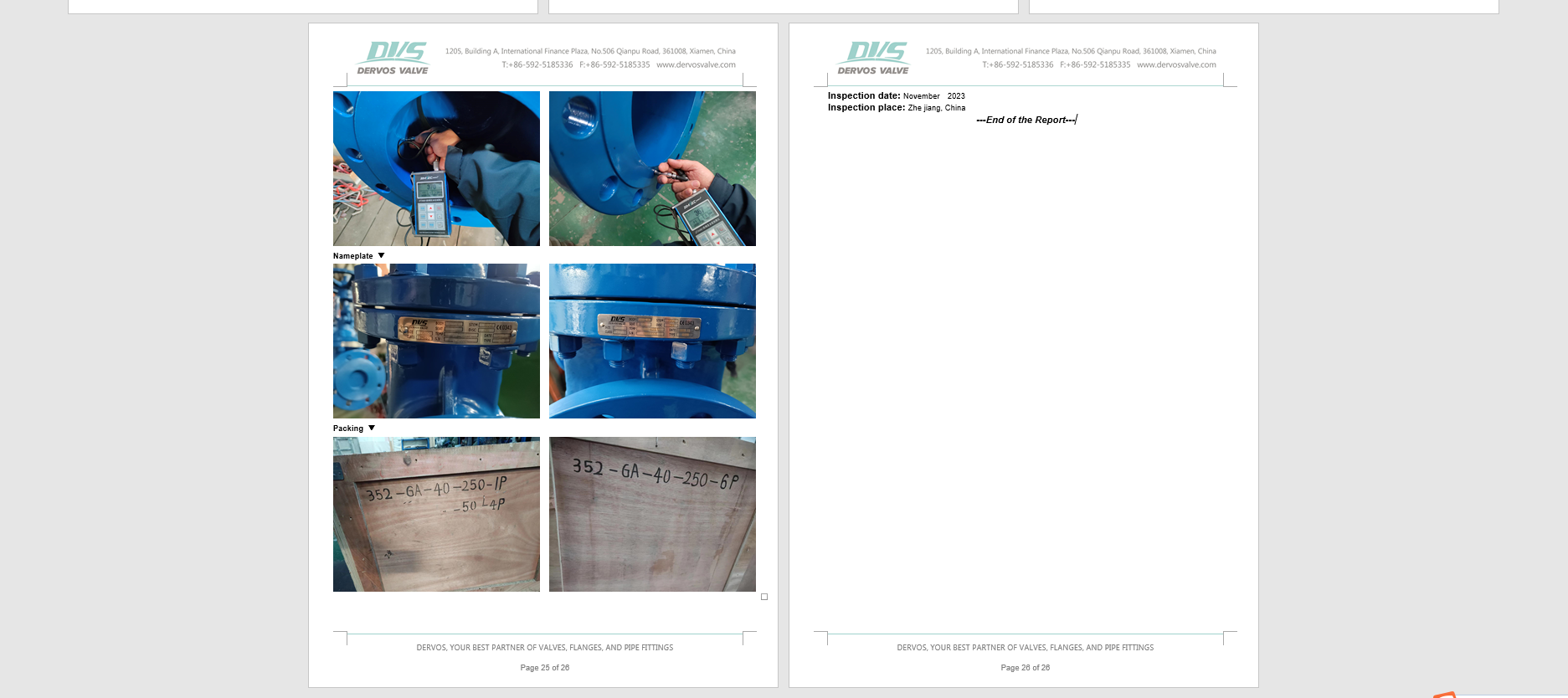

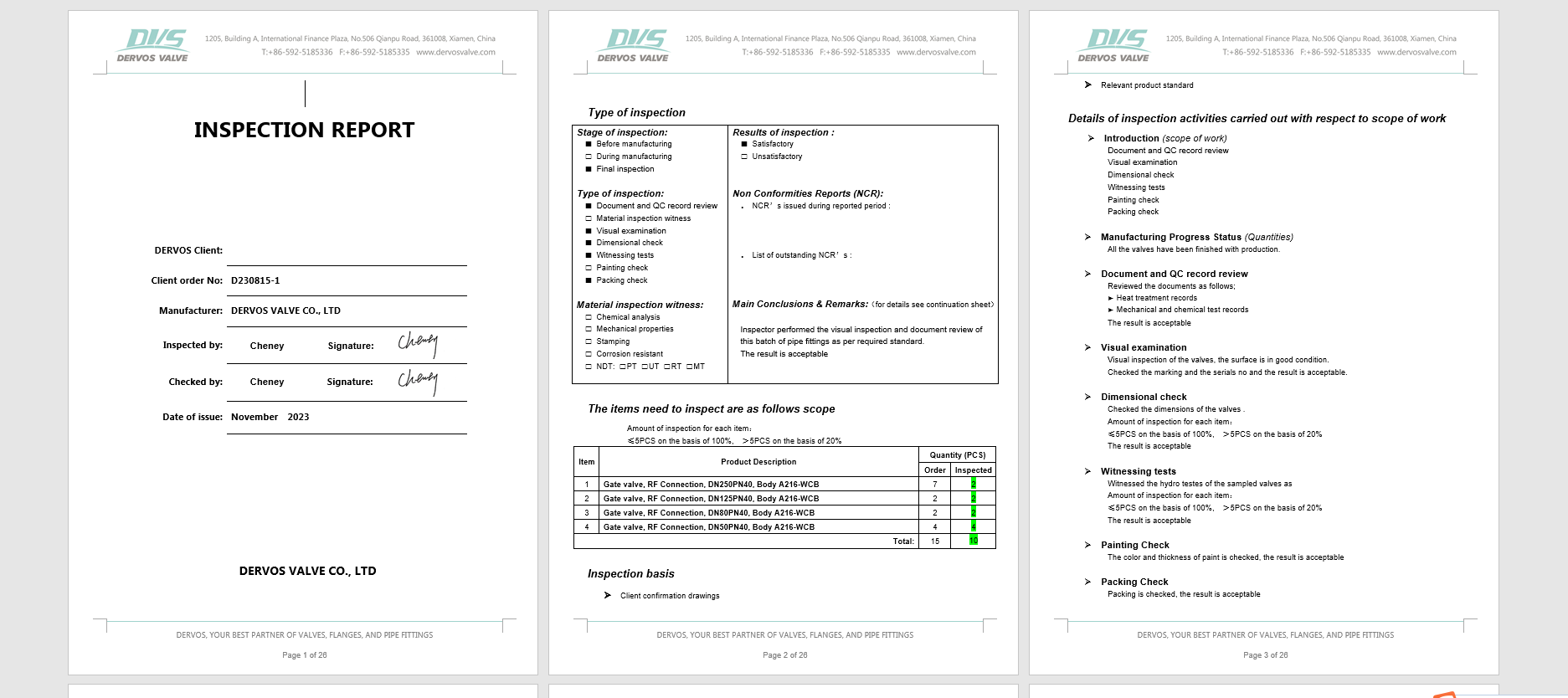

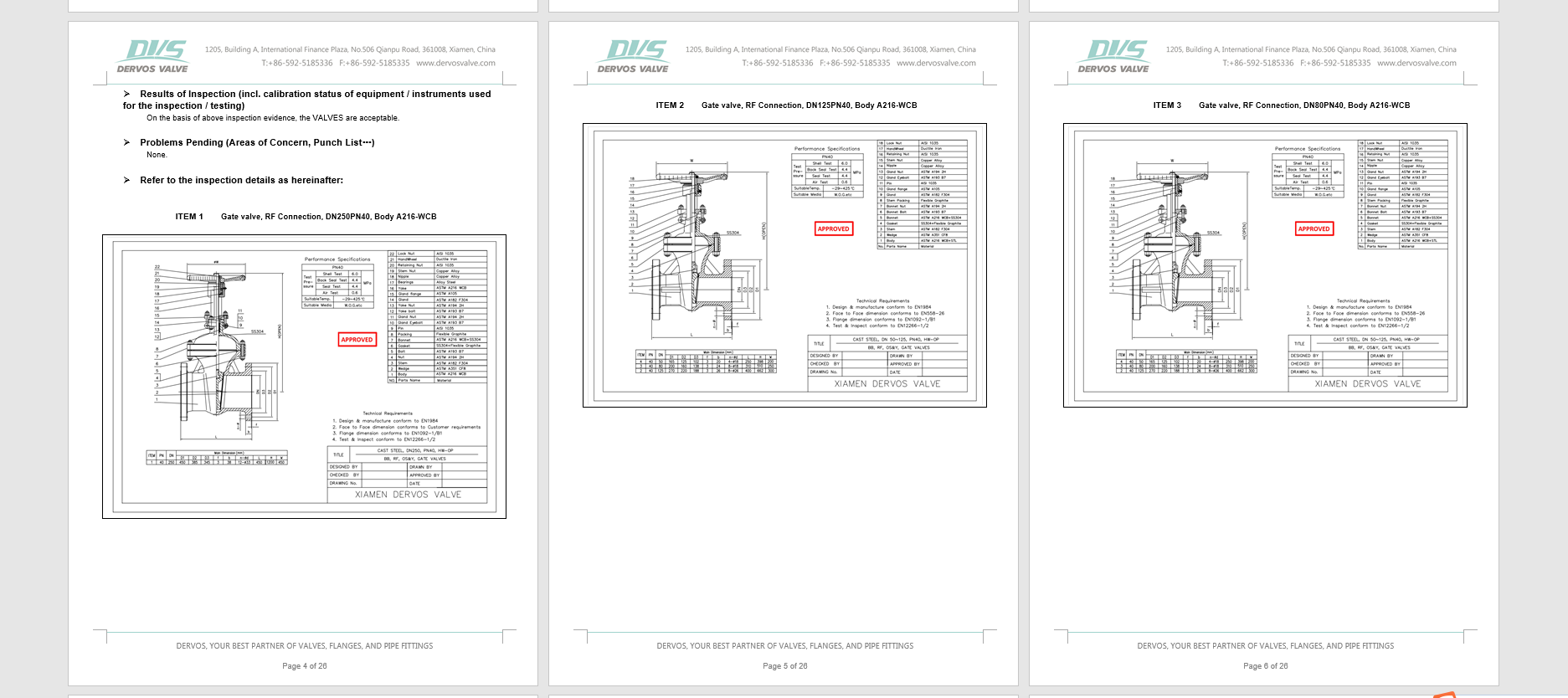

Inspection report
