Ductile Iron Y Strainer 14" 125LB ASME B16.34
Key Specifications / Features
Model No.: Hits: 0
14" 125LB Y Strainer is made according to ASME B16.34 standard. The valve body is made of Ductile Iron A395. It has the structural characteristics of Y Pattern Valve with Body-Bonnet Bolted Connection. Its connection mode is FF.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Y Strainer |
| Size | 14” |
| Pressure | 125LB |
| Connection | FF |
| Body Material | Ductile Iron A395 (65-45-15) |
| Design Norm | ASME B16.34 |
| Face to face | MFR’S standard |
| Flange dimension | ASME B16.1 |
| Test & Inspection Code | API 598 |
| Temperature | 10 ~ 110°C |
| Applicable Medium | Water, Oil and Steam |
Features
1.The Y-type flow path design effectively removes debris and solid particles while maintaining low pressure drop in pipeline systems.2.Manufactured in accordance with ASME B16.34, the ductile iron body provides high mechanical strength and reliable durability for water and general utility applications.

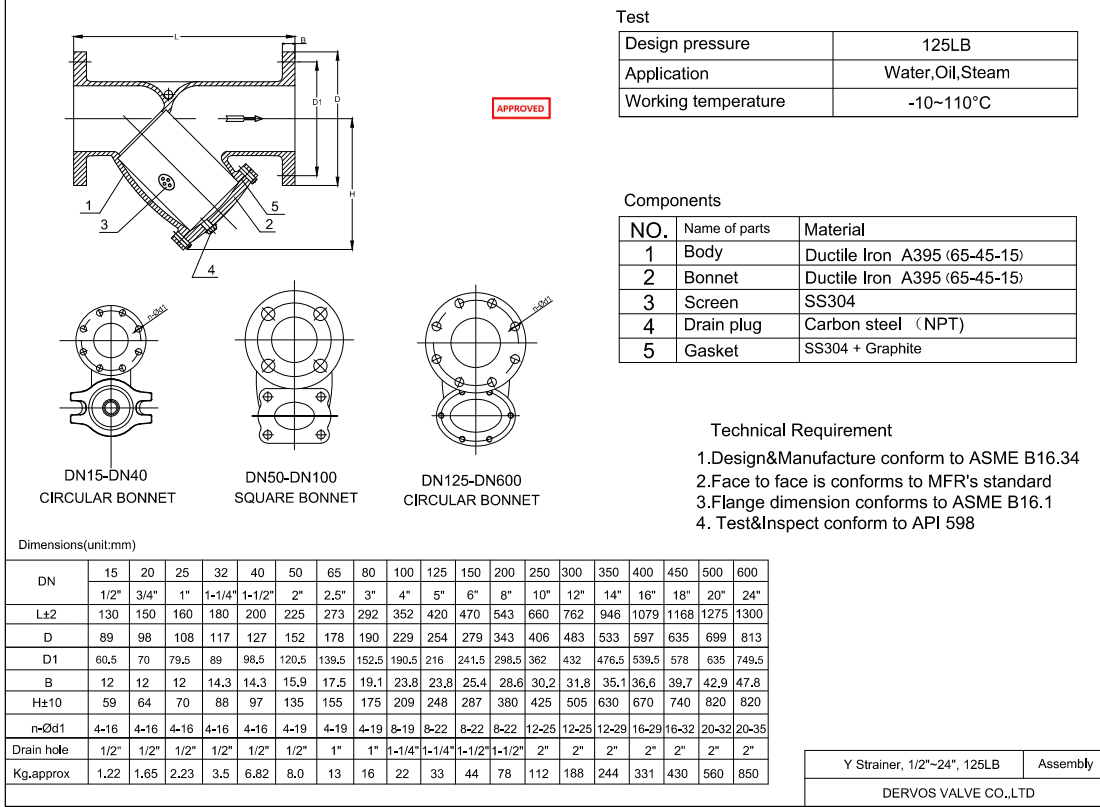

Technical Drawing

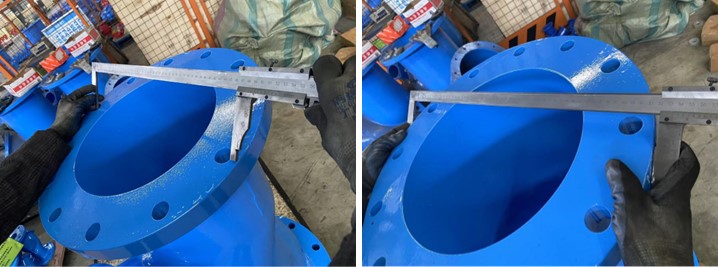

Dimension Checking

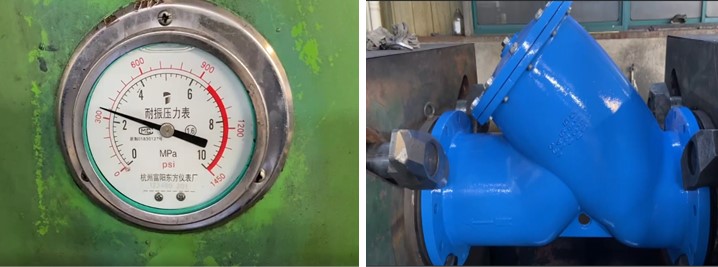

Pressure Testing

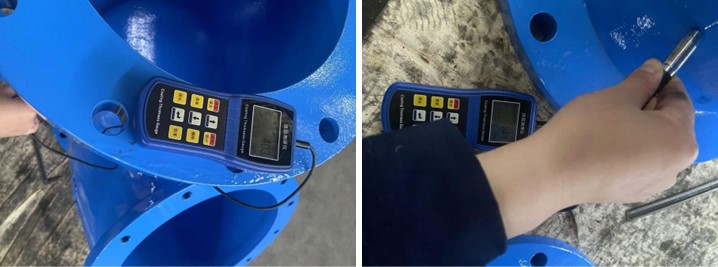

Painting

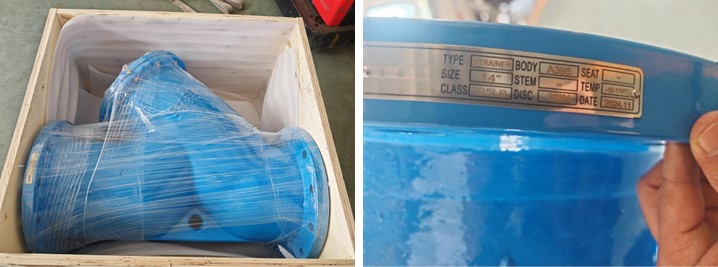

Nameplate & Packing

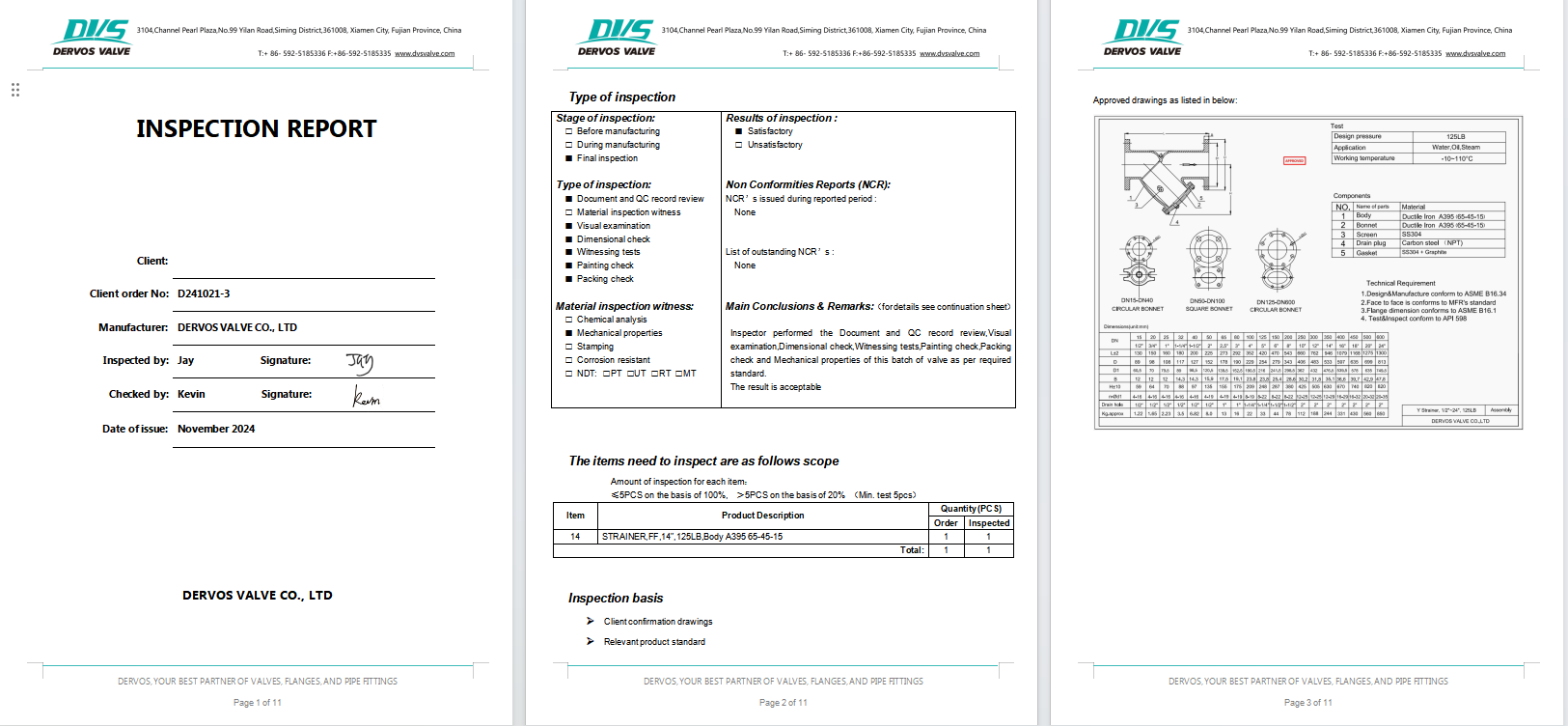

Inspection Report
