Forged Steel Gate Valve 1-1/2" 800LB LF2 SW+FNPT
Key Specifications / Features
Model No.: Hits: 0
1-1/2" 800LB gate valve is made according to API 602 standard. The valve body is made of LF2. It has the structural characteristics of OS&Y Gate/Globe Valve with Seal-Welded Bonnet. Its connection mode is SW+FNPT. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Forged Steel Gate Valve |
| Size | 1-1/2" |
| Pressure | 800LB |
| Connection | SW+FNPT |
| Operation | Hand wheel |
| Body Material | A350-LF2 |
| Design Norm | API 602 |
| Socket welded dimension | ANSI B16.11 |
| Screw ends dimension | ASME/ANSI B1.20.1 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 345°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The LF2 forged steel body offers excellent toughness and impact resistance, making it suitable for low-temperature applications.2. Featuring SW and FNPT end connections, the valve provides flexible installation options and secure sealing performance in high-pressure systems.

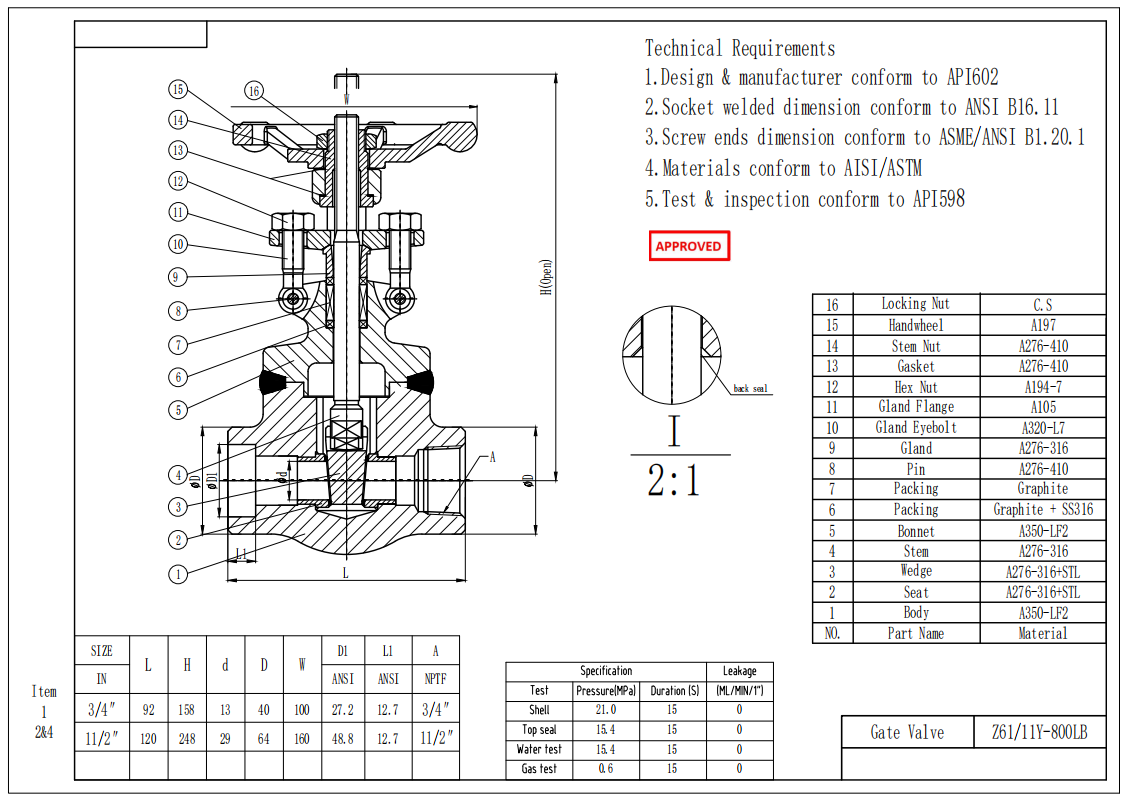

Technical Drawing

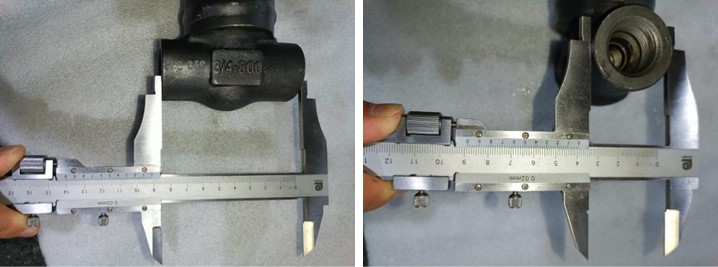

Dimension Checking

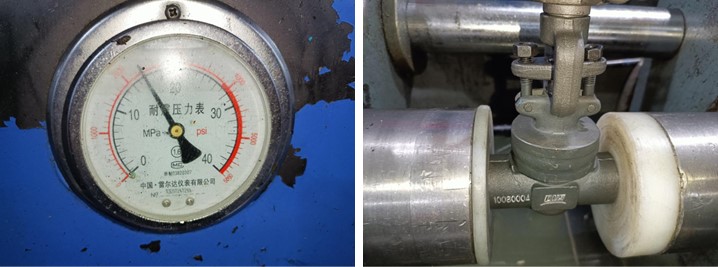

Pressure Testing

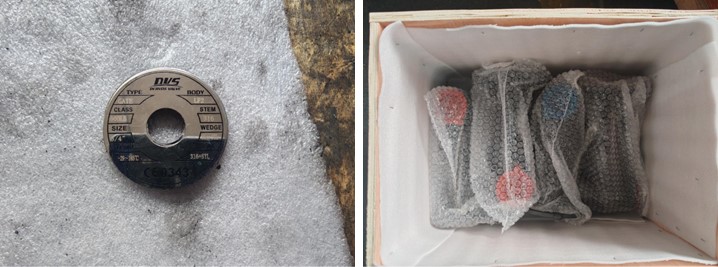

Nameplate & Packing

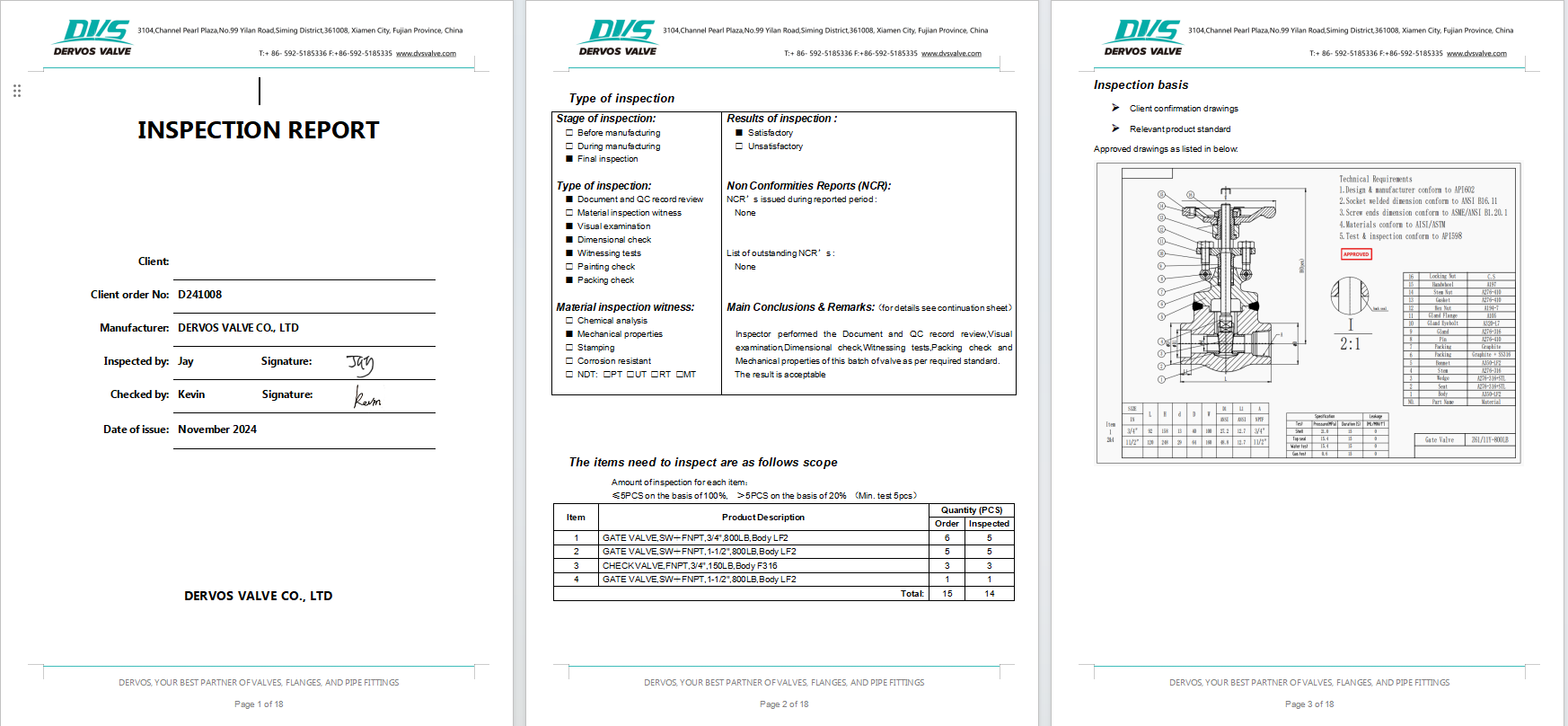

Inspection Report
