1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.

1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.

Key Specifications / Features

Model No.: Hits: 0

1-1/2" 800LB Forged Steel Globe Valve is made according to API 602 standard. The valve body is made of ASTM A105N+STL. It has the structural characteristics of BB, though way type and plug disc. Its connection mode is SW. And it has hand wheel operation mode.
Request a quote

Detail Information

Product Description

Type Forged Steel Globe Valve
Size 1-1/2"
Pressure 800LB
Connection SW
Operation H.W.
Body Material ASTM A105N+STL
Design Norm API 602
Face to Face manufacturer's Std.
Flange Ends ANSI B16.11
Test & Inspection Code API STD.598
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Steam

Features

1. Forged steel gate valves are designed to withstand extreme temperatures, making them ideal for applications in harsh environments;
2. They provide consistent performance and a longer operational life, reducing the frequency of repairs or replacements in industrial settings.

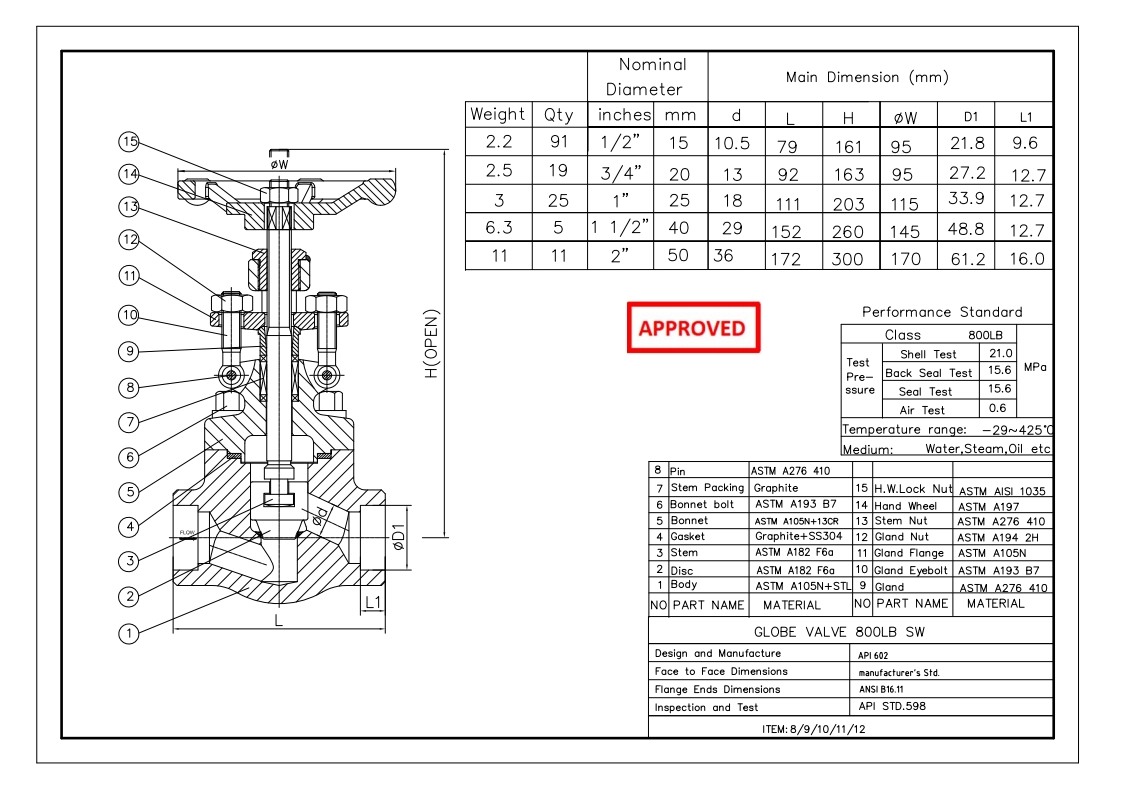

Forged Steel Globe Valve Technical Drawing

1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.

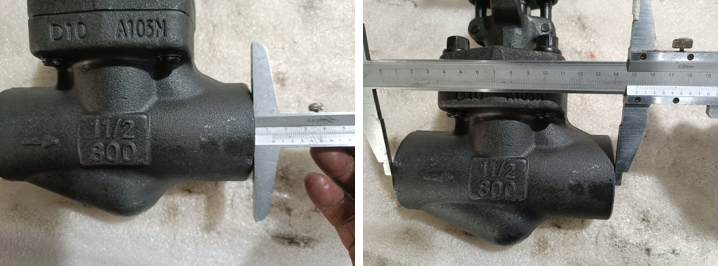

Dimension Checking

1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.

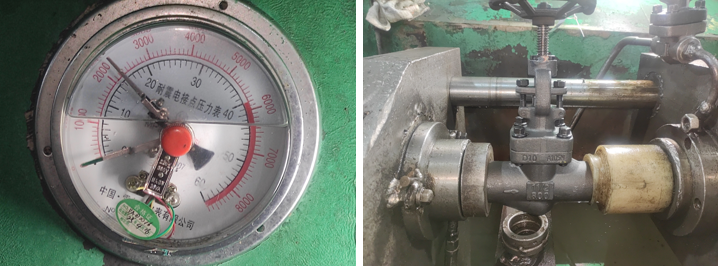

Pressure Testing

1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.

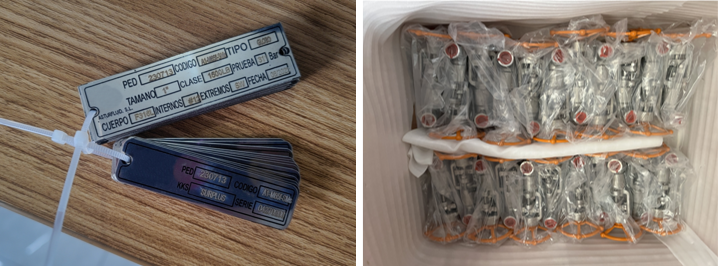

Nameplate & Packing

1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.

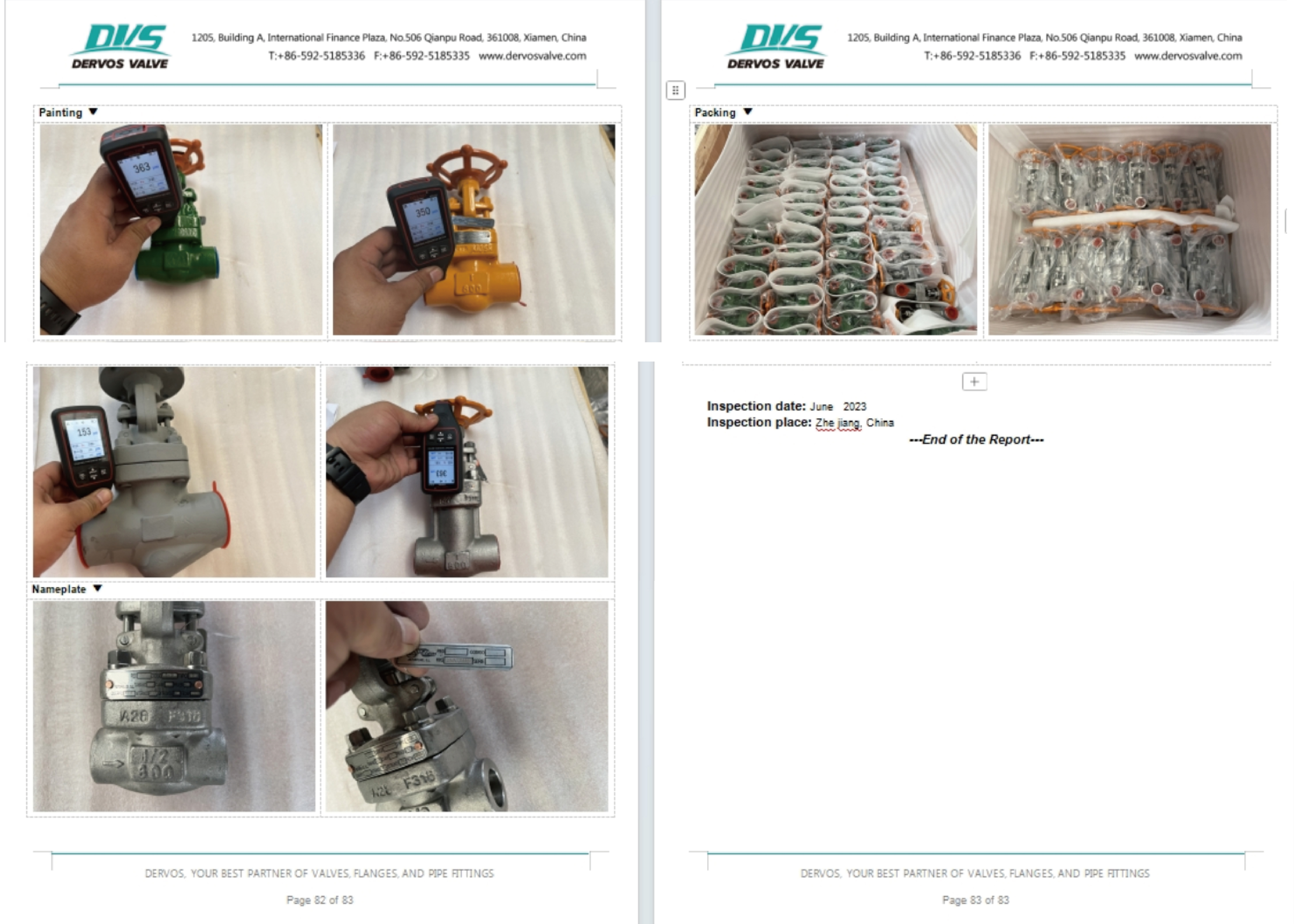

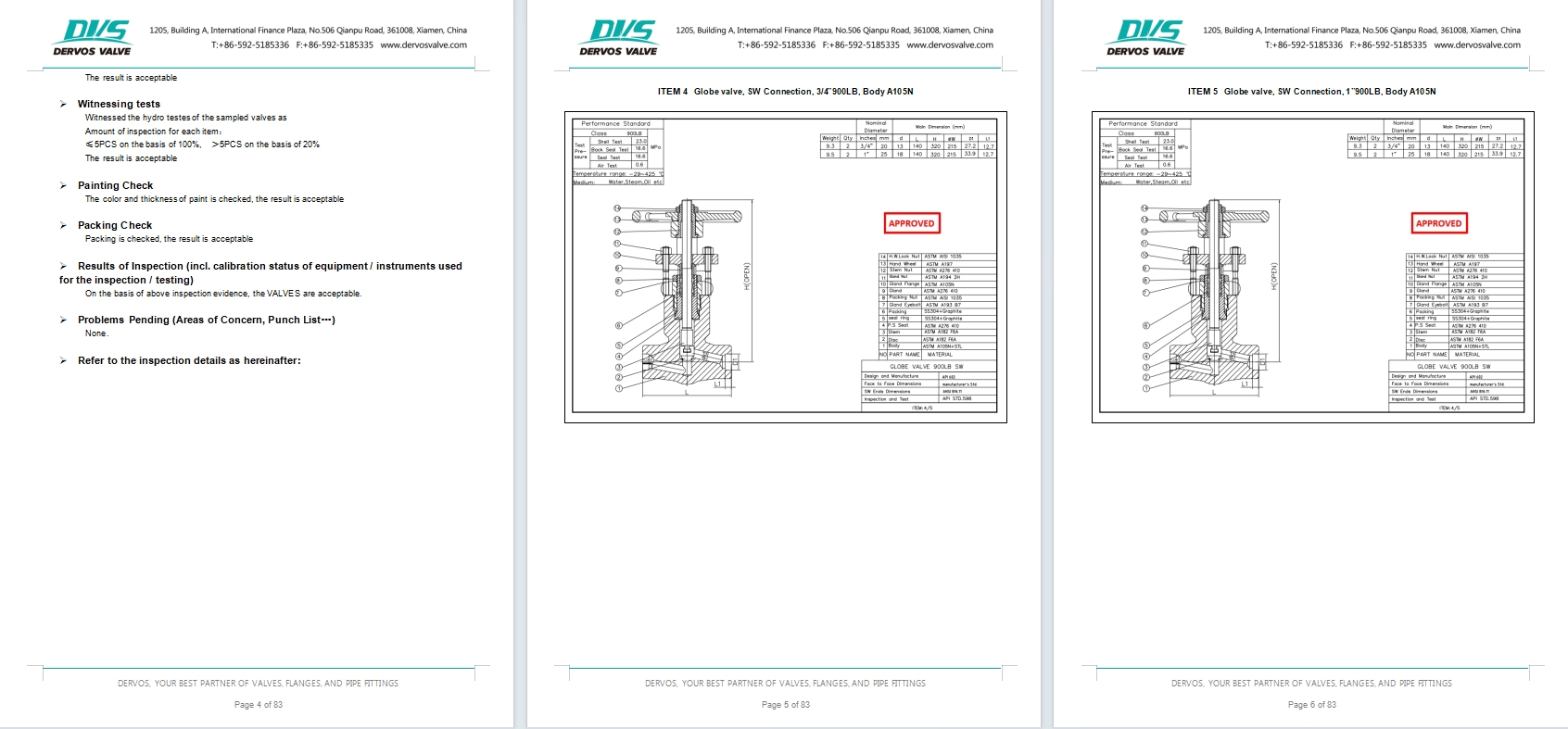

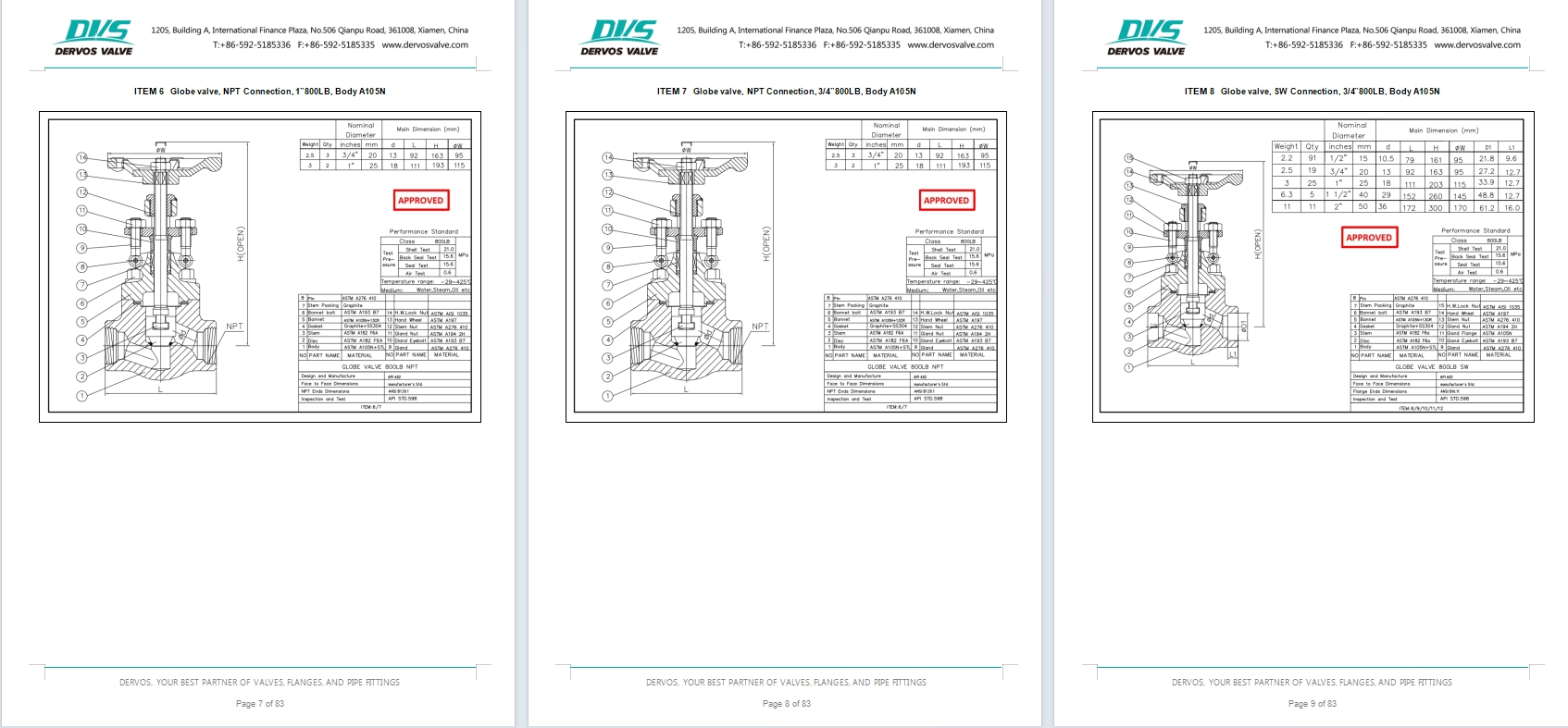

Inspection report

1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.

1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.
1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.
1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.

Keywords of 1-1/2" 800LB Forged Steel Globe Valve ASTM A105N+STL SW H.W.
