ASTM A216 WCB+STL Cast Steel Globe Valve 4" 600LB RF
Key Specifications / Features
Model No.: Hits: 0
4" 600LB Cast Steel Globe Valve is made according to BS1873 standard. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of through way type, bolt bonnet. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Globe Valve |
| Size | 4” |
| Pressure | 600LB |
| Connection | RF |
| Operation | H.W. |
| Body Material | ASTM A216 WCB+STL |
| Design Norm | BS 1873 |
| Face to Face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Globe valves are designed for throttling or controlling the flow. The plug or disc moves up and down in the seat to adjust the flow rate;
2. The valve features a seat, where the plug makes contact to control the flow. It provides a tight shutoff when the valve is fully closed.

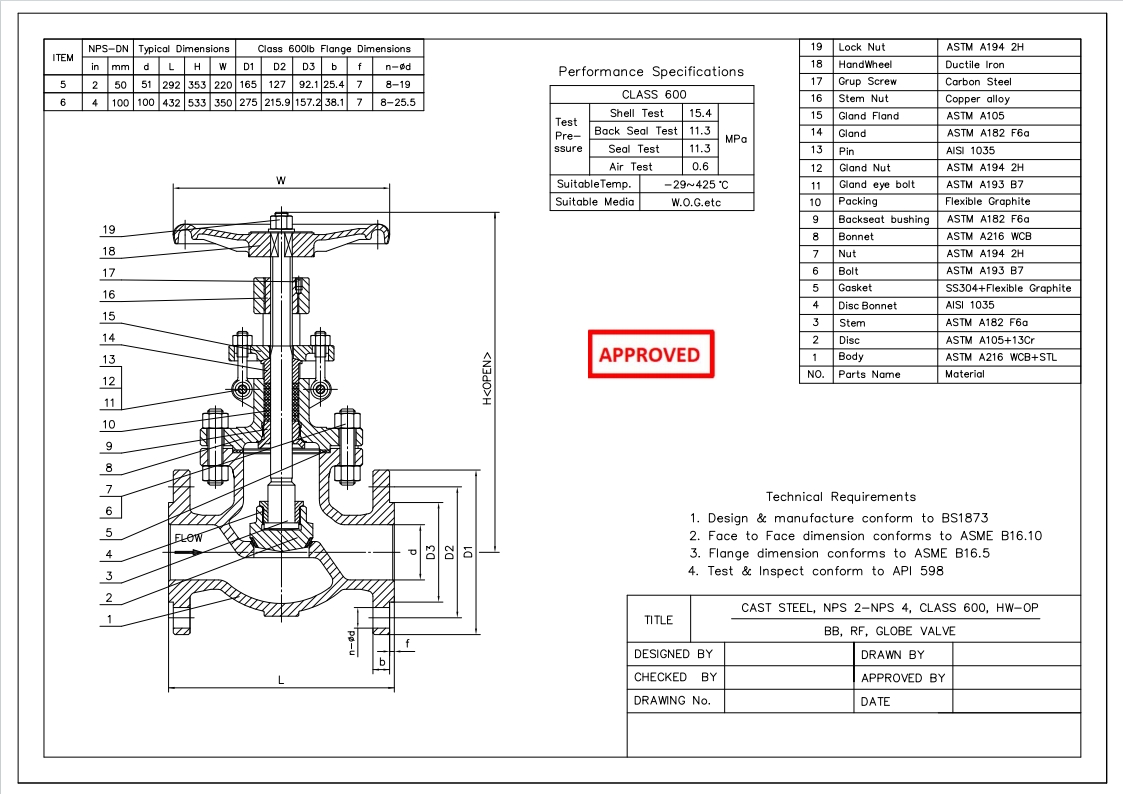

Technical Drawing

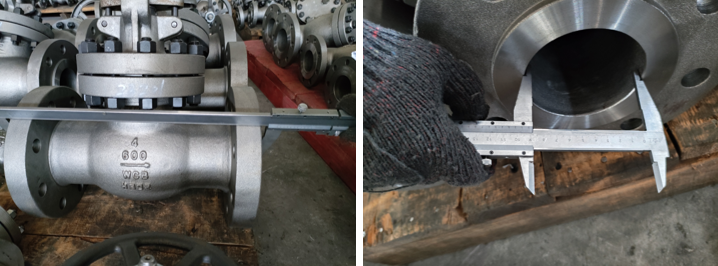

Dimension Checking

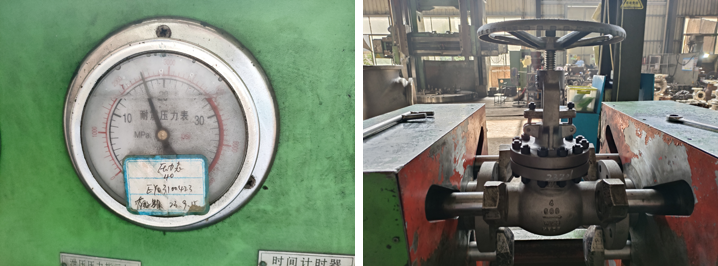

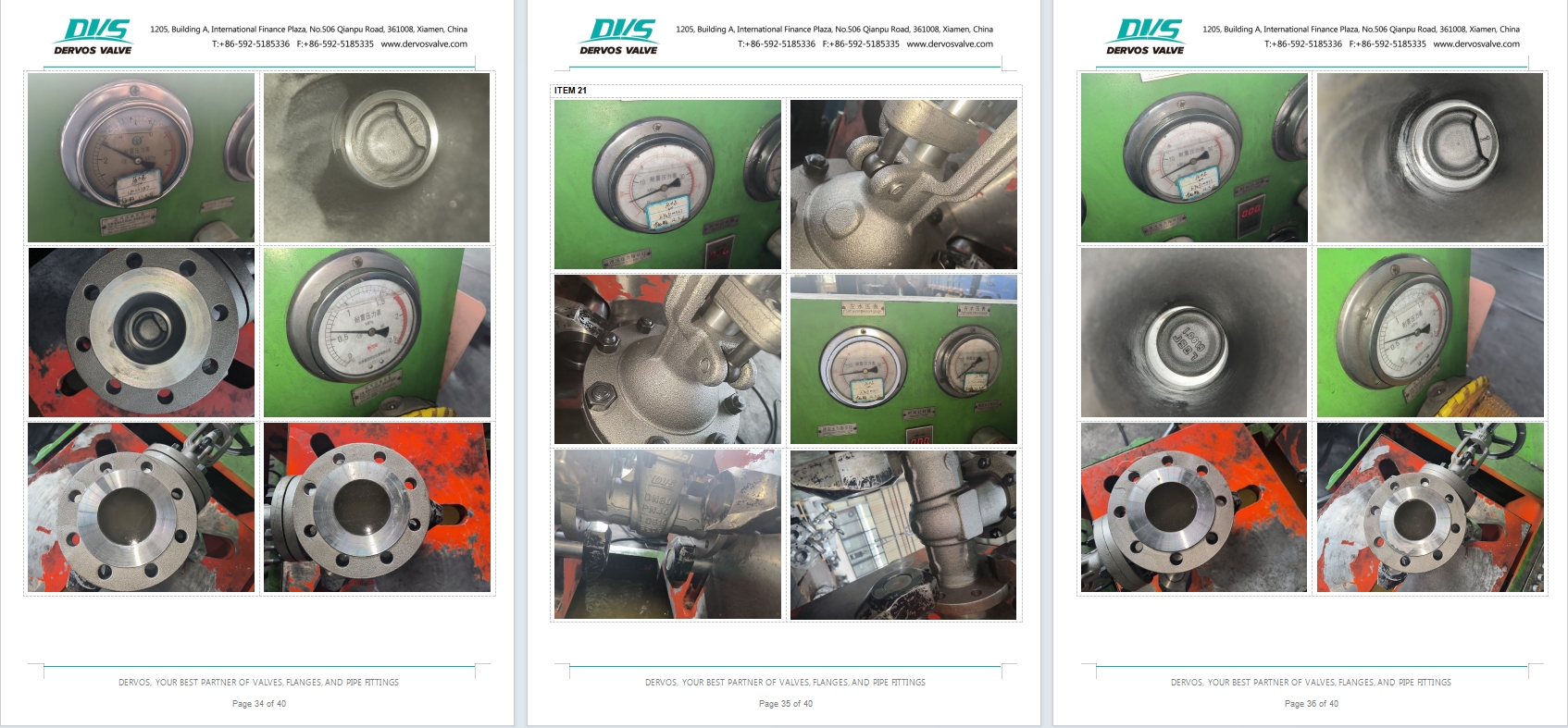

Pressure Testing

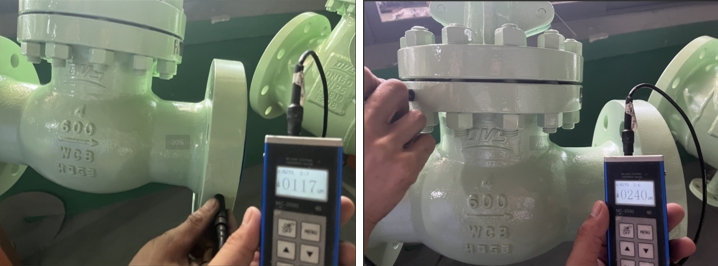

Painting

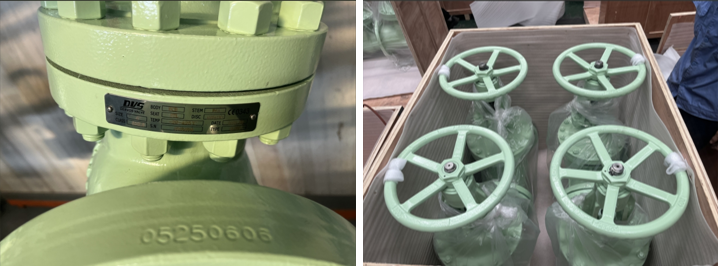

Nameplate & Packing

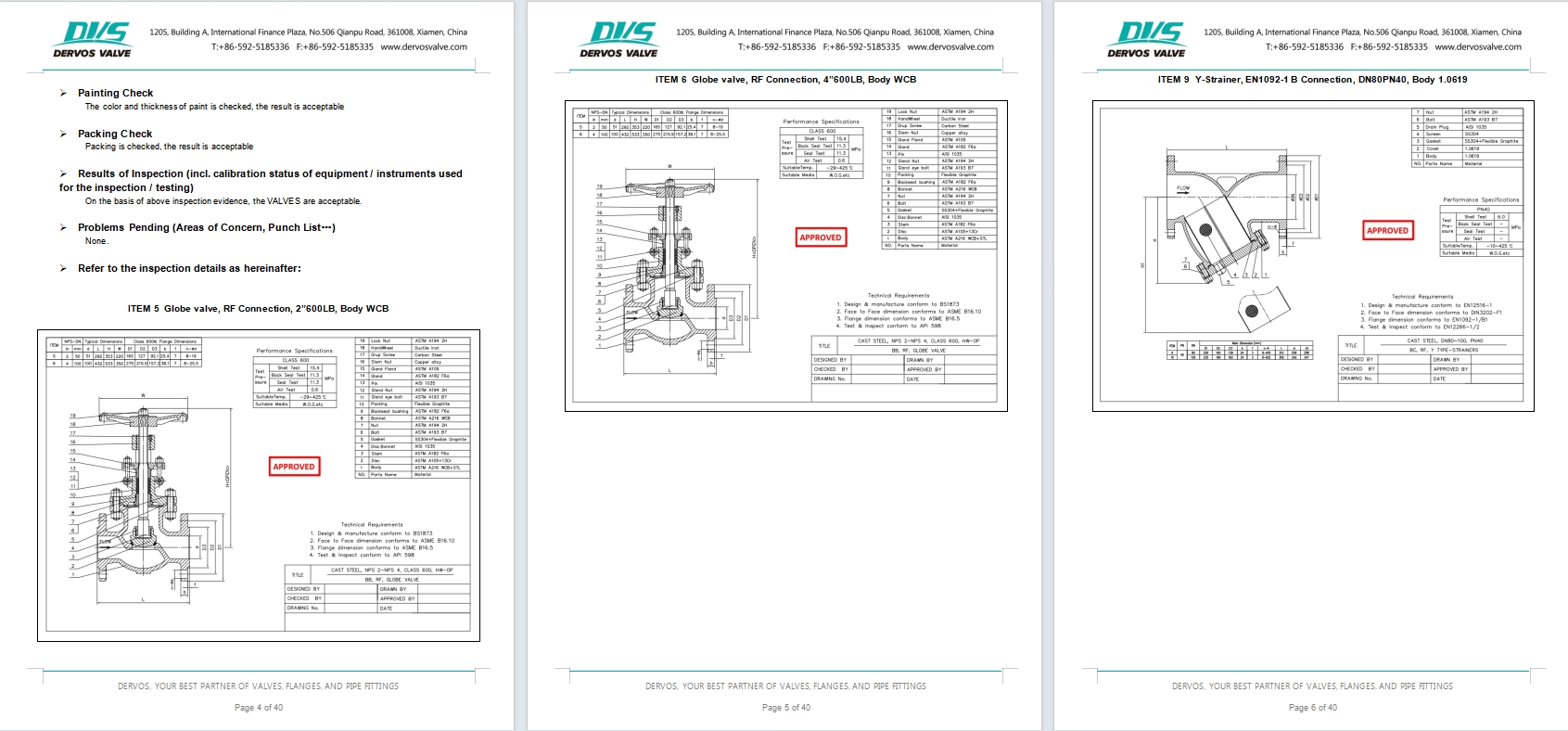

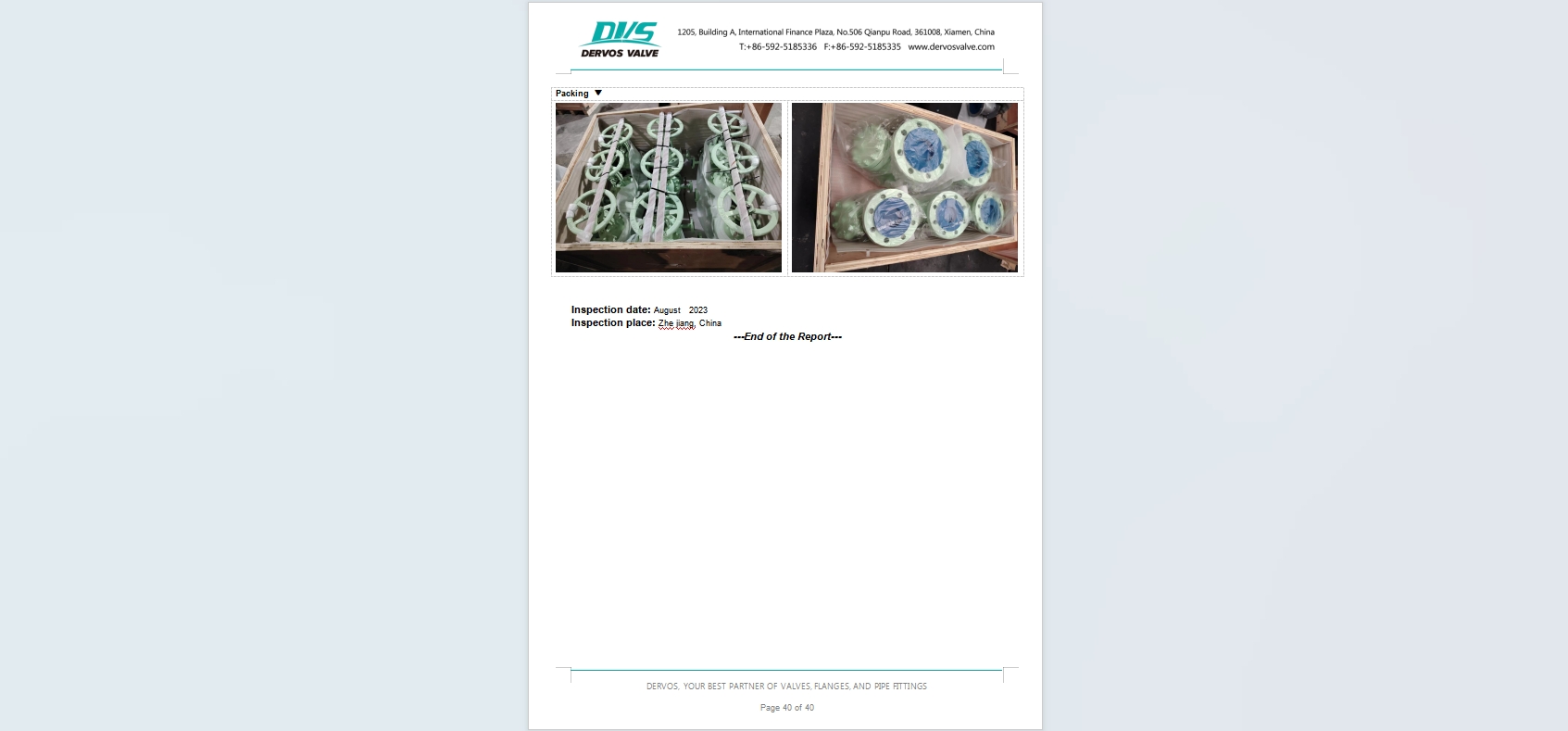

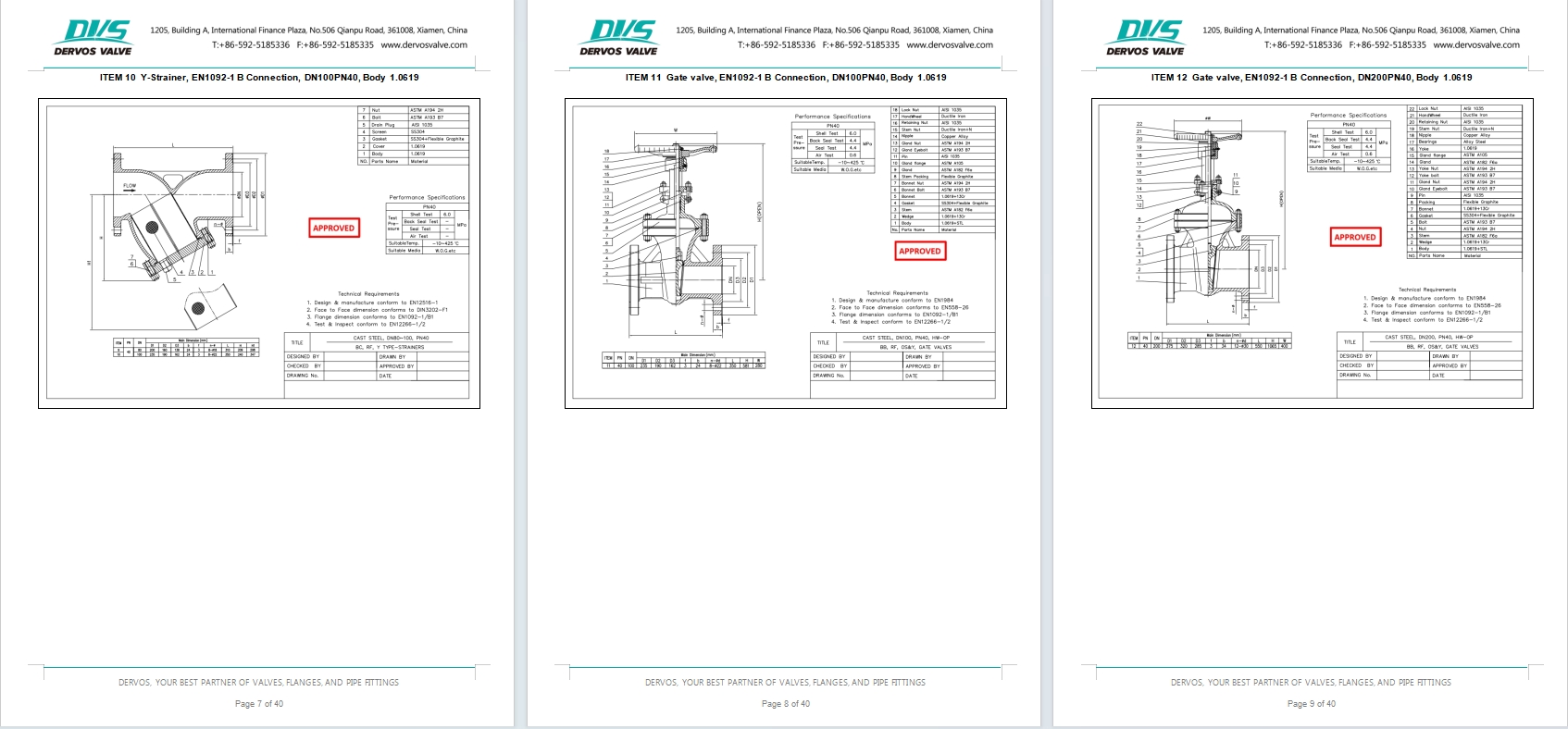

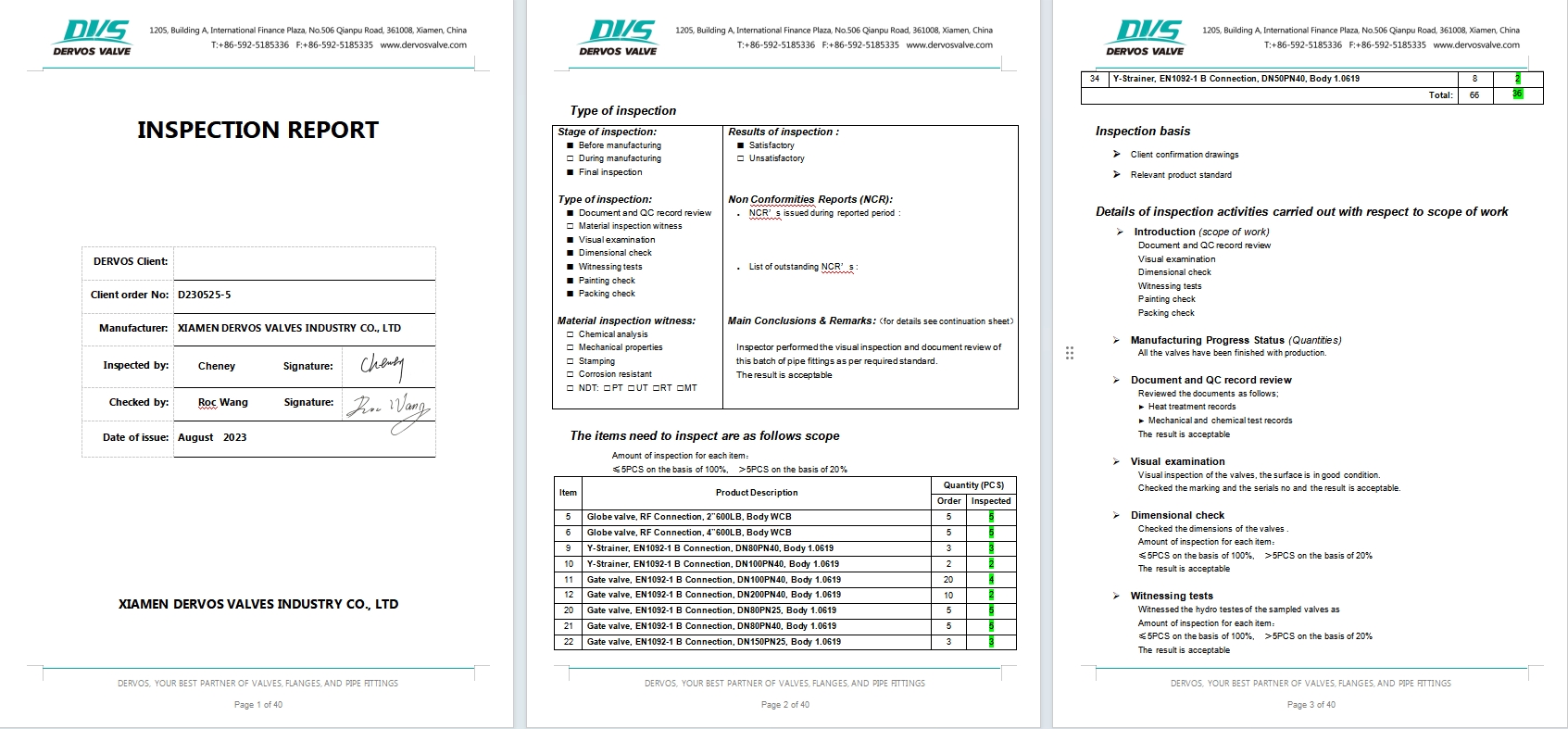

Inspection report
