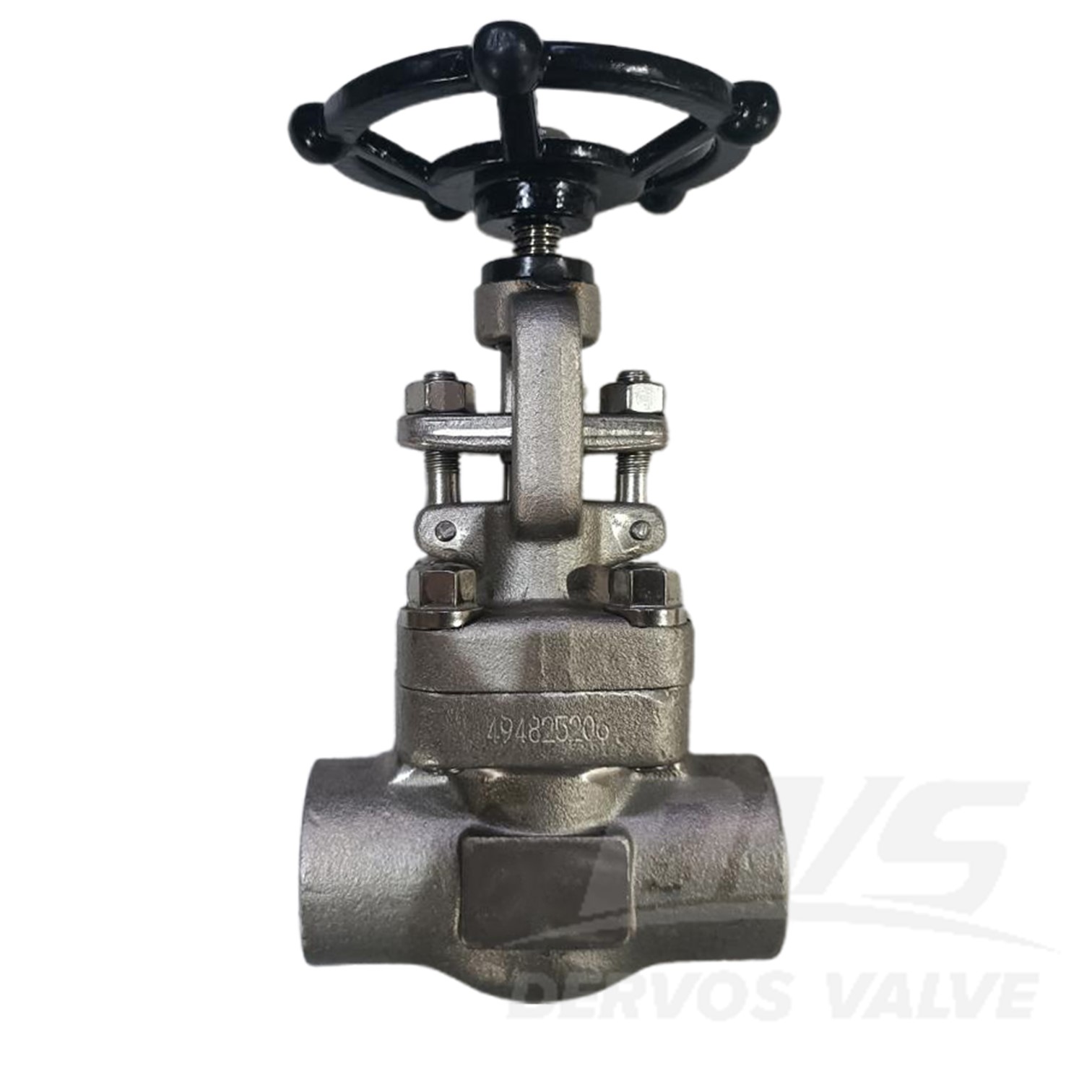

1" 800LB Forged Steel Needle Globe Valve F316L API602 H.W.
Key Specifications / Features
Model No.: Hits: 0
1" 800LB Forged Steel Globe Valve is made according to API 602 standard. The valve body is made of A182 F316L. It has the structural characteristics of BB, OS&Y, solid wedge. Its connection mode is SW. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Globe Valve |
| Size | 1" |
| Pressure | 800LB |
| Connection | SW |
| Operation | H.W. |
| Body Material | ASTM A105N |
| Design Norm | API 602 |
| SOCKET WELDING DIMENSION | ASME B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Forged from F316L stainless steel, offering excellent corrosion resistance in high-pressure precision flow systems.
2. Needle-type disc with handwheel operation, designed for fine flow control and built to API 602 standards.

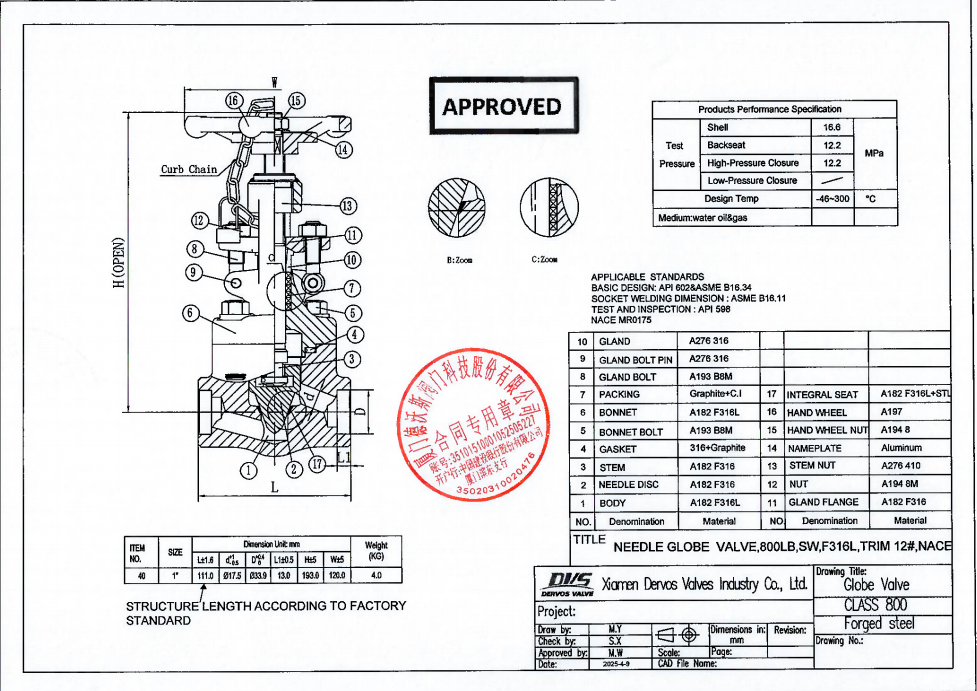

Forged Steel Globe Valve Technical Drawing

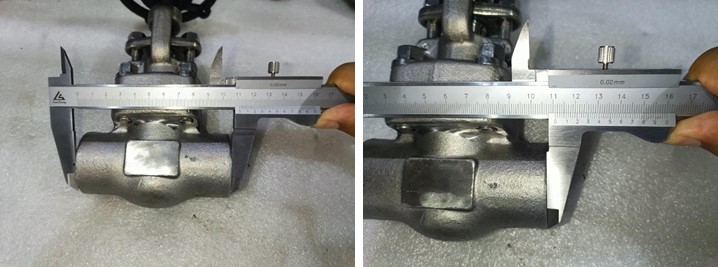

Dimension Checking

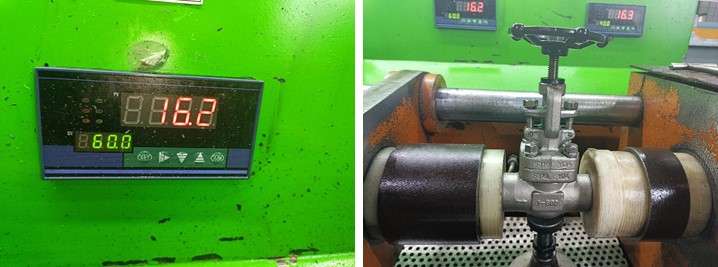

Pressure Testing

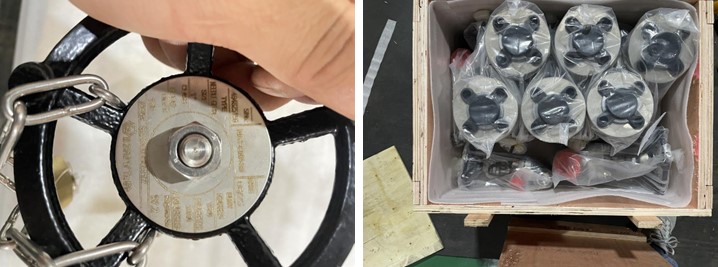

Nameplate & Packing
