DN50 PN100 Cast Steel Globe Valve ASTM A216 WCB+STL EN 13709
Key Specifications / Features
Model No.: Hits: 0
DN50 PN100 Cast Steel Globe Valve is made according to EN 13709 standard. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of Plug-type Disc, Reduced Bore, Straight-through Type. Its connection mode is EN1092-1 D. And it has handle wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Globe Valve |
| Size | DN50 |
| Pressure | PN100 |
| Connection | EN1092-1 D |
| Operation | H.W. |
| Body Material | ASTM A216 WCB+STL. |
| Design Norm | EN 13709 |
| Face to Face | EN558/2 |
| Flange | EN1092-1/D |
| Test & Inspection Code | EN12266-1/2 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Constructed from ASTM A216 WCB cast steel with STL trim, ensuring high strength and excellent wear resistance for PN100 systems.2. Globe valve design compliant with EN 13709 provides precise flow regulation and reliable sealing performance.

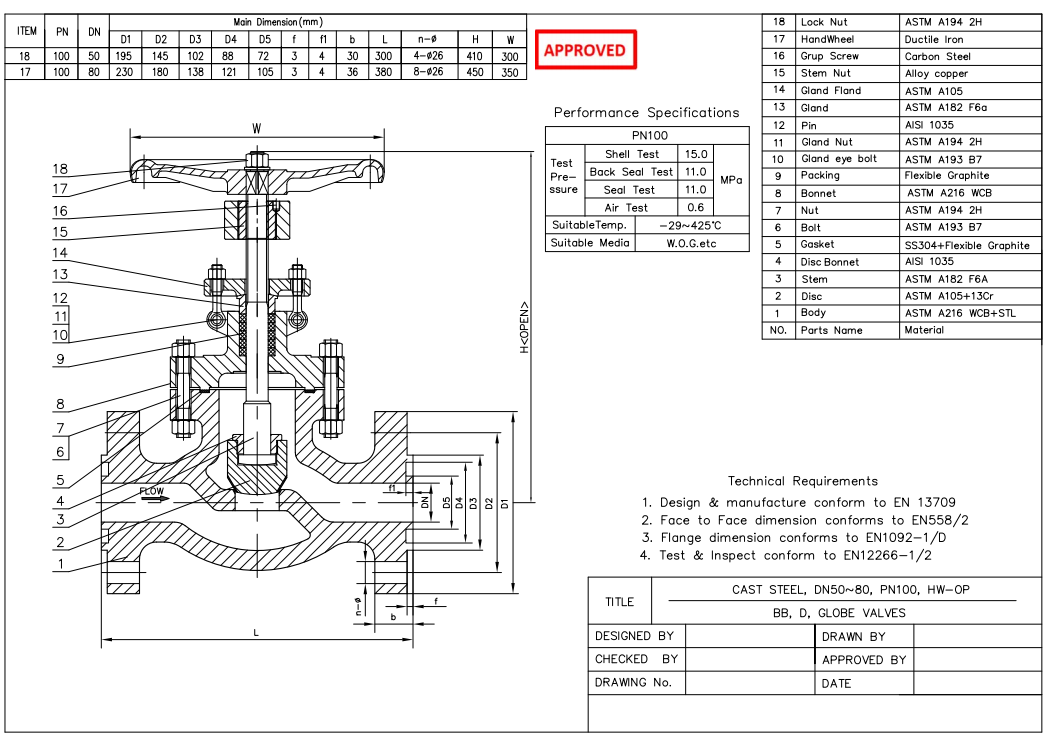

Technical Drawing

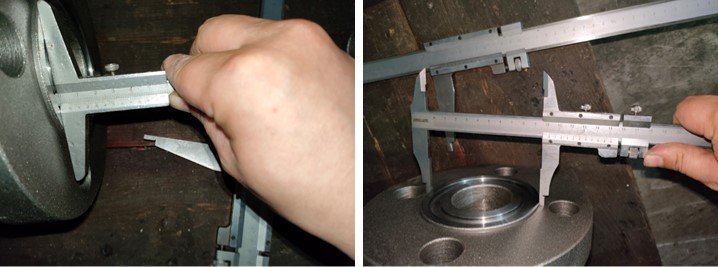

Dimension Checking

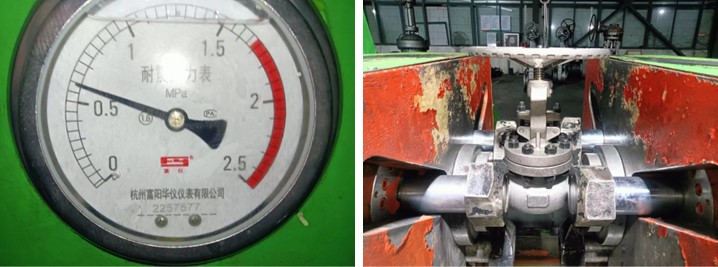

Pressure Testing
Painting
