1/2" 600LB Mono Flange LF2 RF Handle
Key Specifications / Features
Model No.: Hits: 0
1/2" 600LB Mono Flange is made according to ASME B16.34 standard. The valve body is made of A350 LF2+STL. It has the structural characteristics of Threaded Body–Bonnet Connection, Double Block & Bleed (DBB), Bleed-Type Needle Valve. Its connection mode is Inlet: Raised Face (RF) ,Outlet: Female NPT (FNPT). And it has handle operation mode.
Request a quote
Tags:
Next: Return to List
Previous: 3/4" 600LB Needle Globe Valve BW N08825
Detail Information
Product Parameters
| Type | Mono Flange |
| Size | 1/2"’ |
| Pressure | 600LB |
| Connection | Inlet: Raised Face (RF) Outlet: Female NPT (FNPT) |
| Operation | Handle |
| Body Material | A350 LF2+STL |
| Design Norm | ASME B16.34 |
| Face to face | manufactory standard |
| Connection dimensions | ASME B16.5 & ASME B1.20.1. |
| Test & Inspection Code | API 598 |
| Temperature | 0 ~ 150°C |
| Applicable Medium | Natural Gas/Well Fluids/Chemicals |
Features
1.Compact mono flange design allows easy installation in tight piping systems while maintaining reliable sealing.2.LF2 construction rated 600LB with RF face and handle operation ensures high-pressure resistance and simple manual control.

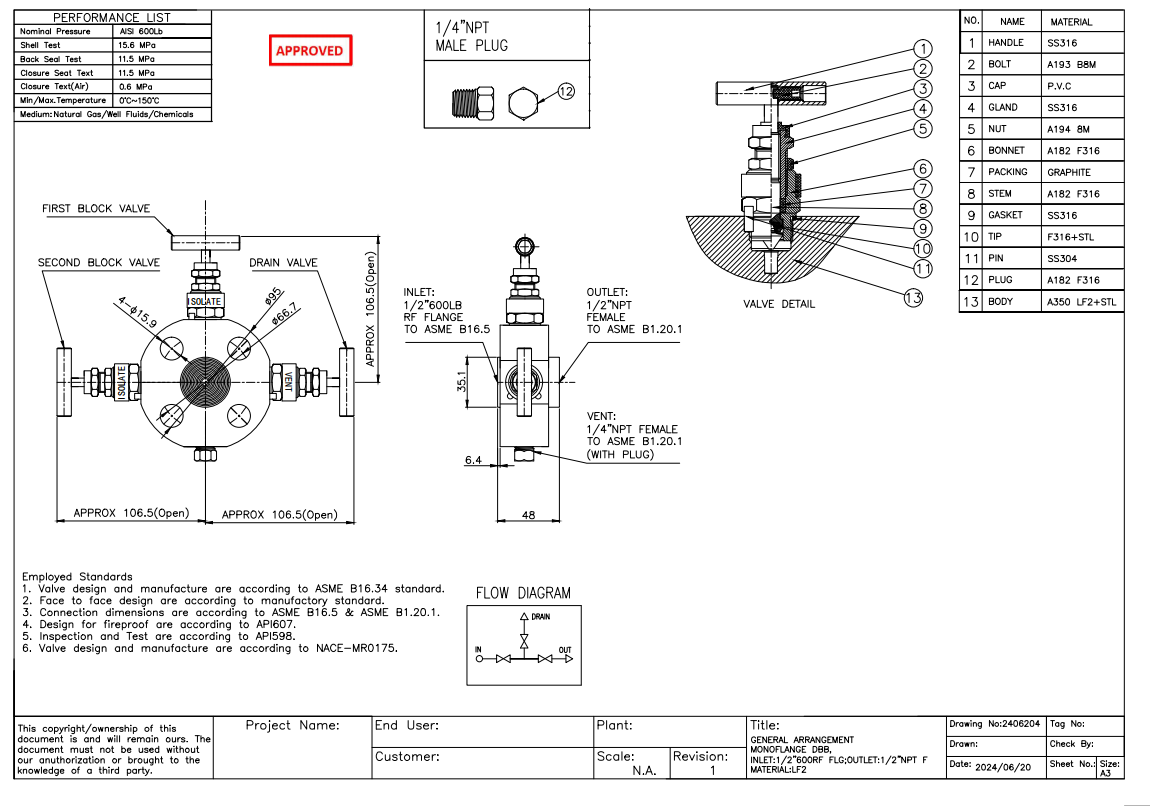

Technical Drawing

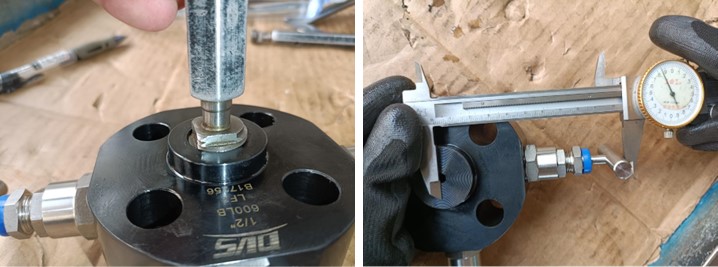

Dimension Checking

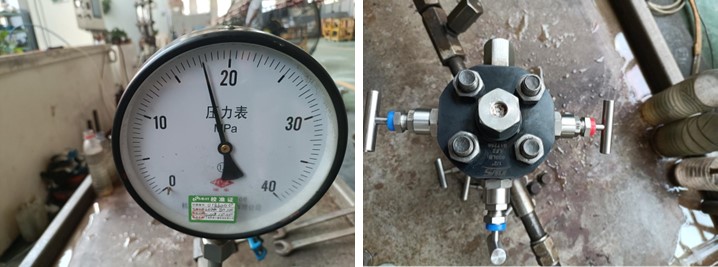

Pressure Testing

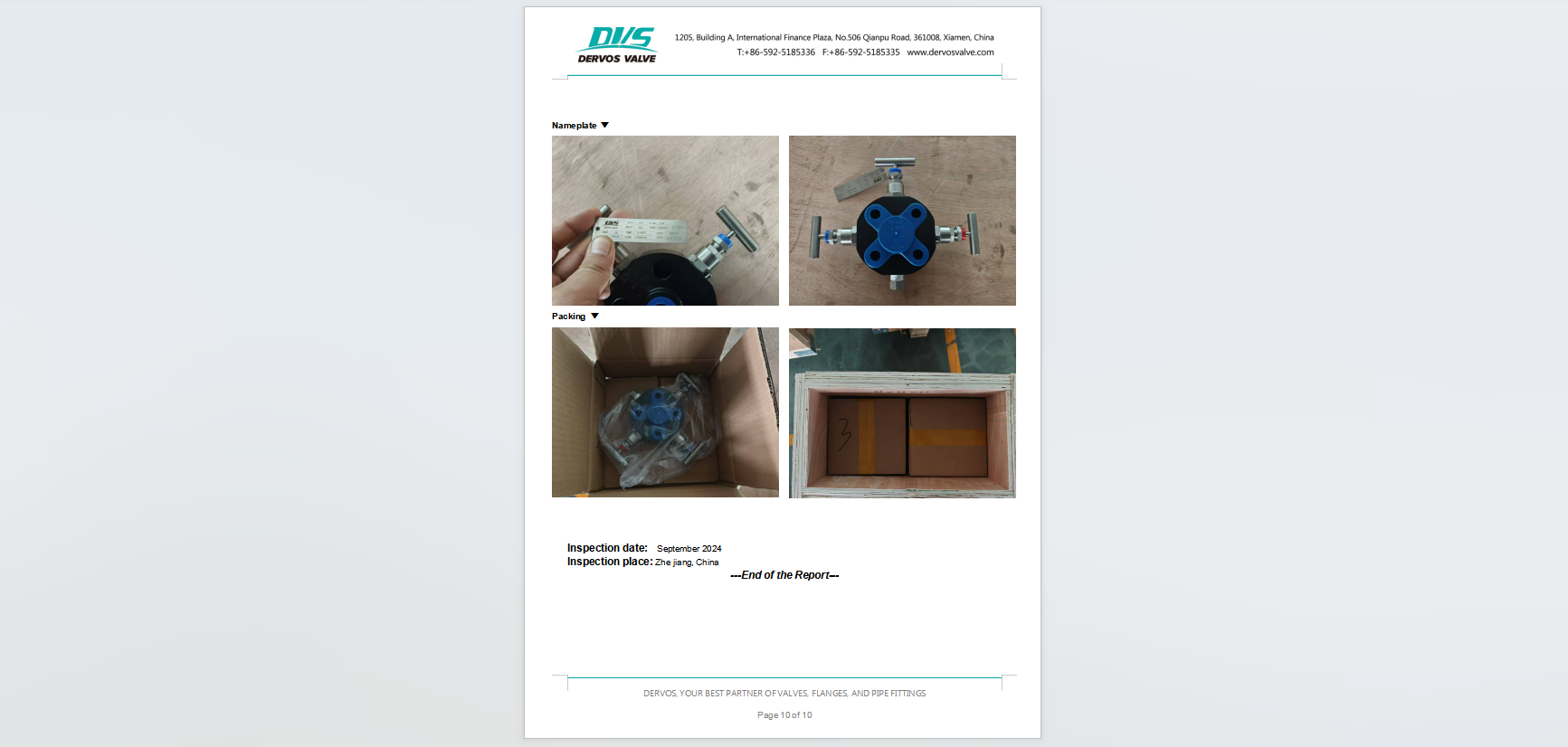

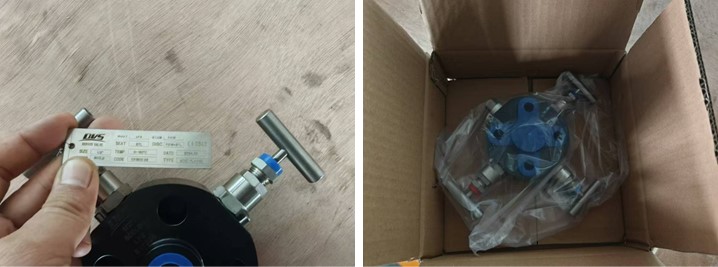

Nameplate & Packing

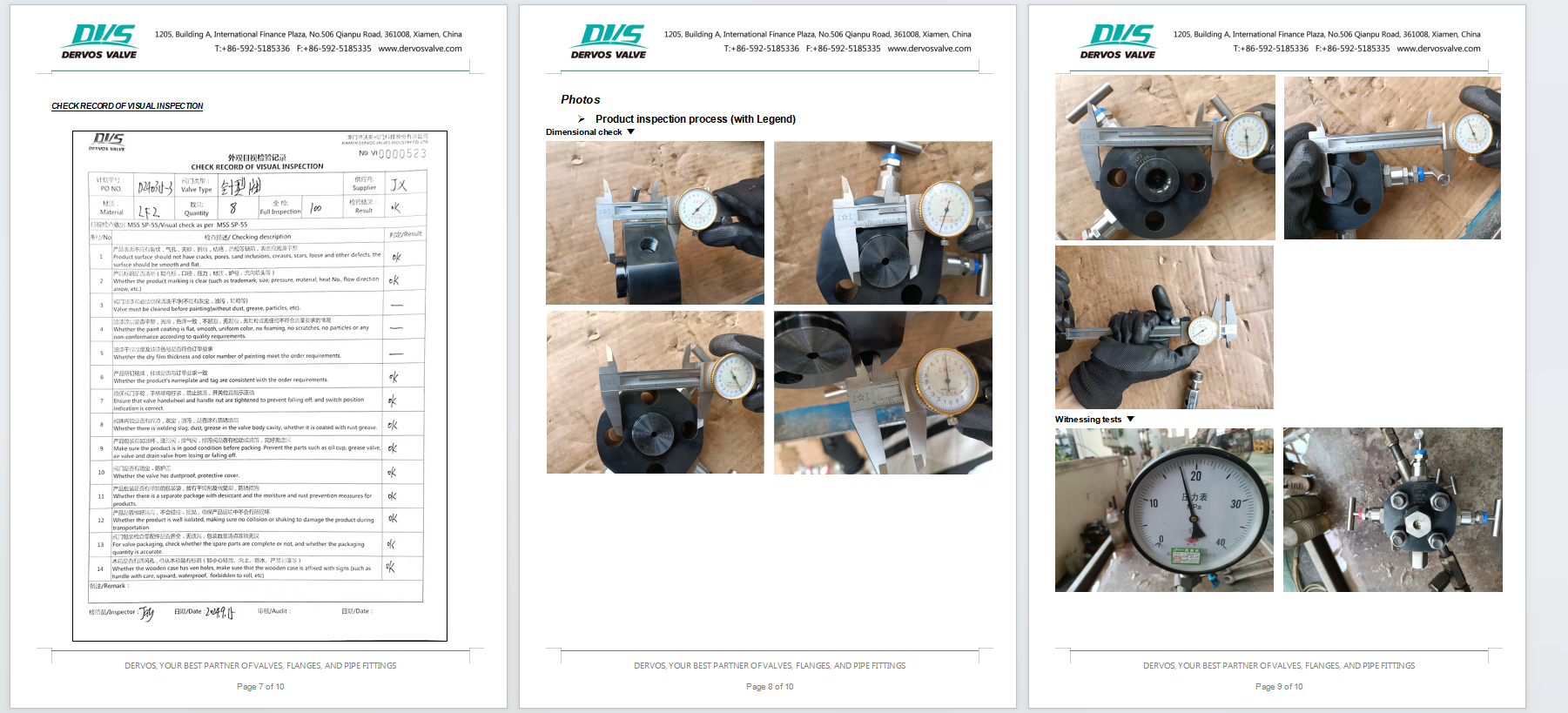

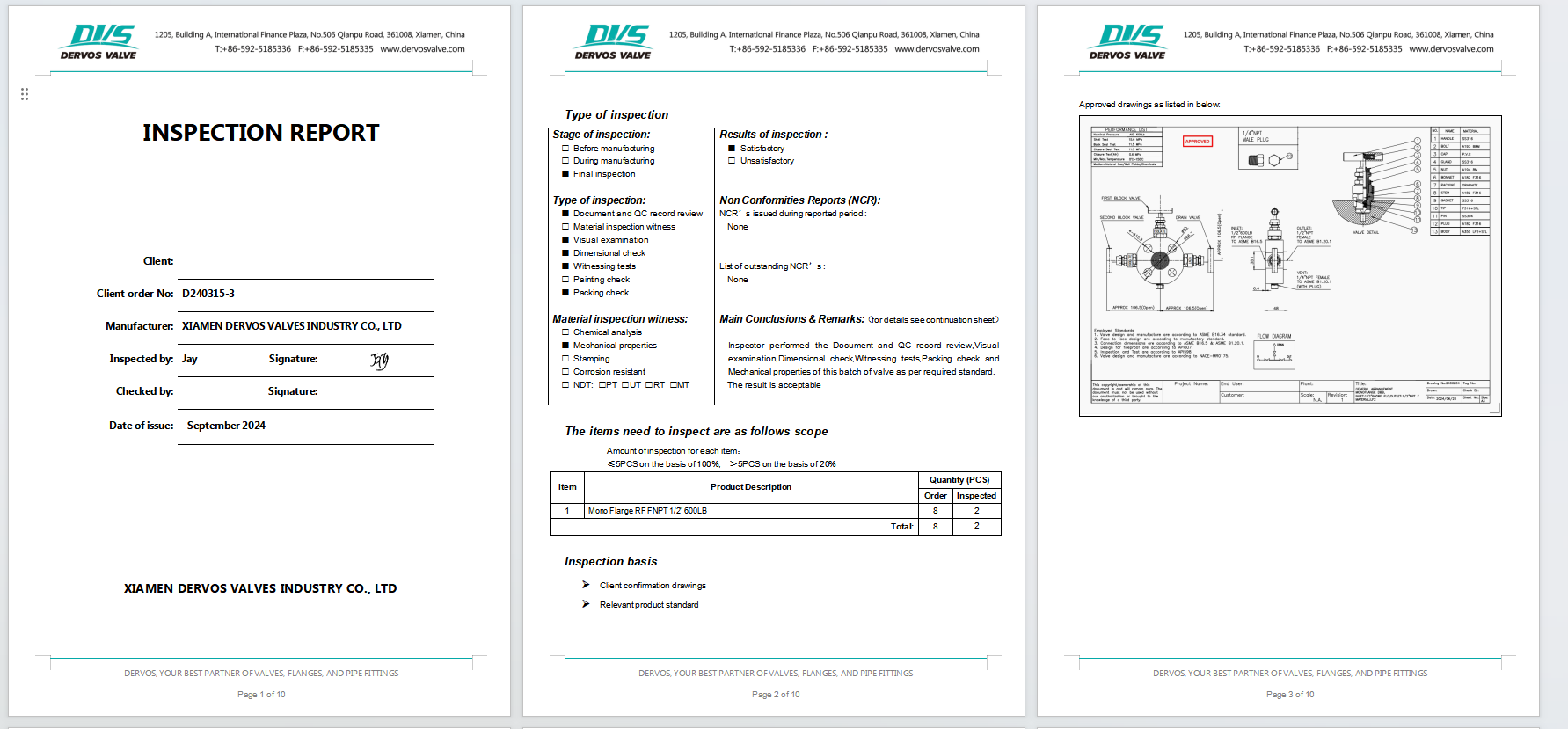

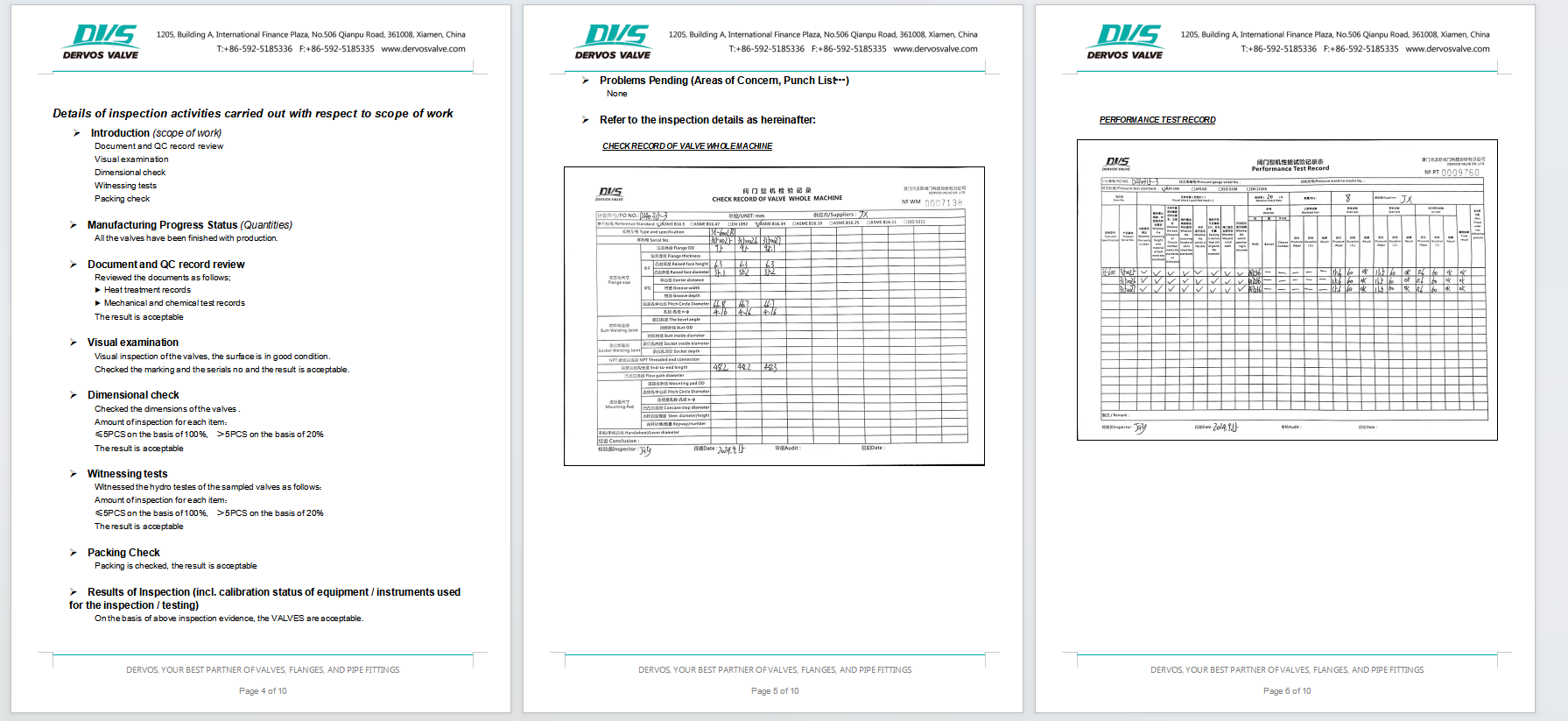

Inspection Report
