3/4" 300LB Instrument Root Valve A105N API602 & MFR'S

3/4" 300LB Instrument Root Valve A105N API602 & MFR'S

Key Specifications / Features

Model No.: Hits: 0

3/4" 300LB gate valve is made according to API602 & MFR'S standard. The valve body is made of A105N. IThe valve features an inlet branch connection sized 4" × 3/4", an outlet with 1/2" female NPT threads, and a 1/2" NPT drain outlet for convenient system drainage. Its connection mode is Branch Connection, Size X, Female NPT (F-NPT). And it has handle operation mode.
Request a quote

Detail Information

Product Parameters

Type Instrument Root Valve
Size 3/4"
Pressure 300LB
Connection Branch Connection, Size X, Female NPT (F-NPT)
Operation Handle
Body Material A105N
Design Norm API602 & MFR'S
Test & Inspection Code MFR'S
Applicable Medium Water, Oil and Gas

Features

1.Compact design ensures precise flow control for instrumentation lines in high-pressure systems.
2.Constructed from A105N steel, rated 300LB, and compliant with API 602 and manufacturer standards for reliable performance.

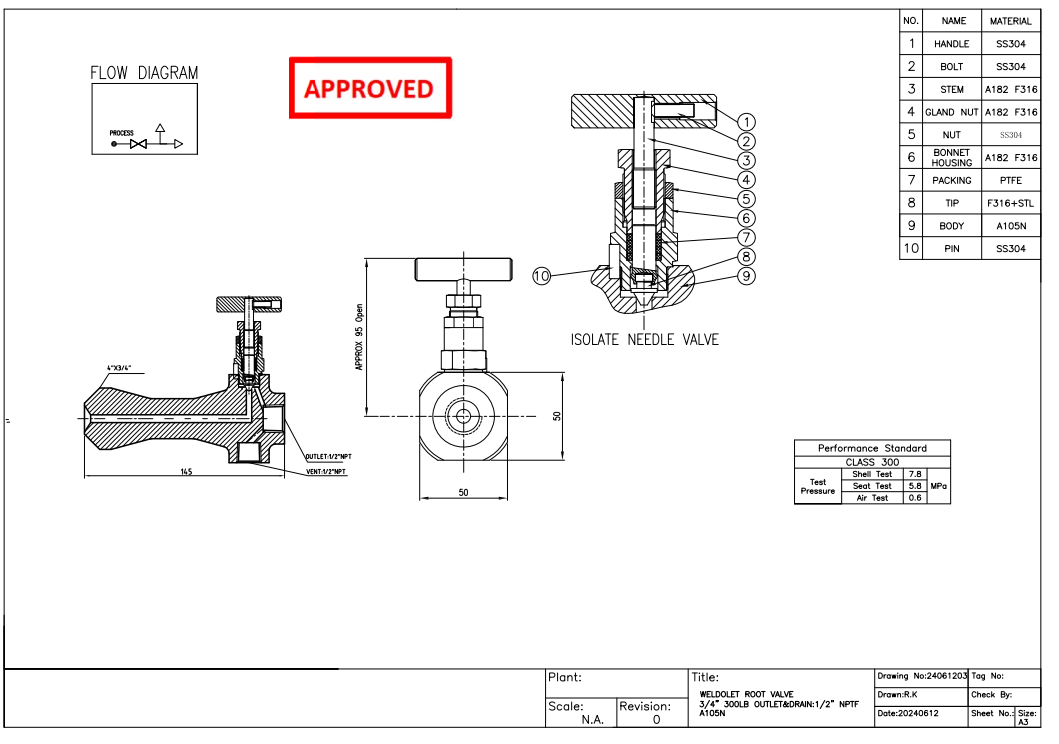

Technical Drawing

 Instrument Root Valve

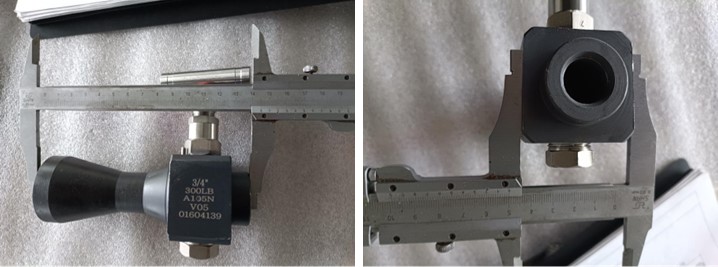

Dimension Checking

 Instrument Root Valve

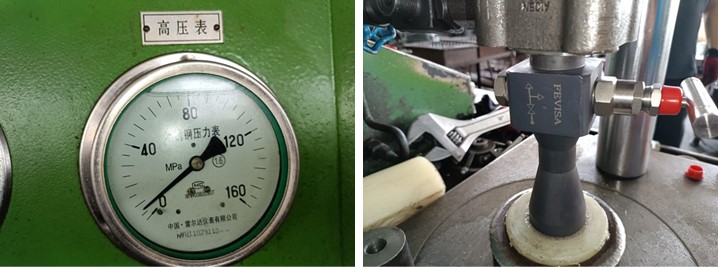

Pressure Testing

 Instrument Root Valve

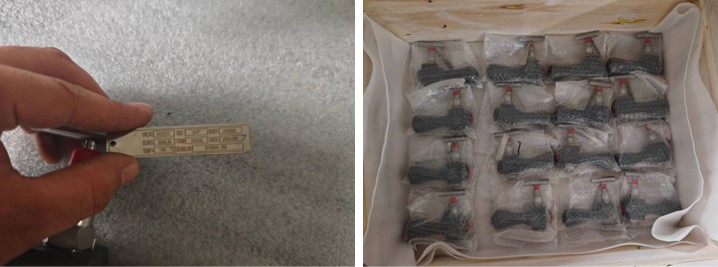

Nameplate & Packing

 Instrument Root Valve

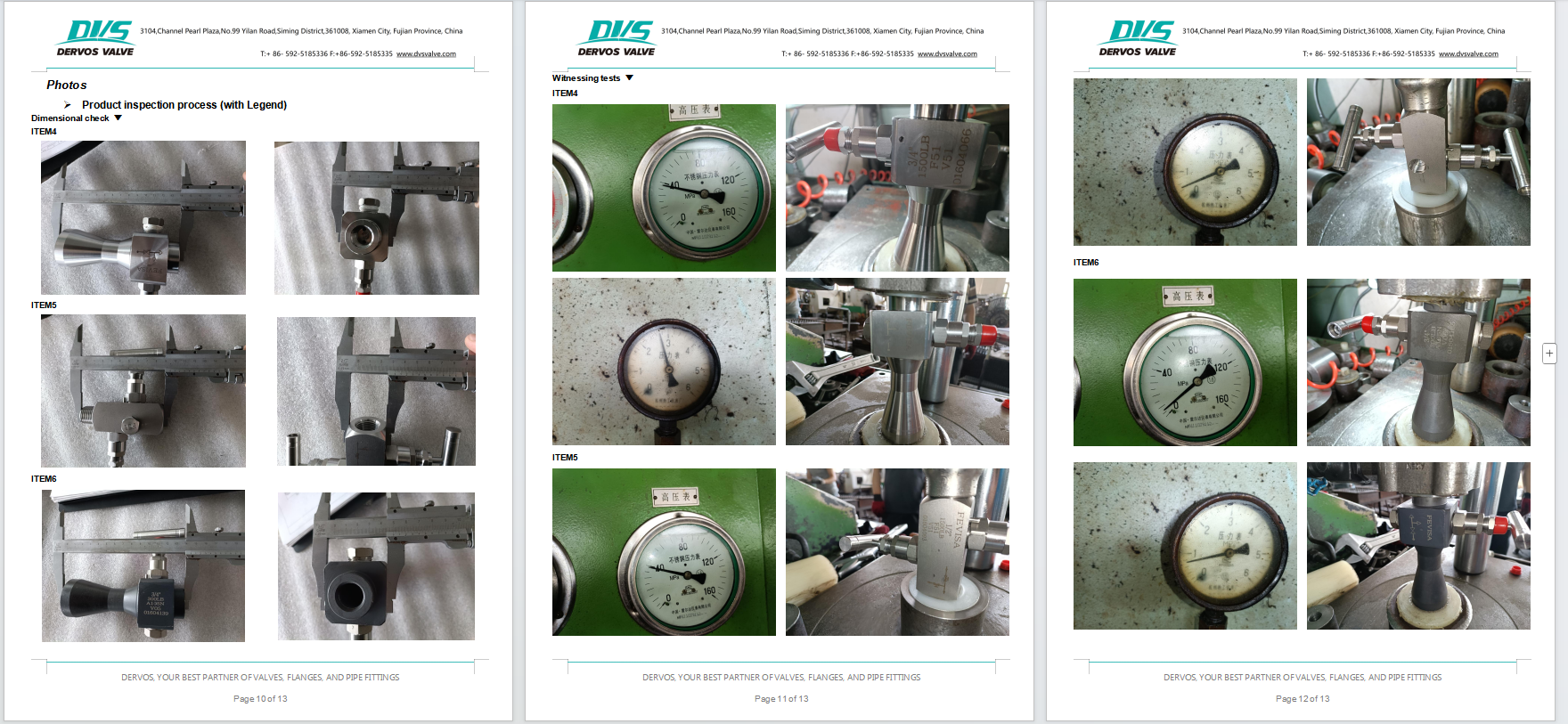

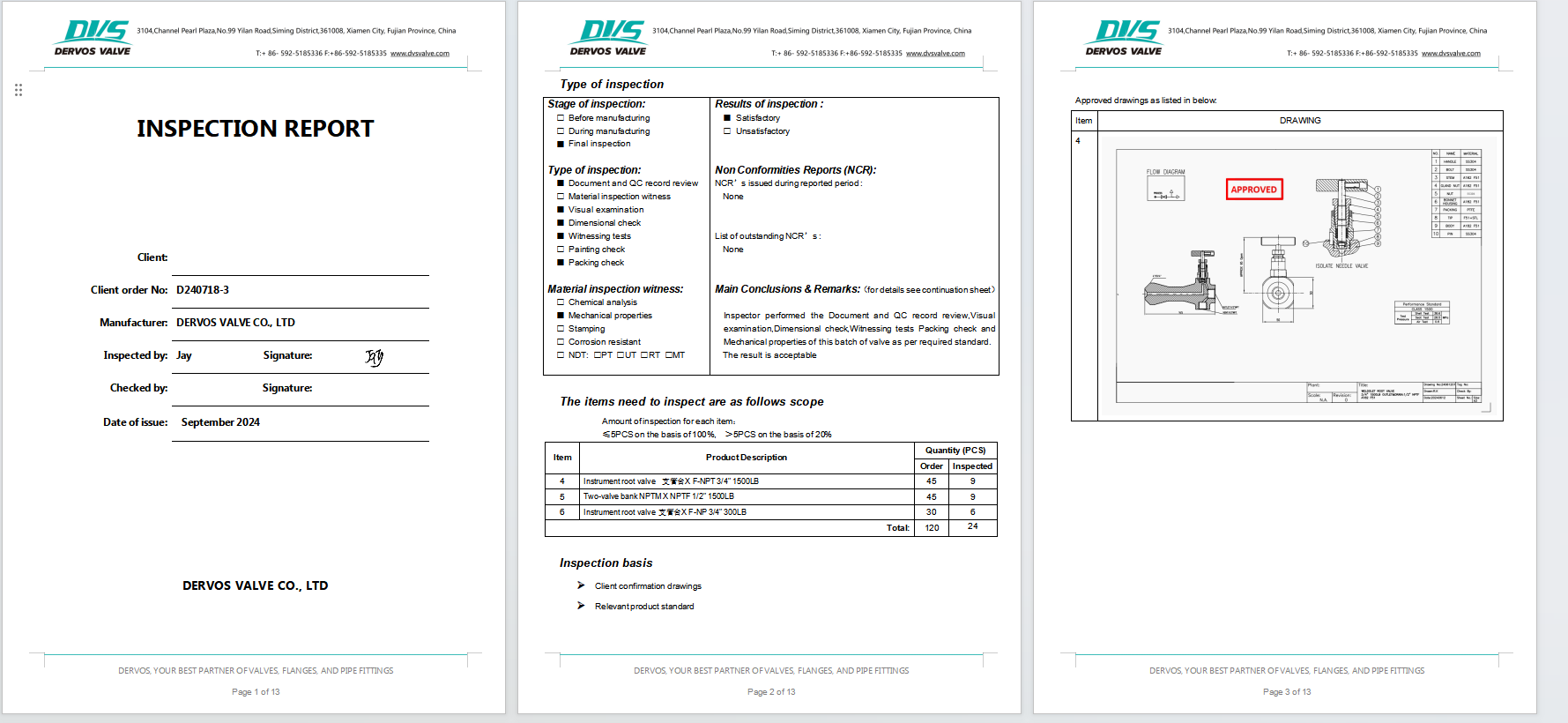

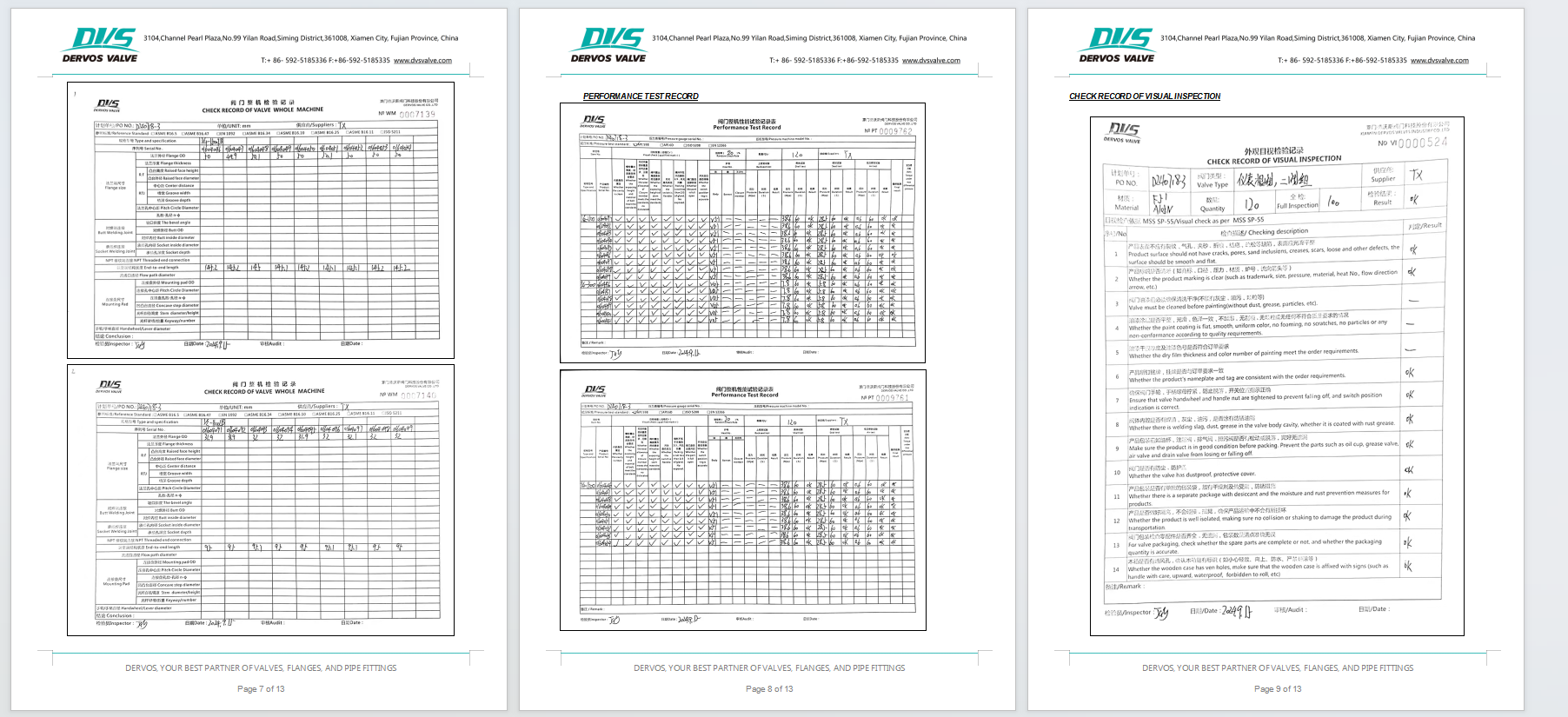

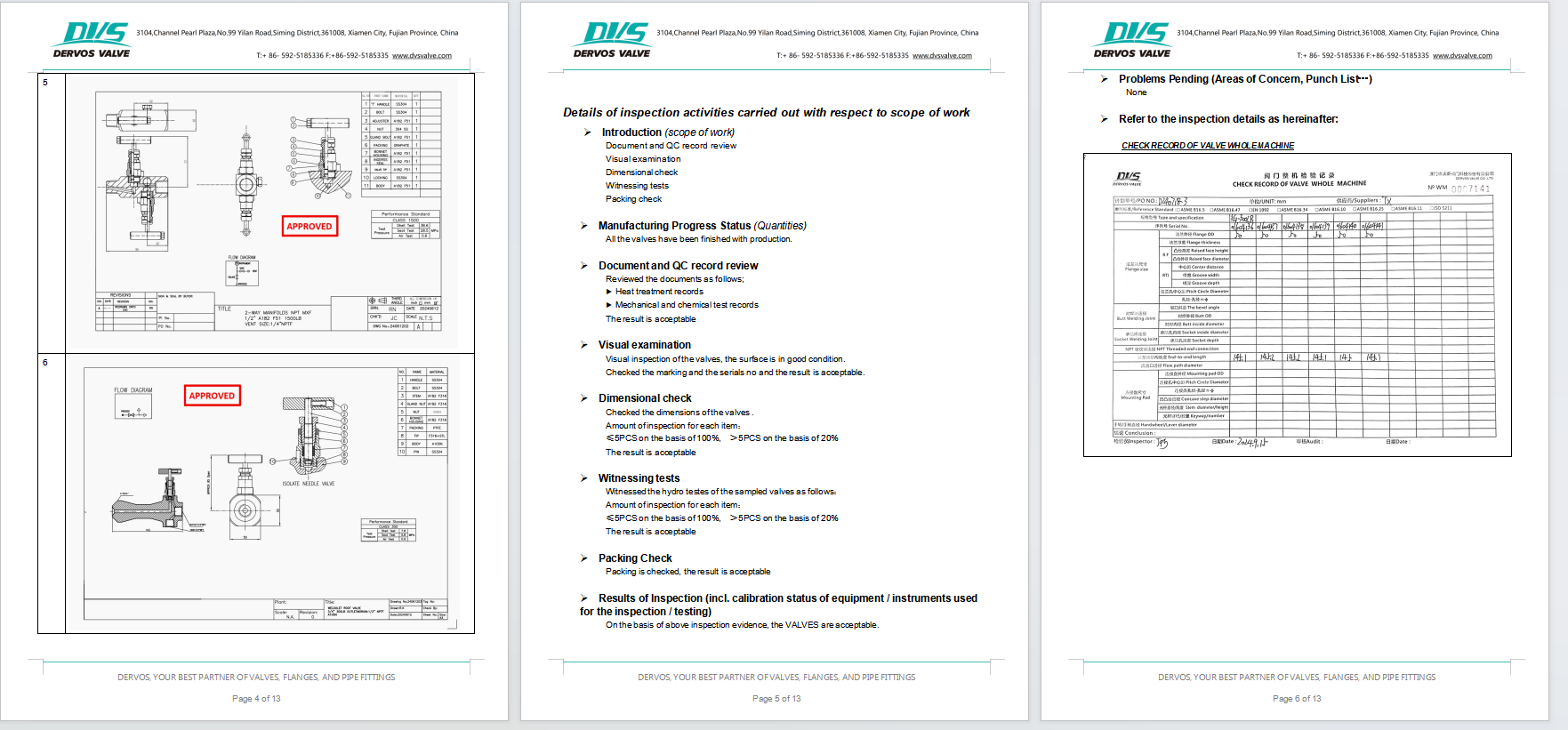

Inspection Report

 Instrument Root Valve Instrument Root Valve Instrument Root Valve Instrument Root Valve
