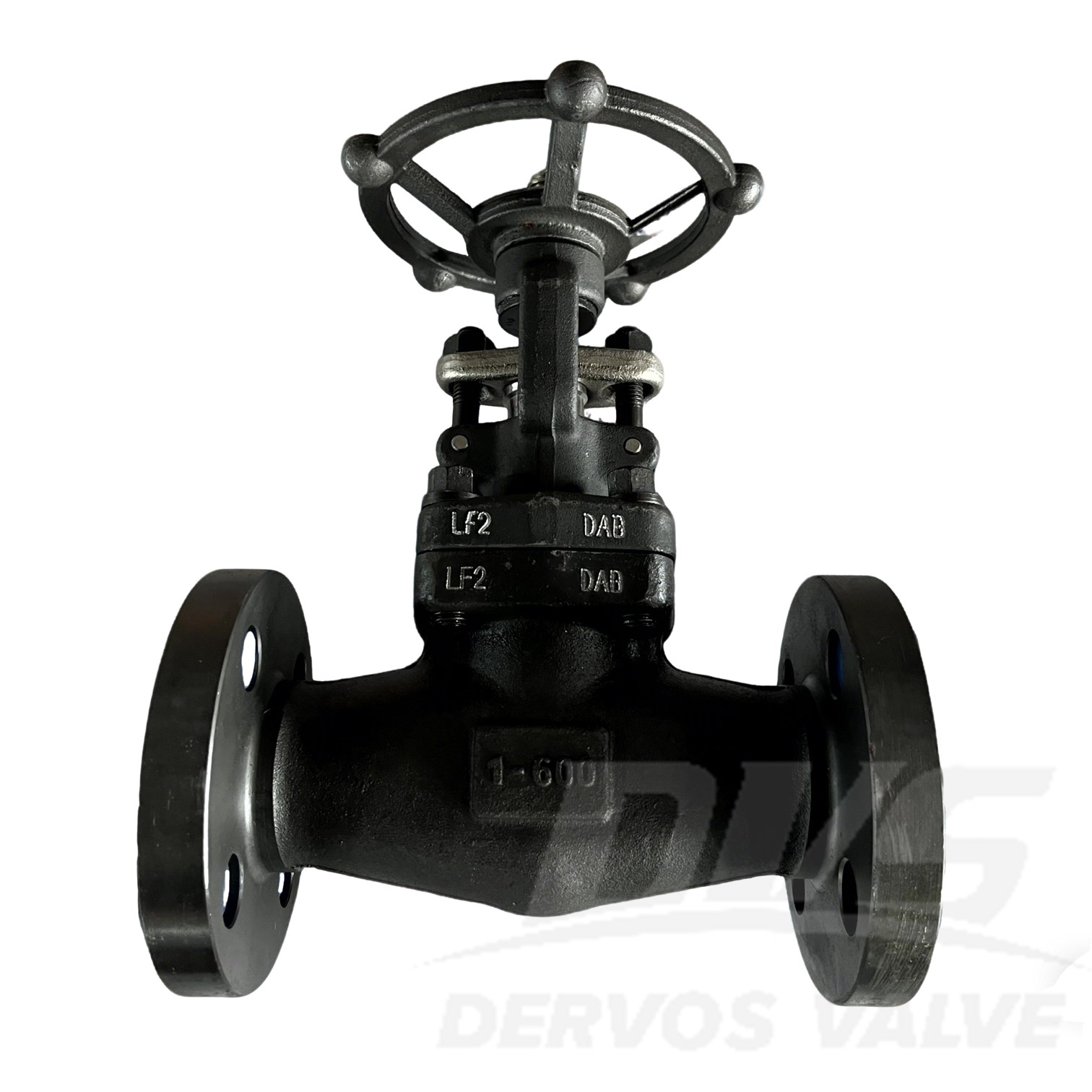

1" 600LB Forged Steel Flange Globe Valve API602 LF2 Hand Wheel
Key Specifications / Features
Model No.: Hits: 0
1" 600LB Forged Steel Flange Globe Valve is made according to API602 standard. The valve body is made of A350-LF2+STL. It has the structural characteristics of Welded Bonnet, Needle-Type Disc, Fire-safe Design. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Flange Globe Valve |
| Size | 1" |
| Pressure | 600LB |
| Connection | RF |
| Operation | Hand wheel |
| Body Material | A350-LF2+STL |
| Design Norm | API 602 |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Manufactured from LF2 forged steel, this 1" flange globe valve offers excellent toughness and reliable performance under 600LB pressure service.2.Designed to API 602 standards and equipped with a hand wheel, it provides precise manual flow control and secure flanged installation.

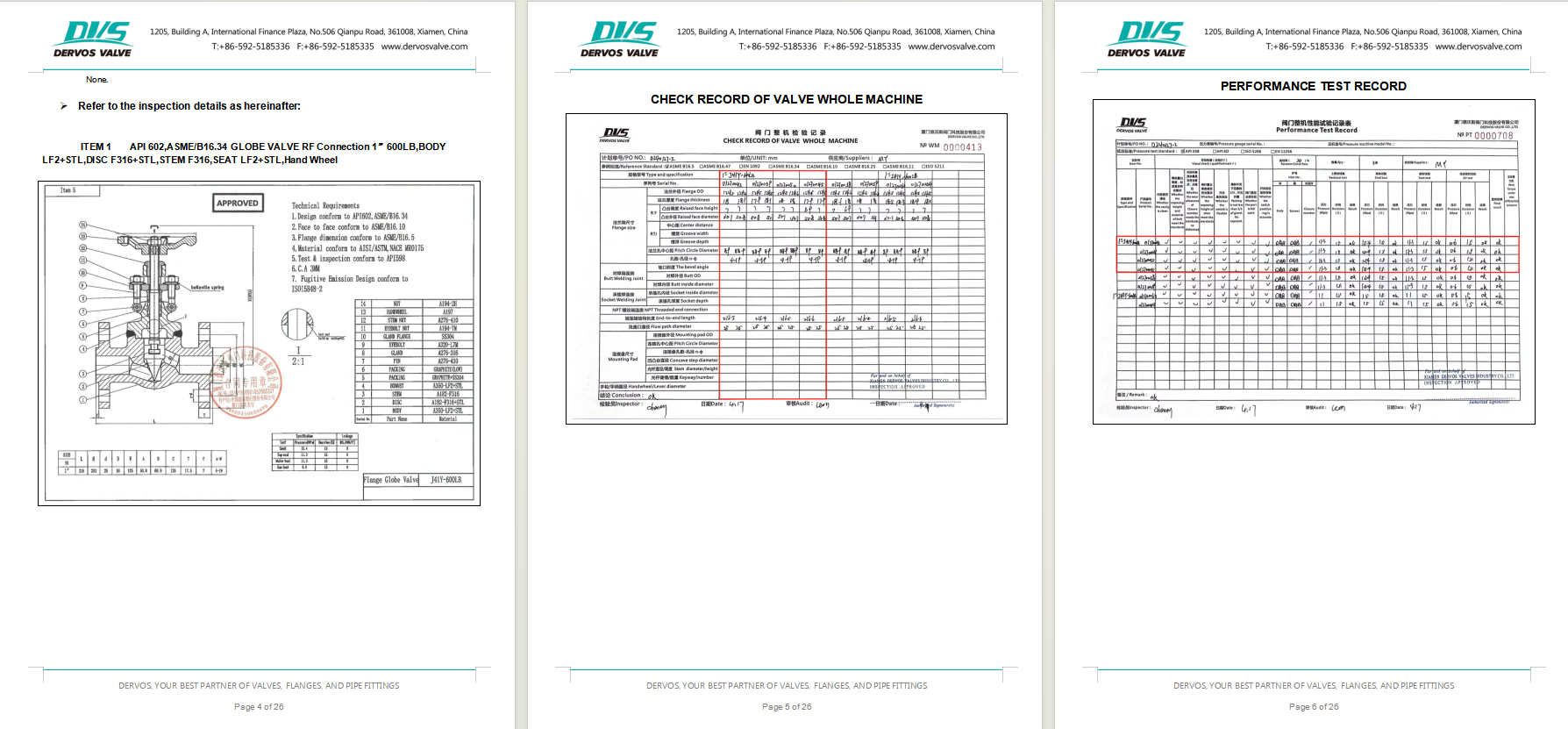

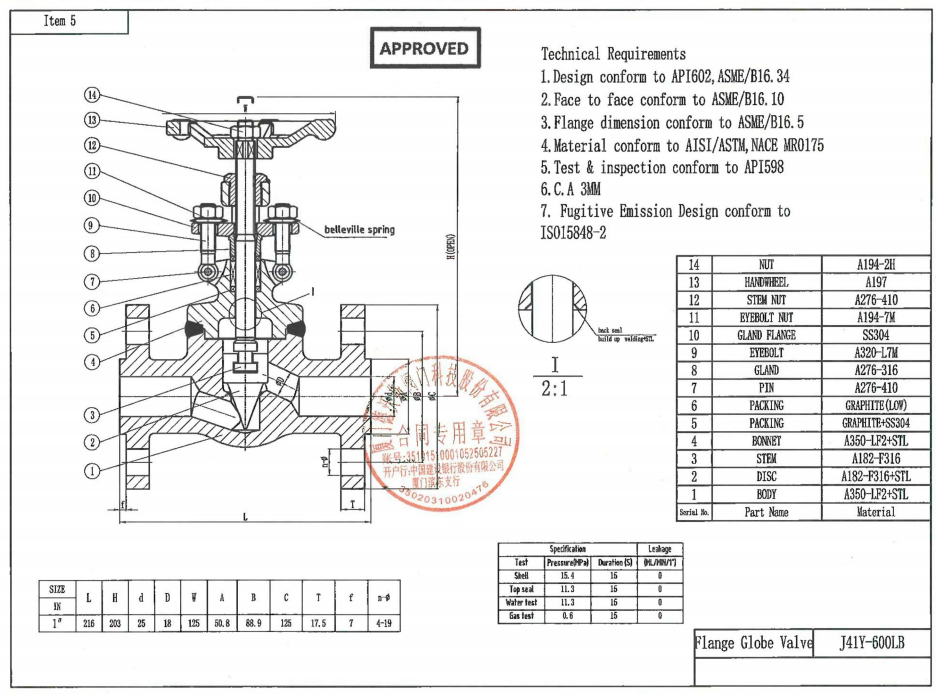

Technical Drawing

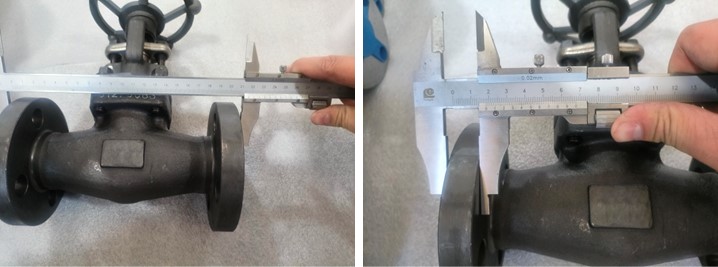

Dimension Checking

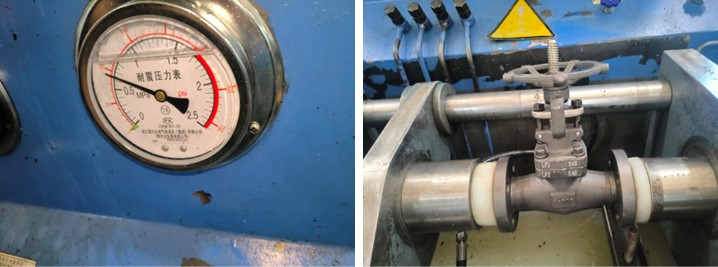

Pressure Testing

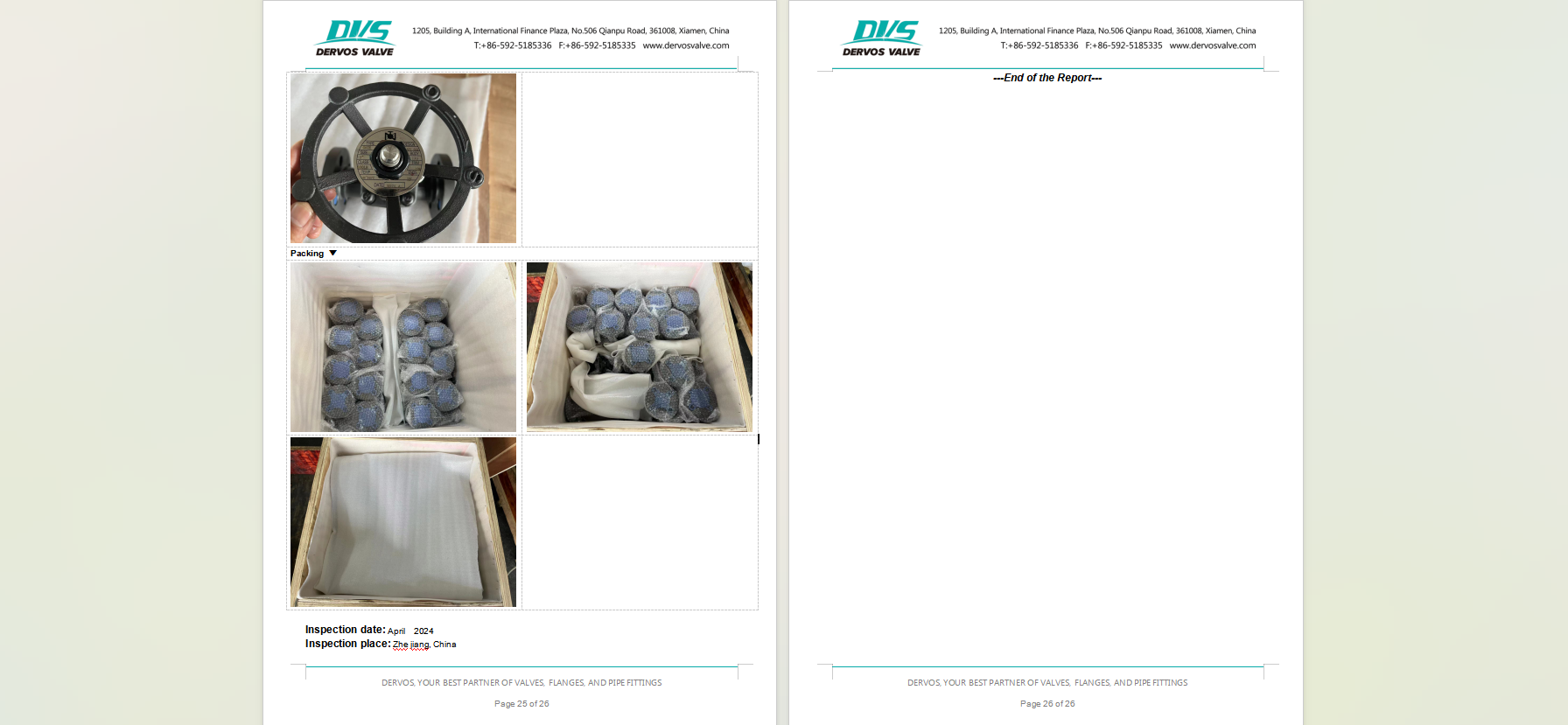

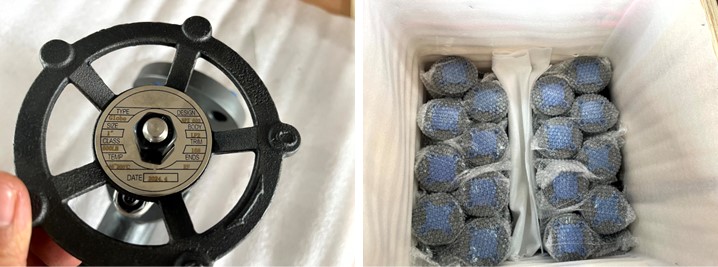

Nameplate & Packing

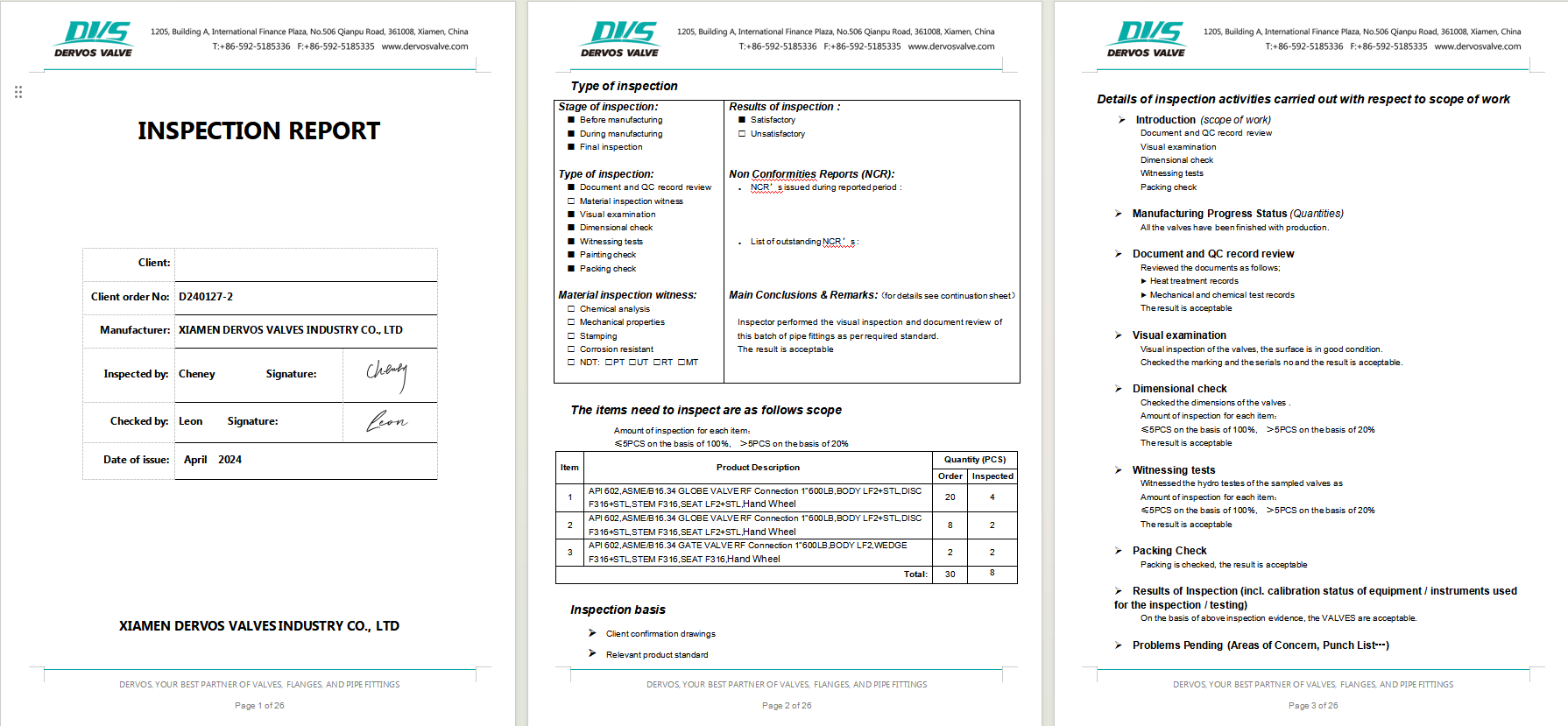

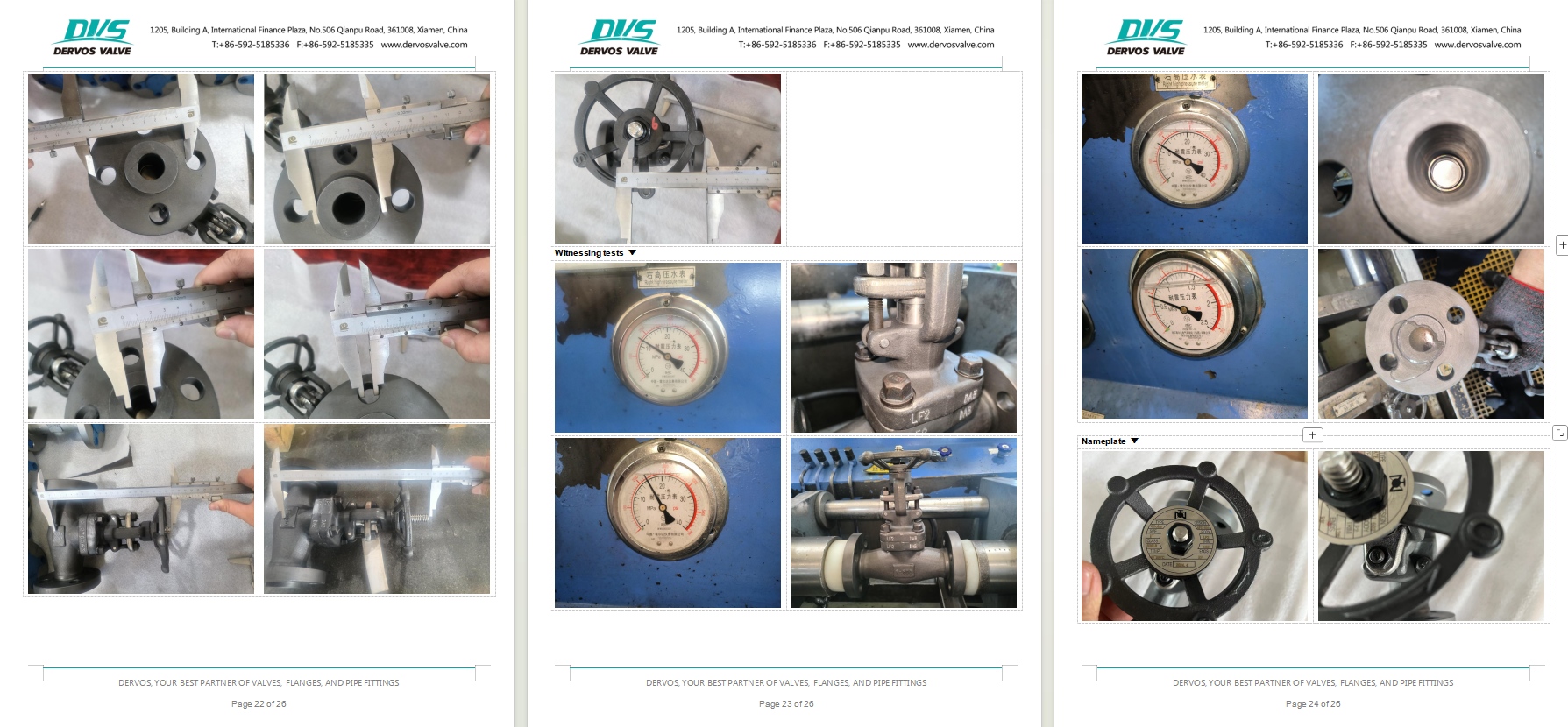

Inspection Report
