1”800LB Forged Steel Globe Valve API602 F304L SW
Key Specifications / Features
Model No.: Hits: 0
1”800LB Forged Steel Globe Valve is made according to API602 standard. The valve body is made of A182-F304L+STL. It has the structural characteristics of Bolted Bonnet, Rising Stem, Plug-Type Disc. Its connection mode is SW. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Globe Valve |
| Size | 1" |
| Pressure | 800LB |
| Connection | SW |
| Operation | Hand wheel |
| Body Material | A182-F304L+STL |
| Design Norm | API 602 |
| Socket welded dimension | ANSI B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Made from F304L forged steel, this 1" globe valve offers excellent corrosion resistance and reliable performance under 800LB pressure.2.Featuring socket weld (SW) ends and built to API 602 standards, it ensures precise flow control and durable high-pressure operation.

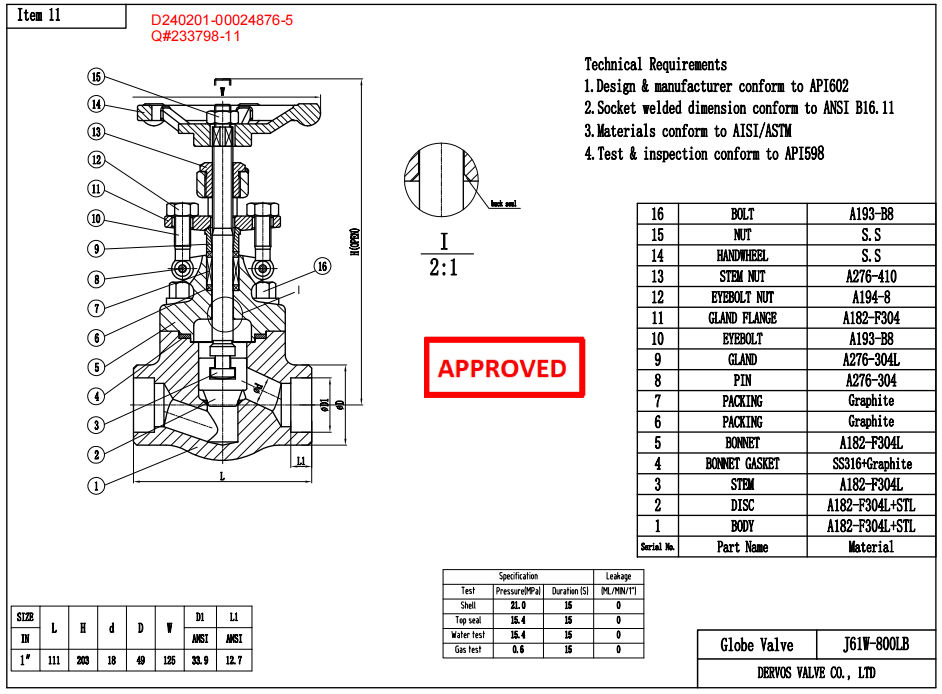

Technical Drawing

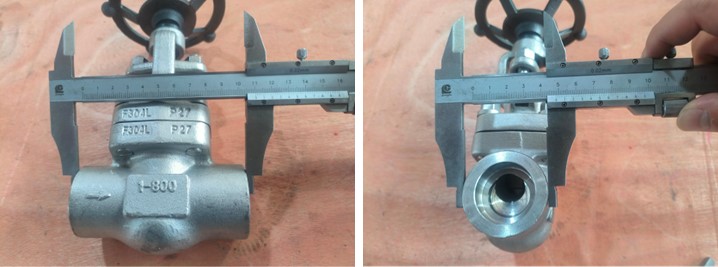

Dimension Checking

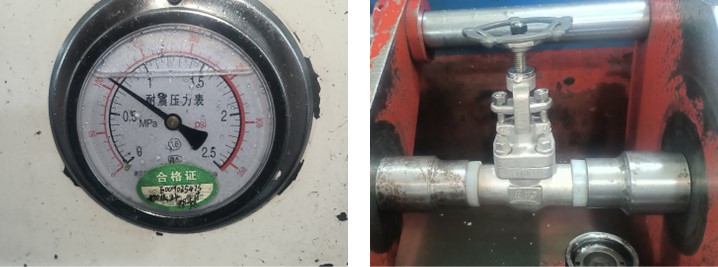

Pressure Testing
Painting
Spectrum

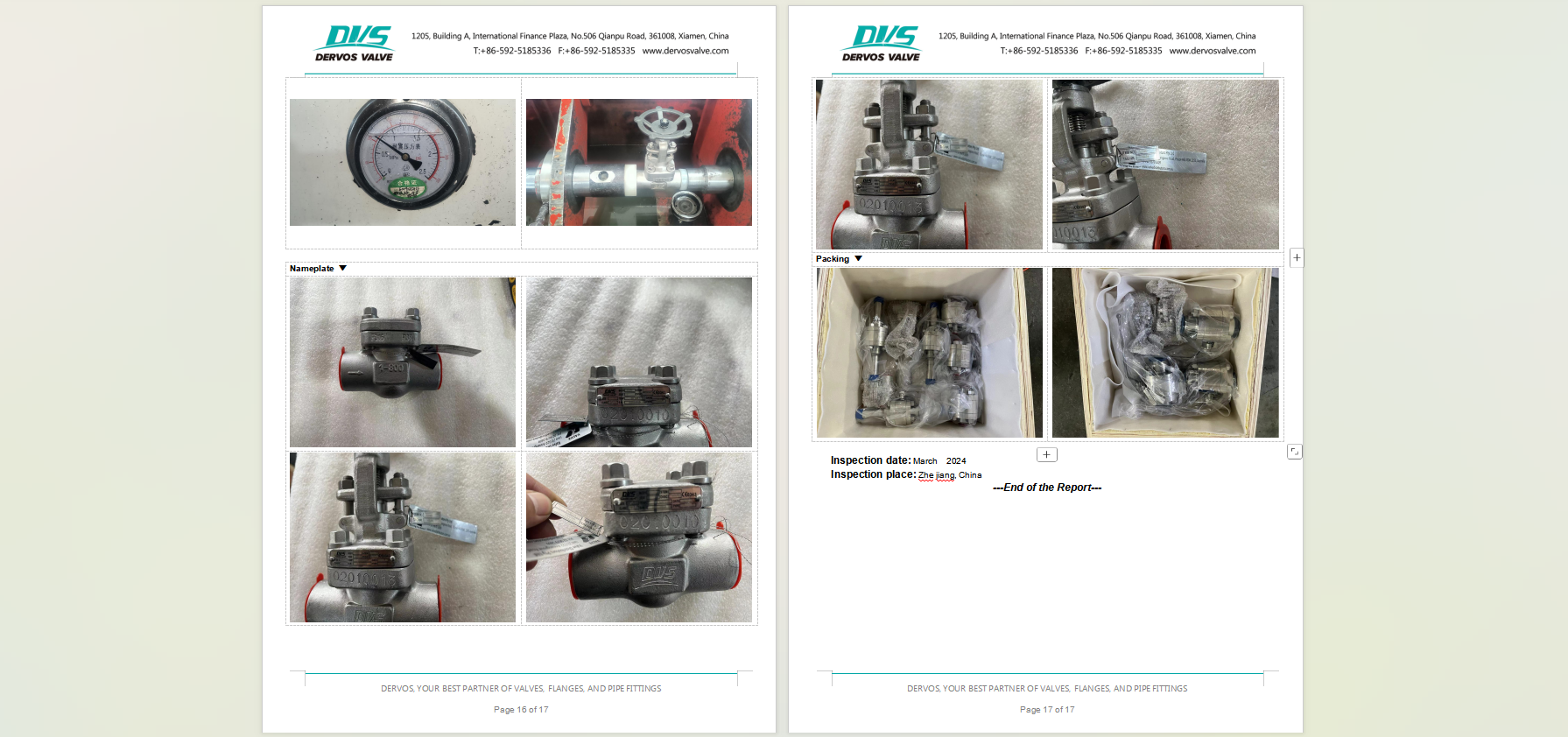

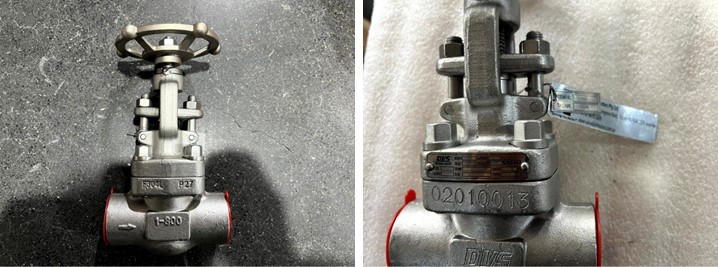

Nameplate & Packing

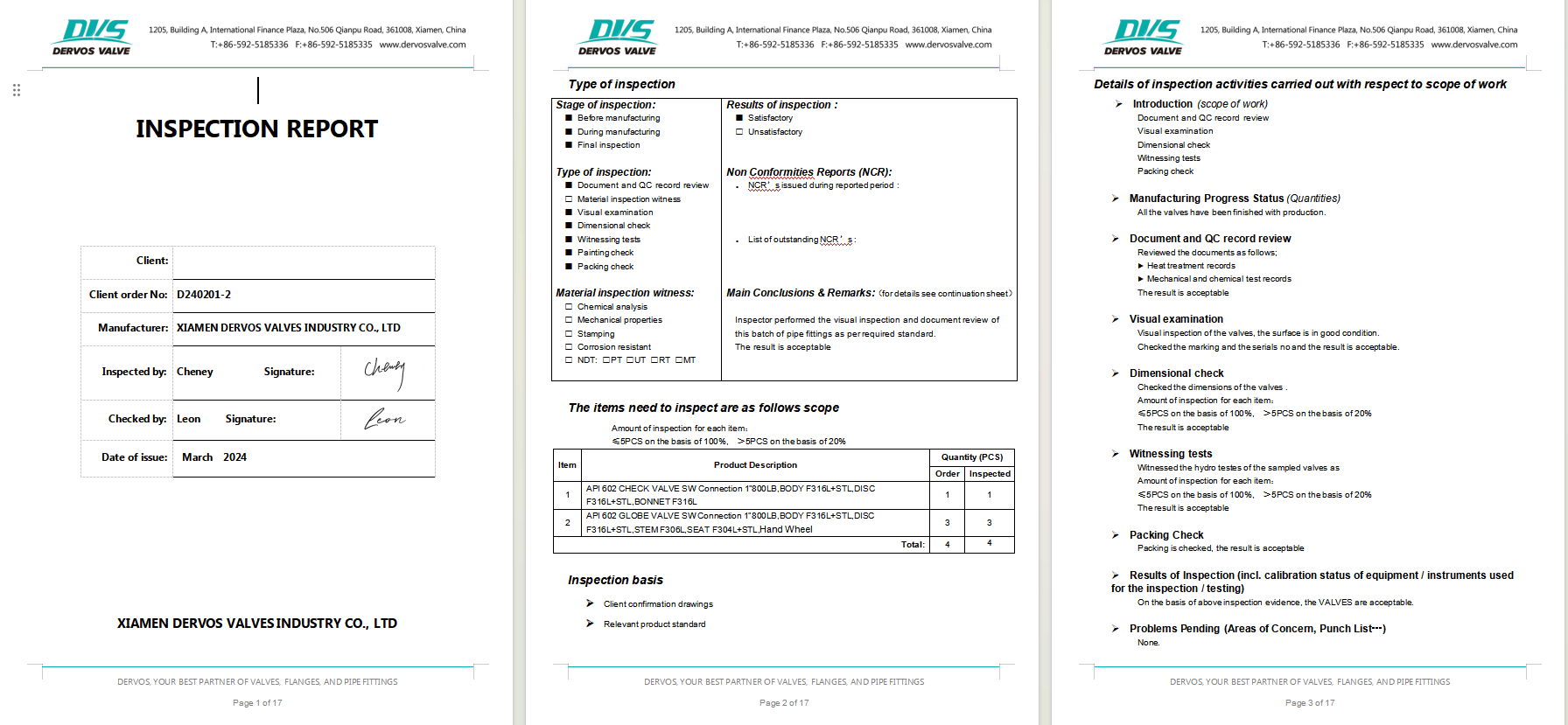

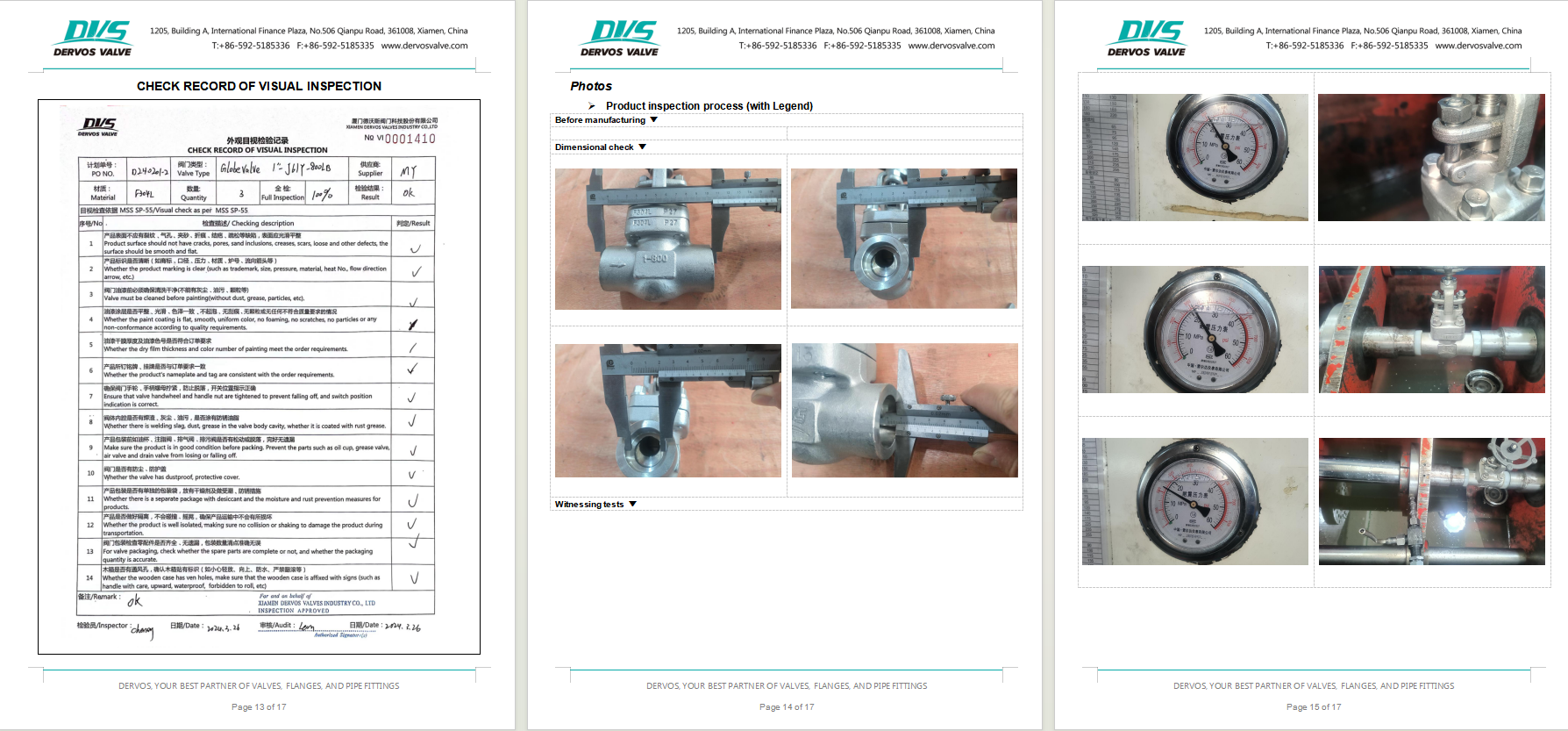

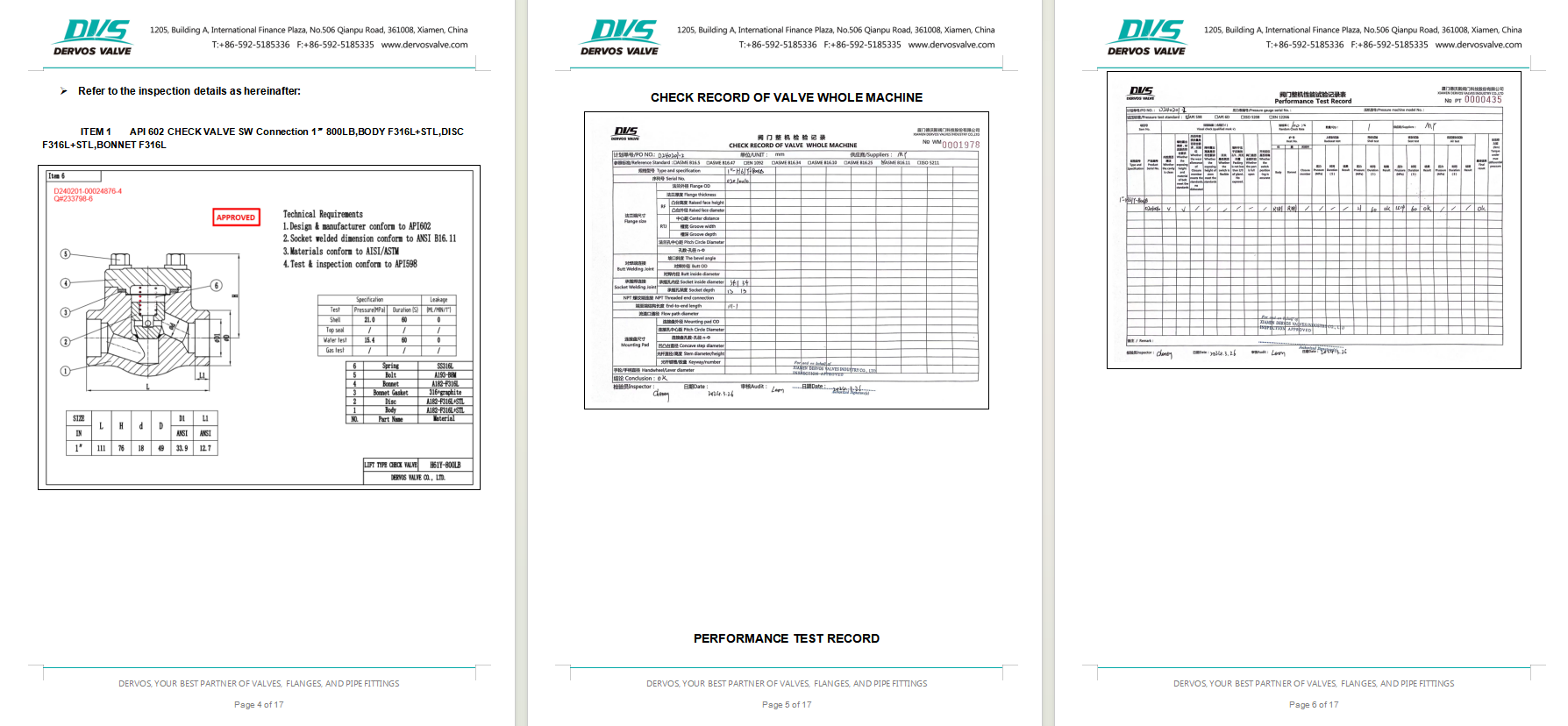

Inspection Report
