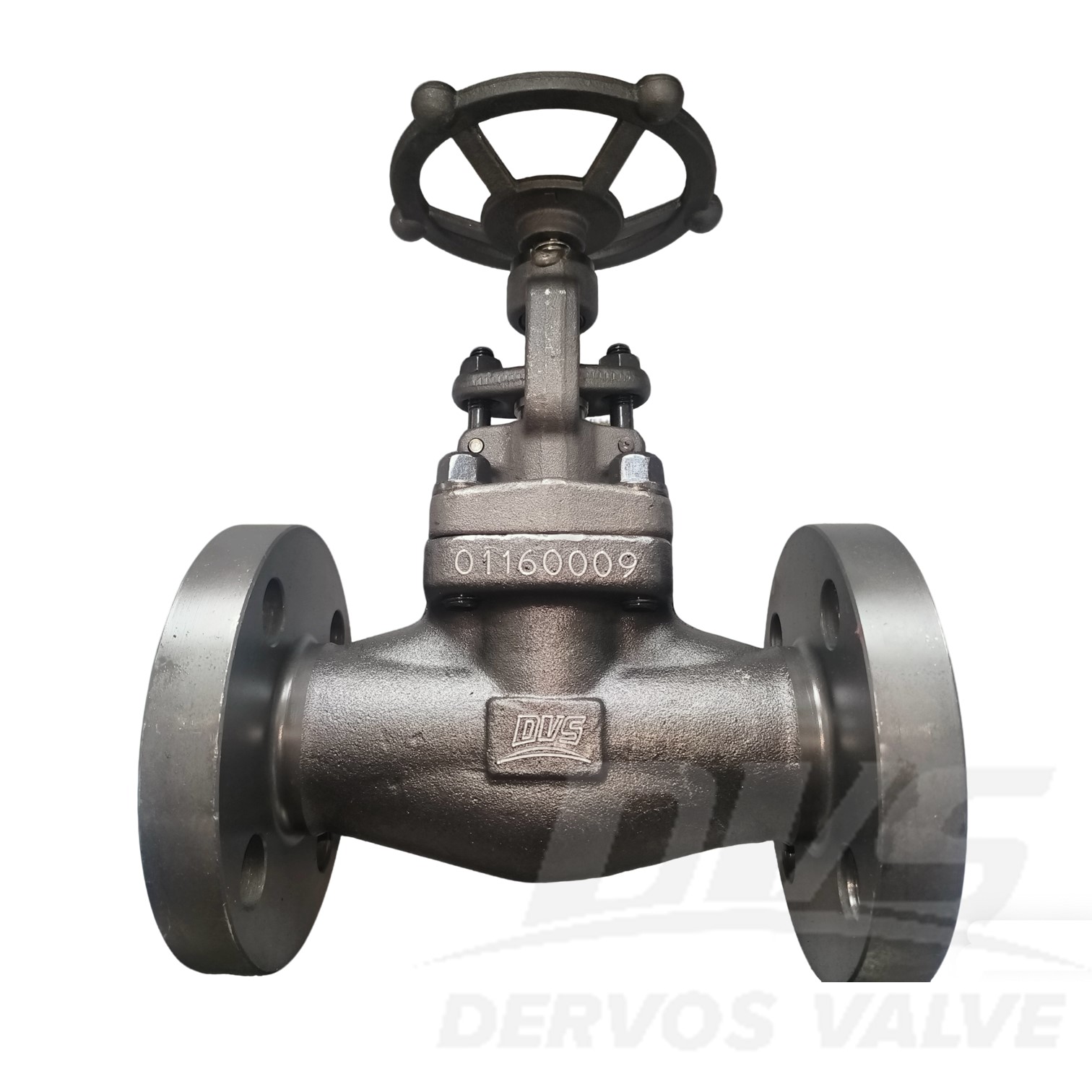

1-1/2" 600LB Forged Steel Flange Globe Valve API602 A105N Hand Wheel
Key Specifications / Features
Model No.: Hits: 0
1-1/2" 600LB Forged Steel Flange Globe Valve is made according to API602 standard. The valve body is made of A105N+STL. It has the structural characteristics of Bolt Bonnet Straightway. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Flange Globe Valve |
| Size | 1-1/2" |
| Pressure | 600LB |
| Connection | RF |
| Operation | Hand wheel |
| Body Material | A105N+STL |
| Design Norm | API 602 |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Pressure-rated for 600LB applications with forged A105N steel body for strength and durability.2.API 602 compliant design with handwheel operation ensures precise flow control and reliable performance in demanding conditions.

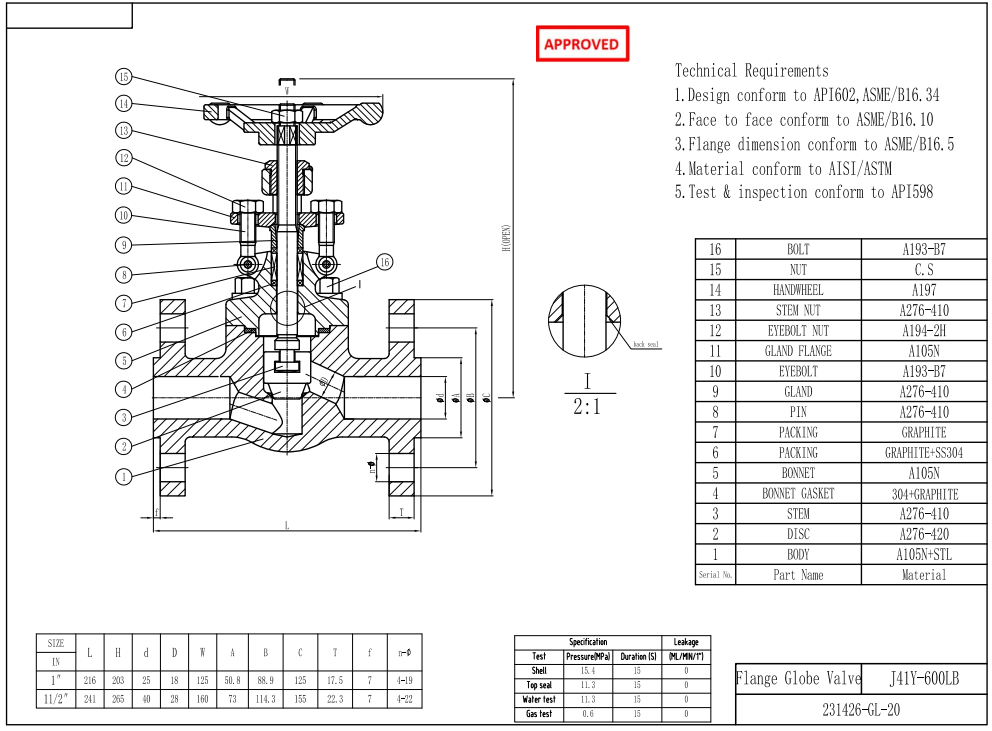

Technical Drawing

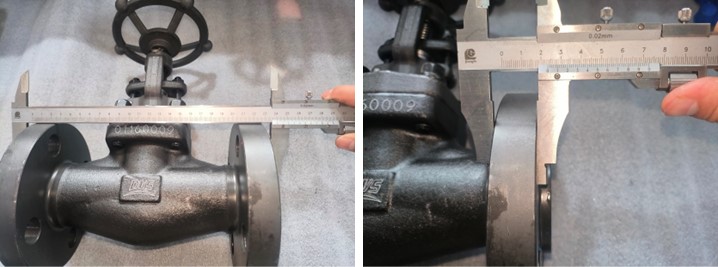

Dimension Checking

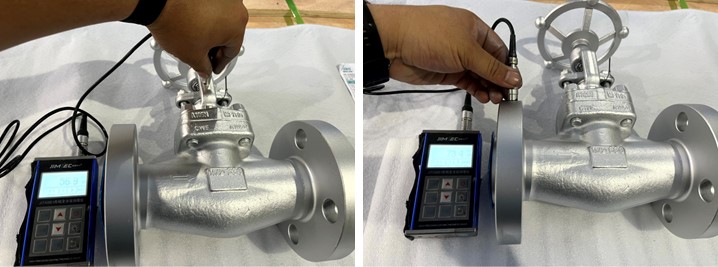

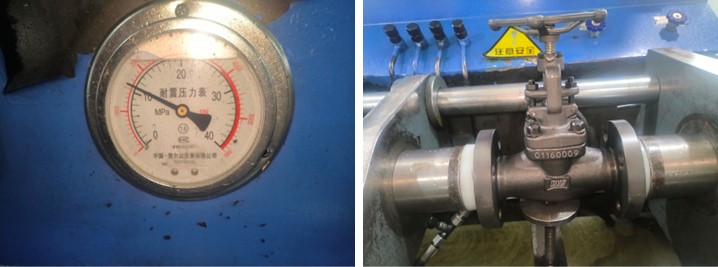

Pressure Testing
Painting

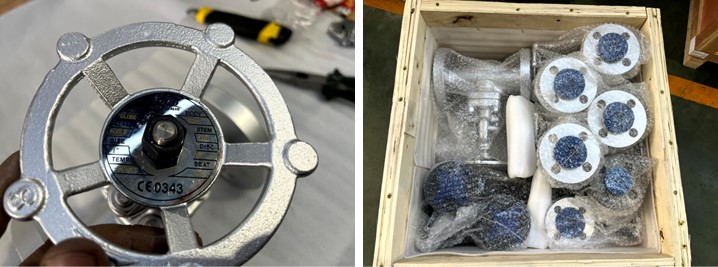

Nameplate & Packing

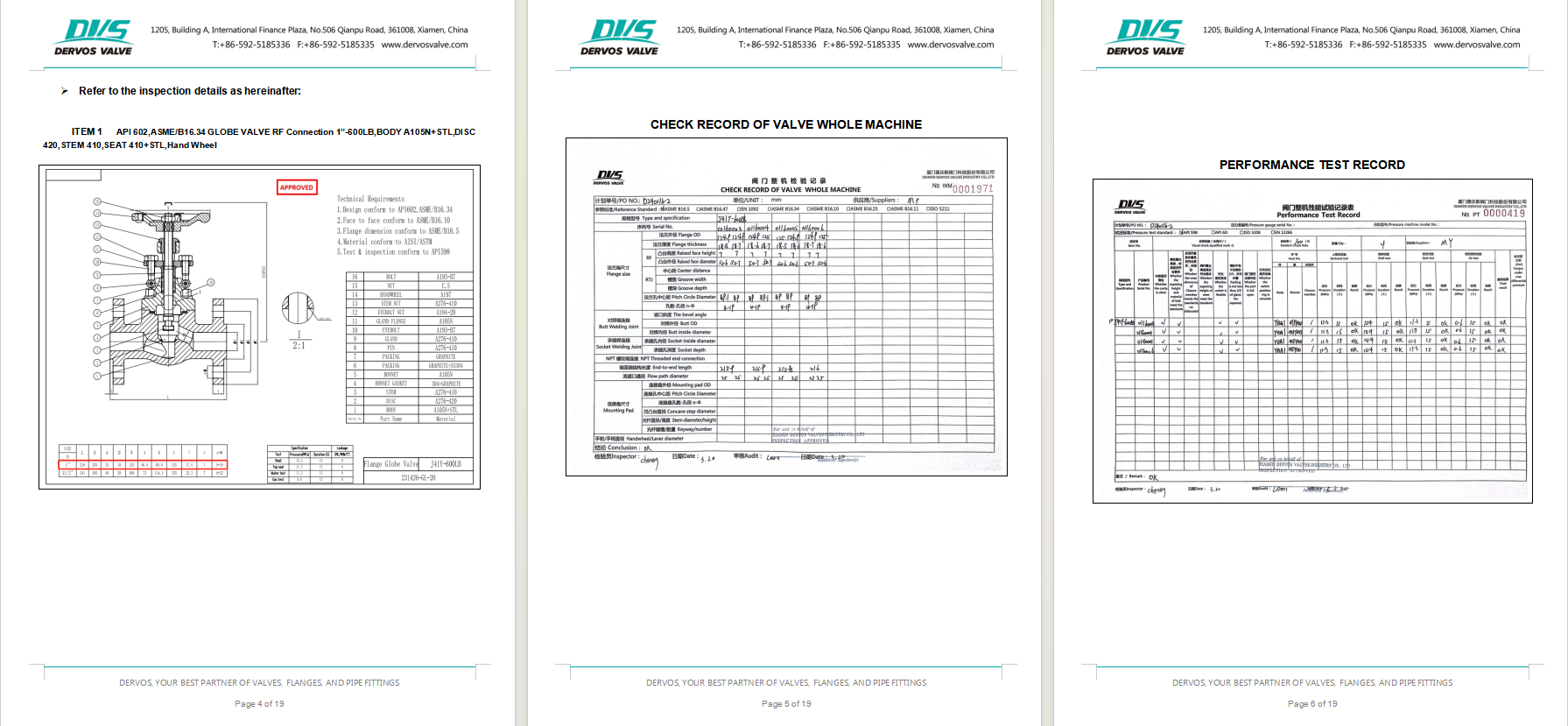

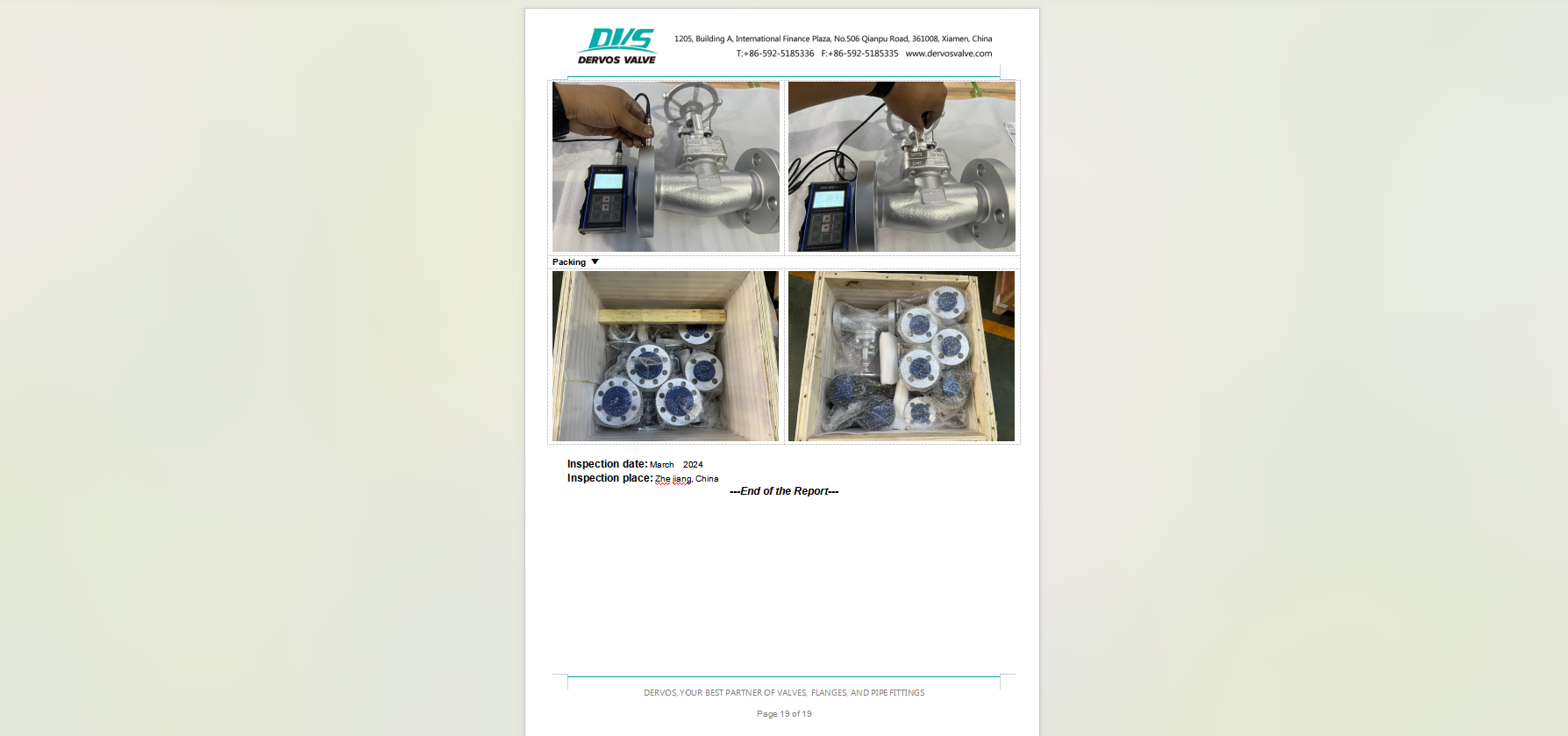

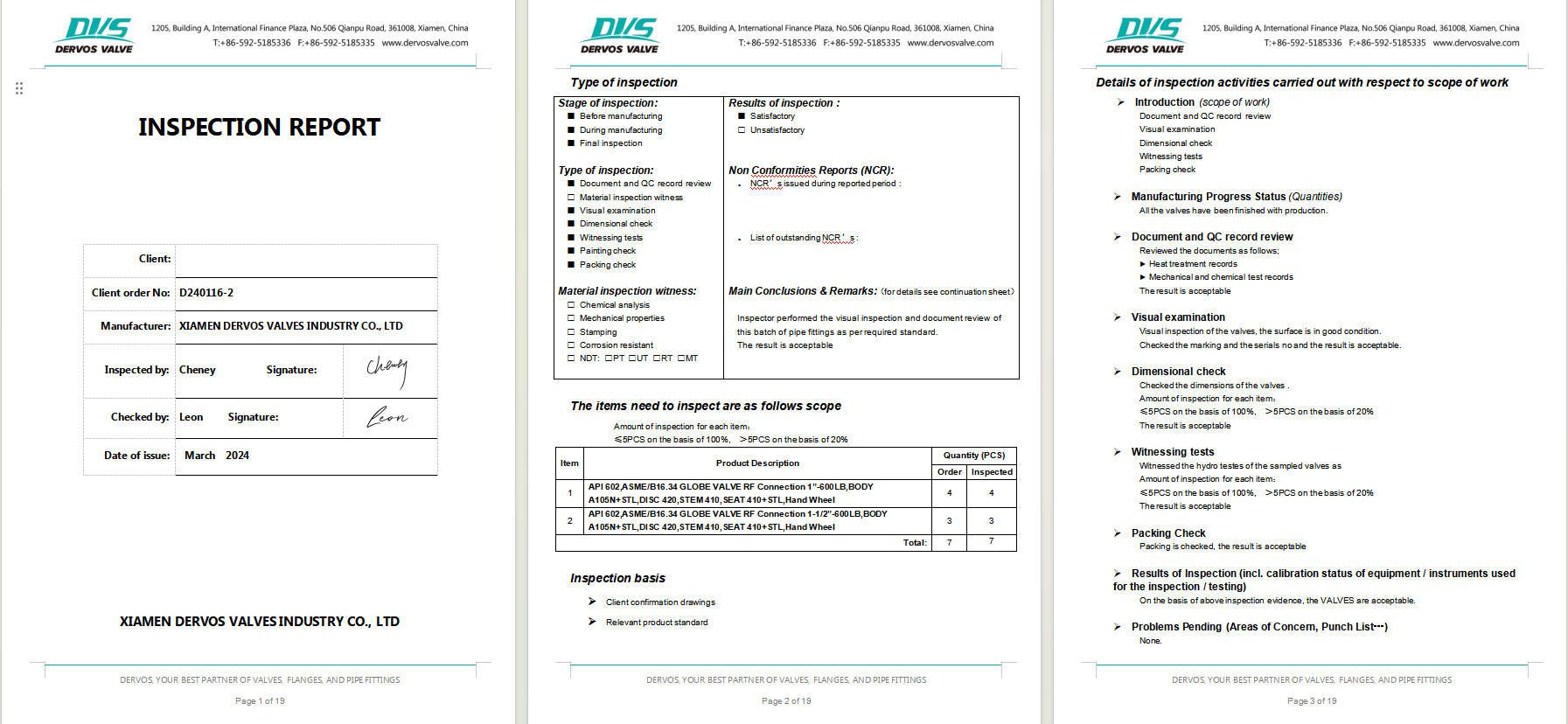

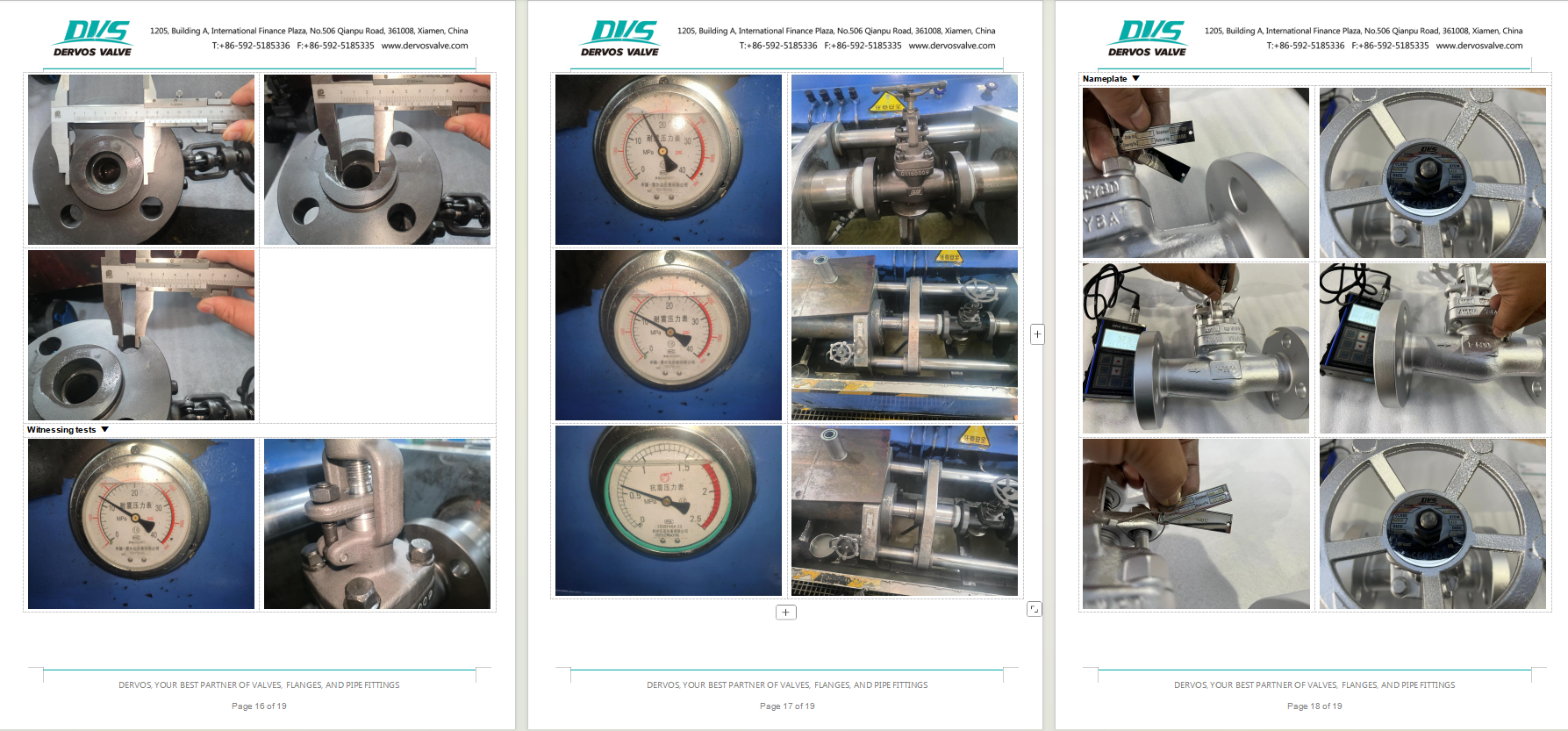

Inspection Report
