1” 800LB Forged Steel Globe Valve SW A105 API602
Key Specifications / Features
Model No.: Hits: 0
1” 800LB Forged Steel Globe Valve is made according to API602 standard. The valve body is made of ASTM A105N+STL. It has the structural characteristics of Bolted Bonnet, Straight-Through. Its connection mode is SW. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Globe Valve |
| Size | 1" |
| Pressure | 800LB |
| Connection | SW |
| Operation | H.W. |
| Body Material | ASTM A105N+STL |
| Design Norm | API 602 |
| End Size | ASME B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Constructed from A105 forged steel, this 1” globe valve offers excellent strength and durability for high-pressure applications up to 800LB.2.Designed with socket weld (SW) ends and compliant with API 602 standards, it ensures reliable sealing and precise flow control.

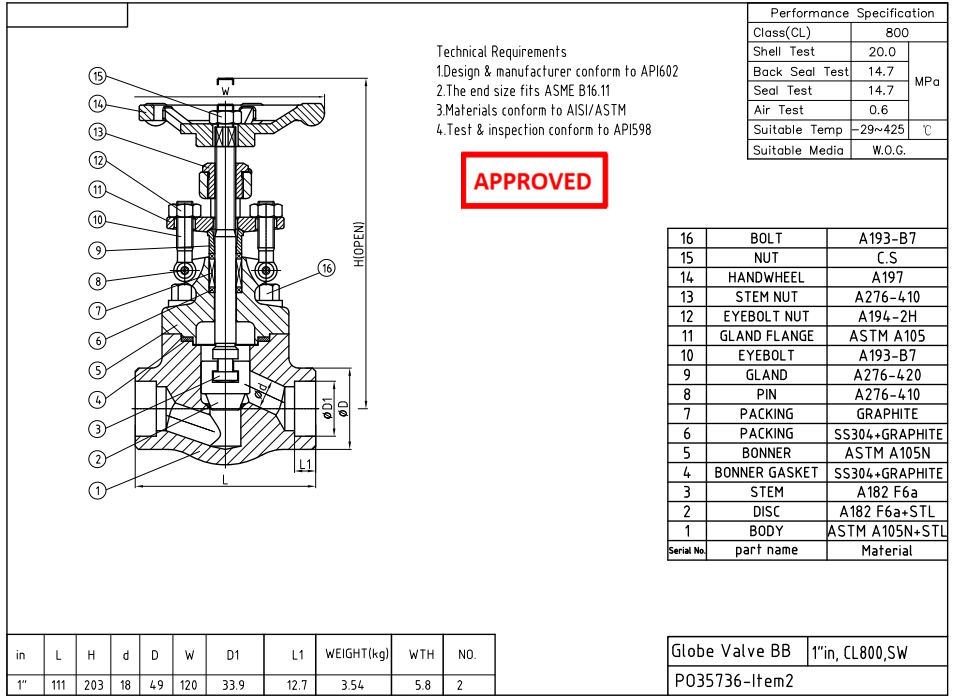

Technical Drawing

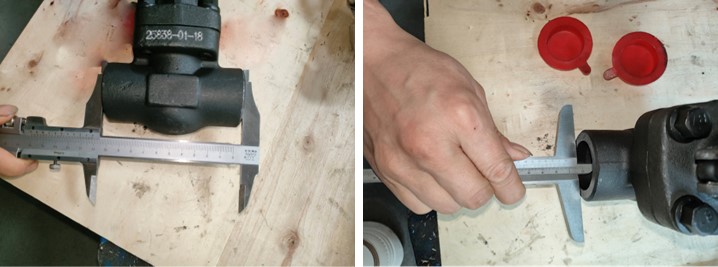

Dimension Checking

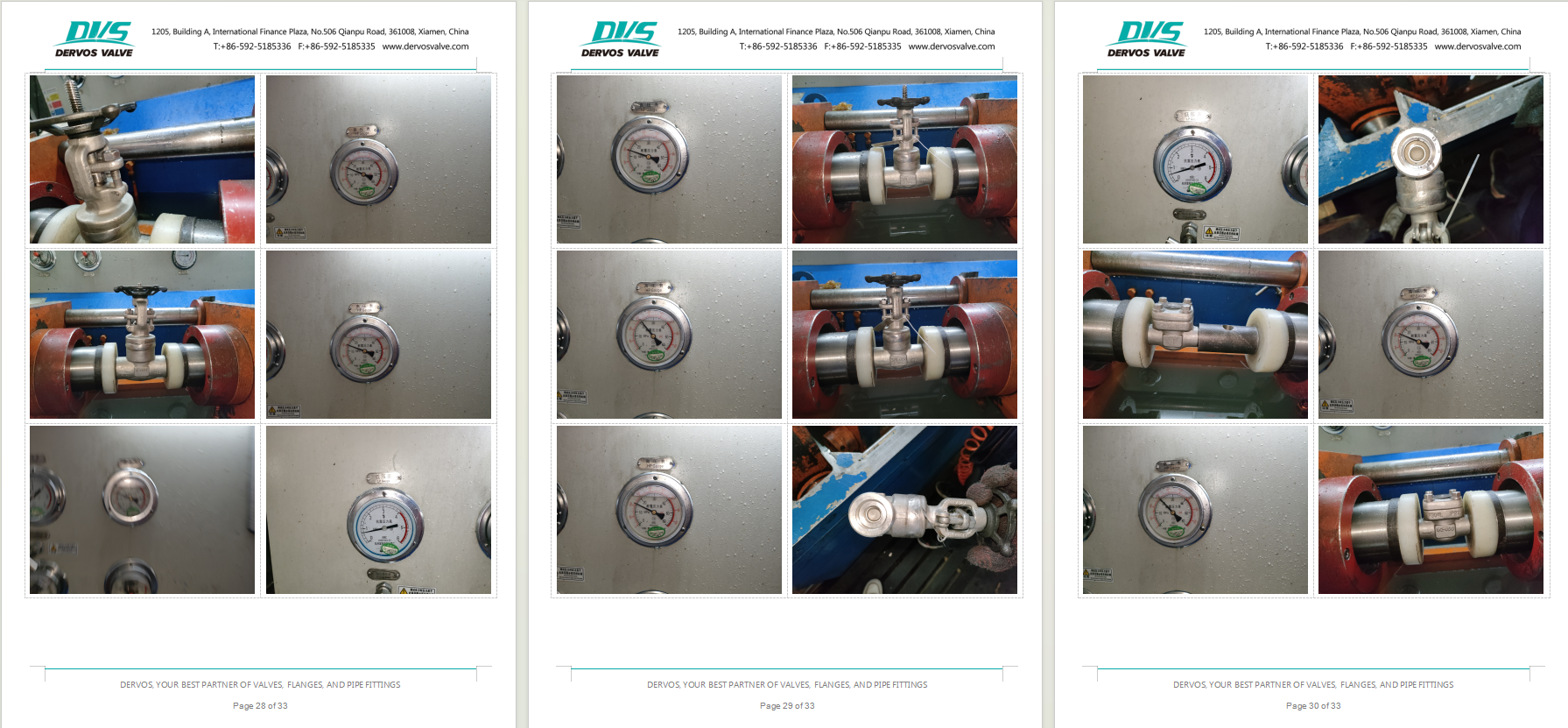

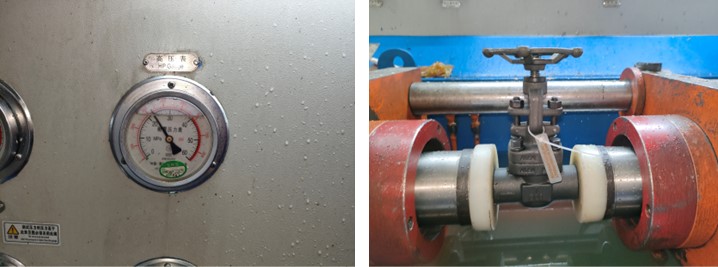

Pressure Testing

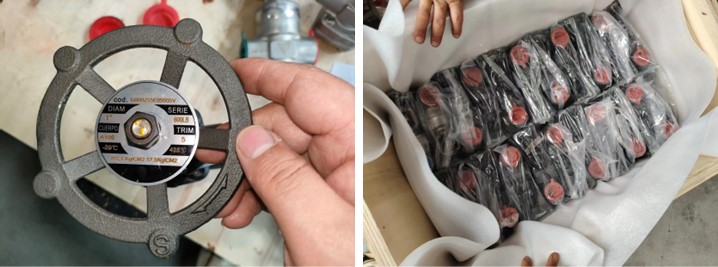

Nameplate & Packing

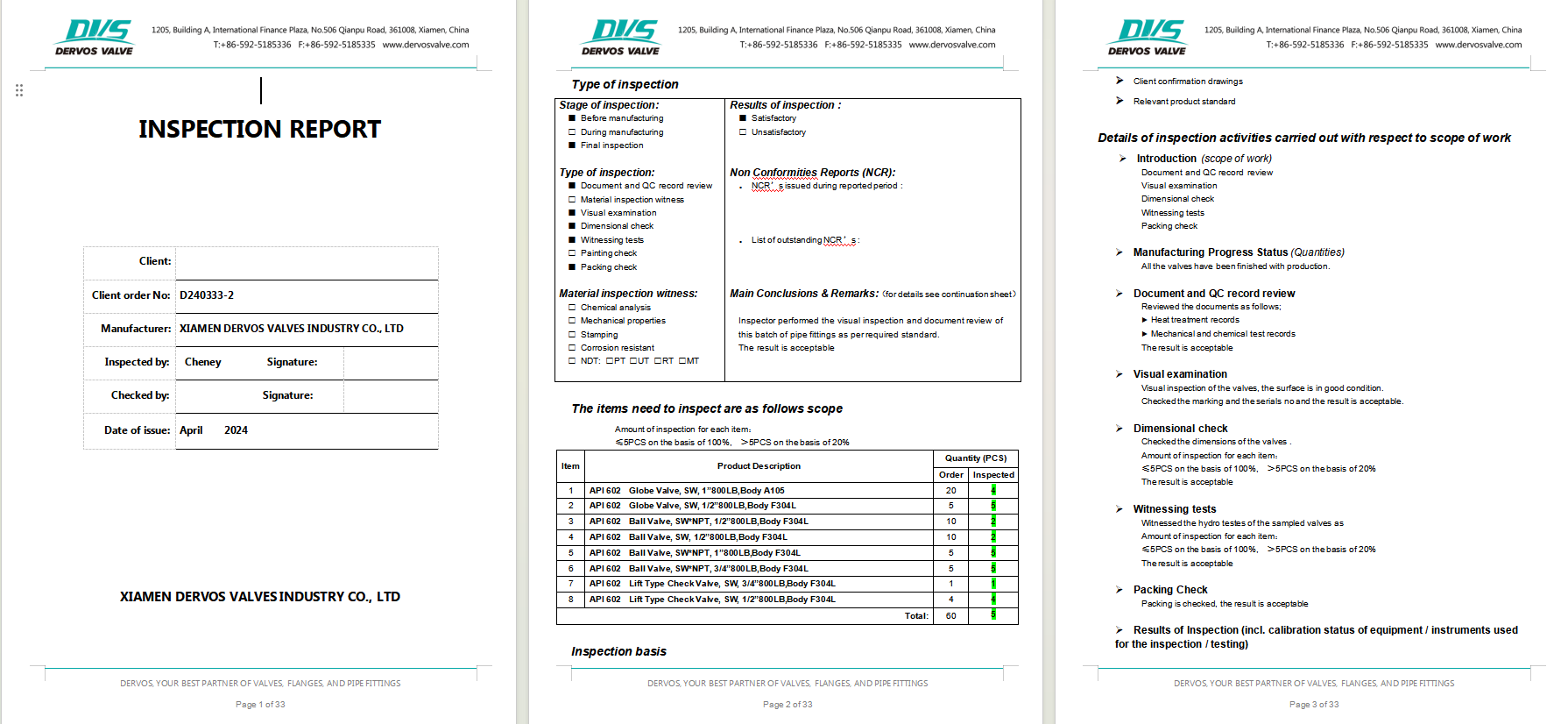

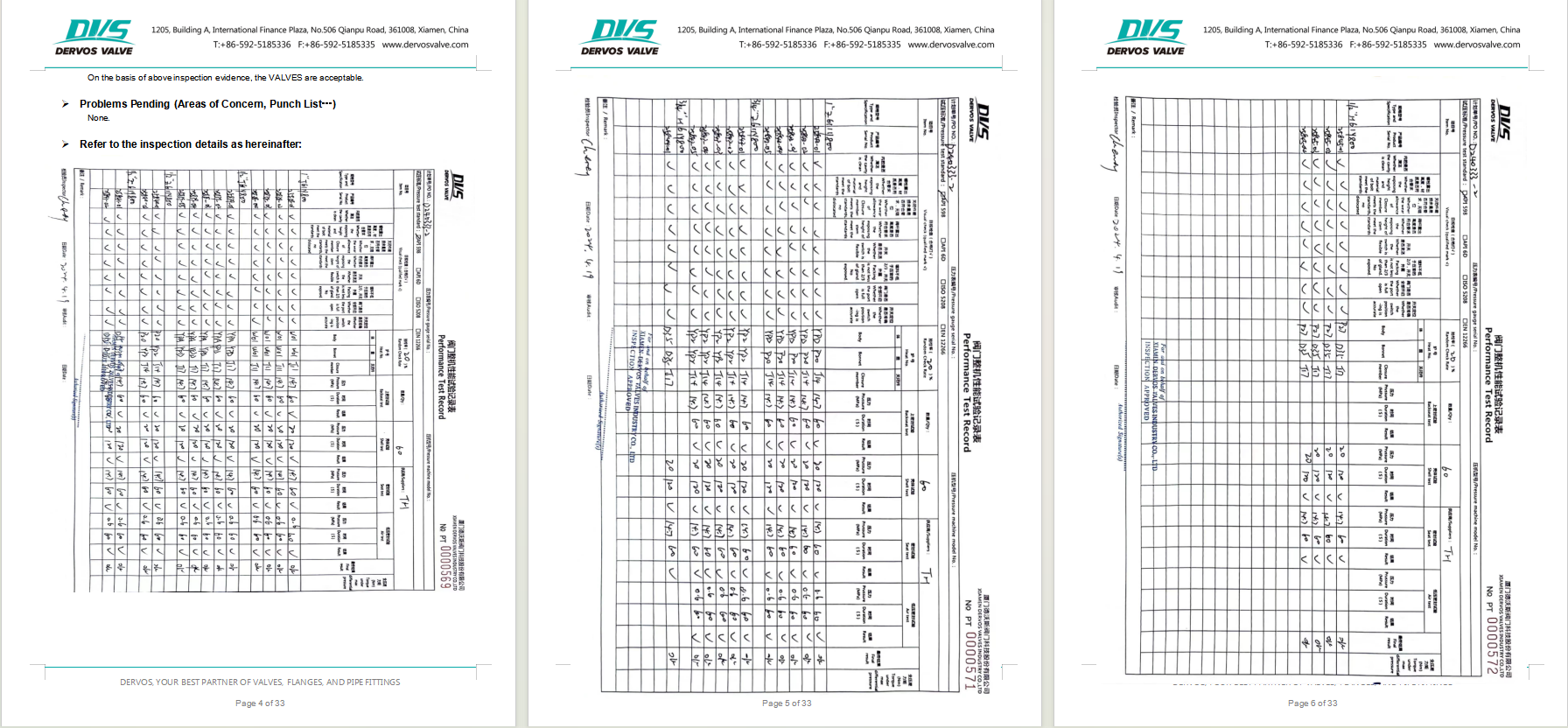

Inspection Report
