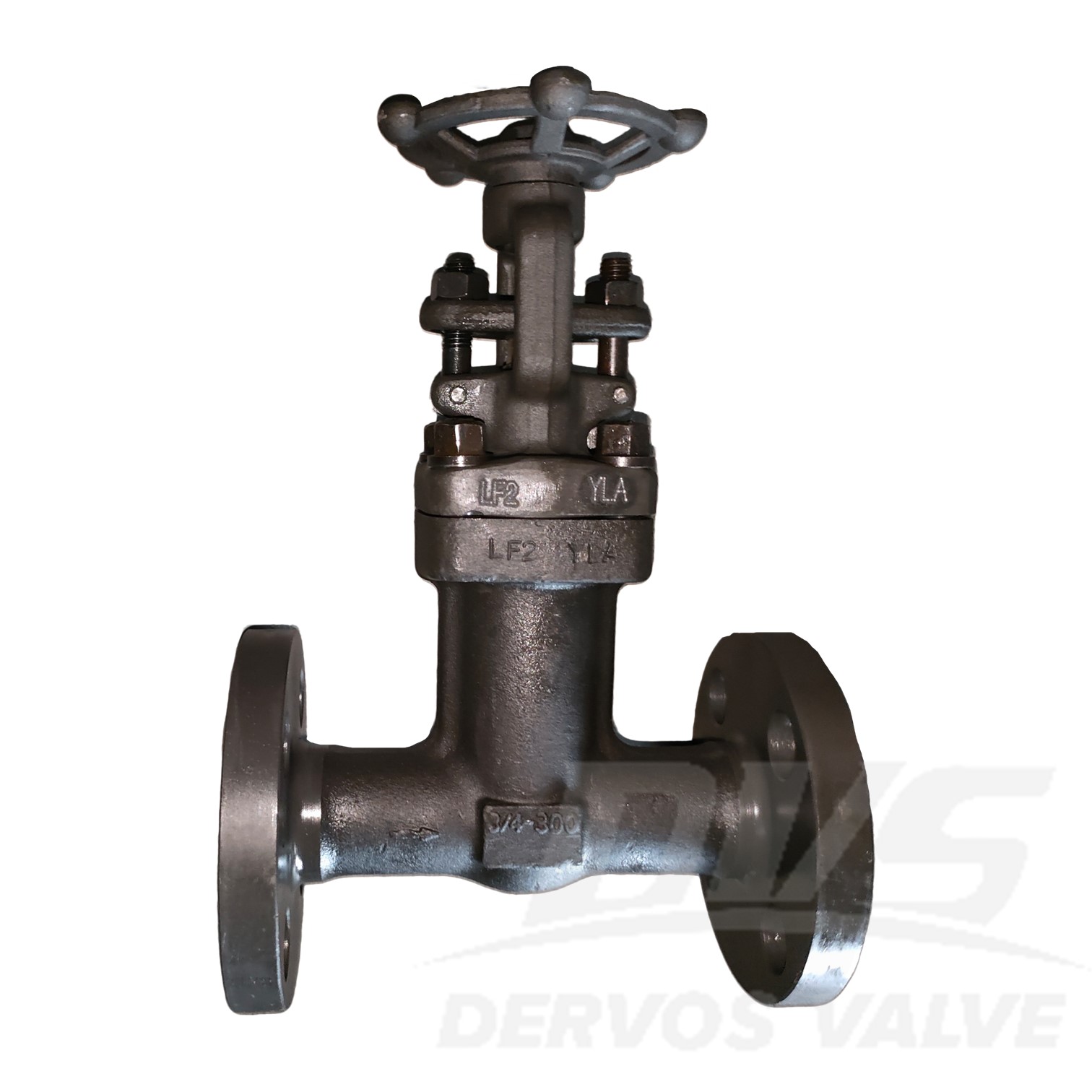

3/4” 300LB Forged Steel Flange Globe Valve LF2 API602
Key Specifications / Features
Model No.: Hits: 0
3/4” 300LB Forged Steel Flange Globe Valve is made according to API602 standard. The valve body is made of A350 LF2+STL. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Forged Steel Flange Globe Valve |
| Size | 3/4” |
| Pressure | 300LB |
| Connection | RF |
| Operation | Hand Wheel |
| Body Material | A350 LF2+STL |
| Design Norm | API 602 |
| Face to Face | ASME/B16.10 |
| Flange Dimension | ASME/B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged from LF2 carbon steel, providing excellent low-temperature toughness and reliable performance for 300LB pressure applications.2.Globe valve with flange connection, compliant with API 602, ensures precise flow control and dependable shutoff.

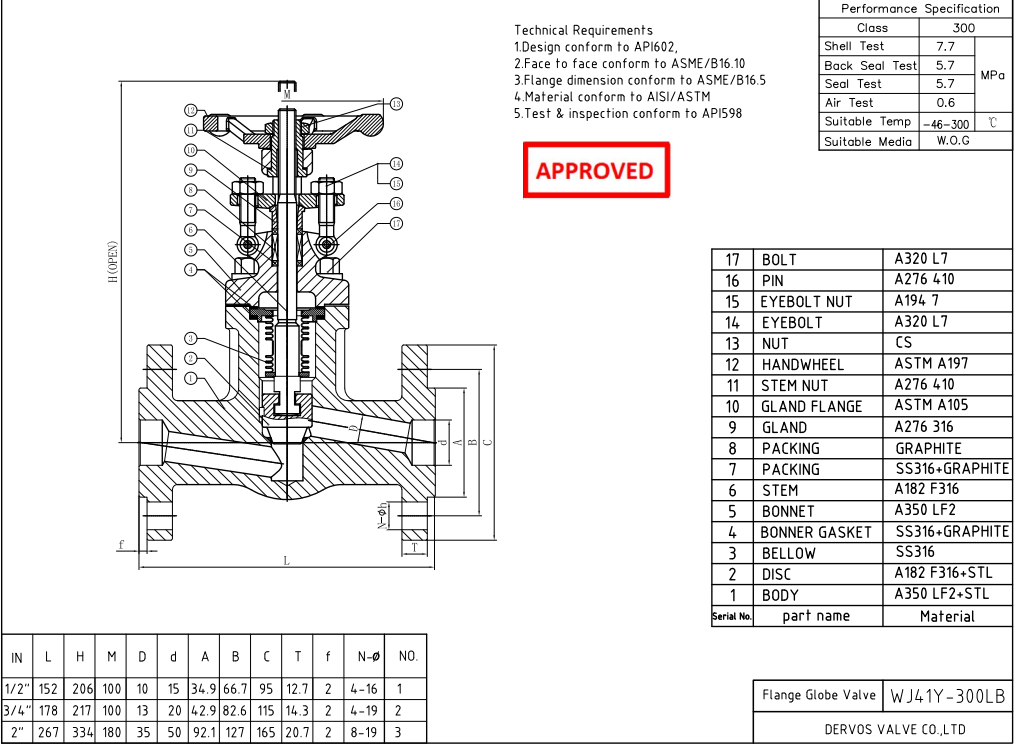

Technical Drawing

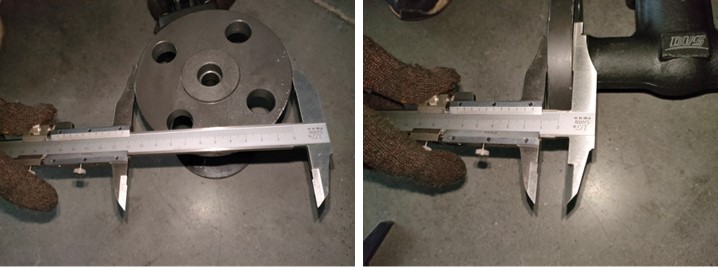

Dimension Checking

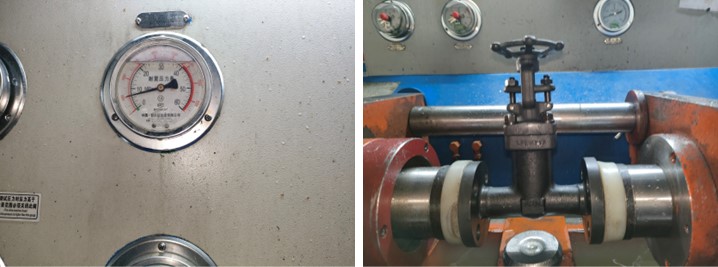

Pressure Testing

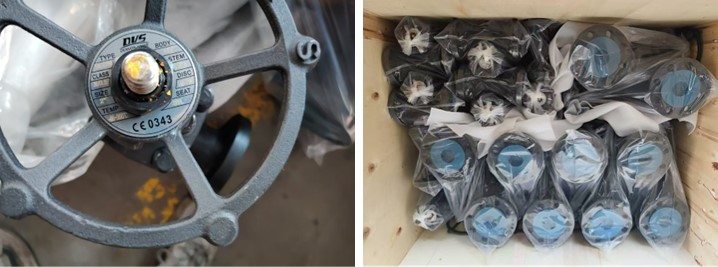

Nameplate & Packing

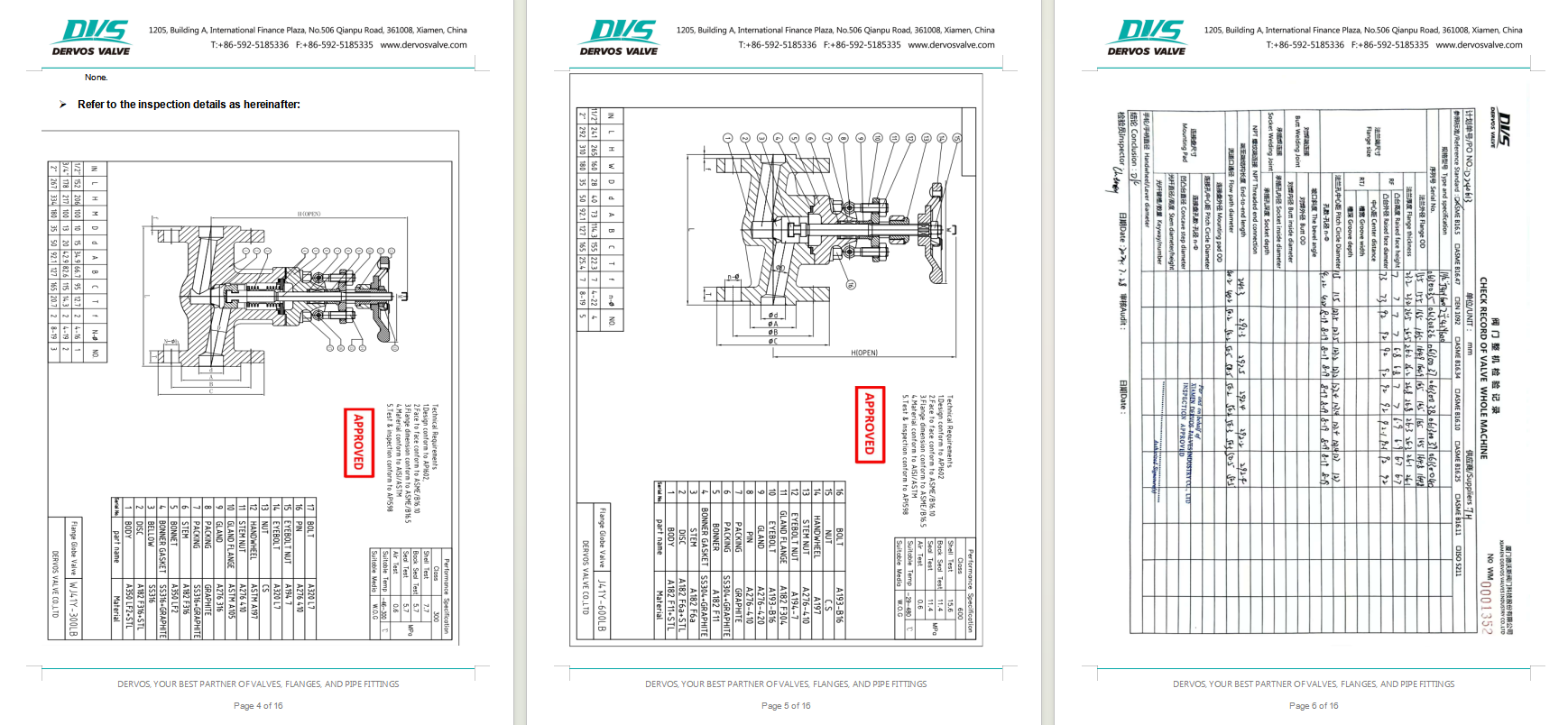

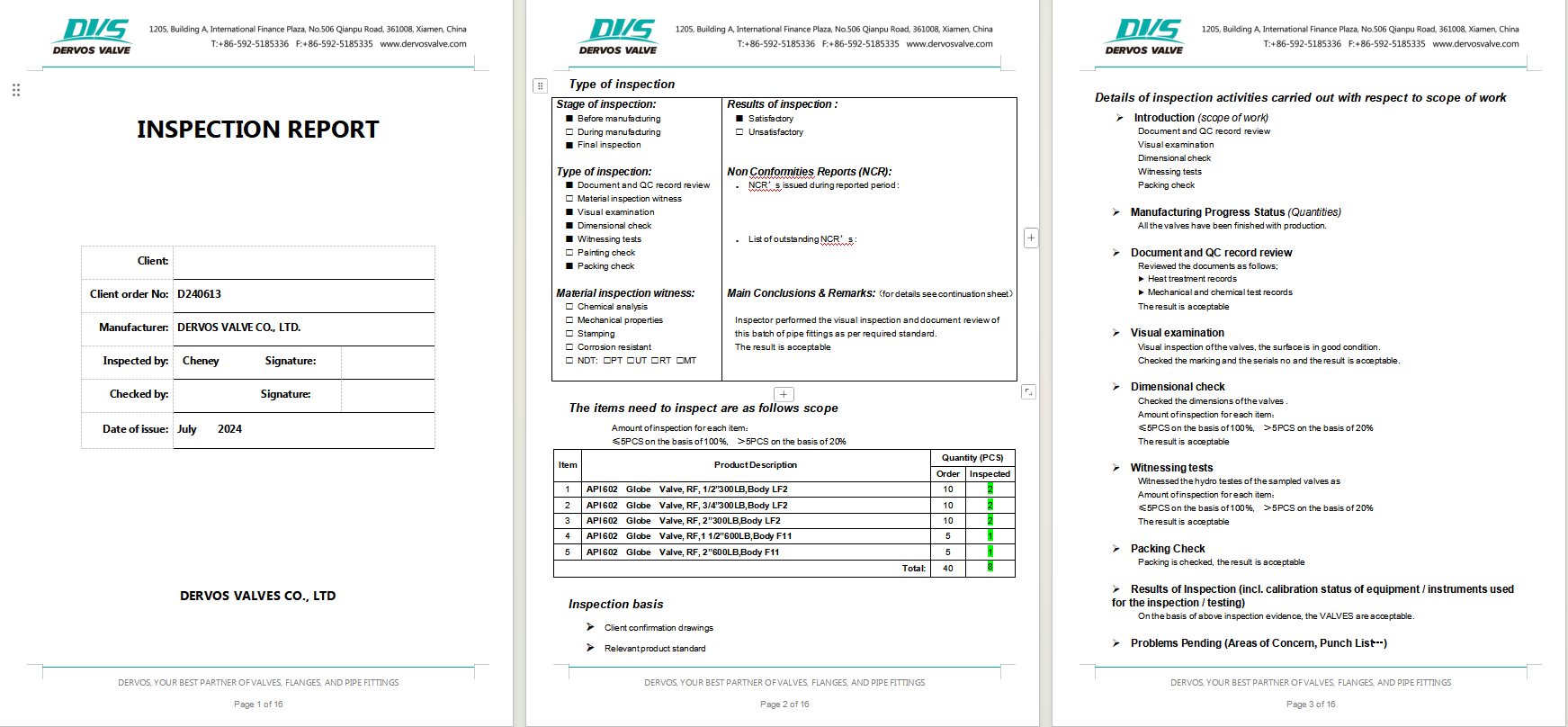

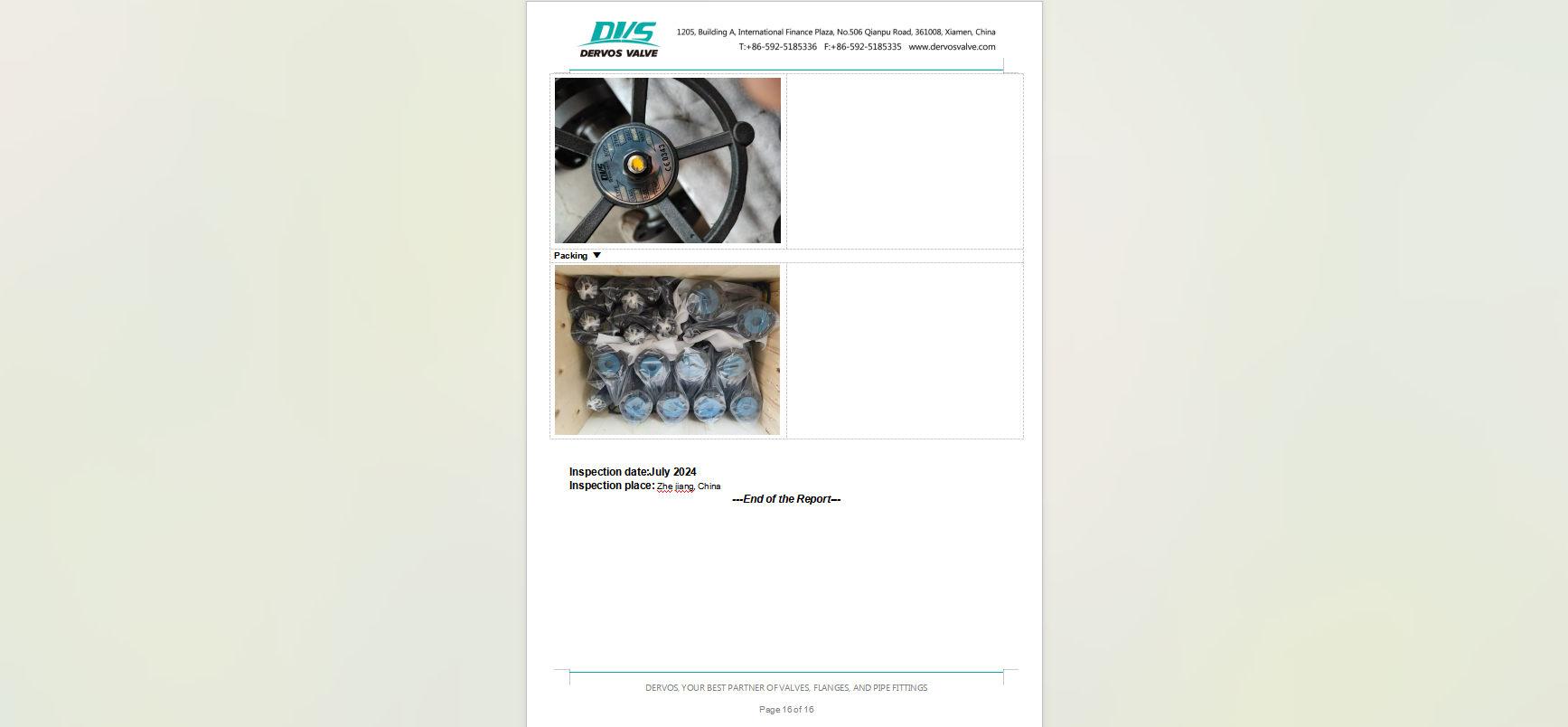

Inspection Report
