Cast Steel Globe Valve RF 6" 300LB LCB RF BS1873
Key Specifications / Features
Model No.: Hits: 0
6" 300LB Cast Steel Globe Valve is made according to BS1873 standard. The valve body is made of LCB. It has the structural characteristics of OS&Y, Bolted Bonnet, Full Port, Parabolic Plug (Regulating Type), Low Inlet / High Outlet. Its connection mode is RF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: 3/4” 300LB Forged Steel Flange Globe Valve LF2 API602
Detail Information
Product Parameters
| Type | Cast Steel Globe Valve |
| Size | 6” |
| Pressure | 300LB |
| Connection | RF |
| Operation | Hand wheel |
| Body Material | ASTM A352 LCB |
| Design Norm | BS1873 |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 345°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Made from LCB cast steel, providing excellent low-temperature toughness and durability for 300LB pressure service.2.Globe valve design with RF flanges, compliant with BS1873, ensures precise flow control and reliable shutoff.

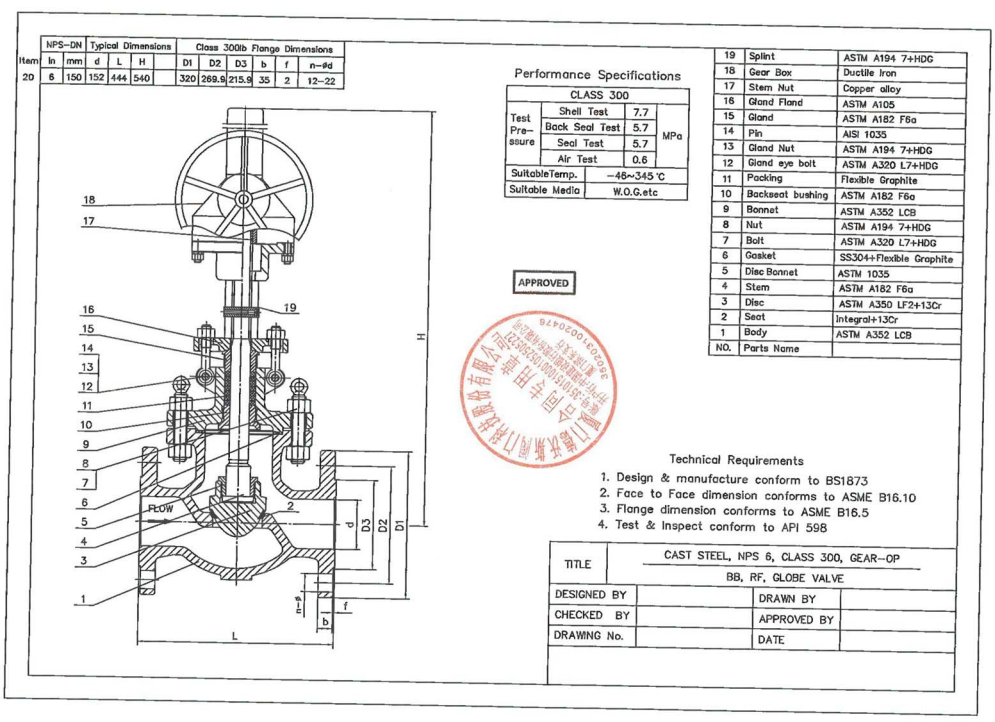

Technical Drawing

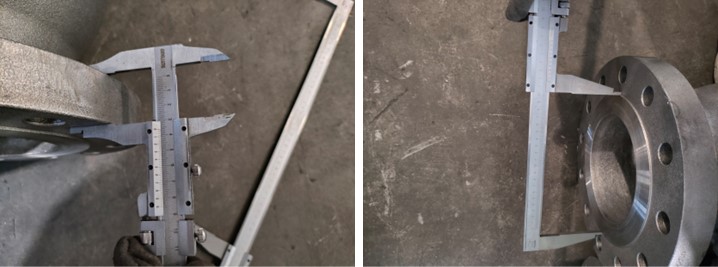

Dimension Checking

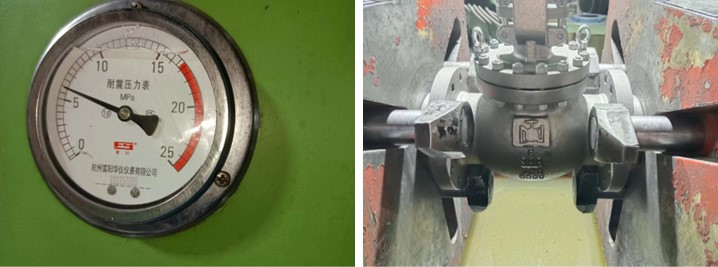

Pressure Testing

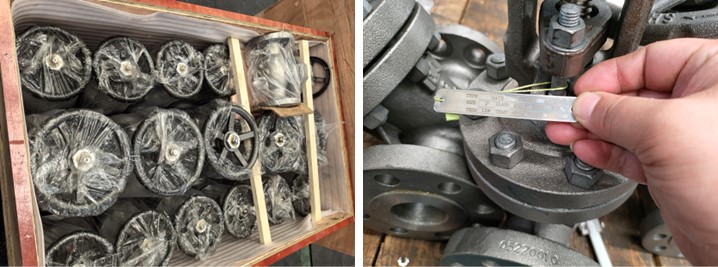

Nameplate & Packing

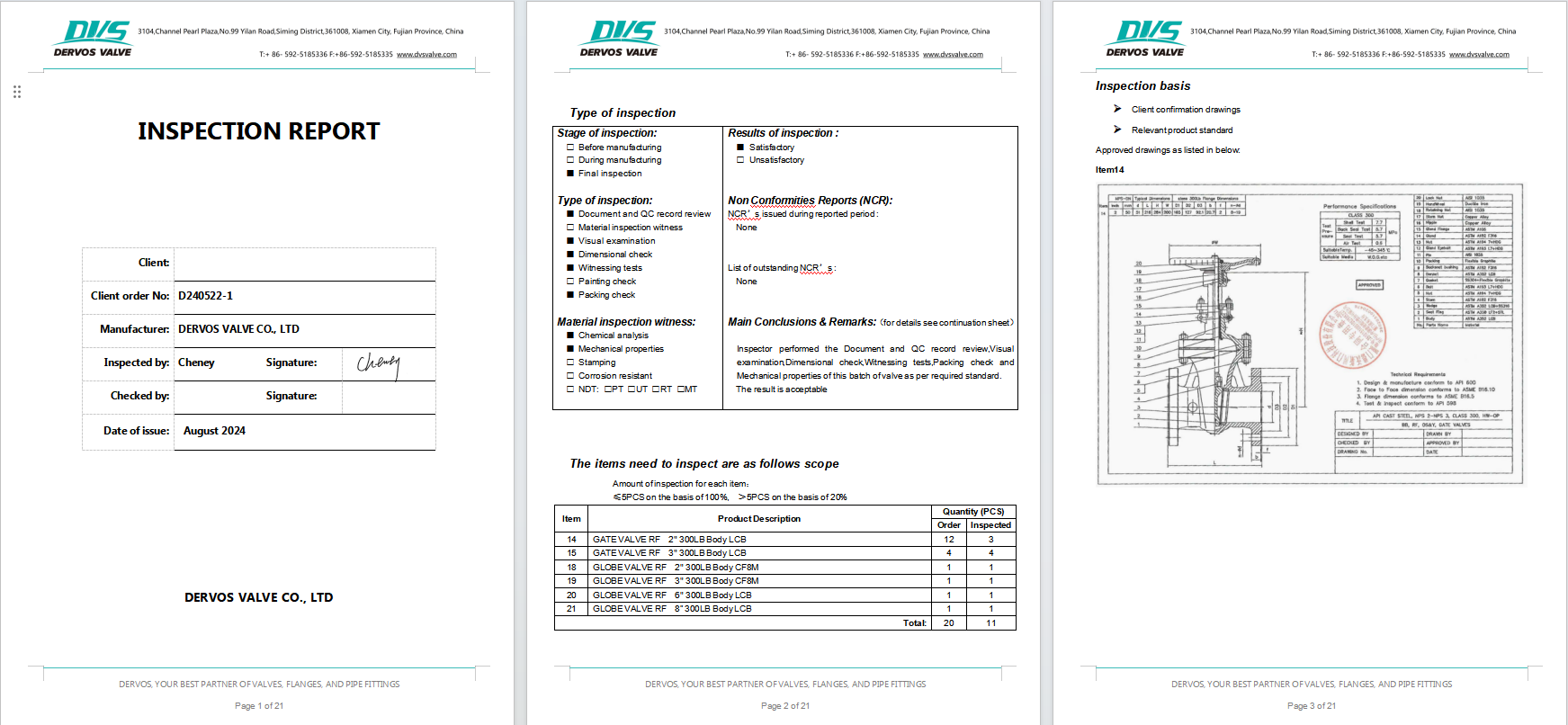

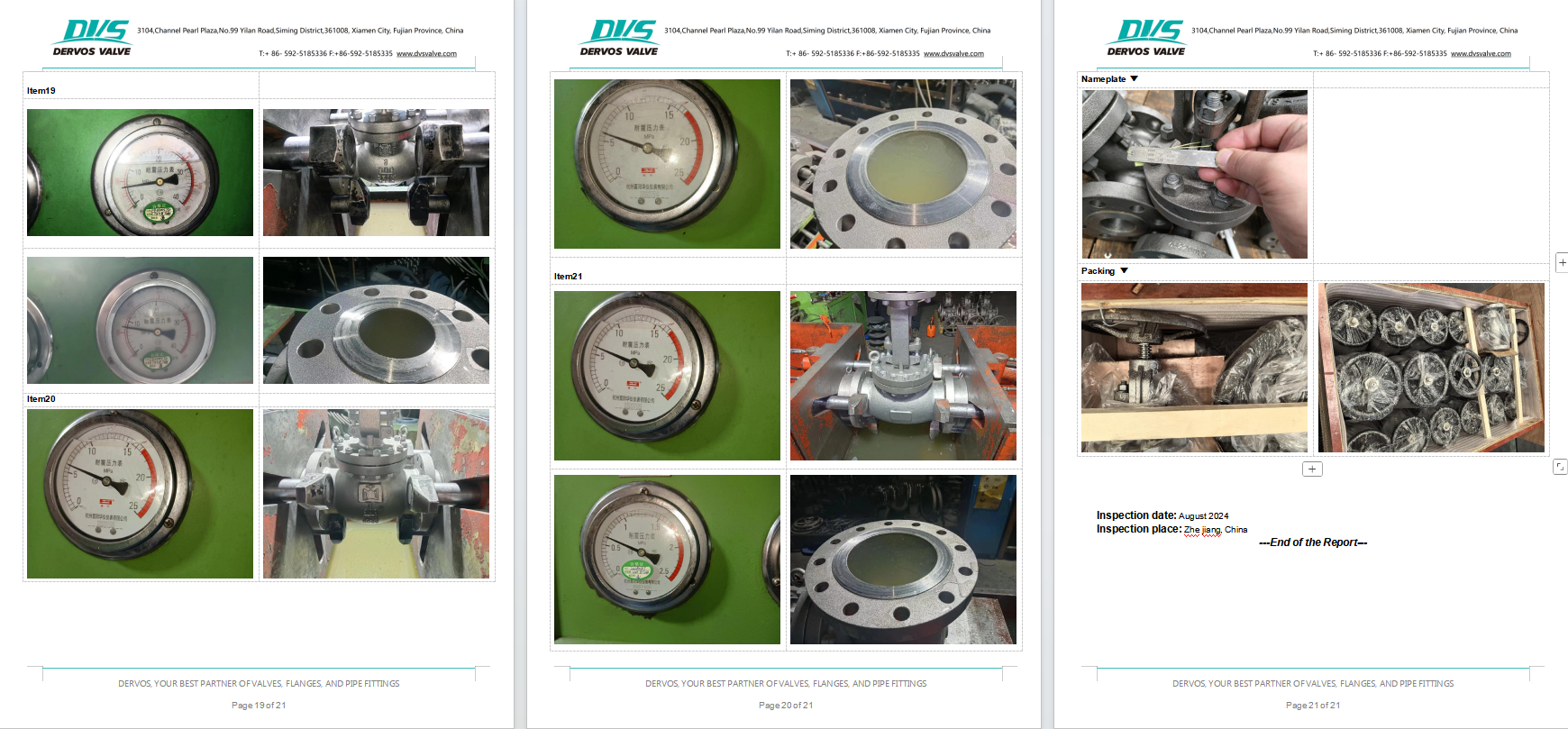

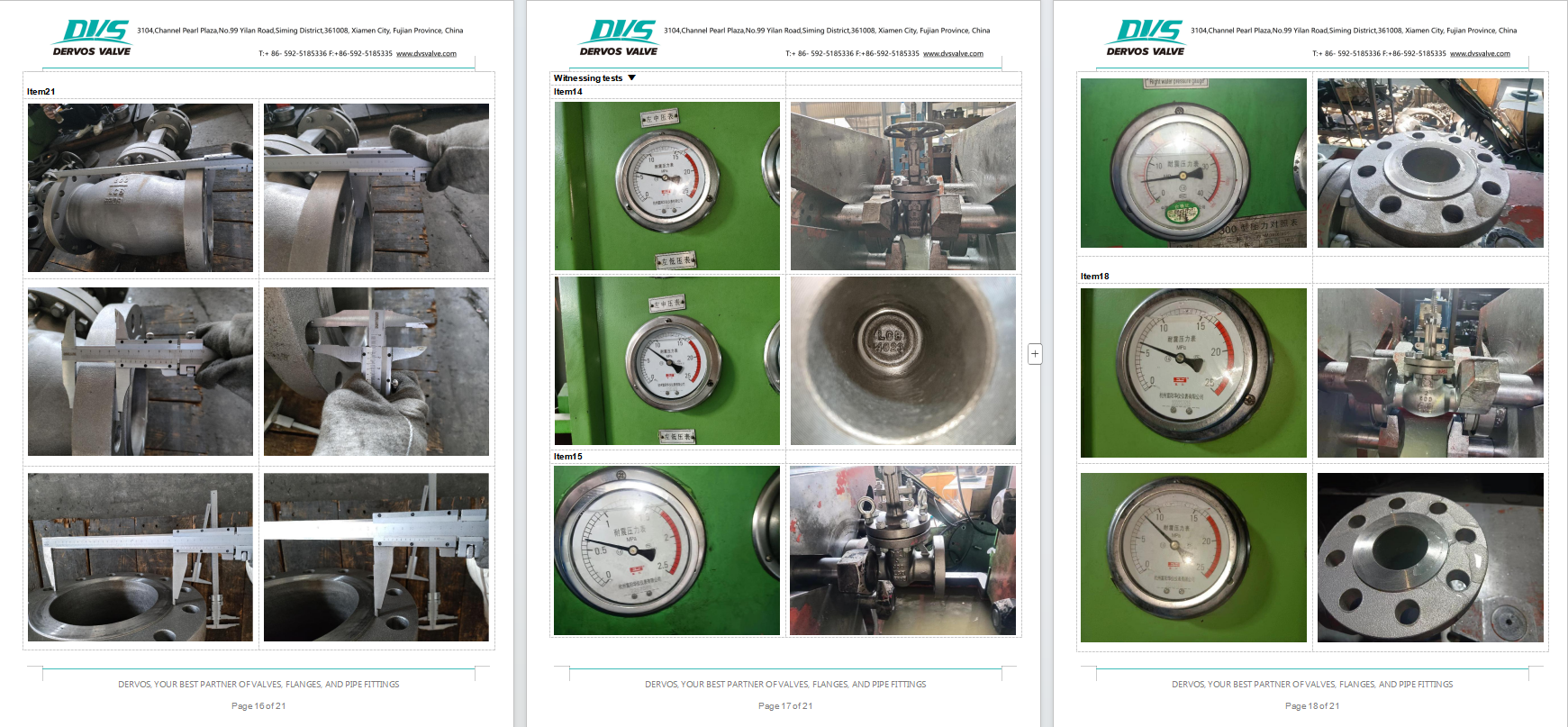

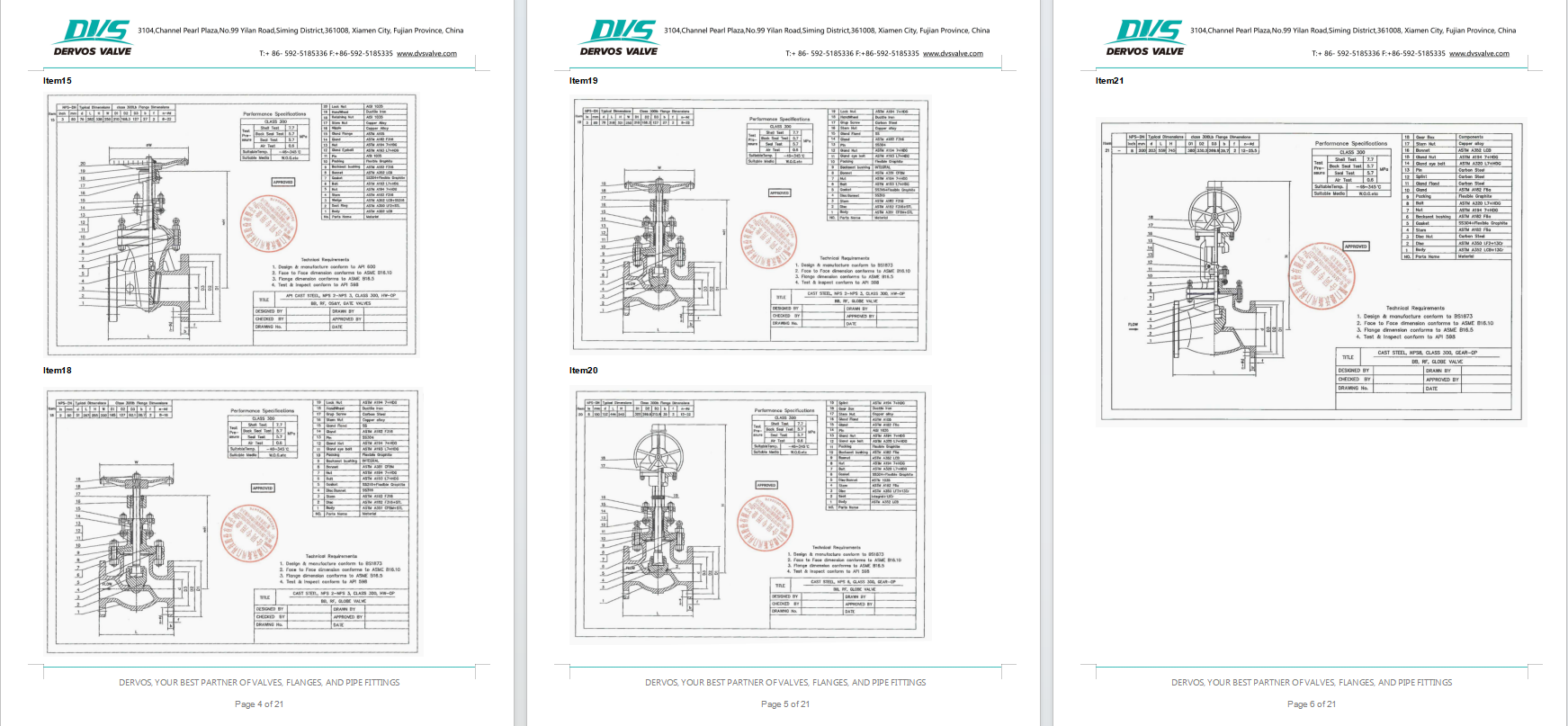

Inspection Report
