Cast Steel Gate Valve 16" 300LB WCB RF
Key Specifications / Features
Model No.: Hits: 0
16" 300LB Cast Steel Gate Valve is made according to API 600 standard. The valve body is made of A216 WCB. It has the structural characteristics of Bolted bonnet, rising stem, flexible wedge. Its connection mode is RF. And it has Gearbox operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Cast Steel Gate Valve |
| Size | 16" |
| Pressure | 300LB |
| Connection | RF |
| Operation | Gearbox |
| Body Material | A216 WCB |
| Design Norm | API 600 |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Steam, Oil and Gas |
Features
1. Cast steel WCB body provides high strength and durability for large-diameter industrial piping systems.2. Class 300 RF flanged design ensures reliable connection and sealing under high-pressure service.

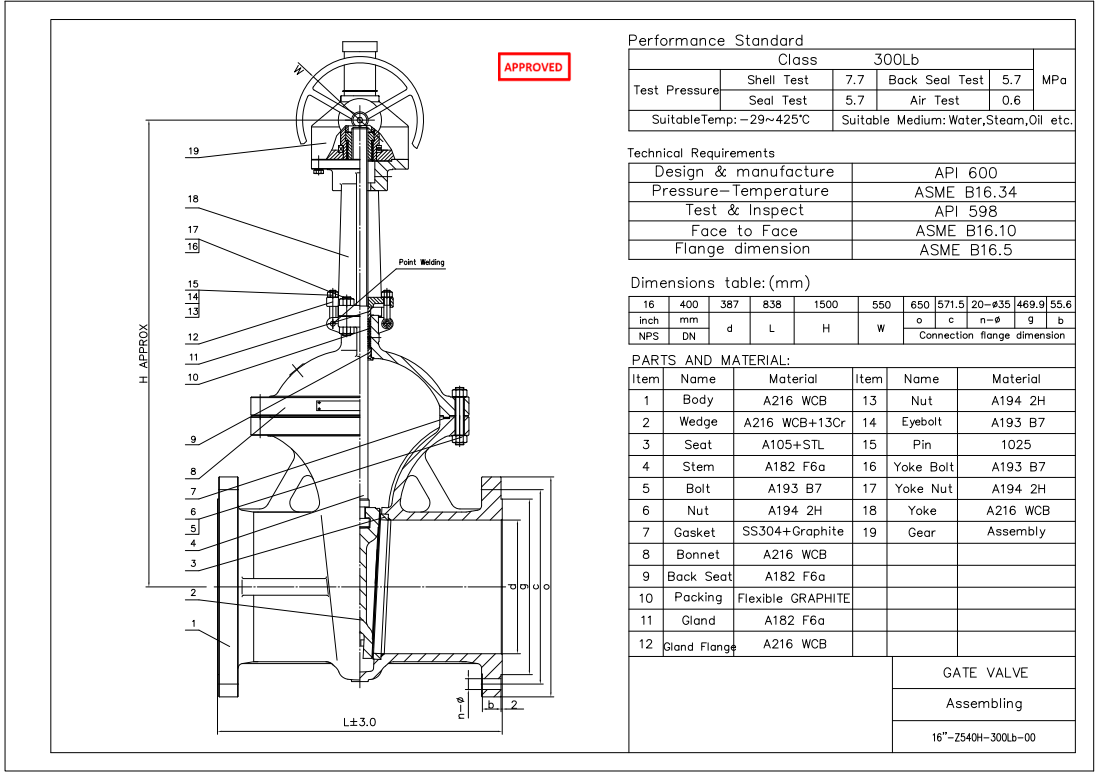

Technical Drawing

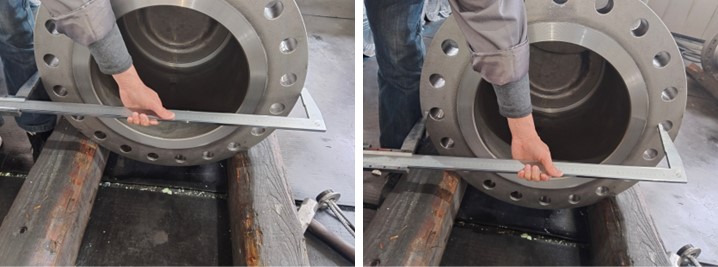

Dimension Checking

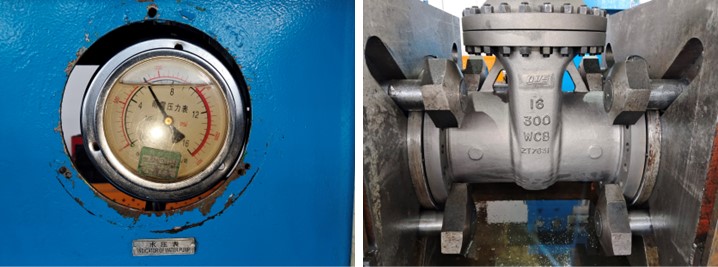

Pressure Testing

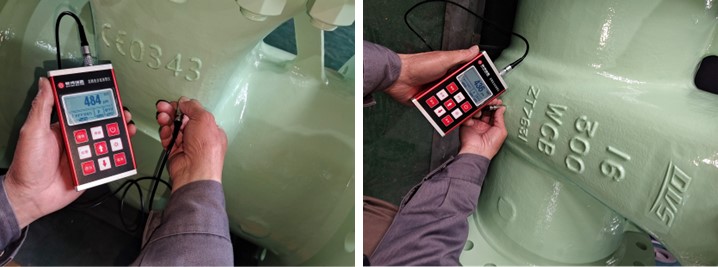

Painting

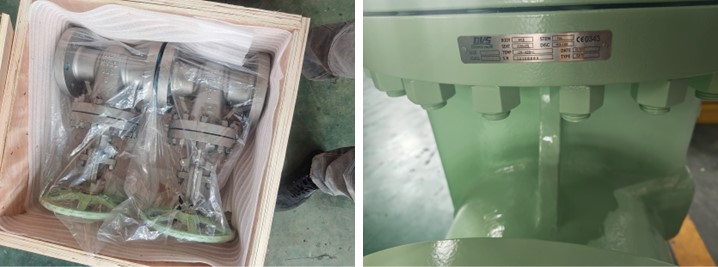

Nameplate & Packing

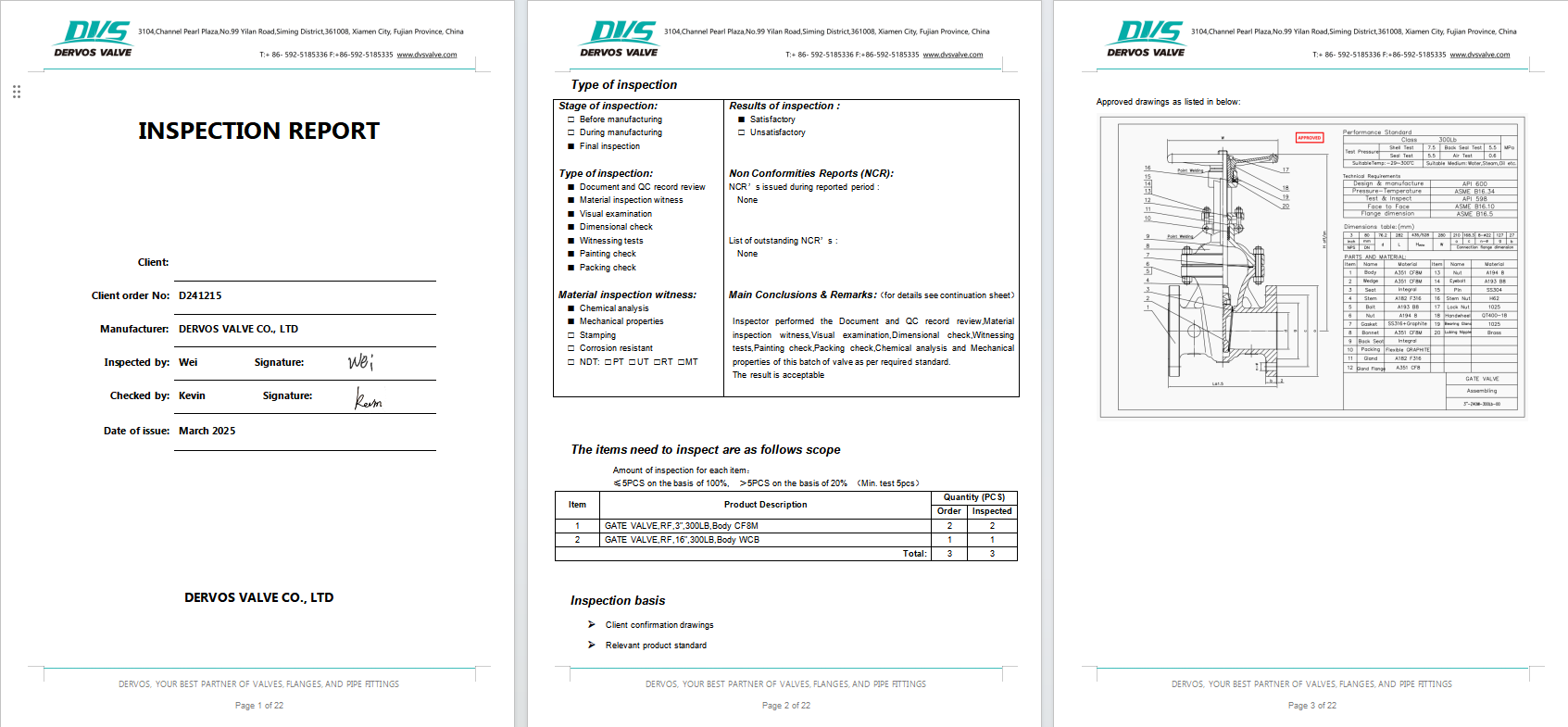

Inspection Report
