Cast Steel Gate Valve DN100 PN40 WCB RF
Key Specifications / Features
Model No.: Hits: 0
DN100 PN40 Cast Steel Gate Valve is made according to ASME B16.34 standard. The valve body is made of WCB. It has the structural characteristics of Bolted Bonnet, Resilient Wedge, Rising Stem, Yoke Type. Its connection mode is RF. And it has handwheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Cast Steel Gate Valve |
| Size | DN100 |
| Pressure | PN40 |
| Connection | RF |
| Operation | handwheel |
| Body Material | A216 WCB |
| Design Norm | EN 1984 |
| Face to face | DIN EN 1092 |
| End Connection | DIN EN 558 |
| Test & Inspection Code | DIN 12266-1 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Rising Stem Gate Mechanism: Allows clear indication of valve position and provides reliable shutoff for industrial pipeline systems.2.WCB Cast Steel Body with RF Flanges: Delivers durable pressure-bearing performance and secure raised-face connections for PN40 service applications.

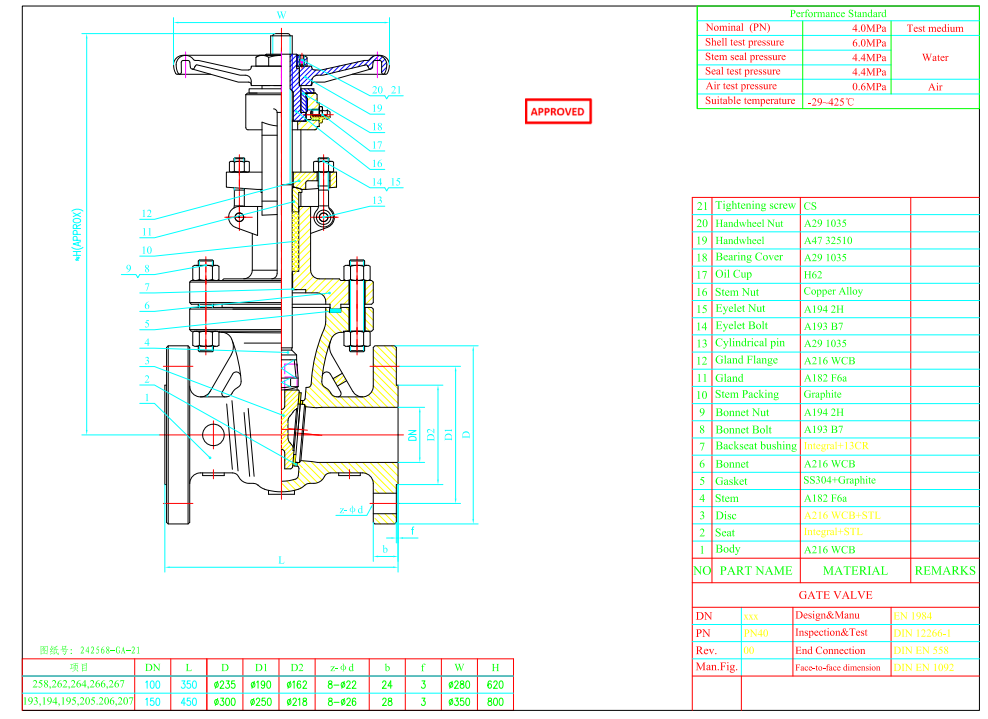

Technical Drawing

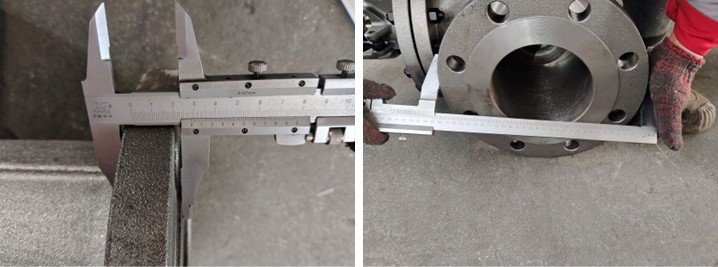

Dimension Checking

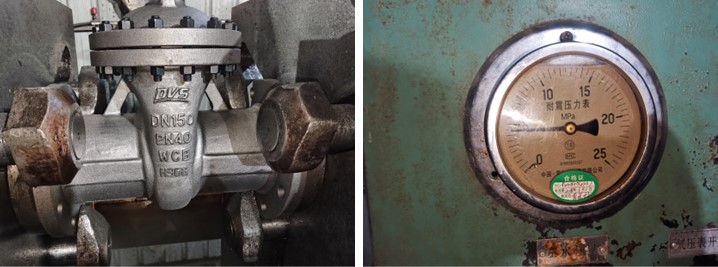

Pressure Testing

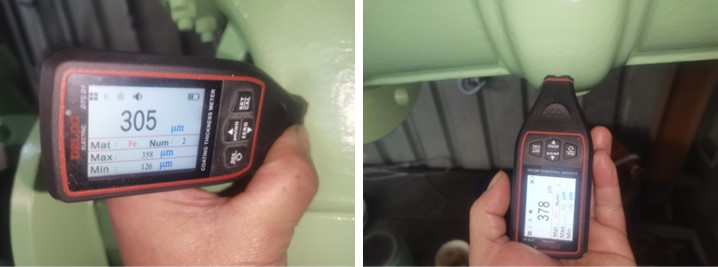

Painting

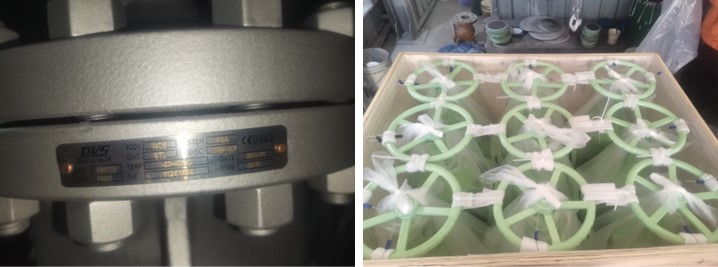

Nameplate & Packing

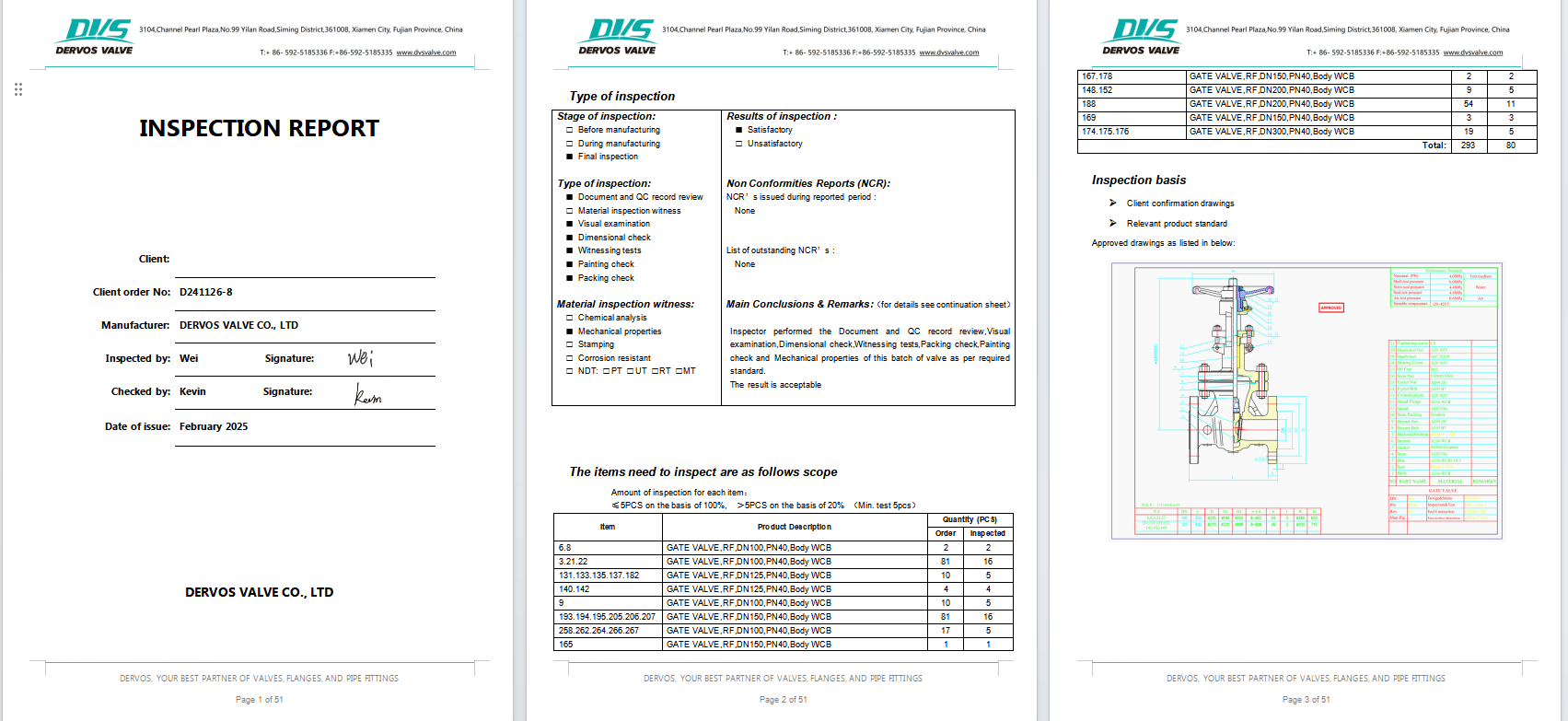

Inspection Report
