Cast Steel Globe Valve 3" 150LB LCB RF Handwheel
Key Specifications / Features
Model No.: Hits: 0
3" 150LB Cast Steel Globe Valve is made according to BS1873 standard. The valve body is made of LCB. It has the structural characteristics of OS&Y, bolted bonnet, full seat bore, fire-safe design. Its connection mode is RF. And it has Handwheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Cast Steel Globe Valve |
| Size | 3" |
| Pressure | 150LB |
| Connection | RF |
| Operation | Handwheel |
| Body Material | LCB |
| Design Norm | BS1873 |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. LCB cast steel construction provides excellent toughness and reliable performance for low-temperature service.2. Globe valve design provides dependable shutoff and effective flow regulation in industrial piping systems.

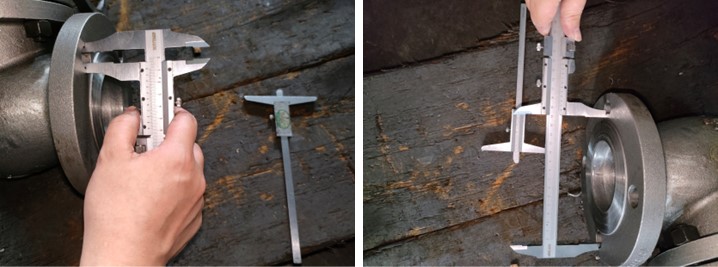

Dimension Checking

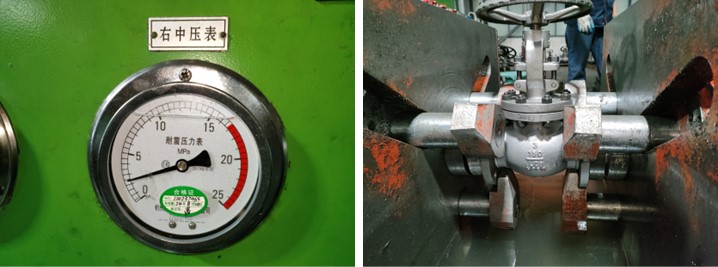

Pressure Testing

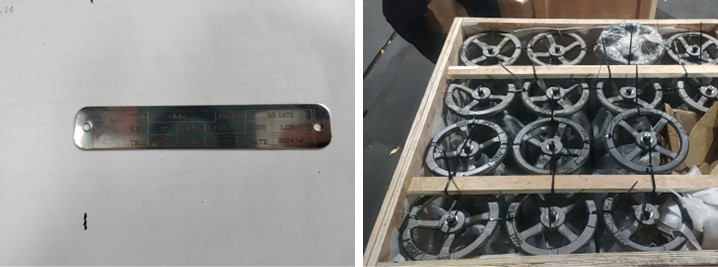

Nameplate & Packing
