Stainless Steel Globe Valve DN32 PN40 1.4571 EN1092-1 B1
Key Specifications / Features
Model No.: Hits: 0
DN32 PN40 Stainless Steel Globe Valve is made according to BS EN 13709 standard. The valve body is made of EN 10088-3 1.4571. It has the structural characteristics of Rising stem, bolted bonnet, straight-through type, flat disc. Its connection mode is EN1092-1 B1. And it has Handwheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Forged Steel Globe Valve DN15 PN16 A105N EN1092-1 B
Detail Information
Product Parameters
| Type | Stainless Steel Globe Valve |
| Size | DN32 |
| Pressure | PN40 |
| Connection | EN1092-1 B1 |
| Operation | Handwheel |
| Body Material | 1.4571 |
| Design Norm | BS EN 13709 |
| Face to face | BS EN 558-1 S.1 |
| Flange ends dimension | BS EN 1092-B1 |
| Test & Inspection Code | BS EN 12266 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Stainless steel 1.4571 construction provides excellent corrosion resistance for demanding industrial service.2. Globe valve design provides reliable shutoff and effective flow regulation in piping systems.

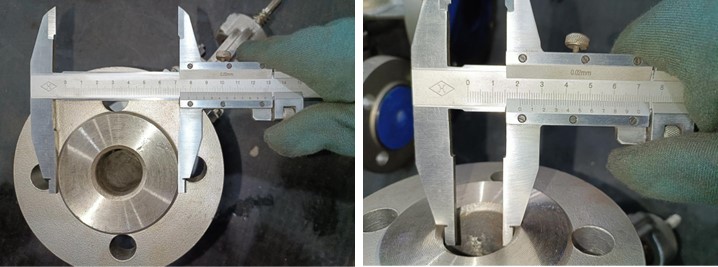

Dimension Checking

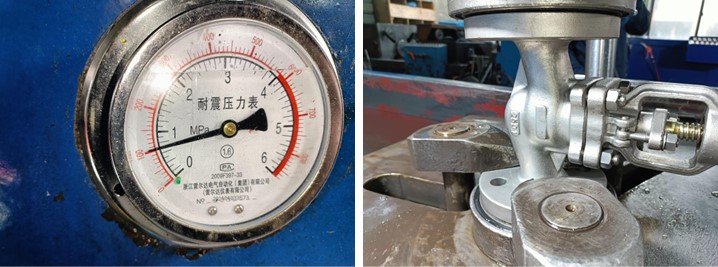

Pressure Testing

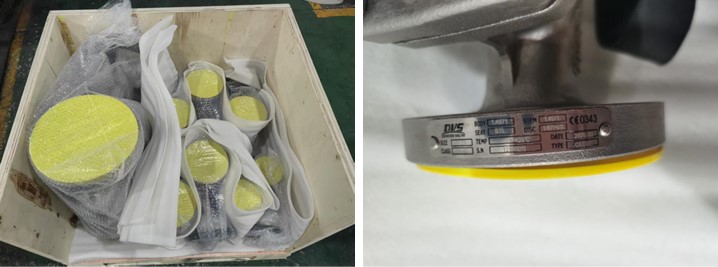

Nameplate & Packing

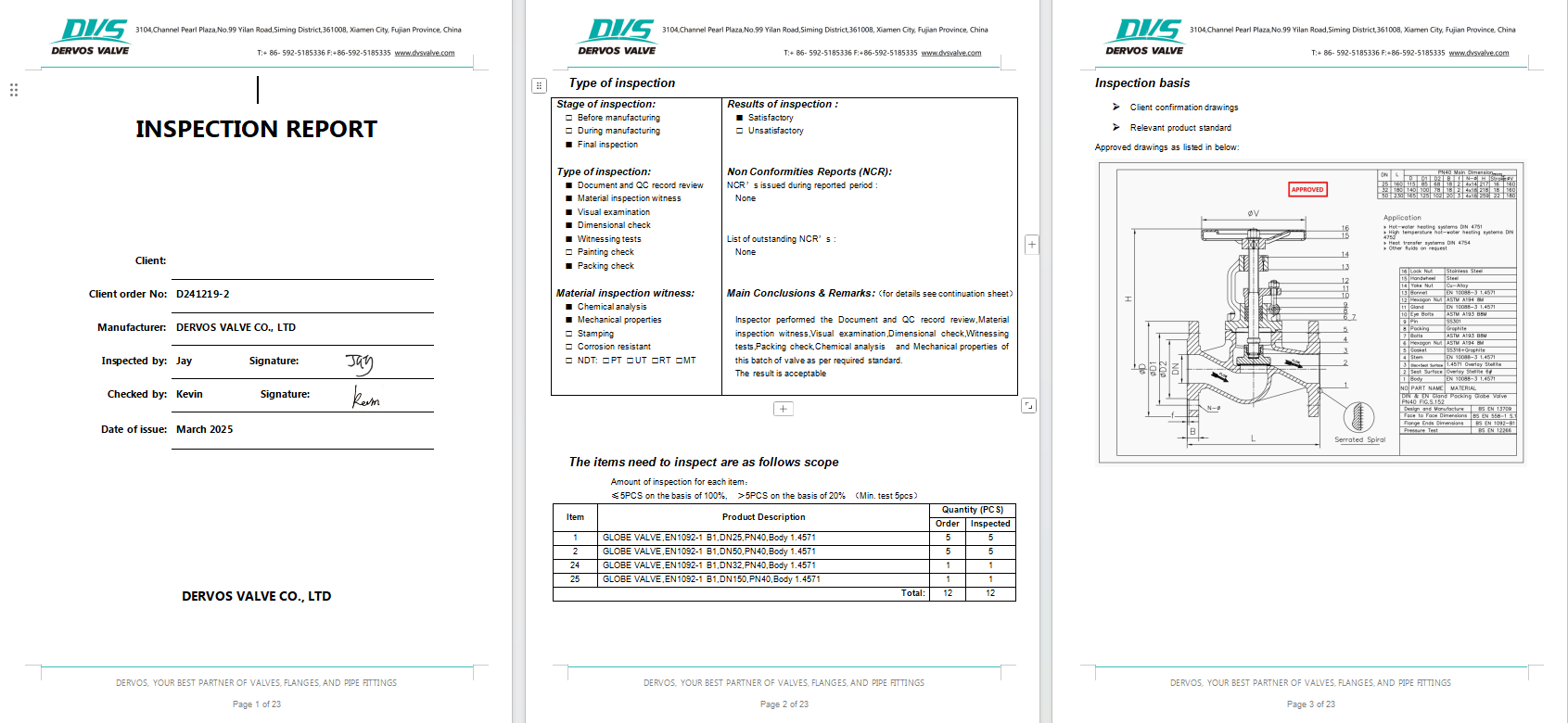

Inspection Report
